Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#14303) — 159 parça
◀

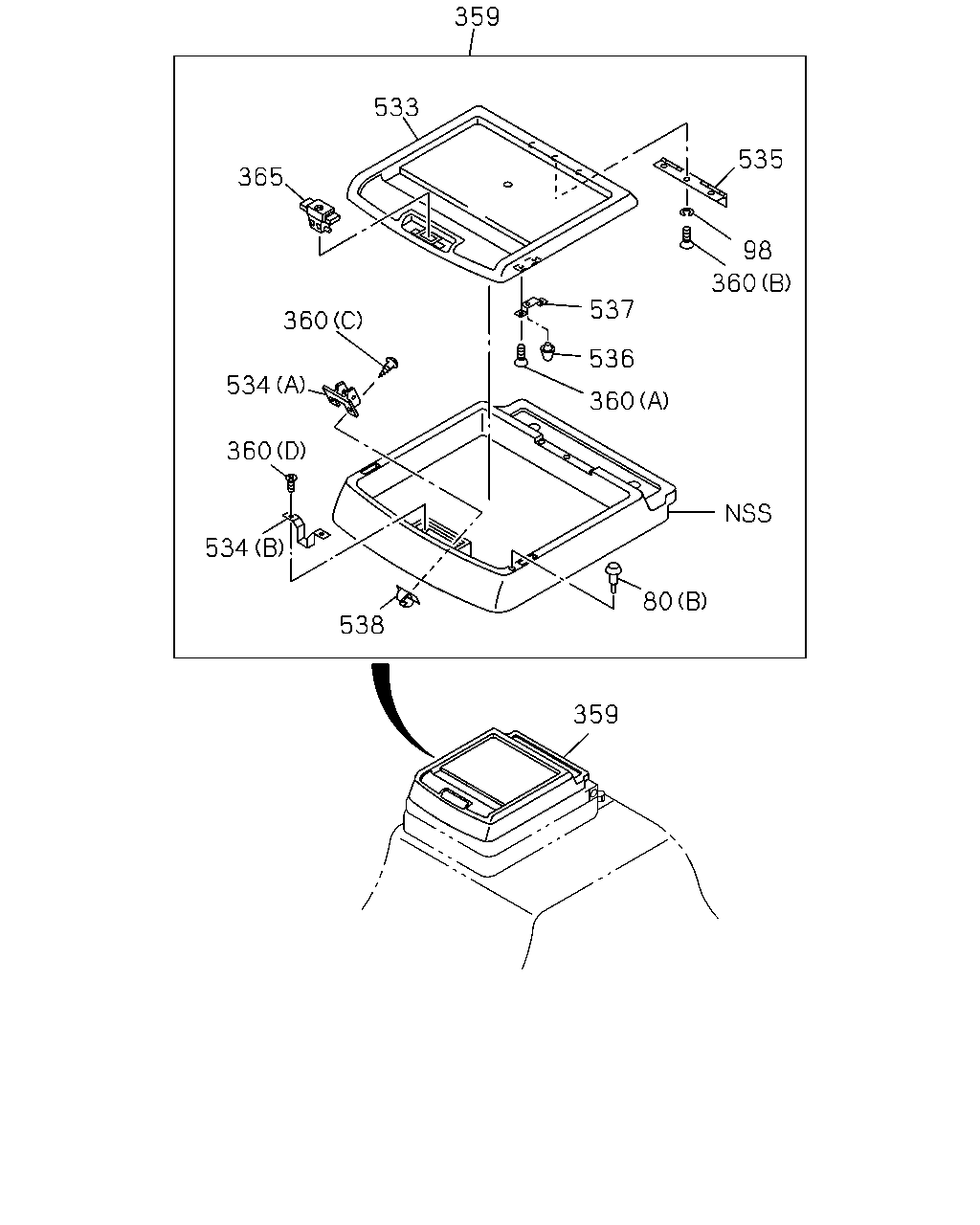

[750A] BOX;PARCEL (22 parça)

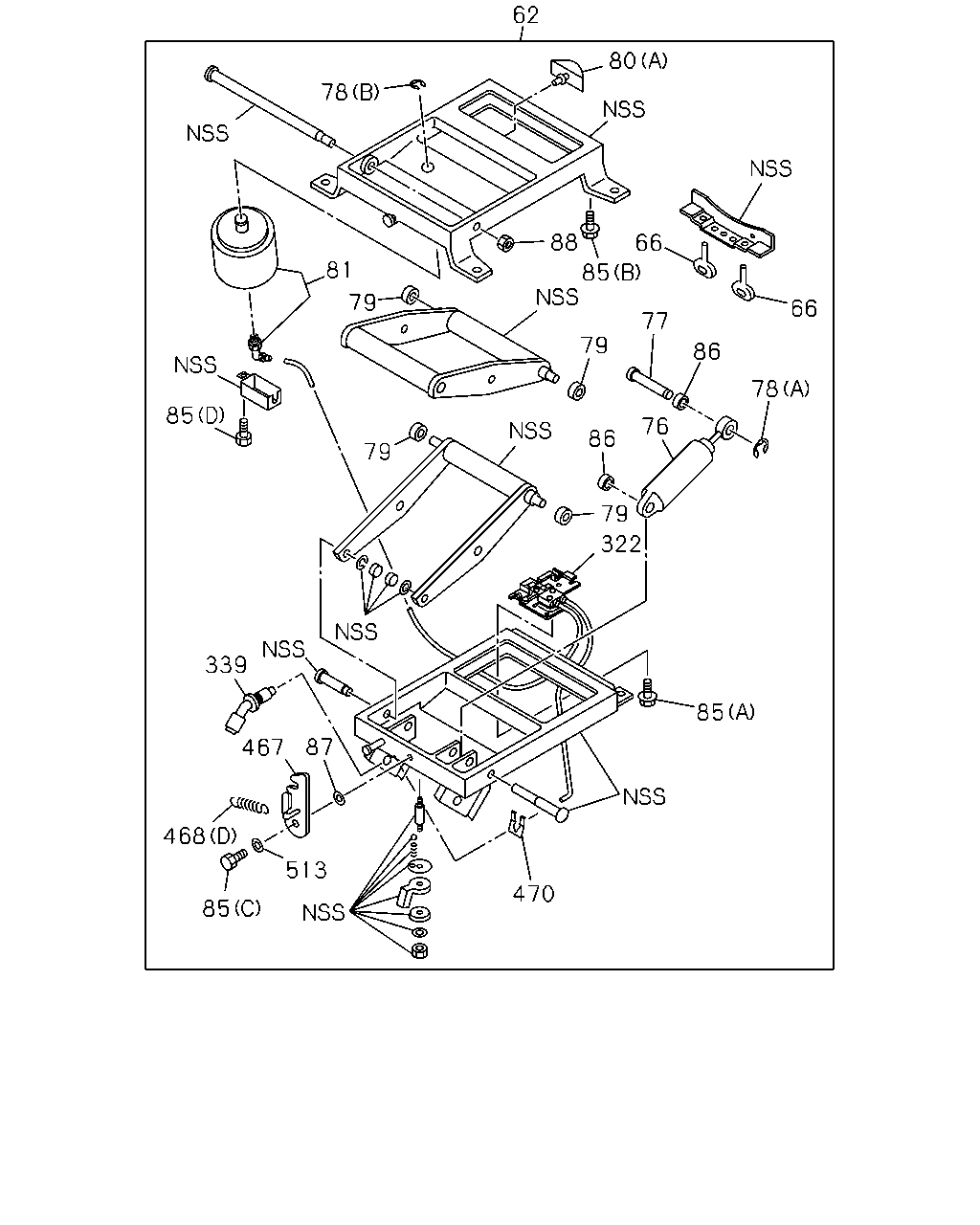

[750A] COMPONENT;DAMPER (31 parça)

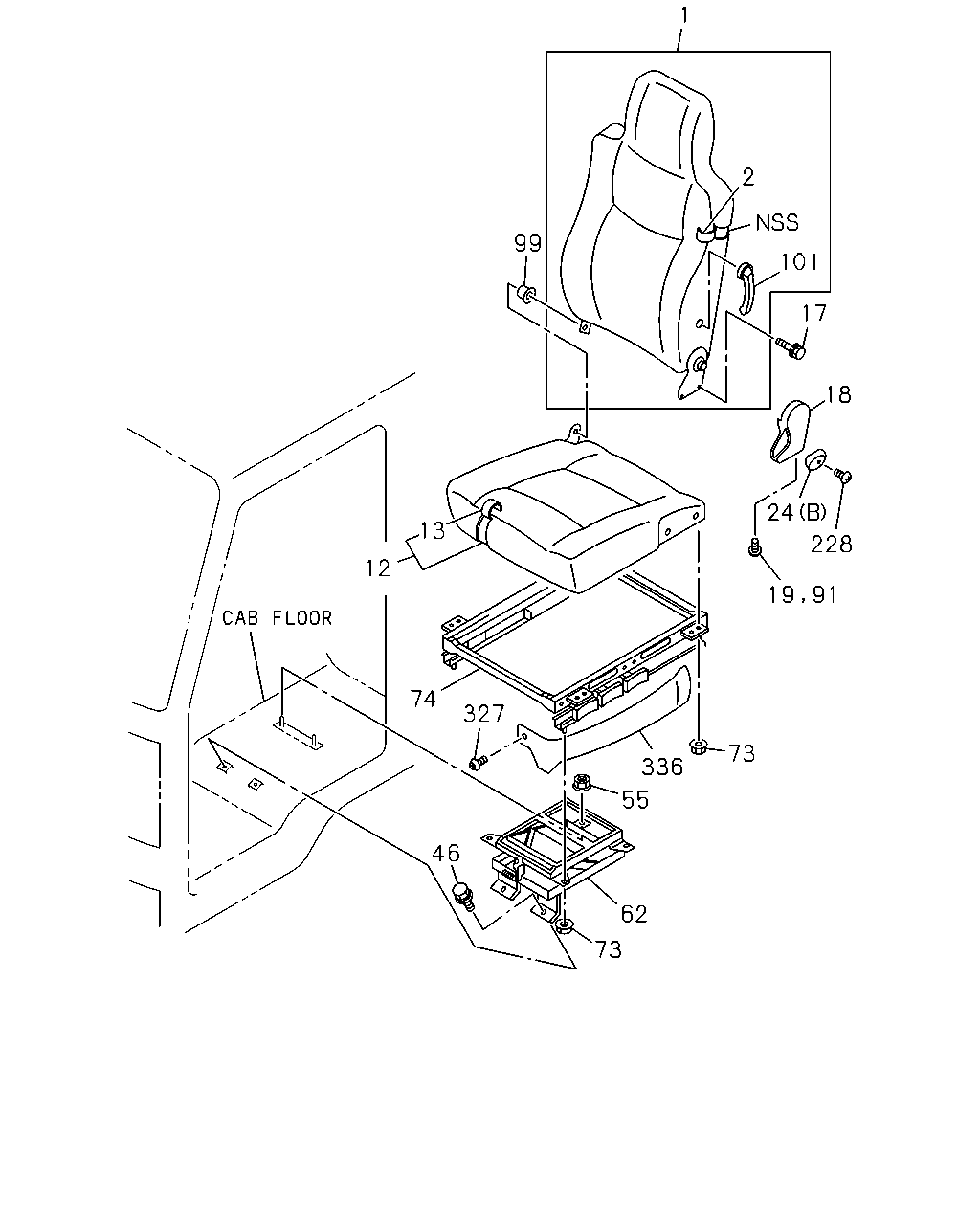

[750A] DRIVER SEAT (29 parça)

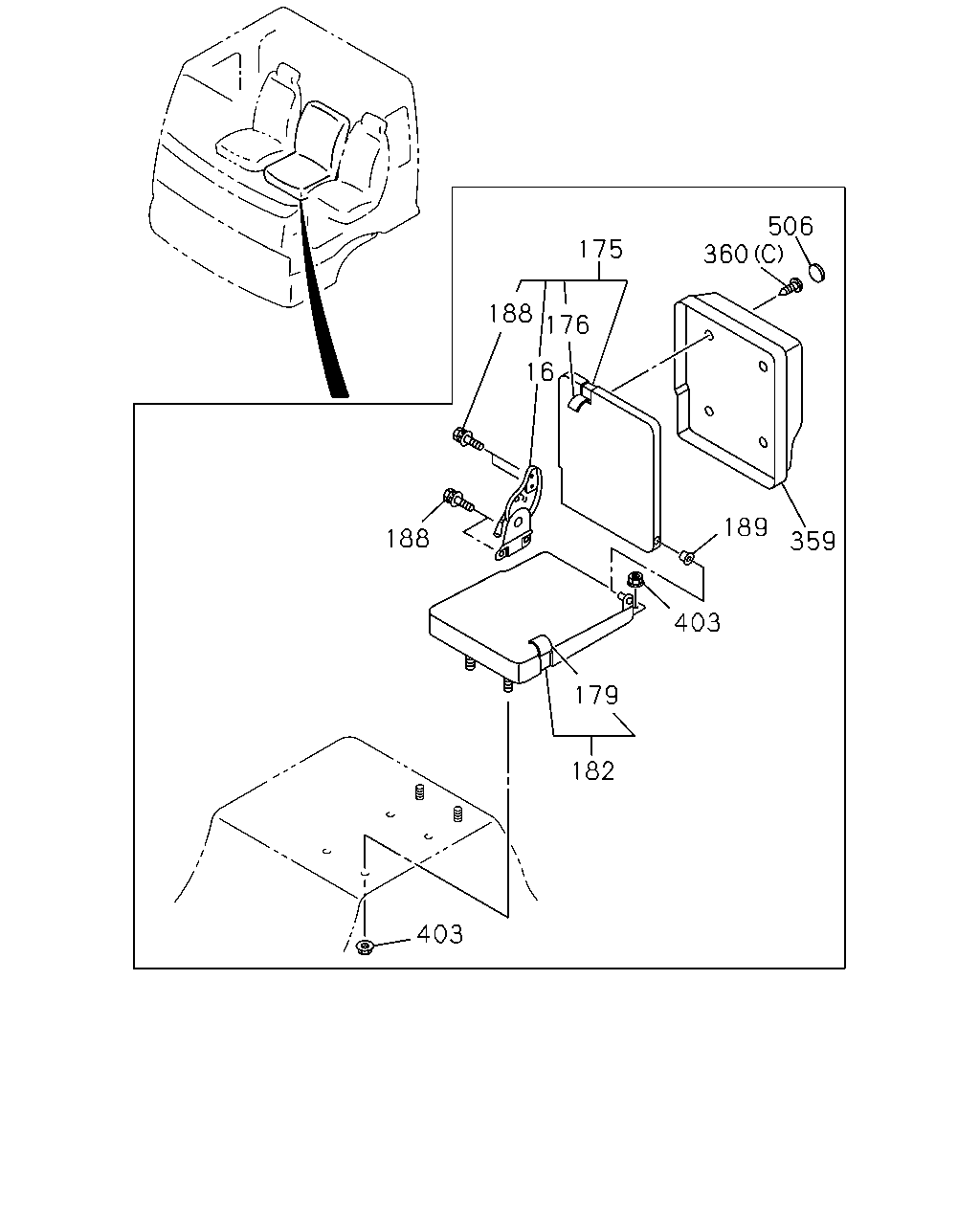

[750A] CENTER SEAT (21 parça)

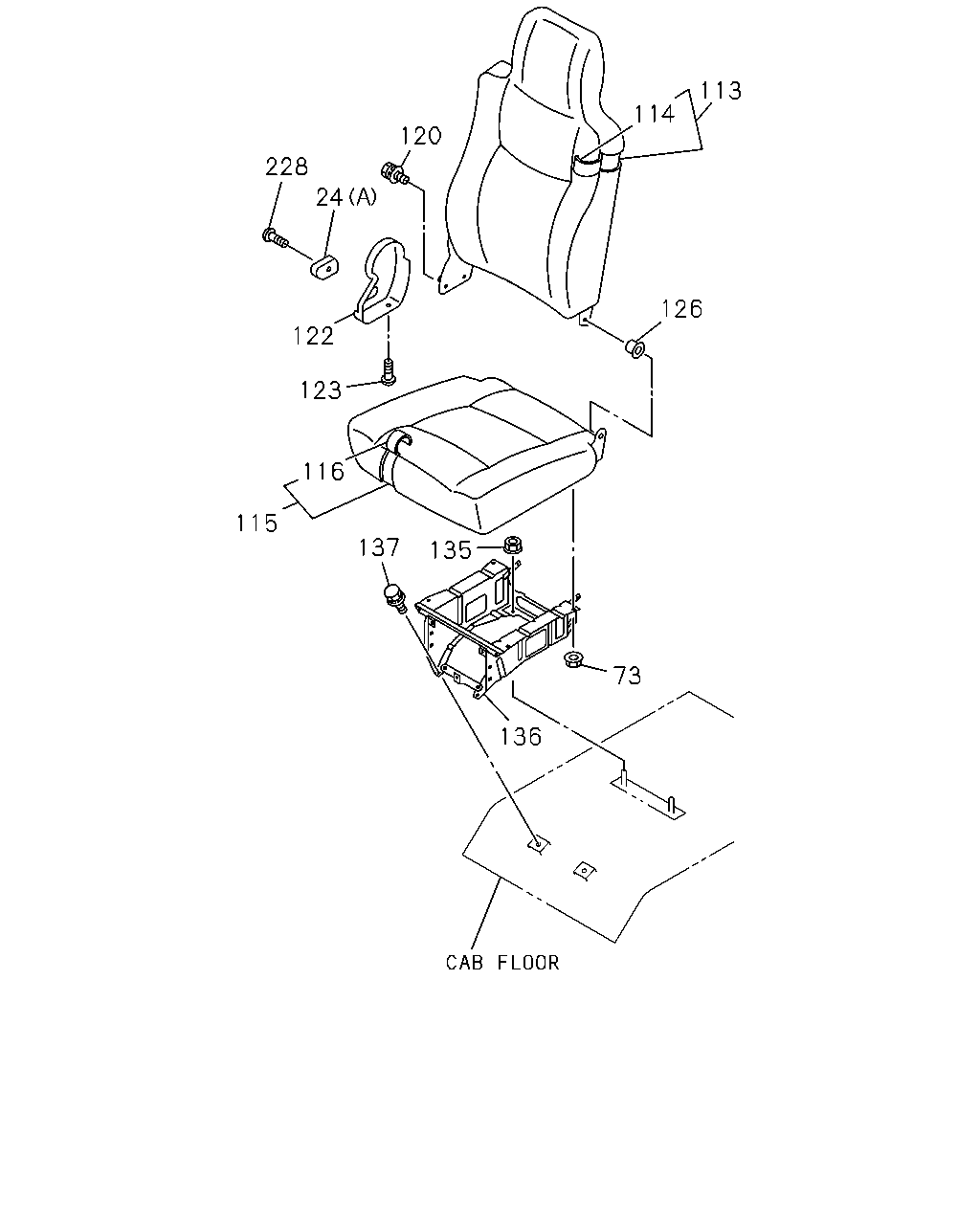

[750A] PASSENGER SEAT (22 parça)

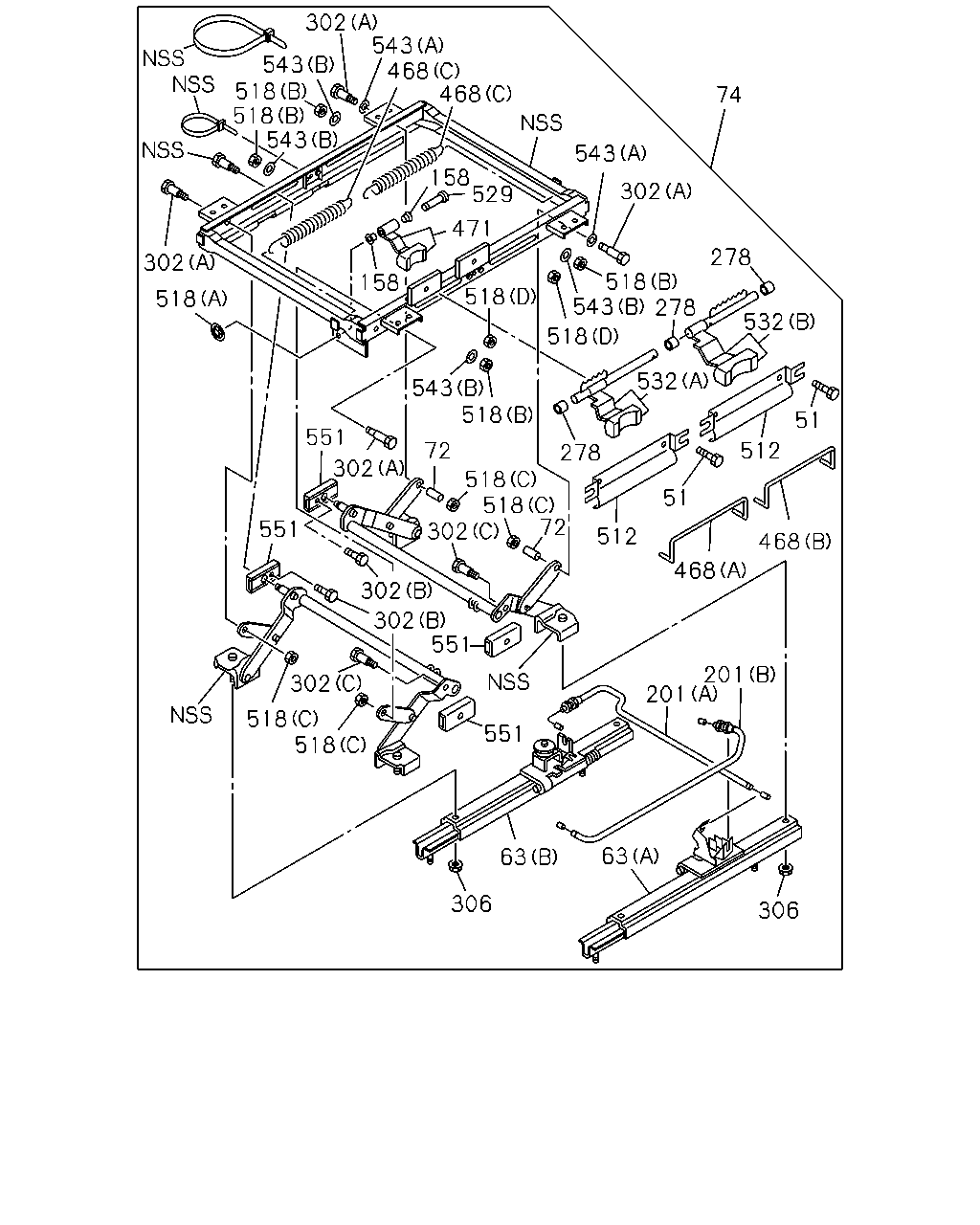

[750A] ADJUSTER;HEIGHT CONTROL (34 parça)
▶
359
533
535
365
98
360
537
360
536
534
360
360
534
80
538
359
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
RUBBER; STOPPER
(B)
1-72538-187-0
02
1
1007-
80
RUBBER; STOPPER
(A)
1-09987-123-0
01
1
0612-
98
WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK
9-09152-704-0
06
1
0612-
359
BOX; PARCEL
1-72538-275-4
01
1
0612-1006
359
BOX; PARCEL
8-98145-114-0
01
1
1007-
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70080-310-0
04
1
0612-0612
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70040-310-0
04
1
0701-1006
360
SCREW; PARCEL
(D) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1007-
360
SCREW; PARCEL
(B) M4X16
0-70080-416-0
06
1
0612-0612
360
SCREW; PARCEL
(B) M4X16
0-70040-416-0
06
1
0701-1104
360
SCREW; PARCEL
(B) M4X16
0-70080-416-0
06
1
1105-
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
05
1
0612-1006
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
04
1
1007-
365
LOCK ASM; SEAT
1-72538-180-0
01
1
0612-
533
LID; PARCEL BOX
1-72538-277-1
01
1
0612-1006
533
LID; PARCEL BOX
8-98145-118-0
01
1
1007-
534
STRIKER; PARCEL BOX
(A)
1-72538-181-0
01
1
0612-1006
534
STRIKER; PARCEL BOX
(B)
1-72538-190-0
01
1
1007-
535
HINGE; PARCEL BOX
1-72447-391-1
01
1
0612-
536
RUBBER; CUSHION
5-09983-002-1
02
1
0612-1006
537
BRACKET; RUBBER
1-72548-057-1
02
1
0612-1006
538
GROMMET; SCREW
1-09983-165-0
02
1
0612-1006
62
78
81
85
339
467
468
85
87
79
79
80
88
79
86
79
85
470
322
76
77
85
66
66
86
78
513
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
DAMPER ASM; SEAT SUSP
1-75538-185-8
01
1
0612-1403
62
DAMPER ASM; SEAT SUSP
8-98261-451-0
01
1
1404-
66
RUBBER; LWR STOPPER
1-75538-145-0
02
1
0612-
76
DAMPER; AIR SUSP
1-75538-139-0
01
1
0612-
77
PIN; DAMPER
1-75538-138-2
01
1
0612-
78
RING; SNAP
(A) ID=8
9-09185-408-0
01
1
0612-
78
RING; SNAP
(B) ID=15
9-09185-415-0
01
1
0612-
79
ROLLER ASM; AIR SUSP
1-75538-159-0
04
1
0612-1403
79
ROLLER ASM; AIR SUSP
8-98261-489-0
04
1
1404-
80
RUBBER; STOPPER
(B)
1-72538-187-0
02
1
1007-
80
RUBBER; STOPPER
(A)
1-09987-123-0
01
1
0612-
81
SPRING; AIR
1-75538-151-2
01
1
0612-1312
81
SPRING; AIR
8-98242-816-0
01
1
1401-
85
BOLT; AIR SUSP
(D) M8X25 W/LK&PL WASHER
8-98243-394-0
01
1
1401-
85
BOLT; AIR SUSP
(C)
1-09980-577-1
01
1
0612-
85
BOLT; AIR SUSP
(A) M6X12
1-75538-208-1
02
1
0612-
85
BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER
1-75538-209-0
03
1
0612-1312
85
BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER
1-75538-209-0
02
1
1401-
86
BUSHING; GUIDE
OD=6.2 LIGHT GRAY
1-09983-173-1
02
1
0612-
87
WASHER; AIR SUSP
ID=8.2
9-09150-508-0
01
1
0612-0710
87
WASHER; AIR SUSP
ID=8.2
0-91510-508-0
01
1
0711-
88
NUT; AIR SUSP
M10
1-75537-273-1
01
1
0612-
322
VALVE; AIR SPRING
1-75538-187-3
01
1
0612-
339
UNION; DRIVER SEAT
1-75538-131-3
01
1
0612-
467
LEVER; LOCK
1-75538-134-0
01
1
0612-
468
SPRING; RETURN
(A)
1-75518-206-0
01
1
0612-
468
SPRING; RETURN
(B)
1-75518-207-0
01
1
0612-
468
SPRING; RETURN
(C)
1-75518-208-0
02
1
0612-
468
SPRING; RETURN
(D)
1-75538-132-0
01
1
0612-
470
CLIP; HOSE
1-75538-137-0
01
1
0612-
513
SPACER; LEVER
1-75538-133-0
01
1
0612-
1
2
99
101
17
18
24
13
228
12
74
327
73
336
55
46
62
73
19
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
1-75208-073-2
01
1
0612-0901
1
BACK ASM; SEAT
8-98135-614-0
01
1
0902-
2
COVER; TRIM,FRT SEAT,BACK
1-75116-708-1
01
1
0612-
12
CUSHION; SEAT,FRT
1-75026-697-3
01
1
0612-
13
COVER; TRIM,FRT SEAT,CUSHION
1-75116-685-1
01
1
0612-
17
BOLT; RECLINING
M8X20
8-97255-906-0
02
1
0612-
18
COVER; RECLINING
DARK GRAY
8-97859-018-0
01
1
0612-
19
SCREW; COVER
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0612-
24
KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY
8-97859-019-0
01
1
0612-0710
24
KNOB; RECLINING,FRT,SEAT
(B)
1-75418-067-0
01
1
0711-
24
KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY
8-97867-021-0
01
1
0612-
46
BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0612-0703
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
0704-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
1-09984-153-0
02
1
0612-0703
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
0704-
62
DAMPER ASM; SEAT SUSP
1-75538-185-8
01
1
0612-1403
62
DAMPER ASM; SEAT SUSP
8-98261-451-0
01
1
1404-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
0612-
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-331-3
01
1
0612-1502
74
ADJUSTER; FRT SEAT,HEIGHT CONT
8-98291-646-0
01
1
1503-
91
SCREW; SEAT ADJ COVER
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0612-
99
BUSHING; SEAT BACK
8-97854-087-0
01
1
0612-
101
LEVER ASM; LUMBAR
5-75190-138-0
01
1
0612-
228
SCREW; KNOB
DRIVER M4
8-98062-662-0
01
1
0711-
228
SCREW; KNOB
PASSENGER M4X6
8-97042-273-0
01
1
0612-0710
228
SCREW; KNOB
PASSENGER M4X6
8-97042-273-0
01
1
0612-0710
228
SCREW; KNOB
PASSENGER M4X6
8-97042-273-0
01
1
0711-
327
CLIP; COVER
1-09987-273-0
01
1
0612-
336
COVER; DRIVER SEAT
1-75518-313-0
01
1
0612-
506
360
175
188
176
16
189
188
359
403
179
182
403
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
ADJUSTER ASM; RECLINING
1-75418-062-1
01
1
0612-
175
BACK ASM; PASSENGER CENTER SEAT
1-75026-854-3
01
1
0612-
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
1-75116-650-1
01
1
0612-
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
1-75116-693-1
01
1
0612-
182
CUSHION ASM; CENTER SEAT
1-75026-842-4
01
1
0612-
188
BOLT; BACK TO CUSHION
M10X16 FLANGE
1-75198-053-0
04
1
0612-
189
BUSHING; HINGE,CENTER SEAT BACK
8-97854-900-0
01
1
0612-
359
BOX; PARCEL
1-72538-275-4
01
1
0612-1006
359
BOX; PARCEL
8-98145-114-0
01
1
1007-
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70080-310-0
04
1
0612-0612
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70040-310-0
04
1
0701-1006
360
SCREW; PARCEL
(D) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1007-
360
SCREW; PARCEL
(B) M4X16
0-70080-416-0
06
1
0612-0612
360
SCREW; PARCEL
(B) M4X16
0-70040-416-0
06
1
0701-1104
360
SCREW; PARCEL
(B) M4X16
0-70080-416-0
06
1
1105-
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
05
1
0612-1006
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
04
1
1007-
403
NUT; CENTER SEAT
M8 FLANGE
1-75538-207-0
04
1
0612-0703
403
NUT; CENTER SEAT
M8 FLANGE
0-91180-108-0
04
1
0704-
506
CAP; PARCEL BOX
1-09983-180-3
04
1
0612-1006
506
CAP; PARCEL BOX
1-09983-180-3
02
1
1007-
113
114
120
228
24
126
122
123
116
115
137
135
73
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY
8-97859-019-0
01
1
0612-0710
24
KNOB; RECLINING,FRT,SEAT
(B)
1-75418-067-0
01
1
0711-
24
KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY
8-97867-021-0
01
1
0612-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
0612-
113
BACK ASM; SEAT
1-75208-062-3
01
1
0612-
114
COVER; TRIM,PASSENGER SEAT,BACK
1-75116-602-1
01
1
0612-
115
CUSHION ASM; PASSENGER SEAT
1-75026-698-1
01
1
0612-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
1-75116-686-1
01
1
0612-
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
02
1
0612-
122
COVER; ADJ,RECLINING
DARK GRAY
8-97867-020-0
01
1
0612-
123
SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0612-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
0612-
135
NUT; SEAT STAND
M10 FLANGE
1-09984-153-0
02
1
0612-0703
135
NUT; SEAT STAND
M10 FLANGE
0-91180-110-0
02
1
0704-
136
STAND; PASSENGER SEAT
1-75558-550-7
01
1
0612-1305
136
STAND; PASSENGER SEAT
8-98242-292-0
01
1
1306-
137
BOLT; STAND
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0612-0703
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
0704-
228
SCREW; KNOB
DRIVER M4
8-98062-662-0
01
1
0711-
228
SCREW; KNOB
PASSENGER M4X6
8-97042-273-0
01
1
0612-0710
228
SCREW; KNOB
PASSENGER M4X6
8-97042-273-0
01
1
0612-0710
228
SCREW; KNOB
PASSENGER M4X6
8-97042-273-0
01
1
0711-
74
543
278
302
518
543
518
278
51
532
532
512
51
512
468
468
201
201
306
63
63
306
551
518
518
302
302
551
302
551
302
551
72
518
518
302
72
278
518
543
518
529
471
158
158
468
468
543
302
543
518
518
302
543
518
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
SCREW; COVER
1-75518-325-1
04
1
0612-
63
ADJUSTER; SEAT SLIDE
(B)
1-75518-227-1
01
1
0612-
63
ADJUSTER; SEAT SLIDE
(A)
1-75518-324-0
01
1
0612-
72
SPACER; SEAT ADJ
1-75518-334-1
02
1
0612-1502
72
SPACER; SEAT ADJ
8-98291-668-0
02
1
1503-
74
ADJUSTER; FRT SEAT,HEIGHT CONT
1-75518-331-3
01
1
0612-1502
74
ADJUSTER; FRT SEAT,HEIGHT CONT
8-98291-646-0
01
1
1503-
158
BUSHING; LINK ARM
1-75518-209-0
02
1
0612-
201
CABLE; ADJ
(A) L=667
1-75518-288-0
01
1
0612-
201
CABLE; ADJ
(B) L=605
1-75518-289-1
01
1
0612-
278
COLLAR; FRT SEAT
1-75518-244-0
03
1
0612-
302
BOLT; ADJ,HEIGHT CONT
(C)
1-75518-266-2
02
1
0612-
302
BOLT; ADJ,HEIGHT CONT
(A)
1-75518-270-1
04
1
0612-1502
302
BOLT; ADJ,HEIGHT CONT
(A)
8-98291-667-0
04
1
1503-
302
BOLT; ADJ,HEIGHT CONT
(B)
1-75518-336-1
02
1
0612-
306
NUT; SEAT ADJ
M8 FLANGE
1-75538-207-0
14
1
0612-
468
SPRING; RETURN
(A)
1-75518-206-0
01
1
0612-
468
SPRING; RETURN
(B)
1-75518-207-0
01
1
0612-
468
SPRING; RETURN
(C)
1-75518-208-0
02
1
0612-
468
SPRING; RETURN
(D)
1-75538-132-0
01
1
0612-
471
LEVER; SEAT ADJ
1-75518-290-0
01
1
0612-0710
471
LEVER; SEAT ADJ
8-98107-870-0
01
1
0711-
512
COVER; LEVER
1-75518-245-1
02
1
0612-
518
NUT; TILT ADJ
(A)
1-75518-263-0
01
1
0612-
518
NUT; TILT ADJ
(B) M8
1-75518-264-0
04
1
0612-
518
NUT; TILT ADJ
(C) M6 LOCK NUT
5-09984-020-0
02
1
0612-
518
NUT; TILT ADJ
(D) M8 FLANGE
8-94152-886-0
04
1
0612-
529
PIN; LINK
1-75518-262-0
01
1
0612-
532
LEVER ASM; TILT
(A)
1-75518-221-0
01
1
0612-
532
LEVER ASM; TILT
(B)
1-75518-222-1
01
1
0612-
543
WASHER; HEIGHT ADJUSTER
(B) ID=8.4
9-09160-508-0
04
1
0612-
543
WASHER; HEIGHT ADJUSTER
(A)
1-75518-335-0
02
1
0612-1502
543
WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19
8-98291-669-0
02
1
1503-
551
SLIDER; HEIGHT ADJ
1-75518-265-0
04
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
