2-30 — GEAR SHIFTER AND QUADRANT BOX (#1430) — 186 parça

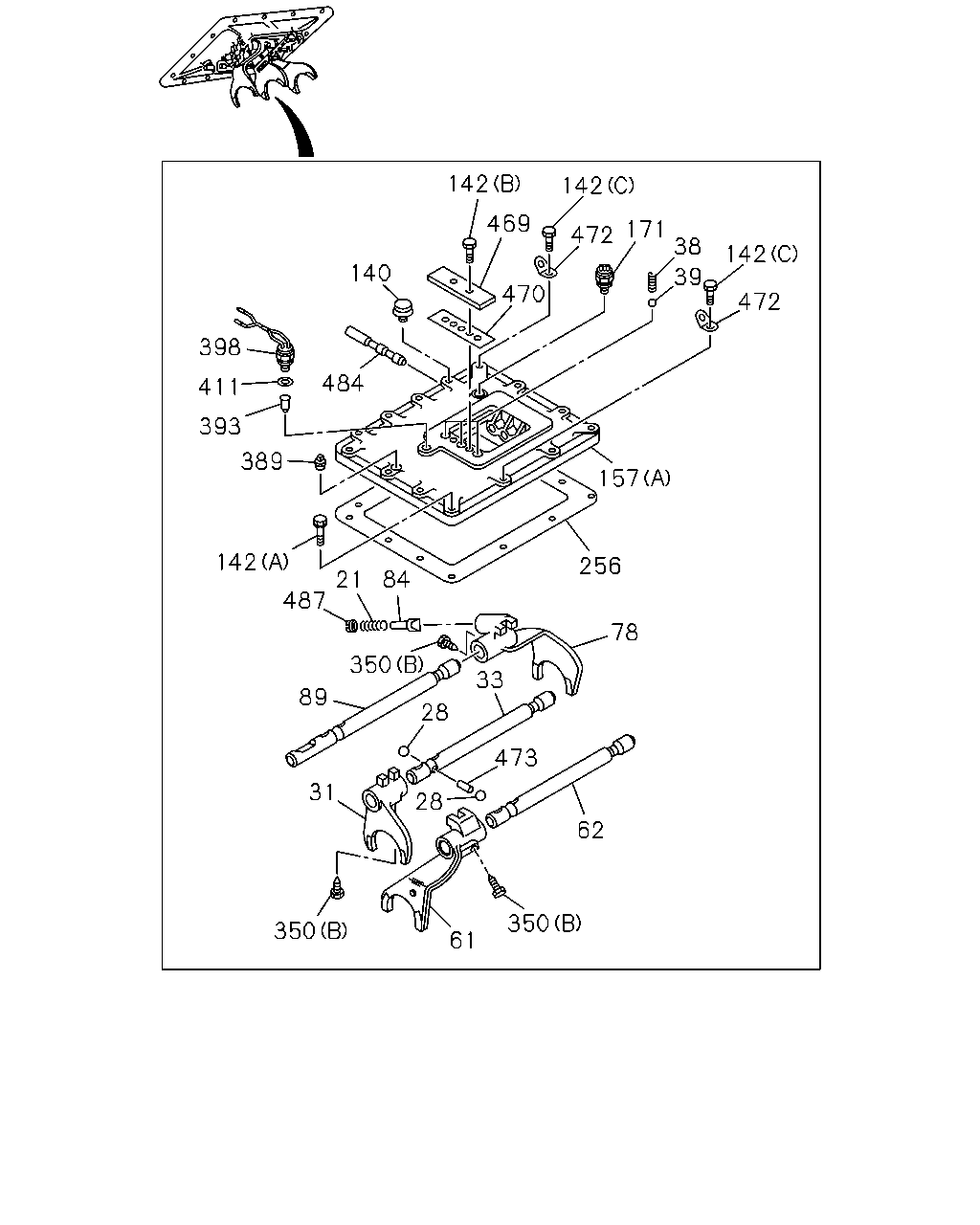

çizim 29043
142 142 469 171 472 38 142 470 140 39 472 398 484 411 393 389 157 142 84 256 21 487 78 350 33 89 28 473 31 28 62 350 350 61
BalonParca AdiParca NoAdetTipApplied Date A B
21 SPRING; COIL COMP SLEEVE 1-87061-207-0 01 1 9203- ● ●
28 BALL; INTER LK 1-87061-224-0 02 1 9203- ● ●
31 ARM; SHIFT,LOW & 2ND 1-87061-463-0 01 1 9203- ● ●
33 ROD; SHIFT,LOW & 2ND 1-87061-417-0 01 1 9203- ● ●
38 SPRING; DETENT 1-87061-552-0 03 1 9203- ●
38 SPRING; DETENT 1-87060-785-0 03 1 9203- ●
39 BALL; DETENT 1-87060-789-0 03 1 9203- ● ●
61 ARM; SHIFT,3RD & 4TH 1-87061-462-0 01 1 9203- ● ●
62 ROD; SHIFT,3RD & 4TH 1-87061-418-0 01 1 9203- ● ●
78 ARM; SHIFT,REV 1-87061-464-0 01 1 9203- ● ●
84 SLEEVE; REV 1-87061-112-0 01 1 9203- ● ●
89 ROD; SHIFT,REV 1-87061-424-0 01 1 9203- ● ●
140 BREATHER; AIR,TRANS 1-87060-780-0 01 1 9203- ● ●
142 BOLT; QUAD BOX
(D) 		0-50141-028-0 04 1 9203- ● ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9203- ● ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9203- ● ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9203- ● ●
157 BOX; QUAD,TRANS
(A) 		1-87061-550-0 01 1 9203- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9203- ● ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9203- ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 9203- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-421-0 01 1 9203- ● ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 03 1 9203- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-566-0 02 1 9203- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9203- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9203- ●
389 PLUG; QUAD BOX,NEUTRAL SW 1-87061-553-0 01 1 9203- ●
389 PLUG; QUAD BOX,NEUTRAL SW 1-87061-091-0 01 1 9203- ●
393 PIN; SW 1-87061-139-0 01 1 9203- ● ●
398 SWITCH; REV LAMP 1-82440-046-0 01 1 9203- ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-87060-781-0 01 1 9203- ● ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 9203- ● ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9203- ● ●
472 EYE; LIFTING 1-87060-783-0 02 1 9203- ● ●
473 PIN; ROLL 1-87060-808-0 01 1 9203- ● ●
484 SHAFT; AIR VALVE 1-87061-551-0 01 1 9203- ●
484 SHAFT; AIR VALVE 1-87061-164-0 01 1 9203- ●
487 PLUG; SHIFT BLOCK 1-87061-213-0 01 1 9203- ● ●

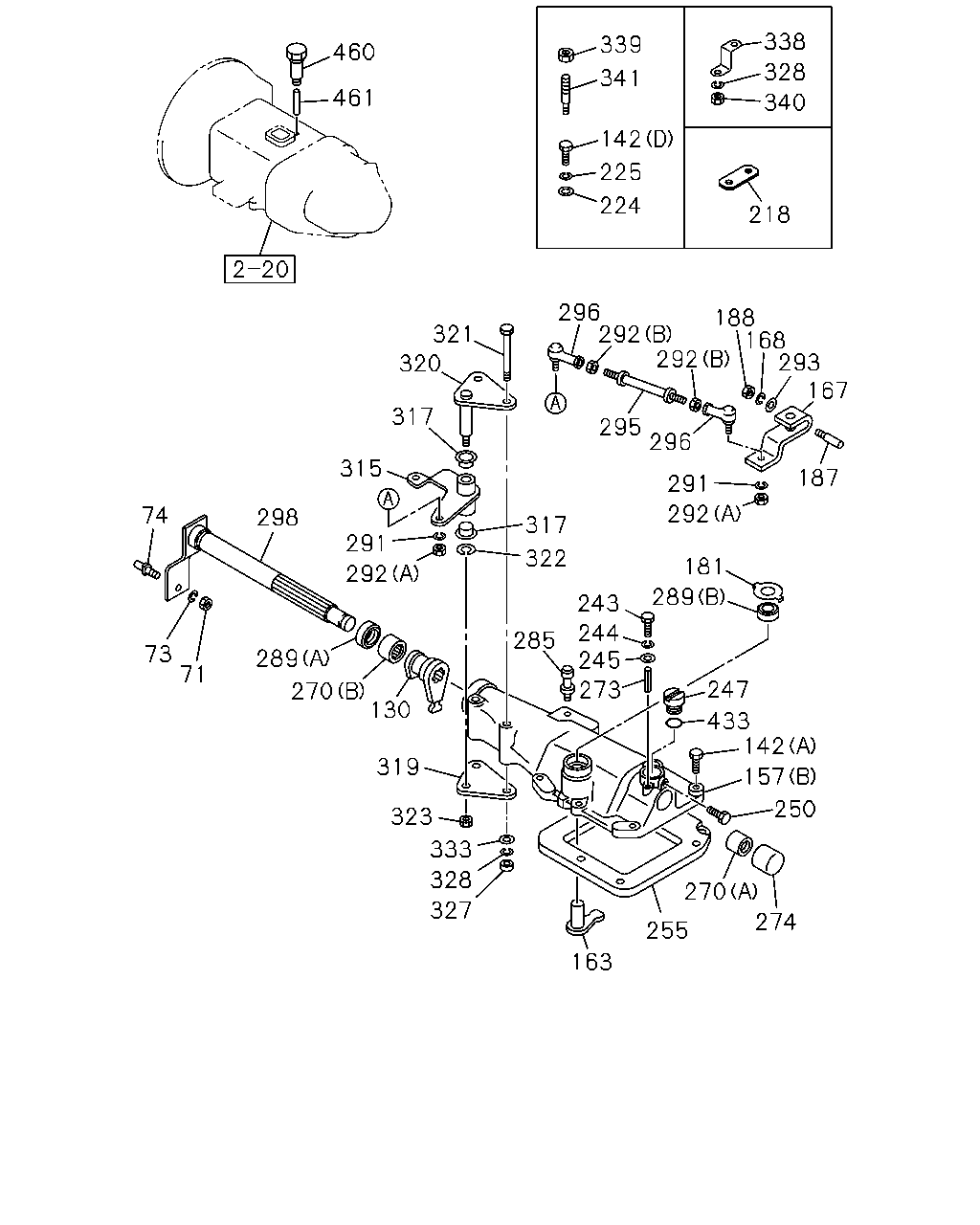

çizim 29207
338 339 460 328 341 461 340 142 225 224 218 296 292 292 188 168 293 167 321 320 317 295 296 315 187 291 292 74 298 317 291 322 181 292 289 243 244 245 285 73 71 289 247 273 270 130 433 142 319 157 250 323 333 328 270 327 274 255 163
BalonParca AdiParca NoAdetTipApplied Date A B
71 NUT; SHIFT LEVER
M10 		9-09110-510-0 01 1 9203- ● ●
73 WASHER; LK,SHIFT LEVER
ID=10.2 		9-09150-510-0 01 1 9203- ● ●
74 PIN; WIRE,SHIFT LEVER 1-33659-115-0 01 1 9203- ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 9203- ● ●
142 BOLT; QUAD BOX
(D) 		0-50141-028-0 04 1 9203- ● ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9203- ● ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9203- ● ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9203- ● ●
157 BOX; QUAD,TRANS
(A) 		1-87061-550-0 01 1 9203- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9203- ● ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9203- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9203- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-070-0 01 1 9203- ● ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9203- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9203- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9203- ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9203- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
L=59 		1-82699-228-0 02 1 9203- ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9203- ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9203- ● ●
243 BOLT; COVER
M6X10 		0-20800-610-0 01 1 9203- ● ●
244 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 01 1 9203- ● ●
245 WASHER; PL,COVER
ID=6.4 		9-09160-506-0 01 1 9203- ● ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 9203- ● ●
250 SCREW; BUSHING 9-06130-618-0 01 1 9203- ● ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9203- ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9203- ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9203- ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9203- ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9203- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9203- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9203- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9203- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9203- ● ●
291 WASHER; LK,LINK ROD
ID=8.2 		9-09150-508-0 02 1 9203-9312 ● ●
292 NUT; LINK ROD
(A) 		9-09110-408-0 02 1 9203-9312 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9401- ● ●
292 NUT; LINK ROD
(B) 		9-09111-408-0 02 1 9203- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9203- ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-33652-392-0 01 1 9203-9402 ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9403- ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9203- ● ●
298 SHAFT; SHIFT LEVER
6SA1 STD ENG(06L) 		1-33522-104-0 01 1 9203- ● ●
298 SHAFT; SHIFT LEVER
6SA1TC ENG(28L) 		1-33522-119-0 01 1 9203- ● ●
315 LEVER; SELECT
6SA1 STD ENG(06L) 		1-33651-497-0 01 1 9203- ● ●
315 LEVER; SELECT
6SA1TC ENG(28L) 		1-33651-552-0 01 1 9203- ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9203- ● ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9203- ● ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9203- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9203- ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9203- ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9203- ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9203- ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 9203- ● ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 06 1 9203- ● ●
333 WASHER; PL,LEVER
ID=10.5 OD=18 		9-09160-510-0 02 1 9203- ● ●
338 BRACKET; FLEX TUBE 1-47475-868-0 03 1 9203- ● ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 9203- ● ●
340 NUT; BRKT
M10 		9-09110-510-0 04 1 9203- ● ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 9203- ● ●
433 GASKET; BUSHING 1-09623-130-0 01 1 9203- ● ●
460 ADAPTER; NEUTRAL SW 1-09660-460-2 01 1 9203- ● ●
461 ROD; ADAPTER 1-82446-001-0 01 1 9203- ● ●

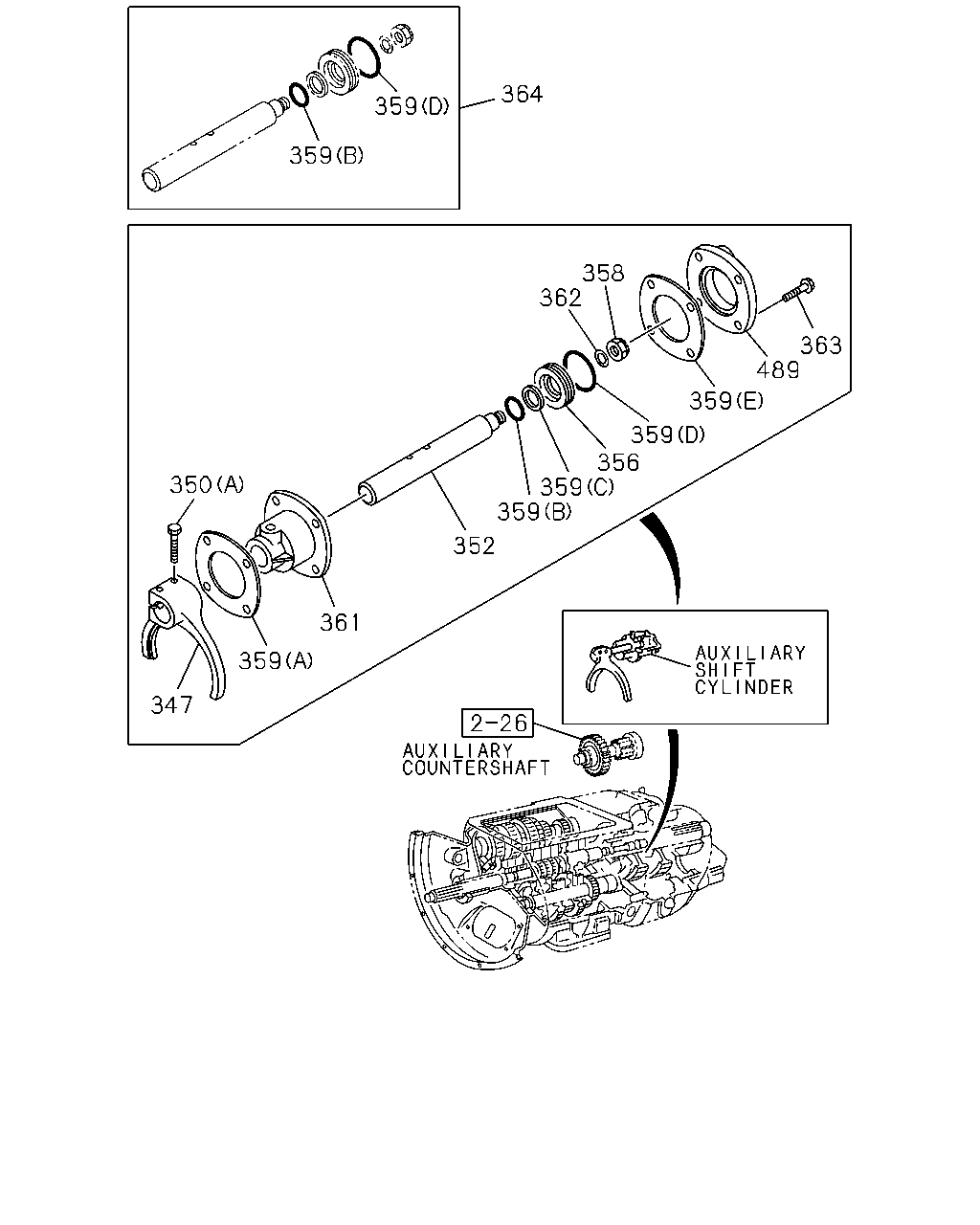

çizim 94367
364 359 359 358 362 363 489 359 359 356 359 359 350 352 361 359 347
BalonParca AdiParca NoAdetTipApplied Date A B
347 ARM; SHIFT,RANGE CHANGE 1-87061-567-0 01 1 9203- ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 9203- ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 9203- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 03 1 9203- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-566-0 02 1 9203- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9203- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9203- ●
352 ROD; SHIFT,RANGE CHANGE 1-87061-568-0 01 1 9203- ●
352 ROD; SHIFT,RANGE CHANGE 1-87061-261-0 01 1 9203- ●
356 PISTON; AIR CYL 1-87061-573-0 01 1 9203- ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 9203- ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 9203- ●
358 NUT; SHIFT ROD 1-87061-575-0 01 1 9203- ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 9203- ●
359 GASKET; AIR CYL
(A) 		1-87061-569-0 01 1 9203- ●
359 GASKET; AIR CYL
(B) 		1-87061-571-0 01 1 9203- ●
359 GASKET; AIR CYL
(C) 		1-87061-572-0 01 1 9203- ●
359 GASKET; AIR CYL
(D) 		1-87061-574-0 01 1 9203- ●
359 GASKET; AIR CYL
(E) 		1-87061-576-0 01 1 9203- ●
359 GASKET; AIR CYL
(J) 		1-87060-994-0 03 1 9203- ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 9203- ●
359 GASKET; AIR CYL
(C) 		1-87061-123-0 01 1 9203- ●
359 GASKET; AIR CYL
(B) 		1-87061-136-0 01 1 9203- ●
359 GASKET; AIR CYL
(A) 		1-87061-256-0 01 1 9203- ●
359 GASKET; AIR CYL
(E) 		1-87061-258-0 01 1 9203- ●
359 GASKET; AIR CYL
(F) 		1-87061-264-0 01 1 9203- ●
359 GASKET; AIR CYL
(K) 		1-87061-268-0 01 1 9203- ●
359 GASKET; AIR CYL
(G) 		1-87061-474-0 01 1 9203- ●
359 GASKET; AIR CYL
(H) 		1-87061-475-0 01 1 9203- ●
361 CYLINDER; AIR,SHIFT 1-87061-570-0 01 1 9203- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 9203- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 9203- ●
362 WASHER; AIR CYL 1-87061-525-0 01 1 9203- ●
363 BOLT; AIR CYL 1-87061-229-0 04 1 9203- ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 9203- ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 9203- ●
364 SEAL KIT; AIR CYL 1-87061-578-0 01 1 9203- ●
489 COVER; AIR CYL 1-87061-577-0 01 1 9203- ●
489 COVER; AIR CYL
(A) 		1-87061-259-0 01 1 9203- ●
489 COVER; AIR CYL
(B) 		1-87061-269-0 01 1 9203- ●

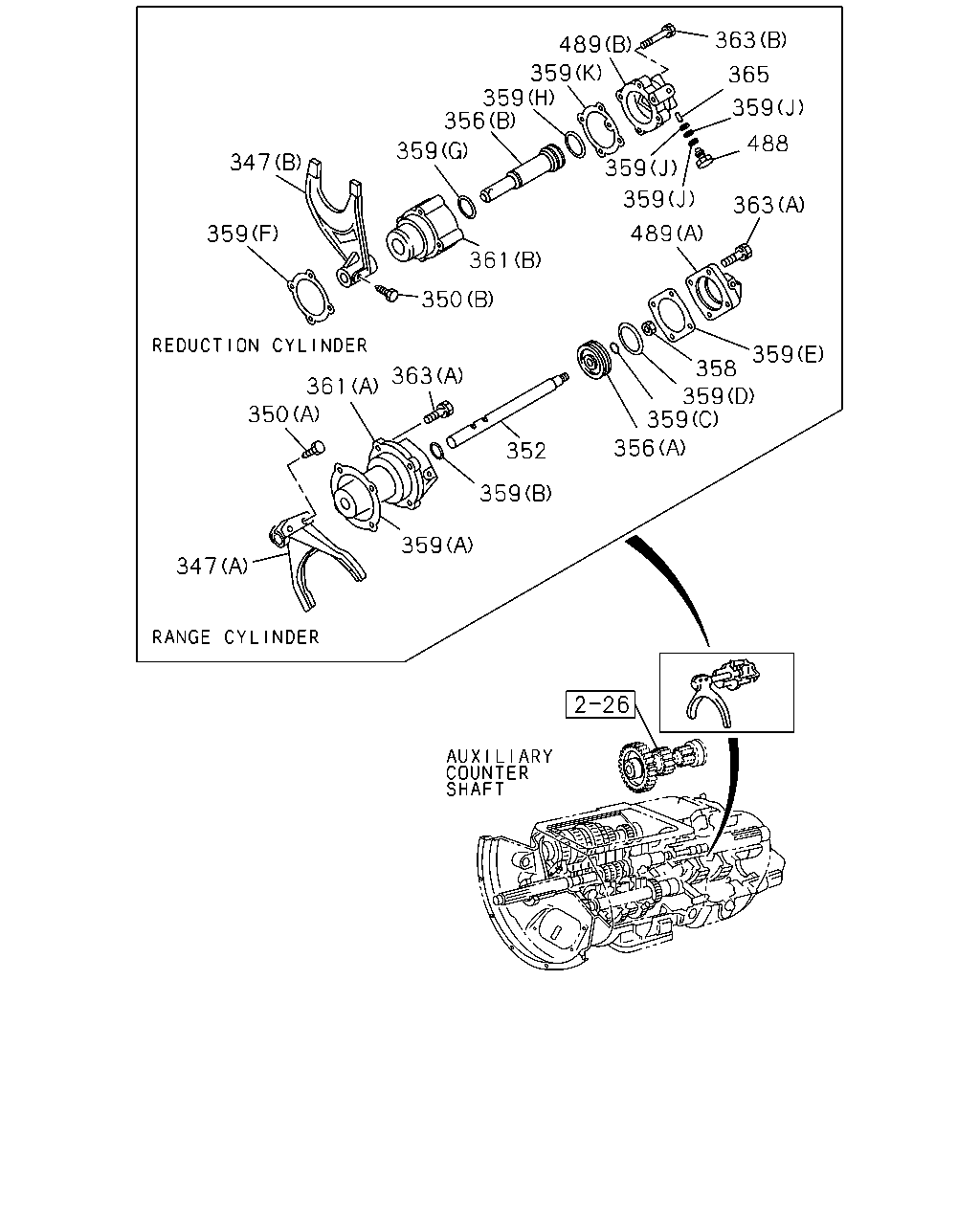

çizim 94898
363 489 359 359 356 365 359 488 359 359 347 359 363 489 359 361 350 359 358 359 359 363 361 350 356 352 359 359 347
BalonParca AdiParca NoAdetTipApplied Date A B
347 ARM; SHIFT,RANGE CHANGE 1-87061-567-0 01 1 9203- ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 9203- ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 9203- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 03 1 9203- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-566-0 02 1 9203- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9203- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9203- ●
352 ROD; SHIFT,RANGE CHANGE 1-87061-568-0 01 1 9203- ●
352 ROD; SHIFT,RANGE CHANGE 1-87061-261-0 01 1 9203- ●
356 PISTON; AIR CYL 1-87061-573-0 01 1 9203- ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 9203- ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 9203- ●
358 NUT; SHIFT ROD 1-87061-575-0 01 1 9203- ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 9203- ●
359 GASKET; AIR CYL
(A) 		1-87061-569-0 01 1 9203- ●
359 GASKET; AIR CYL
(B) 		1-87061-571-0 01 1 9203- ●
359 GASKET; AIR CYL
(C) 		1-87061-572-0 01 1 9203- ●
359 GASKET; AIR CYL
(D) 		1-87061-574-0 01 1 9203- ●
359 GASKET; AIR CYL
(E) 		1-87061-576-0 01 1 9203- ●
359 GASKET; AIR CYL
(J) 		1-87060-994-0 03 1 9203- ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 9203- ●
359 GASKET; AIR CYL
(C) 		1-87061-123-0 01 1 9203- ●
359 GASKET; AIR CYL
(B) 		1-87061-136-0 01 1 9203- ●
359 GASKET; AIR CYL
(A) 		1-87061-256-0 01 1 9203- ●
359 GASKET; AIR CYL
(E) 		1-87061-258-0 01 1 9203- ●
359 GASKET; AIR CYL
(F) 		1-87061-264-0 01 1 9203- ●
359 GASKET; AIR CYL
(K) 		1-87061-268-0 01 1 9203- ●
359 GASKET; AIR CYL
(G) 		1-87061-474-0 01 1 9203- ●
359 GASKET; AIR CYL
(H) 		1-87061-475-0 01 1 9203- ●
361 CYLINDER; AIR,SHIFT 1-87061-570-0 01 1 9203- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 9203- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 9203- ●
363 BOLT; AIR CYL 1-87061-229-0 04 1 9203- ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 9203- ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 9203- ●
365 VALVE; AIR CYL 1-87060-997-0 01 1 9203- ●
488 PLUG; AIR CYL 1-87060-998-0 01 1 9203- ●
489 COVER; AIR CYL 1-87061-577-0 01 1 9203- ●
489 COVER; AIR CYL
(A) 		1-87061-259-0 01 1 9203- ●
489 COVER; AIR CYL
(B) 		1-87061-269-0 01 1 9203- ●
çizim 95634
492 492 485 486 486 492 485 486
BalonParca AdiParca NoAdetTipApplied Date A B
485 TROUGH; OIL
(A) 		1-87061-489-0 01 1 9203- ●
485 TROUGH; OIL
(B) 		1-87061-490-0 01 1 9203- ●
486 BOLT; OIL TROUGH
(A) 		1-87061-527-0 02 1 9203- ●
486 BOLT; OIL TROUGH
(B) 		1-87061-528-0 01 1 9203- ●
492 SPACER; OIL TROUGH 1-87061-494-0 03 1 9203- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
