Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

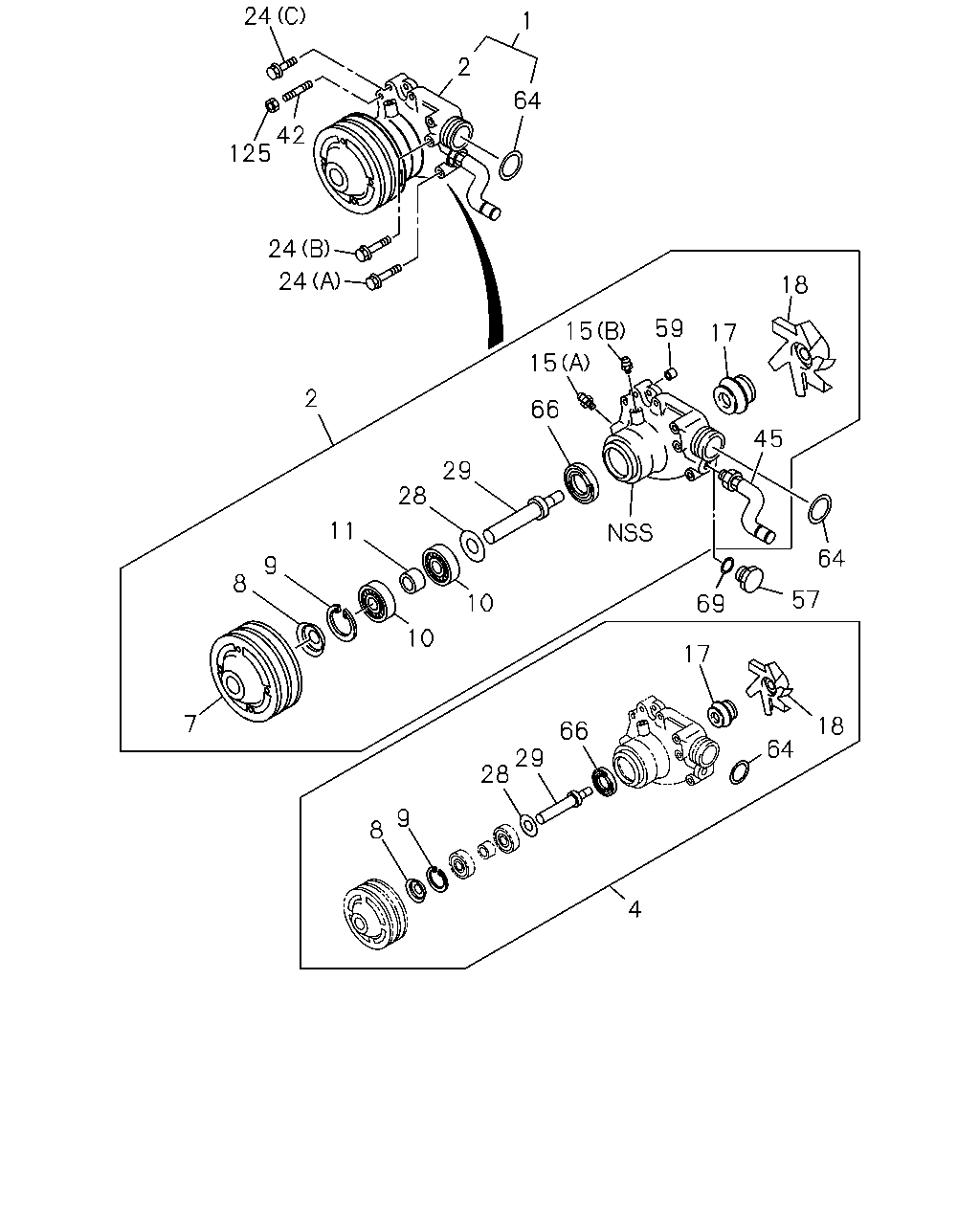

0-30 — WATER PUMP AND CORROSION RESISTOR
(#143) — 30 parça
Tümü
A - 6HE1 STD ENG
B - 6HE1 N ENG
24
1
2
64
42
125
24
24
18
59
15
17
15
2
66
45
29
28
11
64
9
8
57
10
69
10
17
7
18
66
64
29
28
9
8
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)
8-94395-657-1
01
1
9501-
●
●
2
PUMP ASM; WATER
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)
8-94396-626-2
01
1
9212-9412
●
●
2
PUMP ASM; WATER
EXC. HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)
8-94393-447-3
01
1
9212-
●
●
4
REPAIR KIT; WATER PUMP
1-87810-850-0
01
1
9212-9405
●
●
4
REPAIR KIT; WATER PUMP
1-87811-051-0
01
1
9406-
●
●
7
PULLEY; WATER PUMP
2-GROOVE
8-94399-454-0
01
1
9212-9412
●
●
7
PULLEY; WATER PUMP
2-GROOVE
8-94394-826-0
01
1
9501-
●
●
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
9212-
●
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
9212-
●
●
10
BEARING; WATER PUMP
1-09800-011-0
02
1
9212-
●
●
11
SPACER; BRG,WATER PUMP
1-13634-025-0
01
1
9212-
●
●
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
9212-
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
9-09031-010-0
01
1
9212-
●
●
17
SEAL UNIT; WATER PUMP
8-94399-458-0
01
1
9212-9405
●
●
17
SEAL UNIT; WATER PUMP
8-94395-036-0
01
1
9406-
●
●
18
IMPELLER; WATER PUMP
8-94397-375-0
01
1
9212-
●
●
24
BOLT; WATER PUMP
(A) M8X57 FLANGE
8-94107-566-2
03
1
9212-9412
●
●
24
BOLT; WATER PUMP
(A) M8X58 FLANGE
8-94130-055-1
03
1
9501-
●
●
24
BOLT; WATER PUMP
(B) M8X79 FLANGE
8-94311-617-1
01
1
9212-
●
●
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
9212-
●
●
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
9212-
●
●
29
SHAFT; WATER PUMP
8-94397-374-0
01
1
9212-
●
●
42
STUD; WATER PUMP
M8X30 L=46
9-04010-830-0
01
1
9212-
●
●
45
JOINT; HTR HOSE,WATER PUMP
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)
8-94397-377-2
01
1
9212-
●
●
57
PLUG; HTR,WATER PUMP
EXC. HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M20
9-99202-320-0
01
1
9301-
●
●
59
DOWEL; WATER PUMP
9-13119-022-0
02
1
9212-
●
●
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
9212-
●
●
66
SEAL; SECONDARY
1-09625-437-0
01
1
9212-
●
●
69
GASKET; PLUG,HTR
EXC. HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=20.5 OD=28.0
9-09571-420-0
01
1
9301-
●
●
125
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
04
1
9212-
●
●
