◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11042 - FTR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#14287) — 22 parça

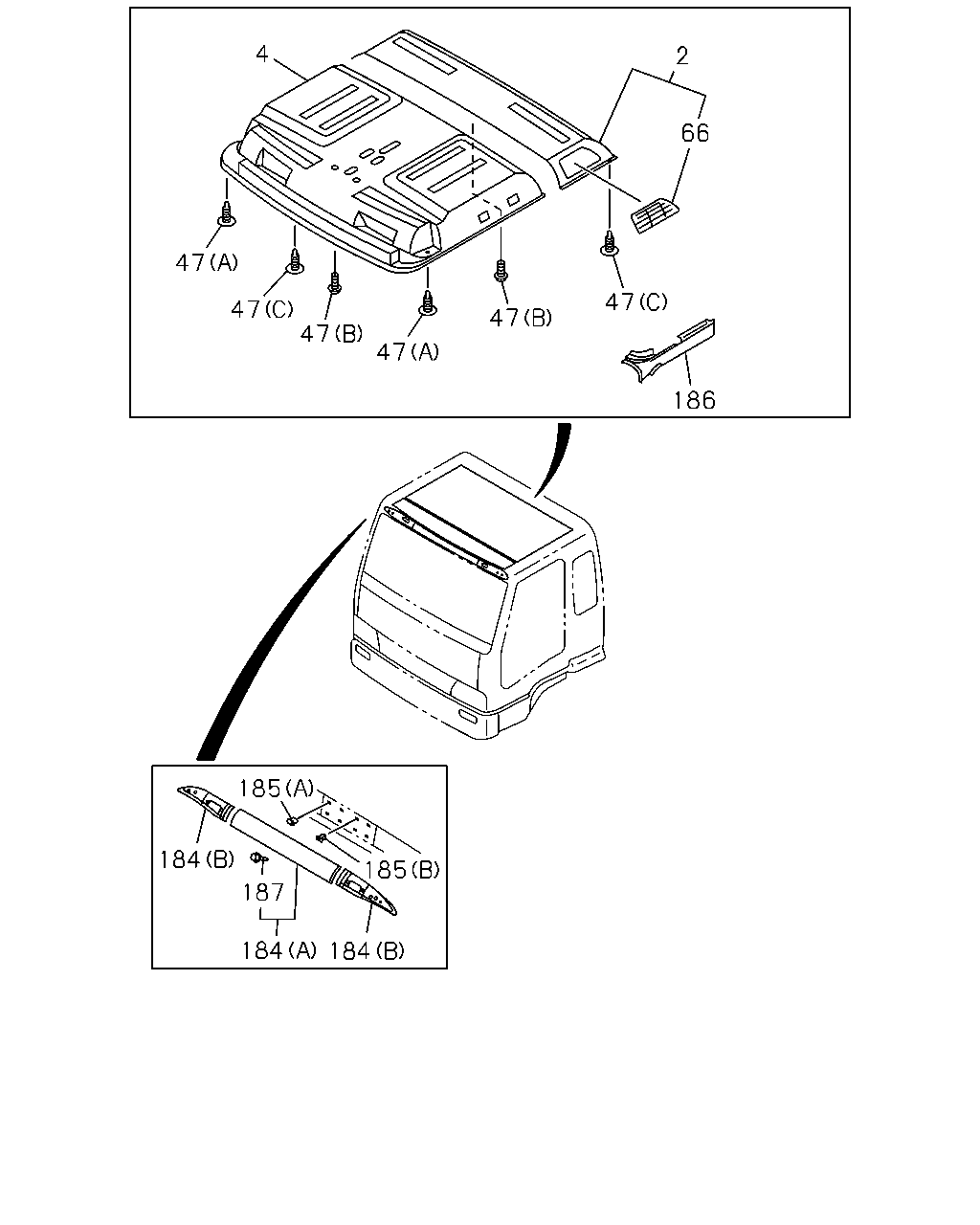

çizim 91050
4 2 66 47 47 47 47 47 47 186 185 184 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-708-2 01 1 0612-
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-598-5 01 1 0612-
4 LINING; ROOF,FRT
MAP LAMP<C85> PROVISIONAL PACKAGE<NLY> 		1-73318-696-3 01 1 0612-
4 LINING; ROOF,FRT
MAP LAMP<C85> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-597-7 01 1 0612-
4 LINING; ROOF,FRT
EXC. MAP LAMP<C85>,PROVISIONAL PACKAGE<NLY> 		8-97865-577-4 01 1 0612-
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> EXC. MAP LAMP<C85> 		8-97893-788-3 01 1 0612-
47 CLIP; HEADLINING
MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 13 1 0612-
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0612-
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0612-
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0612-
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 0612-
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 0612-
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0612-
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 02 1 0612-
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 02 1 0612-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0612-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-2 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-2 01 1 0612-
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0612-
