2-25 — SPEEDOMETER DRIVEN GEAR (#1428) — 24 parça

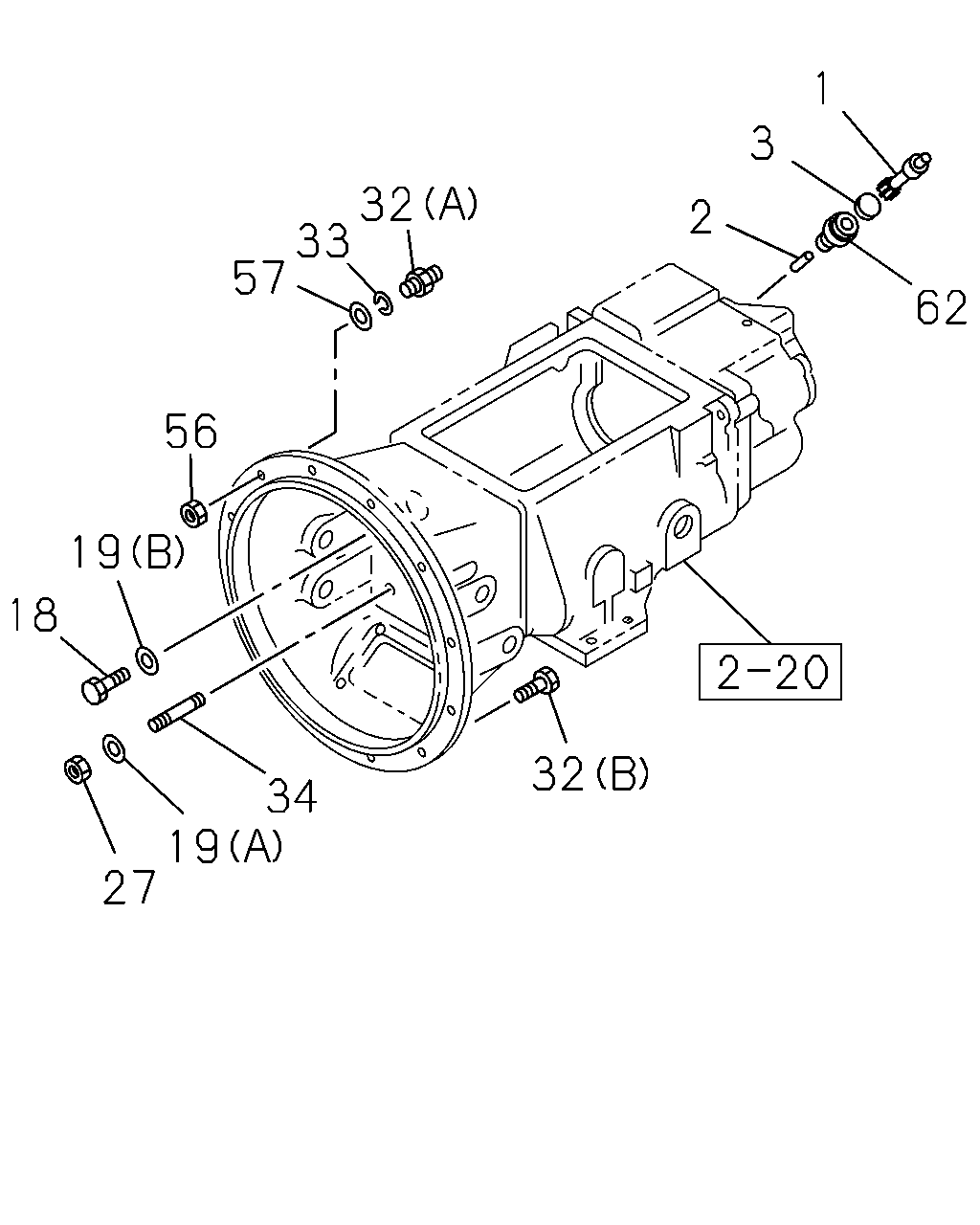

çizim 95601
1 3 32 33 57 2 62 56 19 18 32 34 19 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
Z=14 		1-33372-157-0 01 1 9203- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 16.5 INCH SPIRAL 4.333 EATON(W4Y) Z=12 		1-33372-160-0 01 1 9203- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 16.5 INCH SPIRAL 4.875 EATON(W4Z) Z=14 		1-33372-158-0 01 1 9203- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-87060-757-0 01 1 9203- ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-87060-995-0 01 1 9203- ● ●
18 BOLT; CLU HSG TO TRANS 1-87061-537-0 02 1 9203- ● ●
19 WASHER; PL,CLU HSG TO TRANS
(A) 		1-87060-770-0 06 1 9203- ● ●
19 WASHER; PL,CLU HSG TO TRANS
(B) 		1-87061-525-0 02 1 9203- ● ●
27 NUT; CLU HSG TO TRANS 1-87061-220-0 06 1 9203- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X32 W/LK&PL WASHER 		0-50151-032-0 10 1 9203-9404 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6SA1 STD ENG(06L) (B) M10X32 W/LK&PL WASHER 		0-50151-032-0 10 1 9405- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X32 W/LK WASHER 		1-09029-001-1 02 1 9203-9404 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6SA1 STD ENG(06L) (A) M10X32 W/LK WASHER 		1-09029-001-1 02 1 9405- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6SA1TC ENG(28L) (B) M10X32 W/LK&PL WASHER 		0-50151-032-0 11 1 9405- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6SA1TC ENG(28L) (A) M10X32 W/LK WASHER 		1-09029-001-1 01 1 9405- ● ●
33 WASHER; LK,CLU HSG
6SA1 STD ENG(06L) ID=10.2 		9-09150-510-0 04 1 9203- ● ●
33 WASHER; LK,CLU HSG
6SA1TC ENG(28L) ID=10.2 		9-09150-510-0 03 1 9203-9404 ● ●
33 WASHER; LK,CLU HSG
6SA1TC ENG(28L) ID=10.2 		9-09150-510-0 02 1 9405- ● ●
34 STUD; CLU HSG 1-87061-431-0 06 1 9203- ● ●
56 NUT; CLU HSG TO FLYWHEEL HSG
6SA1 STD ENG(06L) M10 		9-09110-510-0 02 1 9203- ● ●
56 NUT; CLU HSG TO FLYWHEEL HSG
6SA1TC ENG(28L) M10 		9-09110-510-0 01 1 9203- ● ●
57 WASHER; PL,CLU HSG
6SA1 STD ENG(06L) ID=10.5 OD=18 		9-09160-510-0 02 1 9405- ● ●
57 WASHER; PL,CLU HSG
6SA1TC ENG(28L) ID=10.5 OD=18 		9-09160-510-0 01 1 9203- ● ●
62 SLEEVE; DRIVEN GEAR 1-87061-234-0 01 1 9203- ● ●
