Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

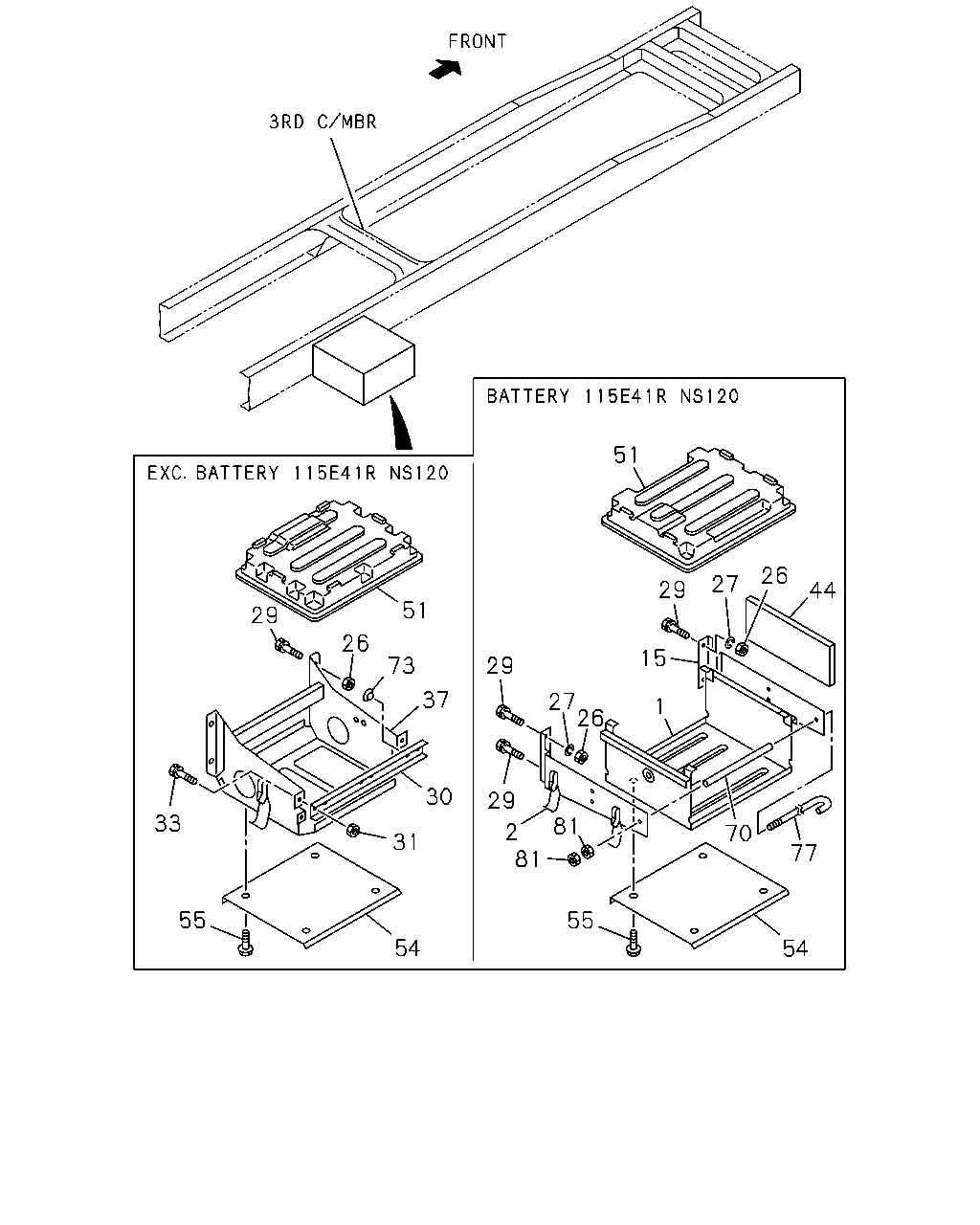

5-20 — BATTERY CARRIER
(#14271) — 22 parça
51
26
27
29
44
51
29
26
15
29
73
37
27
26
1
30
29
33
81
2
81
70
31
77
55
55
54
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CARRIER; BATTERY
BATTERY 115E41R NS120<W73>
1-53613-507-0
01
1
0612-
2
BRACKET; BATTERY
BATTERY 115E41R NS120<W73>
1-53613-339-3
01
1
0612-
15
BRACKET; BATTERY
BATTERY 115E41R NS120<W73>
1-53613-340-3
01
1
0612-
26
NUT; BRKT
BATTERY 115E41R NS120<W73> M14
0-91110-514-0
04
1
0612-
26
NUT; BRKT
EXC. BATTERY 115E41R NS120<W73> M10
0-91110-510-0
04
1
0612-
27
WASHER; LK,BRKT
BATTERY 115E41R NS120<W73> ID=14.2
0-91510-514-0
04
1
0612-
29
BOLT; BRKT TO FRAME
BATTERY 115E41R NS120<W73> M14X35
0-20851-435-0
04
1
0612-
29
BOLT; BRKT TO FRAME
EXC. BATTERY 115E41R NS120<W73> M10X35 FLANGE
0-28651-035-0
04
1
0612-
30
PLATE; BATTERY
EXC. BATTERY 115E41R NS120<W73>
1-53616-046-3
01
1
0612-
31
NUT; PLATE
EXC. BATTERY 115E41R NS120<W73> M8
0-91110-508-0
02
1
0612-
33
BOLT; PLATE TO BRKT
EXC. BATTERY 115E41R NS120<W73> M8X20 FLANGE
0-28650-820-0
02
1
0612-
37
BRACKET; BATTERY
EXC. BATTERY 115E41R NS120<W73>
1-53613-508-0
01
1
0612-
44
SPACER; BATTERY
BATTERY 115E41R NS120<W73>
1-53619-006-0
02
1
0612-
51
COVER; BATTERY
BATTERY 115E41R NS120<W73>
1-53612-029-1
01
1
0612-
51
COVER; BATTERY
EXC. BATTERY 115E41R NS120<W73>
1-53612-019-1
01
1
0612-
54
PROTECTOR; HEAT,BATTERY
BATTERY 115E41R NS120<W73>
1-53619-140-1
01
1
0612-
54
PROTECTOR; HEAT,BATTERY
EXC. BATTERY 115E41R NS120<W73>
1-53619-139-1
01
1
0612-
55
BOLT; HEAT PROTECTOR
M8X10 FLANGE
0-28050-810-0
04
1
0612-
70
SPACER; BATTERY CARRIER
BATTERY 115E41R NS120<W73>
1-53619-023-0
01
1
0612-
73
RUBBER; CUSHION,PLATE
EXC. BATTERY 115E41R NS120<W73>
1-09337-002-0
04
1
0612-
77
BOLT; BATTERY BRKT,FRT TO RR
BATTERY 115E41R NS120<W73>
1-53616-101-0
02
1
0612-
81
NUT; BATTERY
BATTERY 115E41R NS120<W73> M8
0-91110-508-0
04
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
