5-01 — FRAME AND OTHER PARTS
(#14268) — 63 parça
◀
[501A] NO.2 (8 parça)

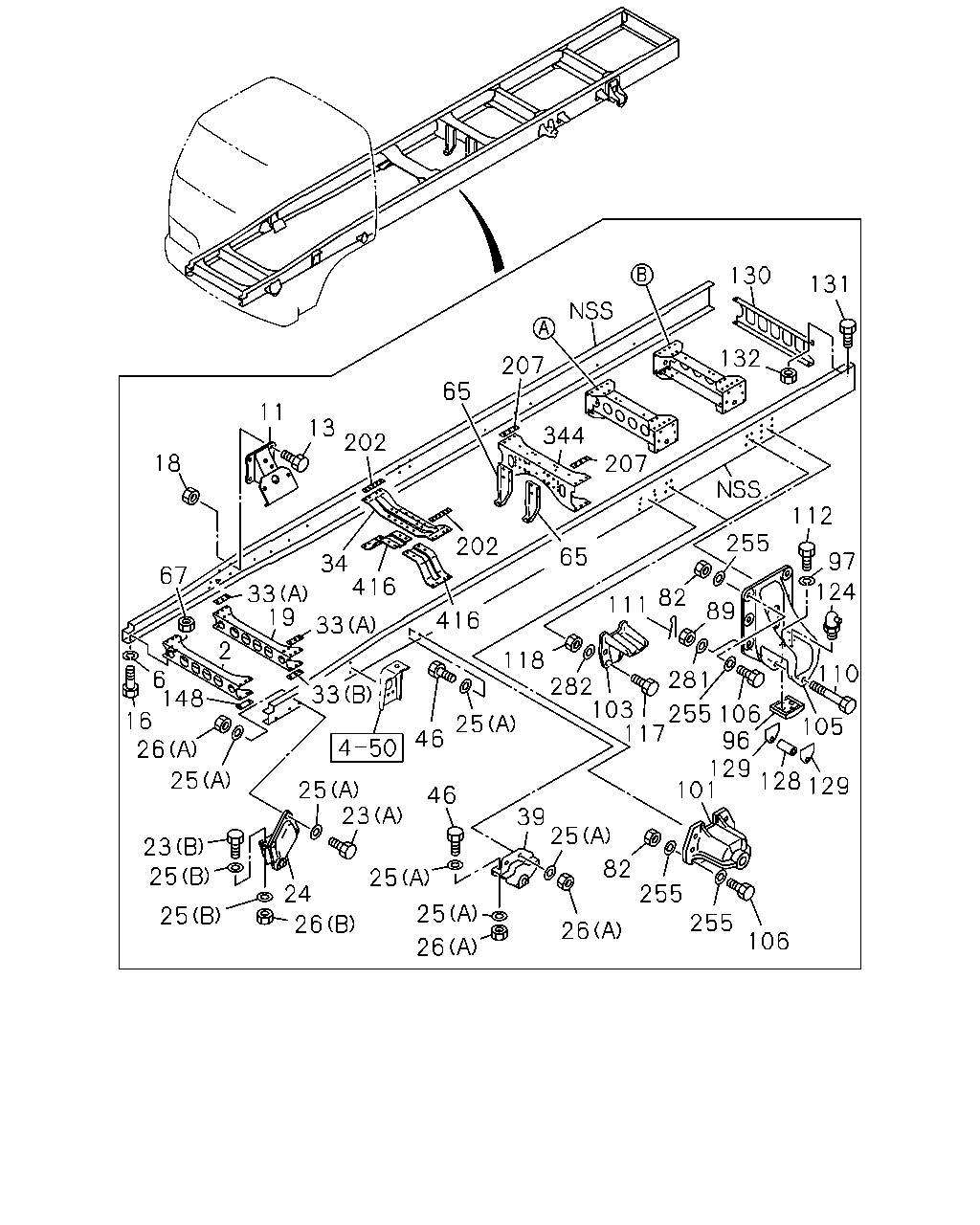

[501A] NO.1 (55 parça)
▶
69
69
57
86
69
69
69
69
69
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
MEMBER; CROSS,RR SUSP FRT
1-53181-815-1
01
1
0612-
69
GUSSET; RR SUSP,UPR
(C) 21-HOLE
1-53167-095-5
01
1
0612-
69
GUSSET; RR SUSP,UPR
(D) 21-HOLE
1-53167-096-4
01
1
0612-
69
GUSSET; RR SUSP,UPR
(E) 17-HOLE
1-53167-097-5
01
1
0612-
69
GUSSET; RR SUSP,UPR
(F) 17-HOLE
1-53167-098-5
01
1
0612-
69
GUSSET; RR SUSP,UPR
(A)
1-53167-099-4
02
1
0612-
69
GUSSET; RR SUSP,UPR
(B)
1-53167-100-3
02
1
0612-
86
MEMBER; CROSS,RR SUSP RR
1-53181-815-1
01
1
0612-
130
131
132
207
65
207
11
13
202
344
18
202
112
255
65
97
34
416
67
2
6
148
111
124
33
19
82
89
416
33
118
110
282
103
105
117
96
129
101
281
33
16
26
25
46
25
128
129
25
23
46
39
25
23
82
255
255
25
25
24
25
25
26
26
106
26
255
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-991-2
01
1
0612-
6
WASHER; LK,1ST C/MBR
ID=16.2
0-91510-616-0
02
1
0612-
11
BRACKET; ENG MTG
1-53211-196-0
02
1
0612-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0612-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20851-640-0
02
1
0612-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0612-
19
MEMBER; CROSS,2ND
1-53181-992-3
01
1
0612-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0612-
23
BOLT; BRKT,SPR
(A) M14X45
9-92061-445-0
06
1
0612-
24
BRACKET; FRT SPR,FRT
1-53351-148-3
01
1
0612-
24
BRACKET; FRT SPR,FRT
1-53351-149-3
01
1
0612-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0612-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
28
1
0612-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
0612-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0612-
33
SPACER; 2ND C/MBR,UPR
(A)
1-53168-276-0
02
1
0612-
33
SPACER; 2ND C/MBR,UPR
(B)
1-53168-287-0
02
1
0612-
34
MEMBER; CROSS,3RD
1-53174-231-2
01
1
0612-
39
BRACKET; FRT SPR,RR
1-53352-124-2
01
1
0612-
39
BRACKET; FRT SPR,RR
1-53352-125-2
01
1
0612-
46
BOLT; BRKT FIX
M14X45
9-92061-445-0
08
1
0612-
65
BRACKET; CENTER BRG
L=310
1-53271-297-1
02
1
0612-
67
NUT; C/MBR
M16
0-91110-516-0
02
1
0612-
82
NUT; BRKT
M14
0-91110-514-0
24
1
0612-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
0612-
96
PAD; RR SPR
1-53359-047-0
02
1
0612-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
0612-
101
BRACKET; RR SPR,FRT
1-53353-078-1
02
1
0612-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
0612-
105
BRACKET; RR SPR,RR
1-53354-064-1
02
1
0612-
106
BOLT; BRKT
M14X45
9-92061-445-0
24
1
0612-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
0612-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
0612-
112
BOLT; PAD
M14X35
0-20851-435-0
04
1
0612-
117
BOLT; STOPPER
M14X45
9-92061-445-0
16
1
0612-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
0612-
124
NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
0612-
128
COLLAR; RUBBER
1-53359-004-0
02
1
0612-
129
SHIM; SIDE
T=4.5
1-53359-061-1
02
1
0612-
129
SHIM; SIDE
T=3.2
1-53359-062-1
02
1
0612-
130
MEMBER; CROSS,END
1-53181-151-2
01
1
0612-
131
BOLT; END C/MBR
M12X30 FLANGE
0-28651-230-0
04
1
0612-
132
NUT; END C/MBR
M12 FLANGE
0-91180-112-0
04
1
0612-
148
SPACER; C/MBR
1-53168-341-0
02
1
0612-
202
SPACER; 3RD C/MBR
1-53168-351-1
02
1
0612-
207
SPACER; 4TH C/MBR
1-53168-163-1
02
1
0612-
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
48
1
0612-1201
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
48
1
1202-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
0612-
282
WASHER; PL,STOPPER
ID=15
9-09651-069-0
16
1
0612-1201
282
WASHER; PL,STOPPER
ID=15
8-98010-627-1
16
1
1202-
344
MEMBER; CROSS,4TH
1-53181-580-2
01
1
0612-
416
GUSSET; 3RD C/MBR
1-53164-213-0
01
1
0612-
416
GUSSET; 3RD C/MBR
1-53164-214-0
01
1
0612-
