Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

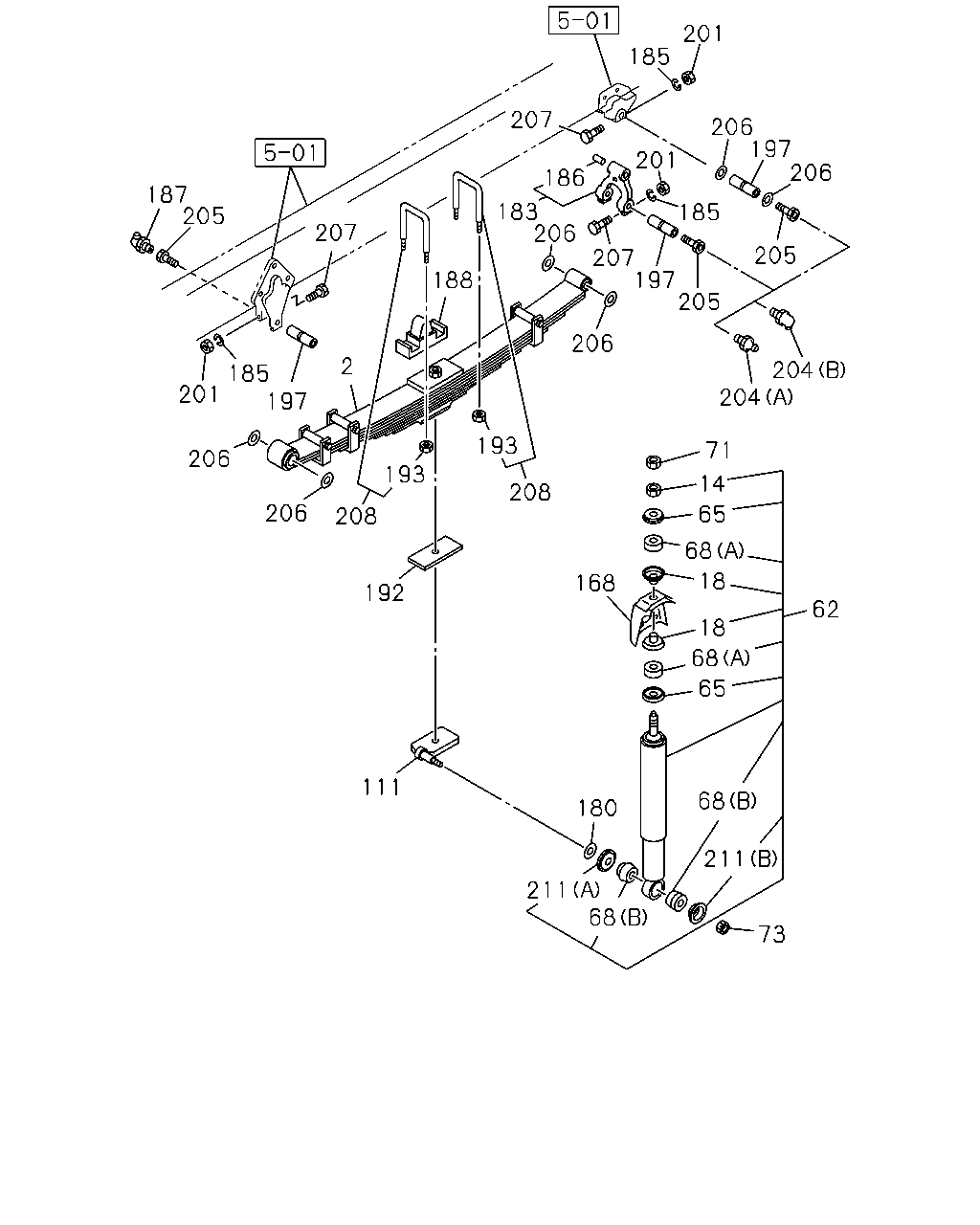

4-50 — FRONT SUSPENSION
(#14263) — 36 parça
201
185
207
206
197
206
201
186
187
205
183
206
185
207
205
207
197
205
188
206
2
204
204
185
197
201
193
71
206
193
14
208
206
65
208
68
18
168
192
62
18
68
65
111
68
180
211
211
68
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF
1-51130-343-0
02
1
0612-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0612-
18
WASHER; CENTERING,S/ABS
ID=20.8
9-51631-041-0
04
1
0612-
62
ABSORBER ASM; SHOCK,FRT
1-51630-579-0
02
1
0612-
62
ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
1-87610-155-0
02
1
0612-
65
WASHER; S/ABS
ID=16.5
9-51631-040-0
04
1
0612-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0612-
68
BUSHING; S/ABS
(A)
9-51631-039-0
04
1
0612-
71
NUT; LK,S/ABS,UPR
M14
0-91111-514-0
02
1
0612-
73
NUT; BRKT,SHOCK
M20
0-91110-520-0
02
1
0612-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-722-1
01
1
0612-1004
111
SUPPORTER; S/ABS,FRT SUSP
8-98153-483-0
01
1
1005-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-723-1
01
1
0612-1004
111
SUPPORTER; S/ABS,FRT SUSP
8-98153-484-0
01
1
1005-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0612-
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
0612-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
0612-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0612-
186
BUSHING; SHACKLE
OD=38
1-51351-009-0
02
1
0612-0902
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
0903-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
0612-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-088-1
02
1
0612-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
01
1
0612-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0612-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
197
PIN; FRT SPR,FRT
1-51161-031-0
06
1
0612-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0612-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
0612-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW
0-90301-610-0
02
1
0612-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0612-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0612-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0612-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-1
04
1
0612-1206
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1207-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0612-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0612-
