4-33 — STEERING LINKAGE
(#14258) — 28 parça
◀

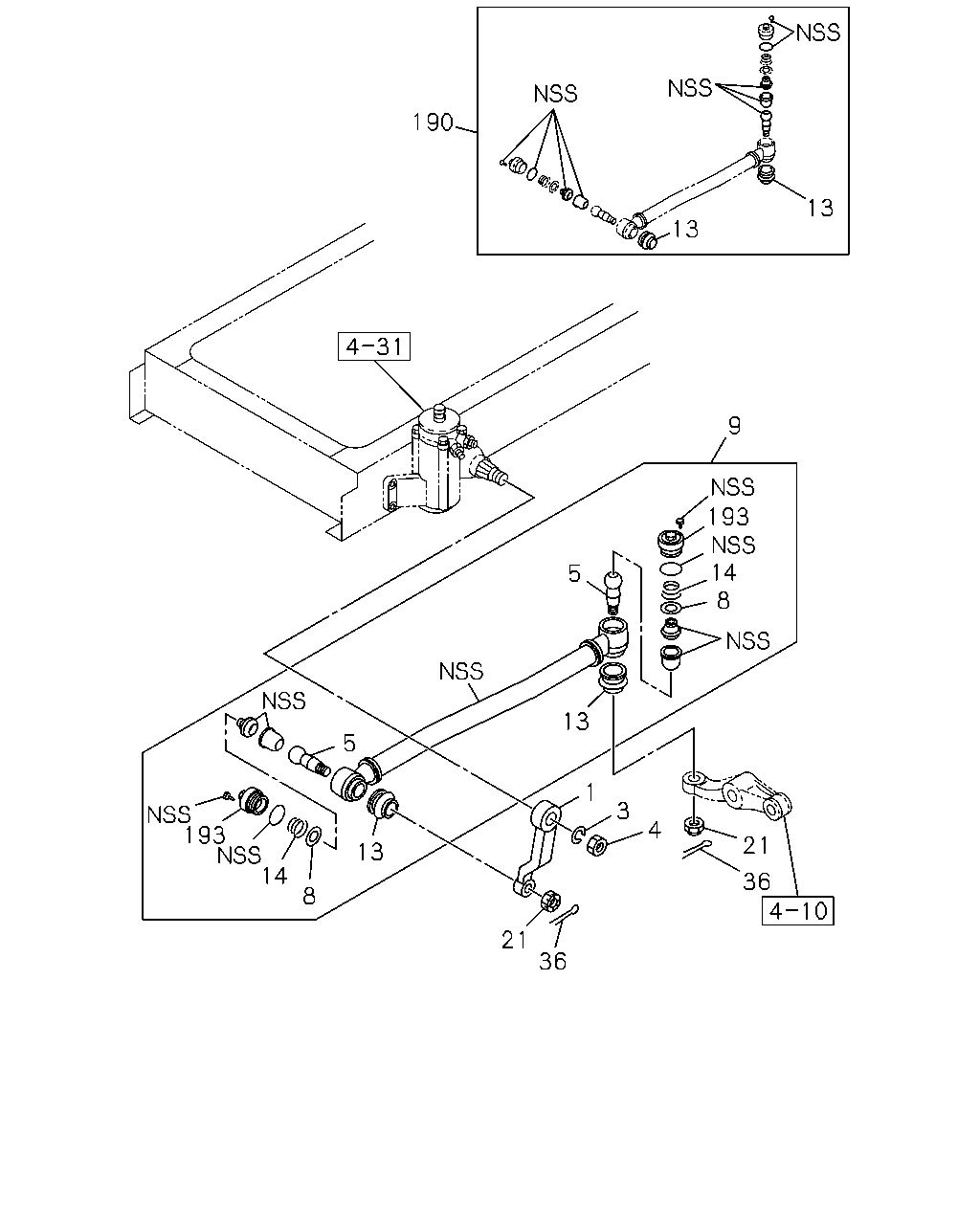

[433A] -'11/3 (16 parça)

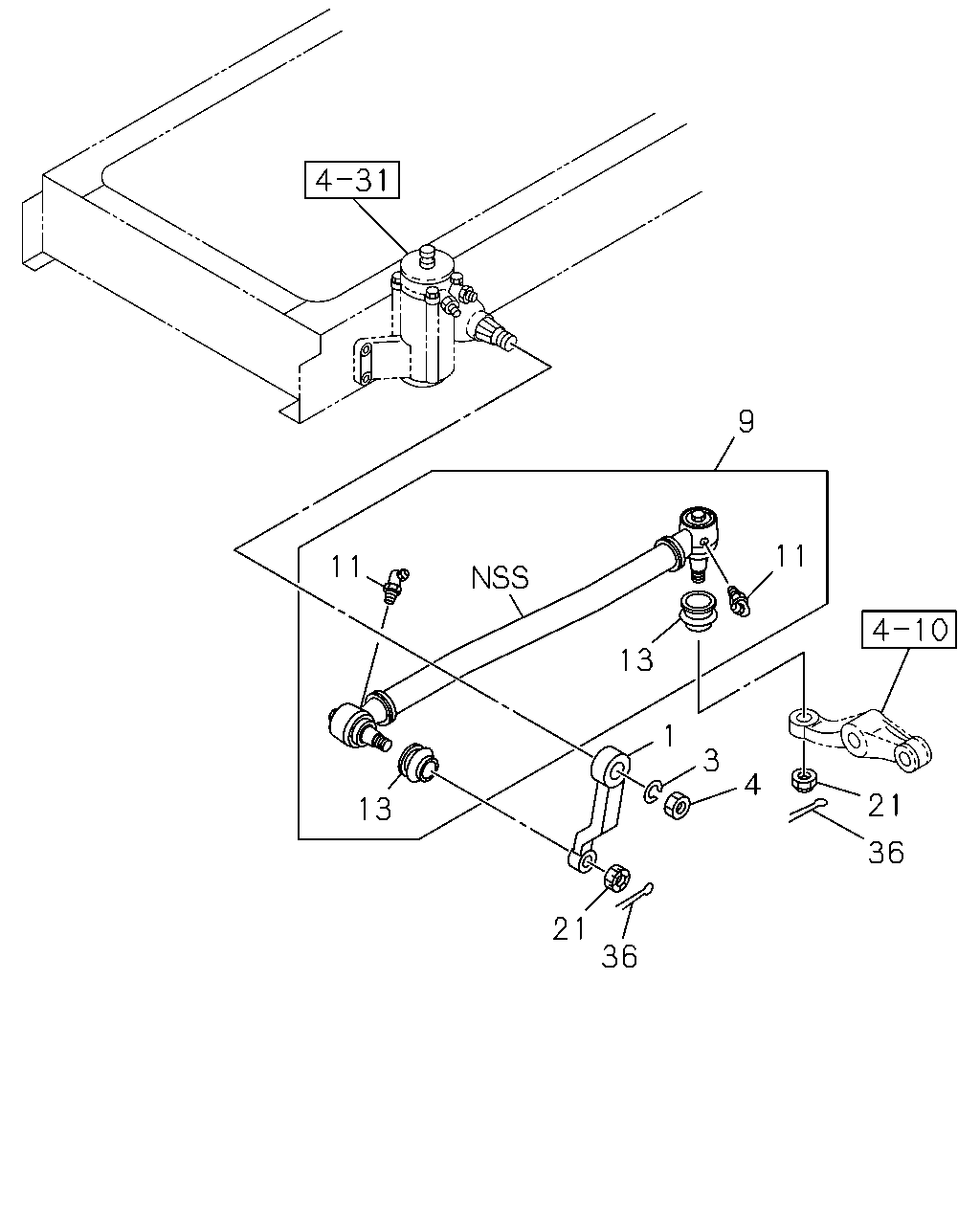

[433A] '11/4- (12 parça)
▶
190
13
13
9
193
14
8
5
13
5
1
3
193
14
4
21
13
36
8
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-398-1
01
1
0612-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0612-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0612-0805
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0612-1103
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0612-1103
9
LINK; DRAG
1-44380-085-2
01
1
0612-1103
9
LINK; DRAG
8-98181-402-0
01
1
1104-
13
BOOT; DRAG LINK
1-43159-078-0
02
1
0612-1103
13
BOOT; DRAG LINK
1-43159-131-0
02
1
1104-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0612-1103
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0612-0805
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0612-
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0612-1103
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0612-1103
9
11
11
13
1
3
4
21
13
36
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-398-1
01
1
0612-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0612-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0612-0805
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
9
LINK; DRAG
1-44380-085-2
01
1
0612-1103
9
LINK; DRAG
8-98181-402-0
01
1
1104-
11
NIPPLE; GREASE,DRAG LINK
8-98160-122-0
02
1
1104-
13
BOOT; DRAG LINK
1-43159-078-0
02
1
0612-1103
13
BOOT; DRAG LINK
1-43159-131-0
02
1
1104-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0612-0805
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0612-
