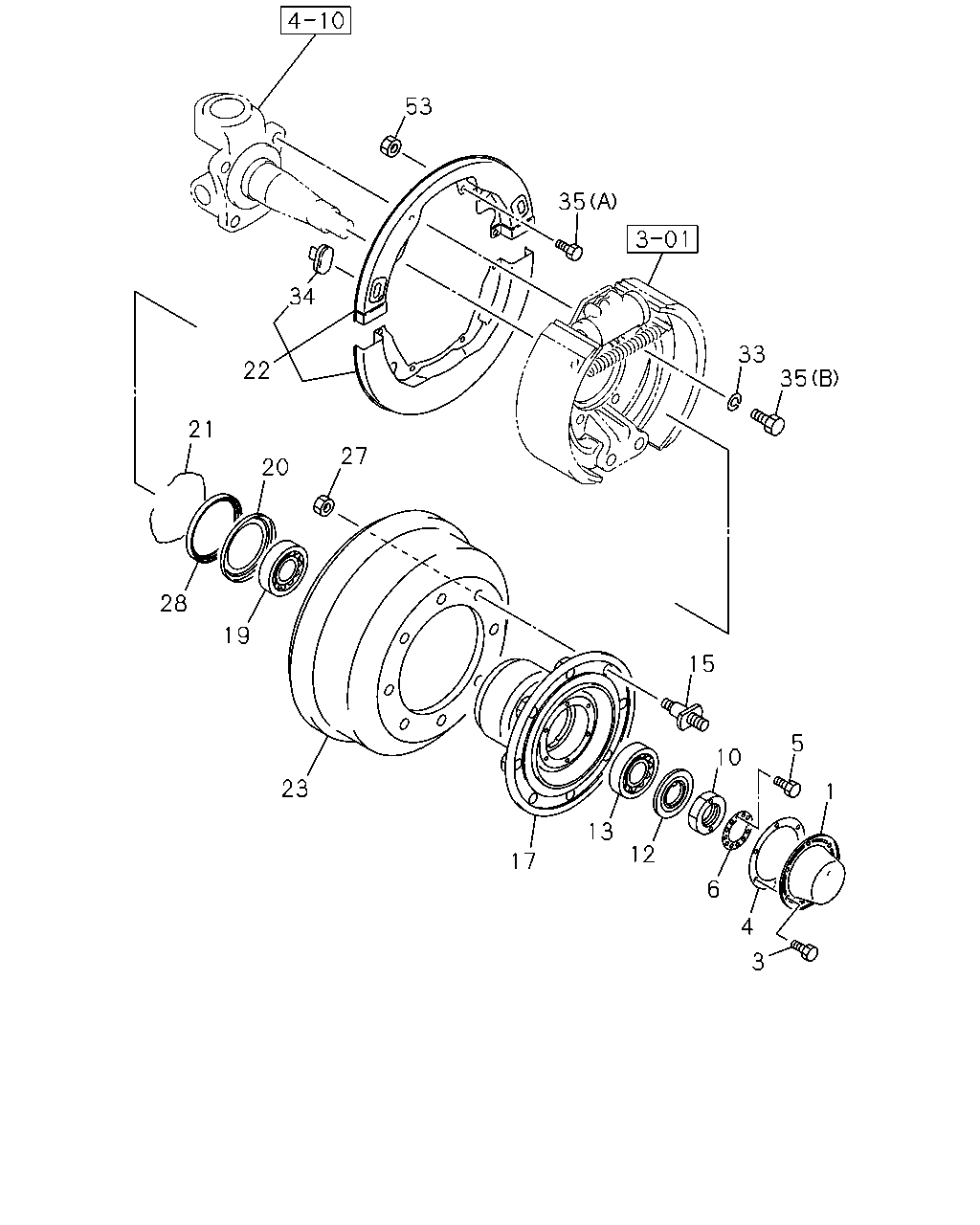

4-11 — FRONT HUB AND DRUM OR ROTOR
(#14253) — 30 parça
53
35
34
33
22
35
21
27
20
28
19
15
5
10
23
1
13
12
17
6
4
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
0612-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28050-812-0
12
1
0612-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
0612-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28650-616-0
04
1
0612-0707
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98084-271-0
04
1
0708-1201
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
04
1
1202-
6
WASHER; LK,FRT HUB
ID=48
1-09533-012-1
02
1
0612-0707
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
0708-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
0612-
12
WASHER; LK,FRT HUB BRG
ID=48
1-09533-016-0
02
1
0612-0911
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
0912-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
0612-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
1-42331-150-1
08
1
0612-0701
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
1-42331-109-1
08
1
0702-
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
1-42332-150-1
08
1
0612-0701
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
1-42332-109-1
08
1
0702-
17
HUB; FRT AXLE
1-42312-128-2
02
1
0612-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
0612-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
0612-
21
RING; SNAP,HUB
1-09587-017-0
02
1
0612-
22
COVER SET; FRT BRK DRUM
1-47151-458-1
02
1
0612-
23
DRUM; BRK,FRT
1-42315-355-0
02
1
0612-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
16
1
0612-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
0612-
33
WASHER; LK,DRUM COVER
ID=16.2
0-91510-816-0
04
1
0612-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
0612-
35
BOLT; DRUM COVER
(B) M16X52
1-09044-001-2
04
1
0612-0805
35
BOLT; DRUM COVER
(B) M16X52
1-09044-120-0
04
1
0806-
35
BOLT; DRUM COVER
(A) M10X12
1-47159-187-0
12
1
0612-
53
NUT; DRUM COVER
M16
0-91110-516-0
04
1
0612-
