Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#14248) — 14 parça
◀

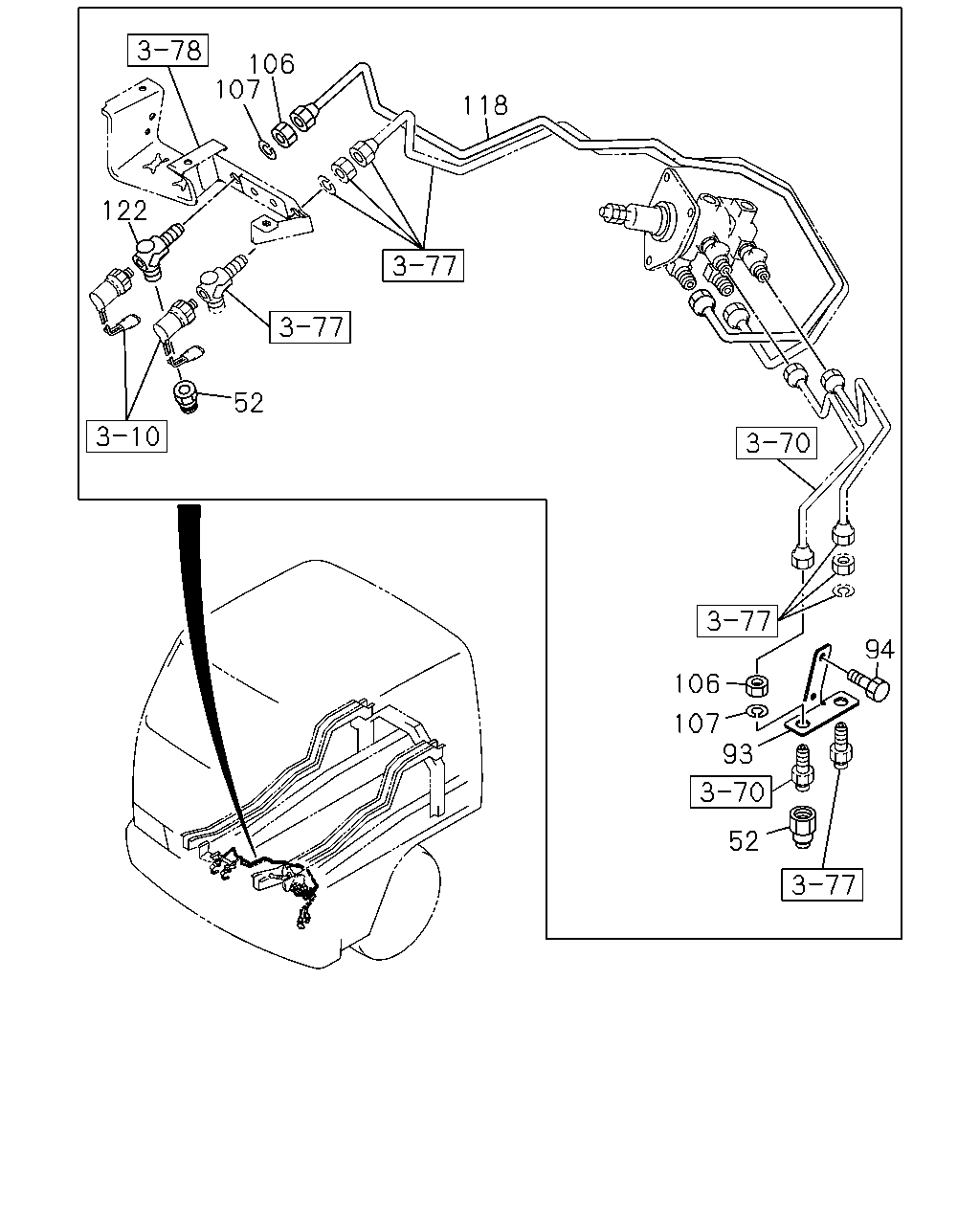

[375A] CAB SIDE (8 parça)

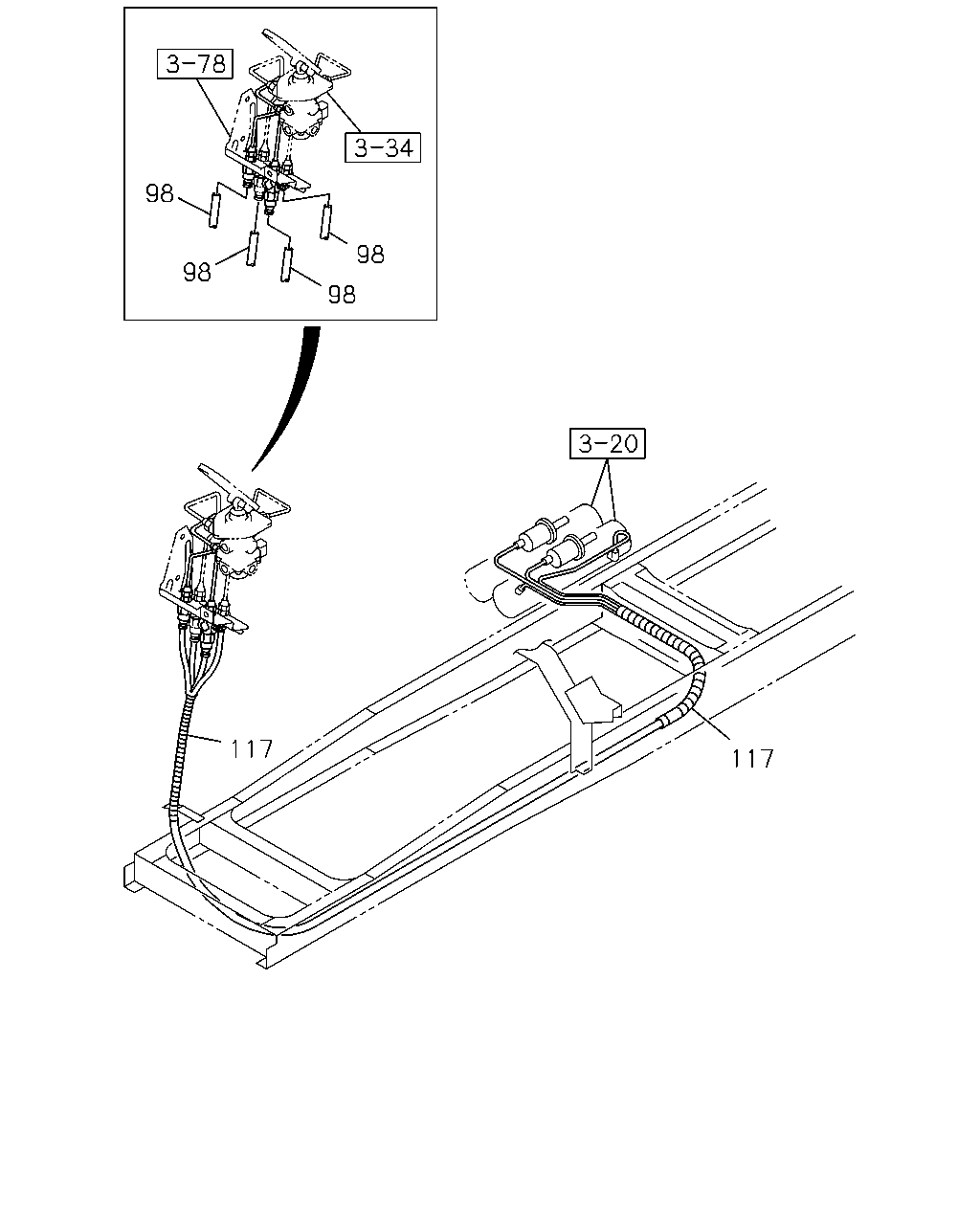

[375A] FRAME SIDE (6 parça)
▶
106
107
118
122
52
94
106
107
93
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0612-
93
BRACKET; UNION,TUBE
1-71996-119-0
01
1
0612-
94
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0612-0904
94
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
106
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0612-
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0612-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=989
1-49121-666-0
01
1
0612-
122
CONNECTOR; FLEX HOSE
M16X2 & PT1/4 3WAY
1-09656-329-1
01
1
0612-
98
98
98
98
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0612-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0612-
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0612-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0612-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0612-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
0612-
