Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

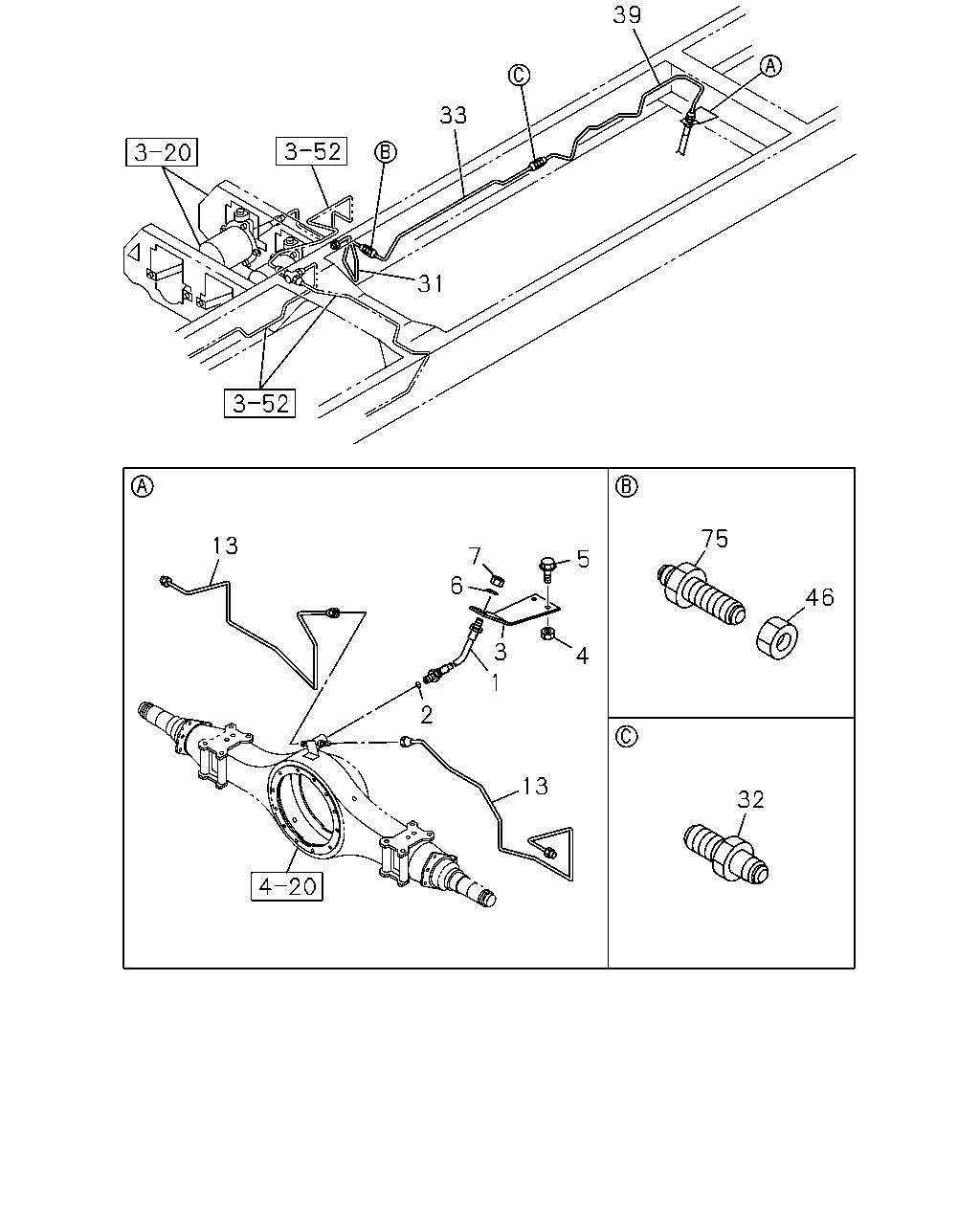

3-55 — BRAKE PIPING; OIL,REAR
(#14245) — 16 parça
39
33
31
75
13
7
5
6
46
3
4
1
2
13
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=700
0-05312-700-0
01
1
0612-0907
1
HOSE; FLEX,RR BRK
L=700
0-05212-700-0
01
1
0908-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0612-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
0612-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0612-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28650-825-0
02
1
0612-
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0612-
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0612-
13
PIPE; BRK,RR AXLE
L=935
8-98003-970-0
01
1
0612-
13
PIPE; BRK,RR AXLE
L=1212
8-98003-971-0
01
1
0612-
31
PIPE; OIL,AIR MASTER TO UNION
L=405
1-49161-102-0
01
1
0612-
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
0612-
33
PIPE; OIL,UNION TO UNION
L=1173 SERVICED BY L=1200
1-47426-352-0
01
1
0612-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2124 SERVICED BY L=2200
1-47426-360-0
01
1
0612-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0612-
75
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
