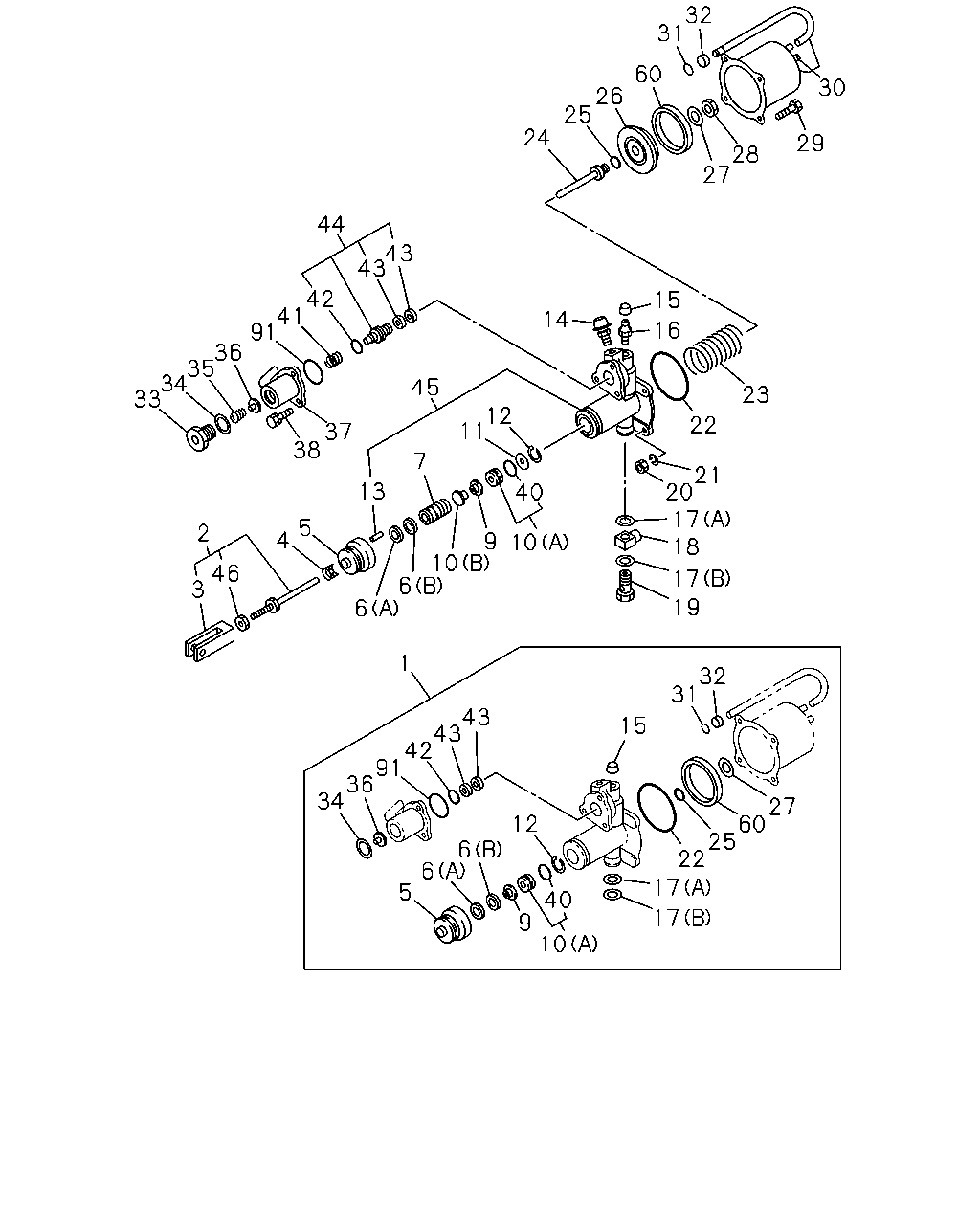

2-07 — CLUTCH BOOSTER; MINIPACK (#1424) — 49 parça

32 31 60 30 26 25 24 29 28 27 44 43 43 42 41 91 36 35 34 33 15 14 16 45 23 12 11 22 37 38 7 21 20 17 18 13 40 5 4 2 9 10 6 10 46 3 17 19 6 1 32 31 43 43 42 91 36 34 15 27 60 25 22 17 12 6 6 5 40 17 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER	1-31829-183-0	01	1	9203-	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-132-0	01	1	9203-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-0	01	1	9203-	●	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	9203-	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	9203-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9203-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9203-	●	●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	9203-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	9203-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-107-0	01	1	9203-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-108-0	01	1	9203-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9203-	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9203-	●	●
13	PIN; SPR	1-31829-109-0	01	1	9203-	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-102-0	01	1	9203-	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9203-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9203-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9203-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9203-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9203-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9203-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	9203-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	9203-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	9203-	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-110-0	01	1	9203-	●	●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	9203-	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9203-	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	9203-	●	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	9203-	●	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9203-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	9203-	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-063-0	01	1	9203-	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	9203-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	9203-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	9203-	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9203-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9203-	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9203-	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-018-0	01	1	9203-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9203-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	9203-	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	9203-	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	9203-	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9203-	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-020-0	01	1	9203-	●	●
45	PLATE; END,CLU BOOSTER	1-31811-062-0	01	1	9203-	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	9203-	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-066-0	01	1	9203-	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9203-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
