Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#14231) — 15 parça
◀

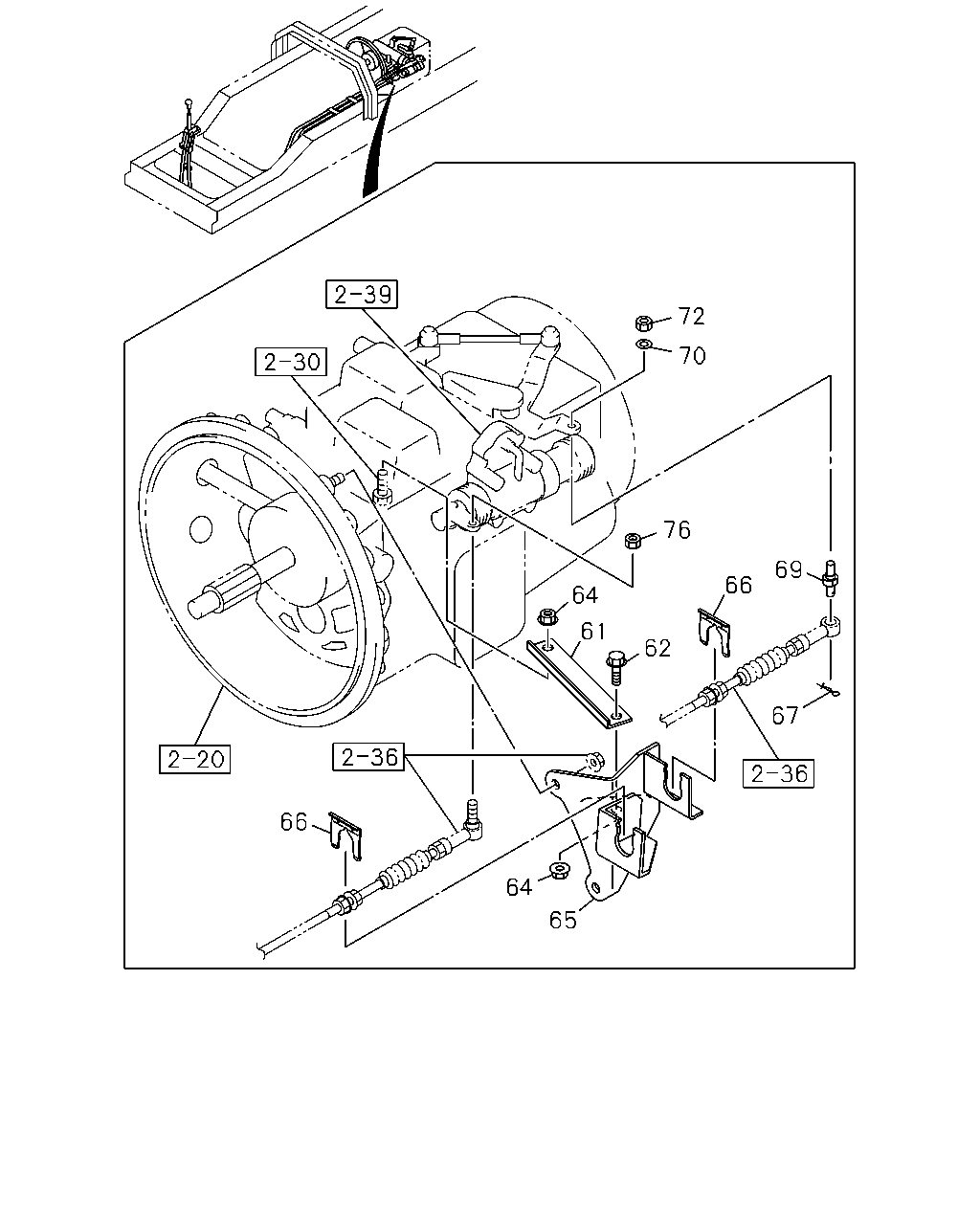

[237A] NO.1 (11 parça)
[237A] NO.2 (4 parça)
▶
72
70
76
69
66
64
61
62
67
66
64
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
STAY; BRKT,TRANS CONT
1-33657-267-0
01
1
0612-
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
01
1
0612-
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
0612-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
1-33657-821-0
01
1
0612-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0612-
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94157-841-0
01
1
0612-1509
67
PIN; SNAP,SELECT WIRE
L=27.7
1-09987-141-0
01
1
1510-
69
PIN; TRANS CONT,SELECT
1-33659-116-1
01
1
0612-
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=18
0-91614-608-0
01
1
0612-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
0612-
76
NUT; BALL JOINT,SELECT WIRE
M10 FLANGE
1-09440-056-0
01
1
0612-
60
115
58
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW
1-09661-001-1
01
1
0612-
58
HOSE; FLEX,POWER ASSISTOR
L=780
1-09363-620-0
01
1
0612-
60
CLIP; FLEX HOSE
ID=13 L=20
0-95235-235-0
02
1
0612-
115
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
0612-
