◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#14228) — 52 parça

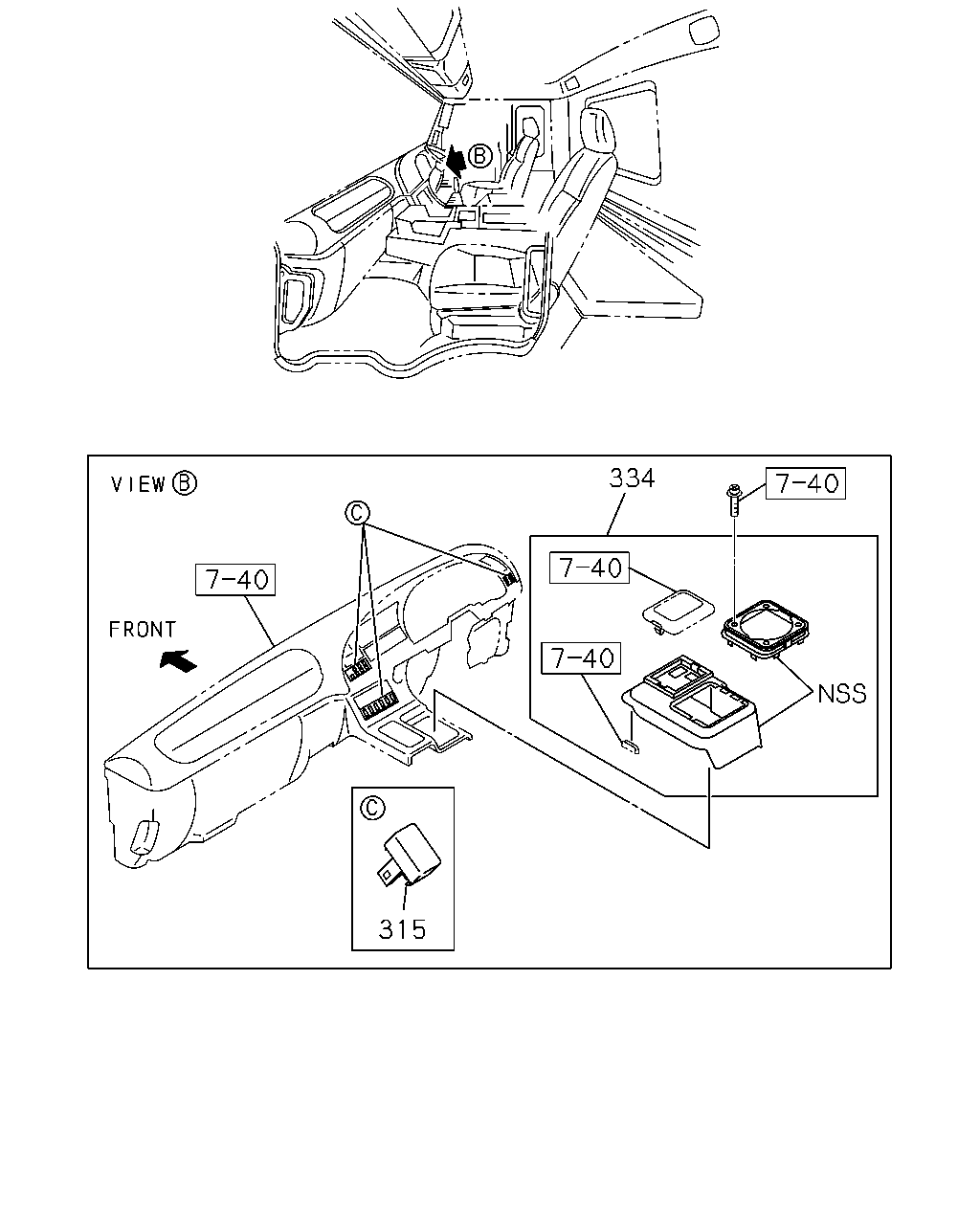

çizim 142233
334 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW 1-82359-069-2 AR 1 0710- ● ●
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 0710- ● ●

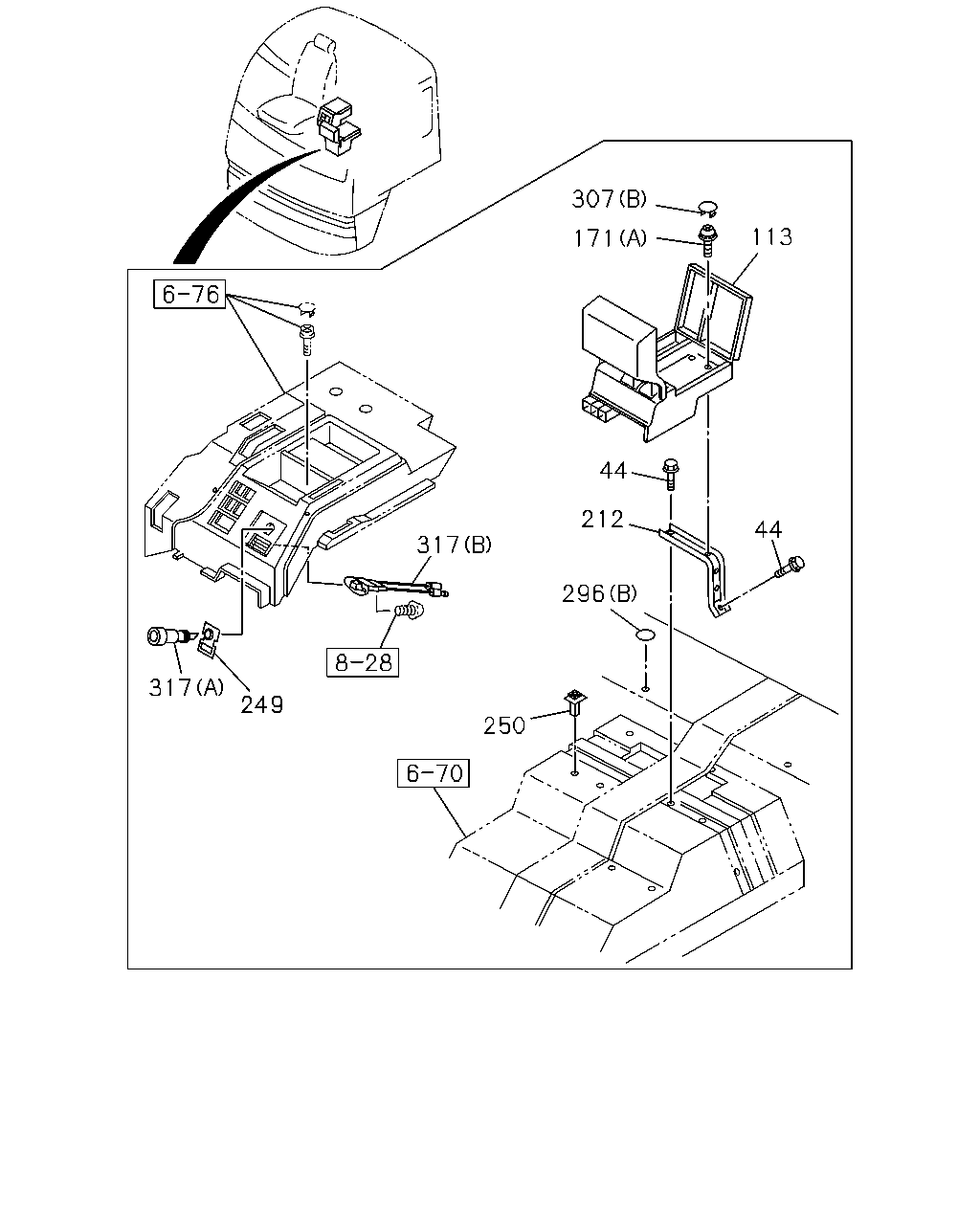

çizim 142236
307 113 171 44 212 44 317 296 317 249 250
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-324-1 01 1 0710- ● ●
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0710- ● ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710- ● ●
171 SCREW; CONSOLE BOX
COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710- ● ●
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0710- ● ●
249 COVER 1-82529-001-0 01 1 0710- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0710- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
296 SEAL
COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 0710- ● ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0710- ● ●
317 CONSENT
(A) 		8-94382-451-1 01 1 0710- ● ●

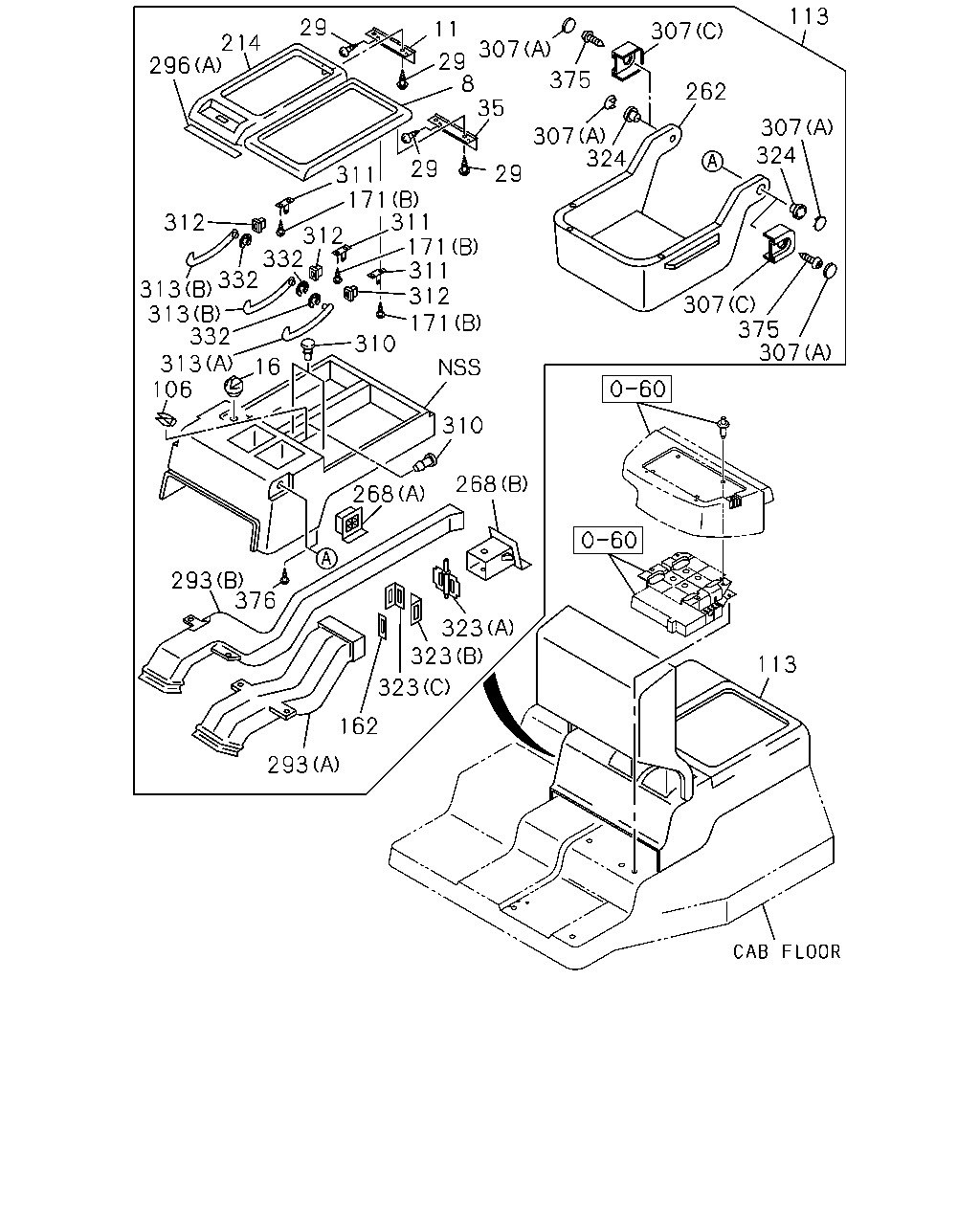

çizim 142247
113 29 11 307 214 307 29 8 35 296 375 262 307 324 307 324 29 29 311 171 311 171 311 312 171 312 312 332 332 313 313 332 313 106 307 375 307 310 16 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 0710- ● ●
11 HINGE; CONSOLE LID
COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0710- ● ●
16 KNOB ASM
COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0710- ● ●
29 SCREW; HINGE
COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0710- ● ●
35 HINGE; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0710- ● ●
106 LOCK; CONSOLE LID
COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0710- ● ●
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-324-1 01 1 0710- ● ●
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0710- ● ●
162 CUSHION; PARCEL BOX
COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0710- ● ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710- ● ●
171 SCREW; CONSOLE BOX
COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710- ● ●
214 LID; CONSOLE
COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 0710- ● ●
262 TABLE ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 0710- ● ●
268 COVER; DUCT
COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0710- ● ●
268 COVER; DUCT
COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0710- ● ●
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0710- ● ●
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0710- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
296 SEAL
COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0710- ● ●
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 0710- ● ●
310 CUSHION; CTR CONSOLE
COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0710- ● ●
311 HOLDER; CONSOLE
COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0710- ● ●
312 STOPPER; CONSOLE
COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0710- ● ●
313 ARM; CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0710- ● ●
313 ARM; CTR CONSOLE
COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0710- ● ●
323 SHUTTER
COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0710- ● ●
323 SHUTTER
COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0710- ● ●
323 SHUTTER
COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0710- ● ●
324 BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 0710- ● ●
332 RING; SNAP,CONSOLE BOX
COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0710- ● ●
375 SCREW; TAP BUSHING
COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 0710- ● ●
376 SCREW; TAP DUCT
COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0710- ● ●
