Isuzu WW
▶
TRUCKS
▶
CXY
▶
11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

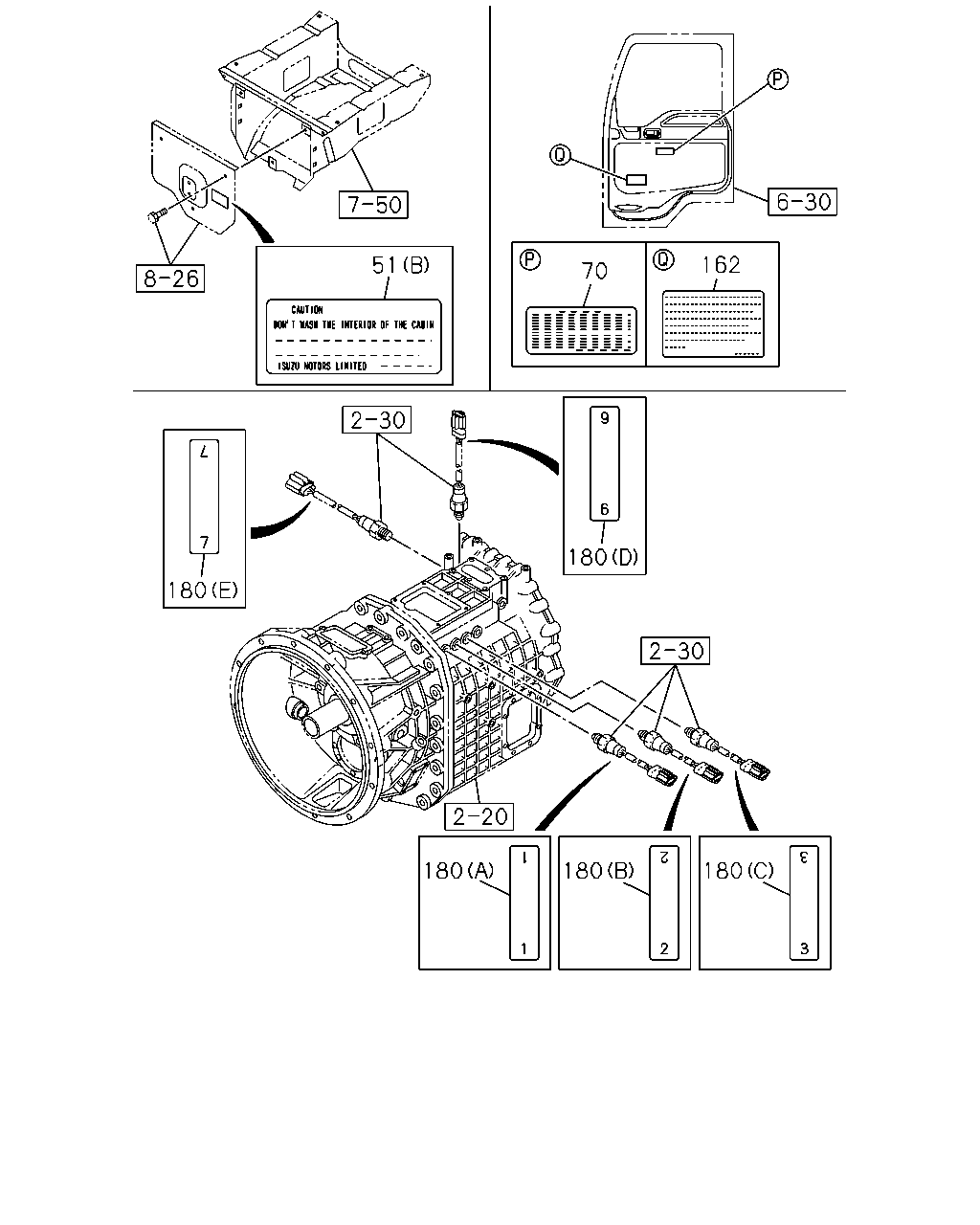

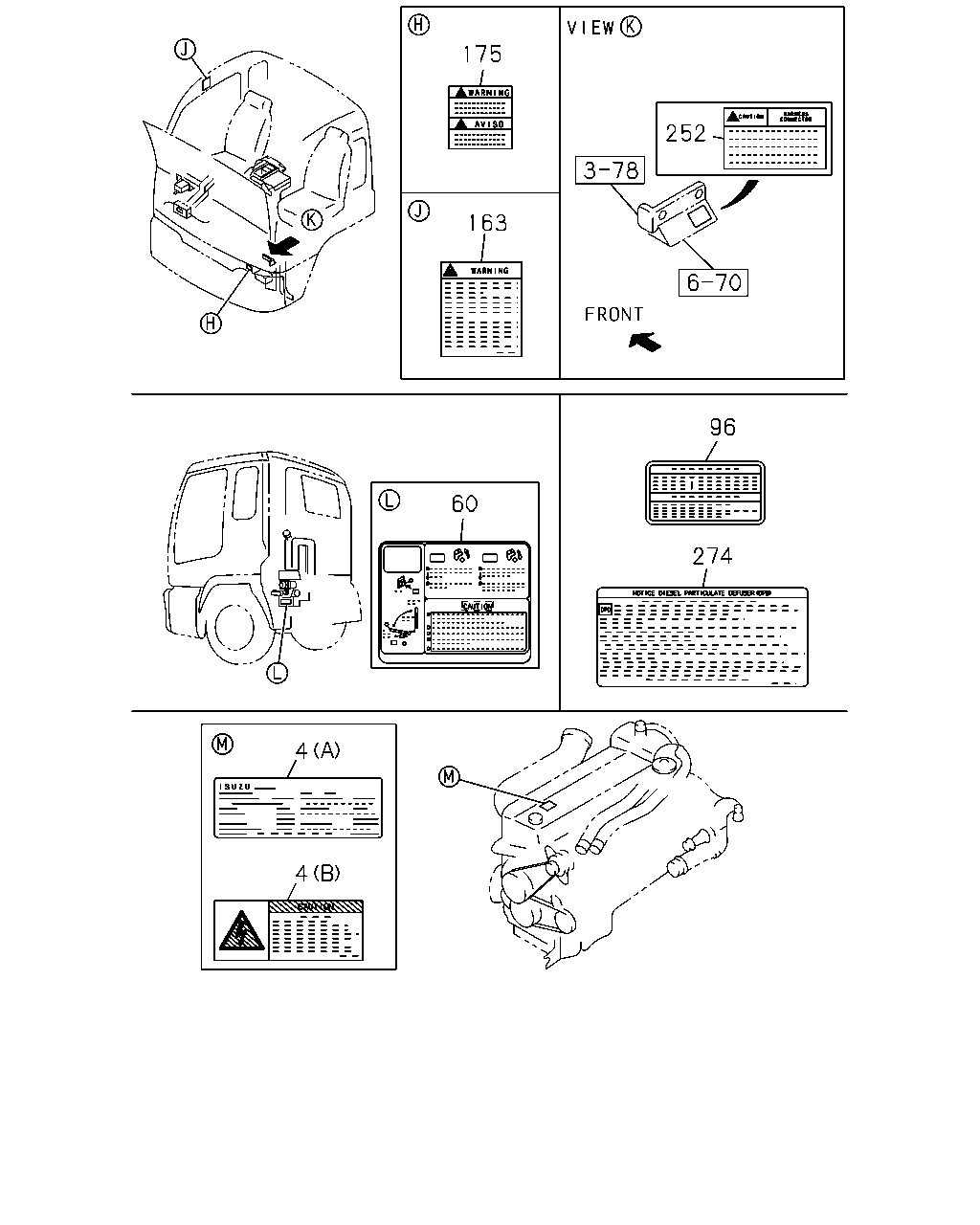

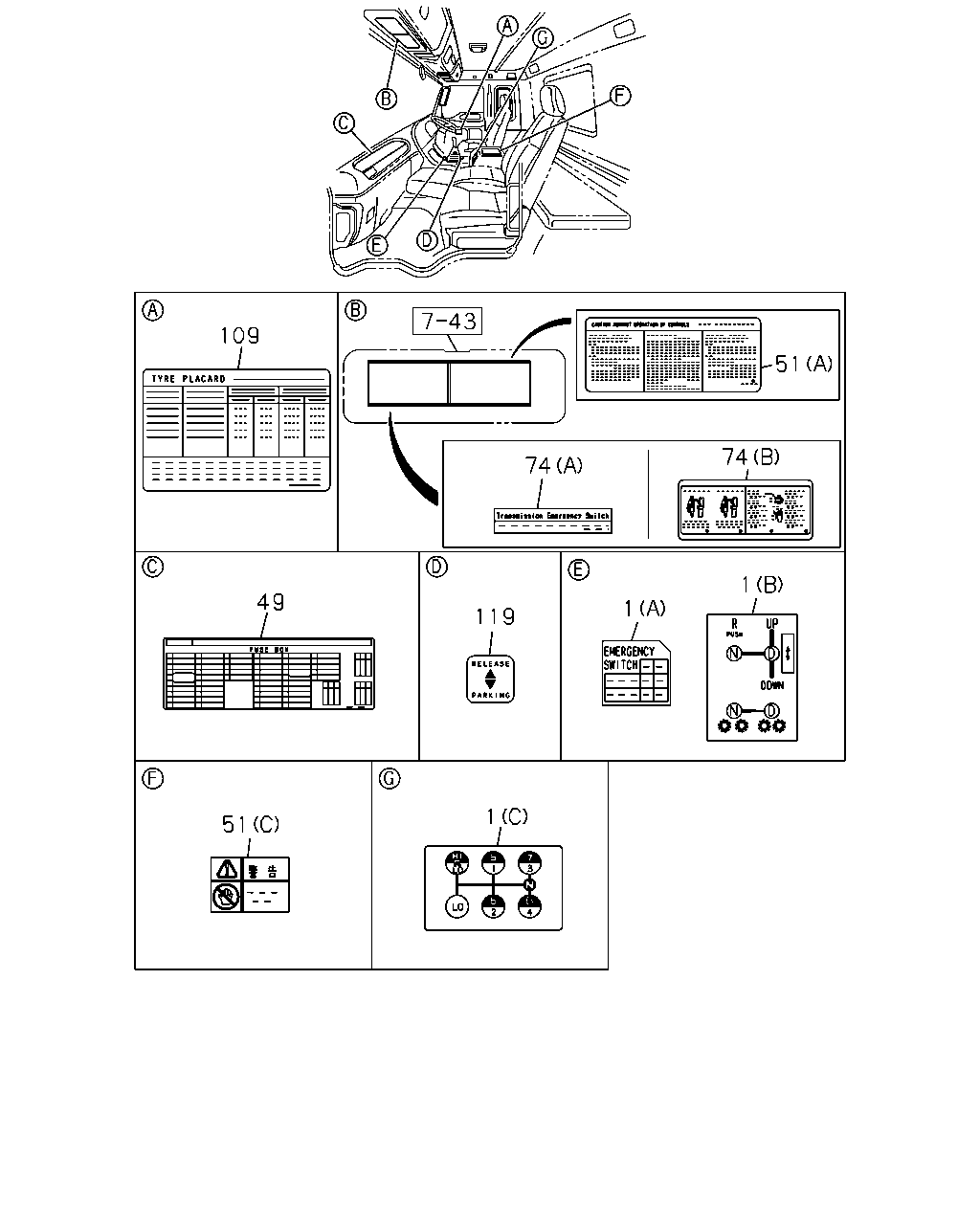

7-10 - CAUTION PLATE AND LABEL
▶
7-10 — CAUTION PLATE AND LABEL
(#14223) — 43 parça
Tümü
A - CXY5MC
B - CXY5MF
◀
[710A] NO.1 (16 parça)
[710A] NO.4 (3 parça)
[710A] NO.3 (12 parça)
[710A] NO.2 (12 parça)
▶
109
51
74
74
1
49
1
119
1
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PLATE; CAUTION,SHIFT PATTERN
FULLER M/T<X9B> (C)
1-85881-519-0
01
1
0710-
●
1
PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (B)
1-85881-842-0
01
1
0710-
●
●
1
PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (A)
1-85881-879-1
01
1
0710-
●
●
49
PLATE; CAUTION,FUSE BOX
6WG1 TC-N(71L)
8-97631-090-1
01
1
1108-
●
49
PLATE; CAUTION,FUSE BOX
8-97619-856-0
01
1
0710-1106
●
●
49
PLATE; CAUTION,FUSE BOX
6WG1 TC-C(72L)
8-97619-856-0
01
1
1107-
●
●
51
PLATE; CAUTION,WARNING
(B)
1-85878-544-0
01
1
0710-
●
●
51
PLATE; CAUTION,WARNING
(C)
1-85878-571-0
01
1
0710-
●
●
51
PLATE; CAUTION,WARNING
(A)
1-85880-725-0
01
1
0710-
●
●
74
PLATE; CAUTION,CHANGE LEV
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A)
1-85881-869-0
01
1
0710-1107
●
74
PLATE; CAUTION,CHANGE LEV
MJX12P M/T SMOOTHER-G(Y4S) (A)
1-85881-869-0
01
1
0710-1107
●
74
PLATE; CAUTION,CHANGE LEV
SMOOTHER-G(C1W) (A)
1-85881-869-0
01
1
1108-
●
●
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO189 18(Y4W) CLUTCH BRAKE<BBG> (B)
1-85881-846-0
01
1
0710-
●
109
PLATE; CAUTION,TIRE PLACARD
1-85881-932-0
01
1
0710-
●
●
119
PLATE; CAUTION,HAND BRK LEVER
1-85881-759-0
01
1
0710-1107
●
●
119
PLATE; CAUTION,HAND BRK LEVER
1-85881-759-0
01
1
1108-
●
●
181
181
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>
8-98082-437-0
01
1
0710-
●
●
181
PLATE; CAUTION,AIR CLEANER
(A)
1-85886-796-1
01
1
0710-
●
●
181
PLATE; CAUTION,AIR CLEANER
(B)
1-85886-813-1
01
1
0710-
●
●
162
51
70
180
180
180
180
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
51
PLATE; CAUTION,WARNING
(B)
1-85878-544-0
01
1
0710-
●
●
51
PLATE; CAUTION,WARNING
(C)
1-85878-571-0
01
1
0710-
●
●
51
PLATE; CAUTION,WARNING
(A)
1-85880-725-0
01
1
0710-
●
●
70
PLATE; CAUTION,ACT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W)
1-85878-484-0
01
1
0710-1107
●
70
PLATE; CAUTION,ACT
MJX12P M/T SMOOTHER-G(Y4S)
1-85878-484-0
01
1
0710-1107
●
70
PLATE; CAUTION,ACT
SMOOTHER-G(C1W)
1-85878-484-0
01
1
1108-
●
●
162
PLATE; CAUTION,FUEL
6WG1 TC-N(71L)
8-97623-712-0
01
1
1108-
●
180
PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (A)
1-85881-871-0
01
1
0710-
●
●
180
PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (B)
1-85881-872-0
01
1
0710-
●
●
180
PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (C)
1-85881-873-0
01
1
0710-
●
●
180
PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (D)
1-85881-880-0
01
1
0710-
●
●
180
PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (E)
1-85881-881-0
01
1
0710-
●
●
175
252
163
96
60
274
4
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
LABEL; ENG MAINTENANCE
(A)
1-85875-350-2
01
1
0710-
●
●
4
LABEL; ENG MAINTENANCE
(B)
8-94391-524-0
01
1
0710-
●
●
60
PLATE; CAUTION,CAB TILT
1-85883-234-0
01
1
0710-
●
●
96
PLATE; CAUTION,ENGINE OIL
8-98036-732-0
01
1
0710-1107
●
●
96
PLATE; CAUTION,ENGINE OIL
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>
8-98036-732-0
01
1
1108-
●
96
PLATE; CAUTION,ENGINE OIL
8-98036-732-0
01
1
1108-
●
163
PLATE; NAME,AIR BAG
1-85878-485-0
01
1
0710-
●
●
175
LABEL; STRG,AIR BAG
1-85878-116-0
02
1
0710-
●
●
252
PLATE; CAUTION,HARNESS
1-85878-488-1
01
1
0710-
●
●
274
PLATE; CAUTION,DPD
8-97616-473-0
01
1
0710-1107
●
●
274
PLATE; CAUTION,DPD
CATALYSIS CONTROL WITH DPD<8JM>
8-97616-473-0
01
1
1108-
●
274
PLATE; CAUTION,DPD
8-97616-473-0
01
1
1108-
●
