6-78 — FLOOR HOLE PLUG (#14216) — 10 parça

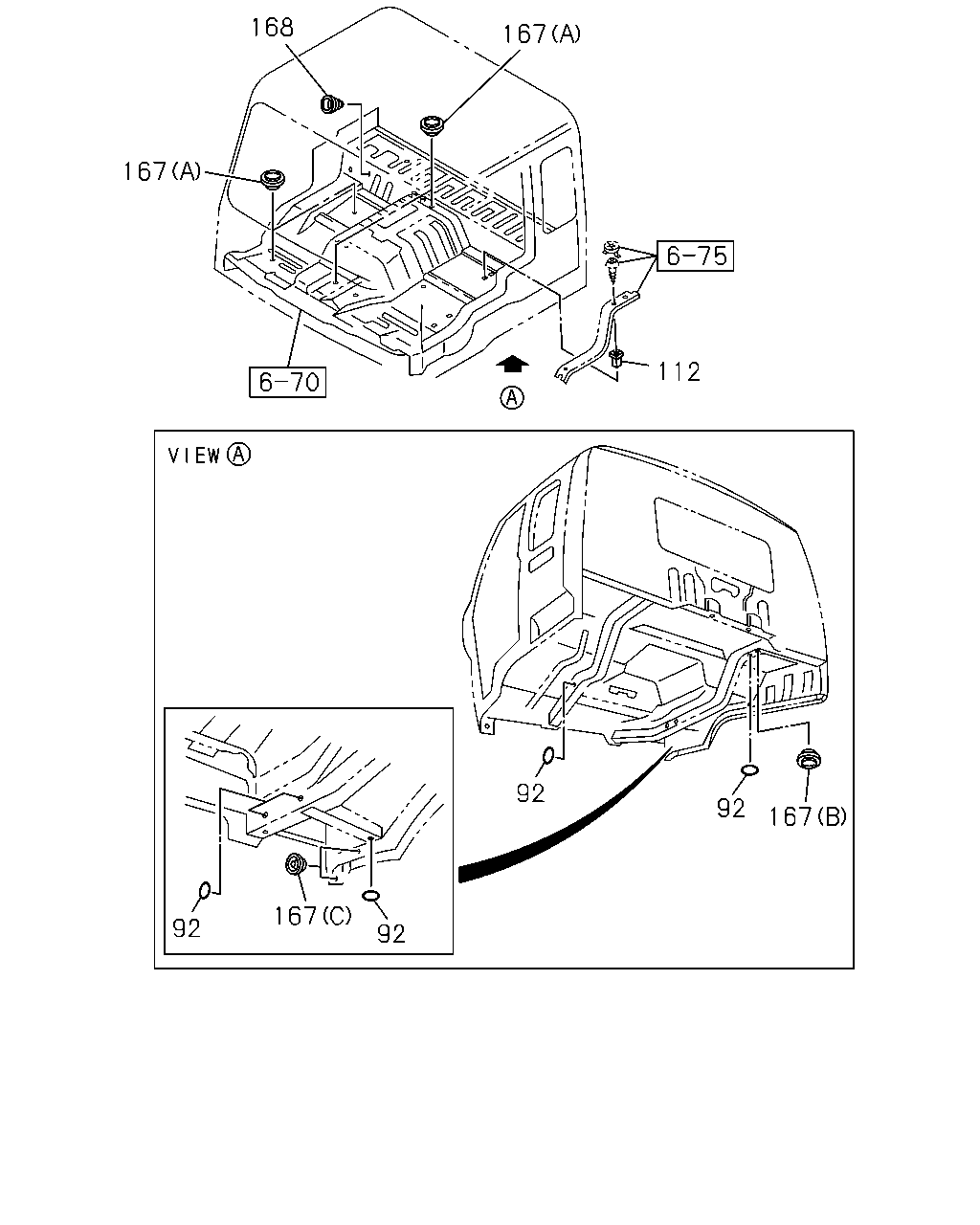

çizim 142221
168 167 167 112 92 92 167 167 92 92
BalonParca AdiParca NoAdetTipApplied Date A B
92 SEAL; LOCATION HOLE
BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 04 1 1007- ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0710-1006 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 08 1 1007- ● ●
92 SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 01 1 0710-1006 ● ●
92 SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 05 1 1007- ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0710- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 06 1 0710- ● ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 06 1 0710- ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 02 1 0710- ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 0710- ● ●
