◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#14210) — 216 parça
çizim 142196
130 130 281 185 281 185 249 249 130 130 185 185 249
BalonParca AdiParca NoAdetTipApplied Date A B
130 PANEL; SHUTTER NOISE
EURO5 SPECIFICATION<NT5> (A) 		1-53192-818-6 01 1 1108- ●
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		1-79937-919-3 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98096-299-0 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 0710-1107 ● ●
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98049-055-1 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98079-171-0 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0710-0909 ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-819-0 01 1 0910-1107 ● ●
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-98125-819-0 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-819-0 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(C) 		8-98079-170-1 01 1 0710- ● ●
185 CLIP; HEAT INSULATOR
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4 		8-97808-623-0 06 1 1108- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 0710-0909 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0910- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 0710- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 0710- ● ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808 ● ●
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912 ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011- ● ●
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710- ● ●
çizim 142197
130 130 74 251 73 251 251
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
EURO5 SPECIFICATION<NT5> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1108- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1105-1107 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1105-1107 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1108- ● ●
73 BOLT; MUD COVER BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1108- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1108- ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0710-1104 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 1105-1107 ● ●
73 BOLT; MUD COVER BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M8X16 FLANGE 		0-28250-816-0 03 1 1108- ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 1108- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-1104 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1105-1107 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1108- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-1104 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1105- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1105- ● ●
130 PANEL; SHUTTER NOISE
EURO5 SPECIFICATION<NT5> (A) 		1-53192-818-6 01 1 1108- ●
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		1-79937-919-3 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98096-299-0 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 0710-1107 ● ●
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98049-055-1 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98079-171-0 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0710-0909 ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-819-0 01 1 0910-1107 ● ●
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-98125-819-0 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-819-0 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(C) 		8-98079-170-1 01 1 0710- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1108- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0710-1104 ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1108- ● ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0710- ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0710- ● ●

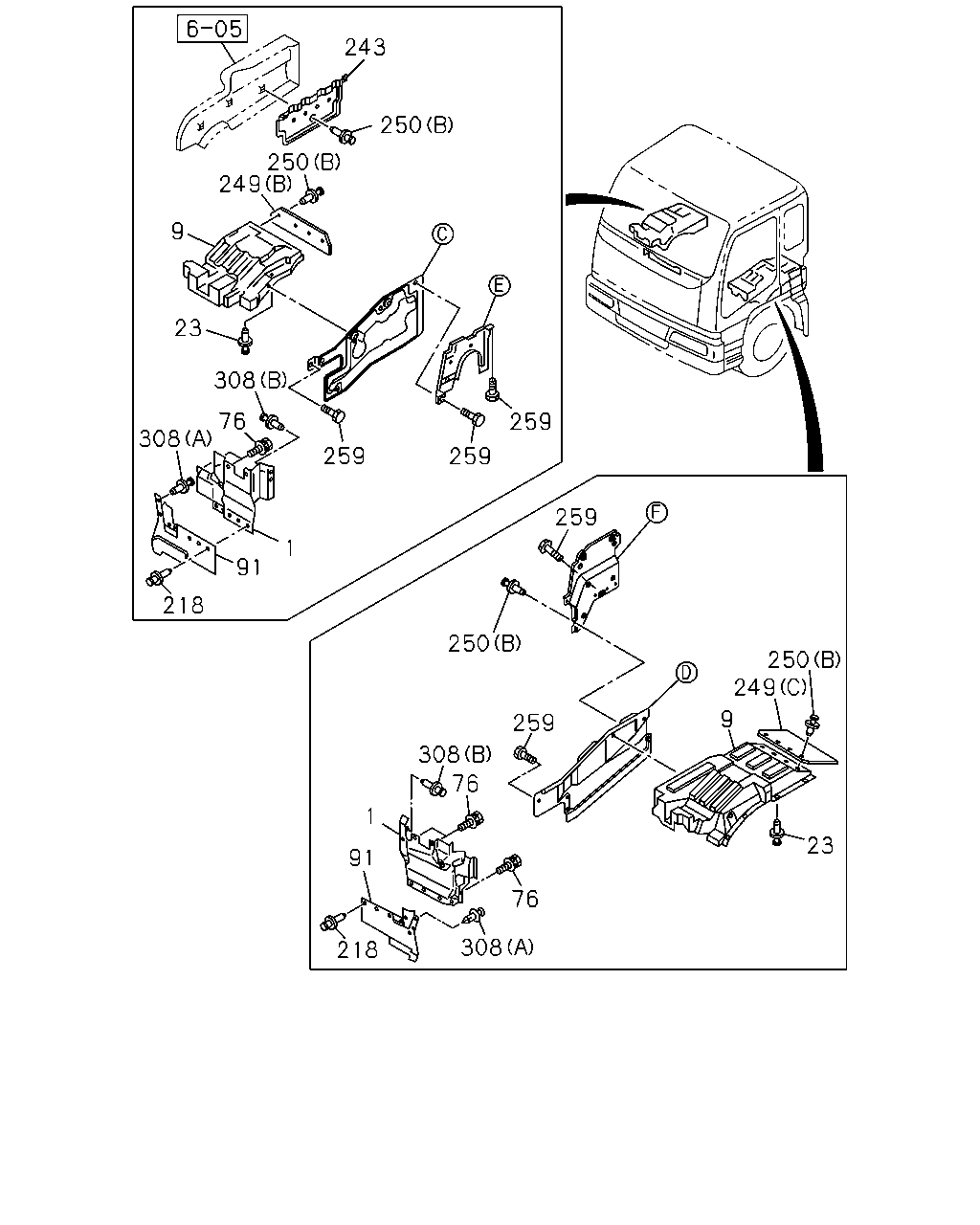

çizim 142209
243 250 250 249 9 23 308 76 259 308 259 259 259 1 91 218 250 250 249 9 259 308 76 1 23 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0710- ● ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0710- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0710- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0710- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0710- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805 ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710- ● ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710- ● ●
91 COVER; MUD,FRT 1-79931-204-1 01 1 0710- ● ●
91 COVER; MUD,FRT 1-79931-203-1 01 1 0710- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0710- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 0710- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 0710- ● ●
250 FASTENER; SHUTTER
6WG1 TC-N(71L) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1108- ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0710-0904 ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0710- ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0710- ● ●

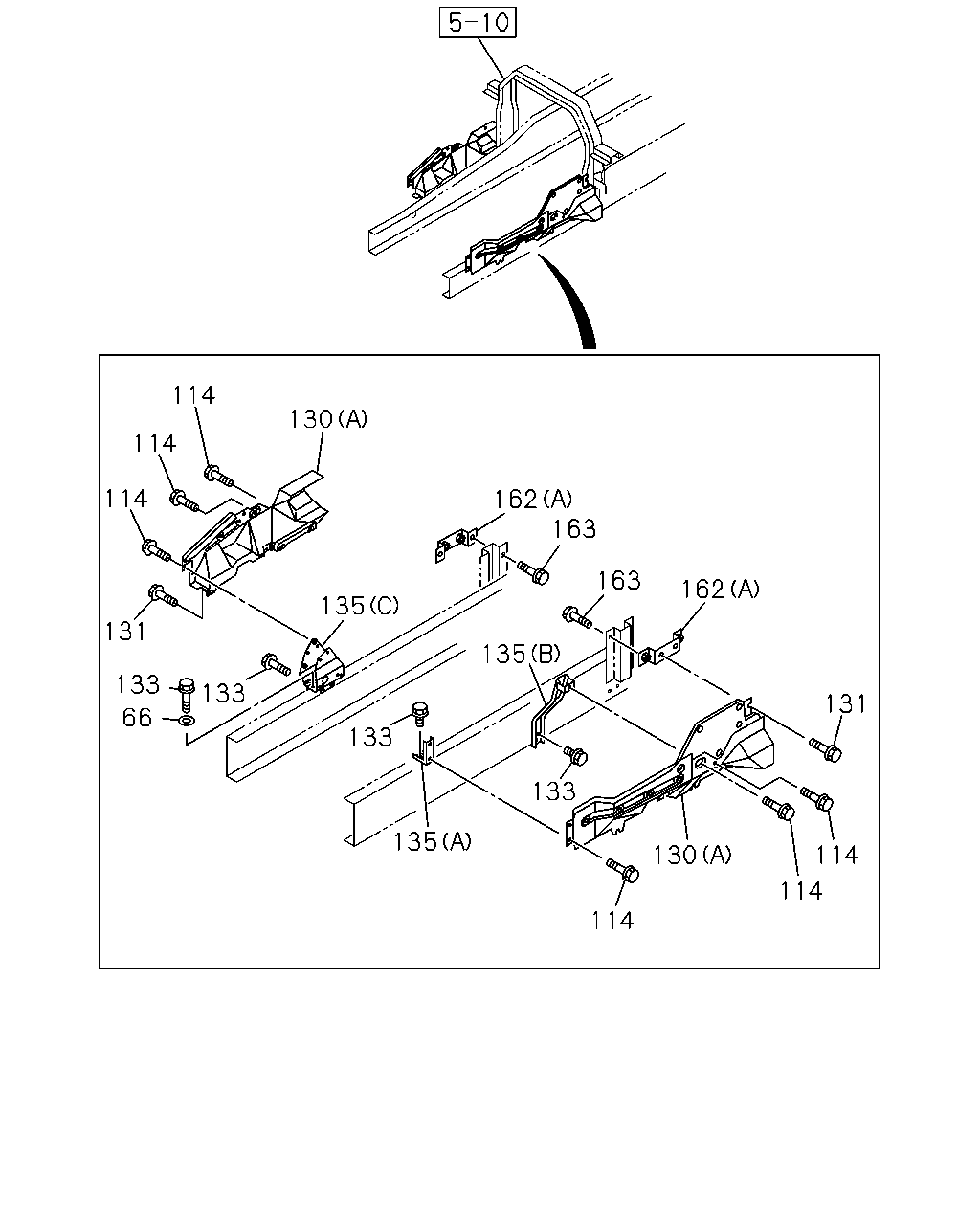

çizim 142210
114 130 114 114 162 163 163 162 135 131 135 133 133 131 66 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date A B
66 WASHER; LK
SMOOTHER-G(C1W) ID=14.2 		0-91510-614-0 02 1 0710- ●
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0710- ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0710- ● ●
130 PANEL; SHUTTER NOISE
EURO5 SPECIFICATION<NT5> (A) 		1-53192-818-6 01 1 1108- ●
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		1-79937-919-3 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98096-299-0 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 0710-1107 ● ●
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98049-055-1 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98079-171-0 01 1 0710- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0710-0909 ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-819-0 01 1 0910-1107 ● ●
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-98125-819-0 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-819-0 01 1 1108- ●
130 PANEL; SHUTTER NOISE
(C) 		8-98079-170-1 01 1 0710- ● ●
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 0809- ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805 ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 		0-20801-445-0 02 1 0710- ●
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0710- ●
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 02 1 0710- ●
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
135 BRACKET; SIDE PANEL
EURO5 SPECIFICATION<NT5> (B) 		8-98127-905-0 01 1 1108- ●
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		1-33657-840-1 01 1 0710- ●
135 BRACKET; SIDE PANEL
(C) 		1-33657-840-1 01 1 0710- ●
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0710- ● ●
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0710-1107 ● ●
135 BRACKET; SIDE PANEL
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		1-53441-508-1 01 1 1108- ●
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 1108- ●
162 BRACKET
6WG1 TC-N(71L) (C) 		8-98113-210-2 01 1 1108- ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0710- ● ●
162 BRACKET
(B) 		1-71907-815-0 01 1 0710- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●

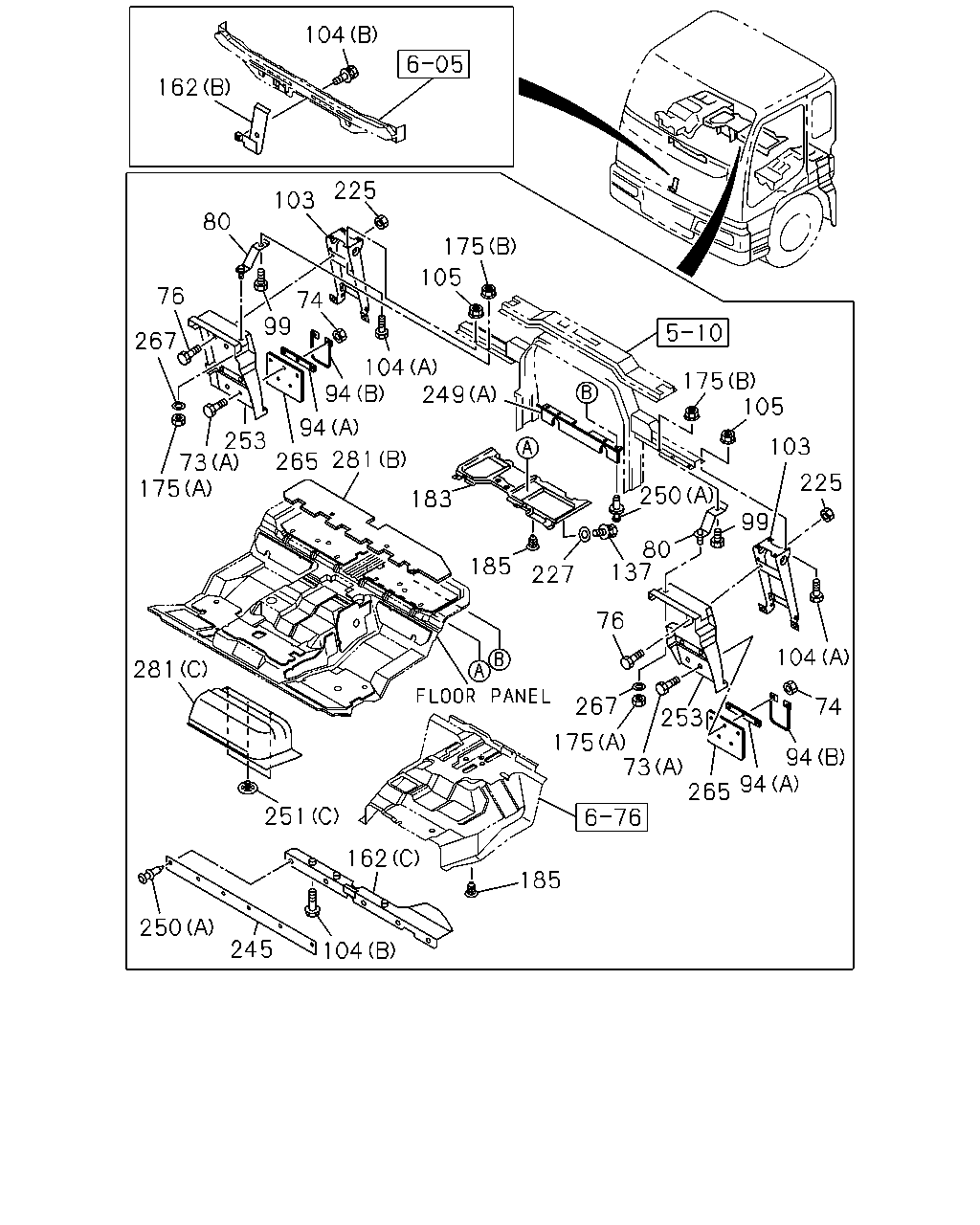

çizim 142223
104 162 225 103 80 175 105 99 76 267 104 94 249 175 105 94 253 73 265 175 103 281 225 250 183 99 80 137 185 227 76 104 281 267 74 253 175 73 94 94 265 251 162 185 250 245 104 74
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
EURO5 SPECIFICATION<NT5> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1108- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1105-1107 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1105-1107 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1108- ● ●
73 BOLT; MUD COVER BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1108- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1108- ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0710-1104 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 1105-1107 ● ●
73 BOLT; MUD COVER BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M8X16 FLANGE 		0-28250-816-0 03 1 1108- ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 1108- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-1104 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1105-1107 ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1108- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-1104 ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1105- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1105- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805 ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710- ● ●
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0710- ● ●
94 RETAINER; FLAP RUBBER
EURO5 SPECIFICATION<NT5> (A) 		8-98035-095-0 01 1 1108- ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0710-1104 ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1105-1107 ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1105-1107 ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 0710-1104 ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1105- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1105- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1108- ● ●
94 RETAINER; FLAP RUBBER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		1-79931-091-2 01 1 1108- ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1108- ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 0710-1502 ● ●
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1503- ● ●
104 BOLT; BRKT
6WG1 TC-N(71L) (B) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 1108- ●
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710- ● ●
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-0808 ● ●
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809- ● ●
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904 ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
162 BRACKET
6WG1 TC-N(71L) (C) 		8-98113-210-2 01 1 1108- ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0710- ● ●
162 BRACKET
(B) 		1-71907-815-0 01 1 0710- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0710- ● ●
185 CLIP; HEAT INSULATOR
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4 		8-97808-623-0 06 1 1108- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 0710-0909 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0910- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 07 1 0710- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0710- ● ●
245 RUBBER; SHUTTER,RAD
6WG1 TC-N(71L) 		8-98113-211-0 01 1 1108- ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 0710- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710- ● ●
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 0710- ● ●
250 FASTENER; SHUTTER
6WG1 TC-N(71L) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1108- ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1108- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0710-1104 ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1108- ● ●
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0710- ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0710- ● ●
253 GUARD; MUD
EURO5 SPECIFICATION<NT5> 		8-98123-038-1 01 1 1108- ●
253 GUARD; MUD 8-98035-096-0 01 1 0710-0901 ● ●
253 GUARD; MUD 8-98134-765-0 01 1 0902-1107 ● ●
253 GUARD; MUD
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98134-765-0 01 1 1108- ●
253 GUARD; MUD 8-98134-765-0 01 1 1108- ●
253 GUARD; MUD 1-79931-065-7 01 1 0710-0901 ● ●
253 GUARD; MUD 8-98134-760-0 01 1 0902- ● ●
265 RUBBER; FLAP,REAR
EURO5 SPECIFICATION<NT5> 		8-98159-862-0 01 1 1108- ●
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0710-1104 ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1105-1107 ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1105-1107 ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1108- ● ●
265 RUBBER; FLAP,REAR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-79930-978-0 01 1 1108- ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1108- ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0710- ● ●
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808 ● ●
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912 ● ●
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010 ● ●
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011- ● ●
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
