2-01 — CLUTCH (#1421) — 63 parça

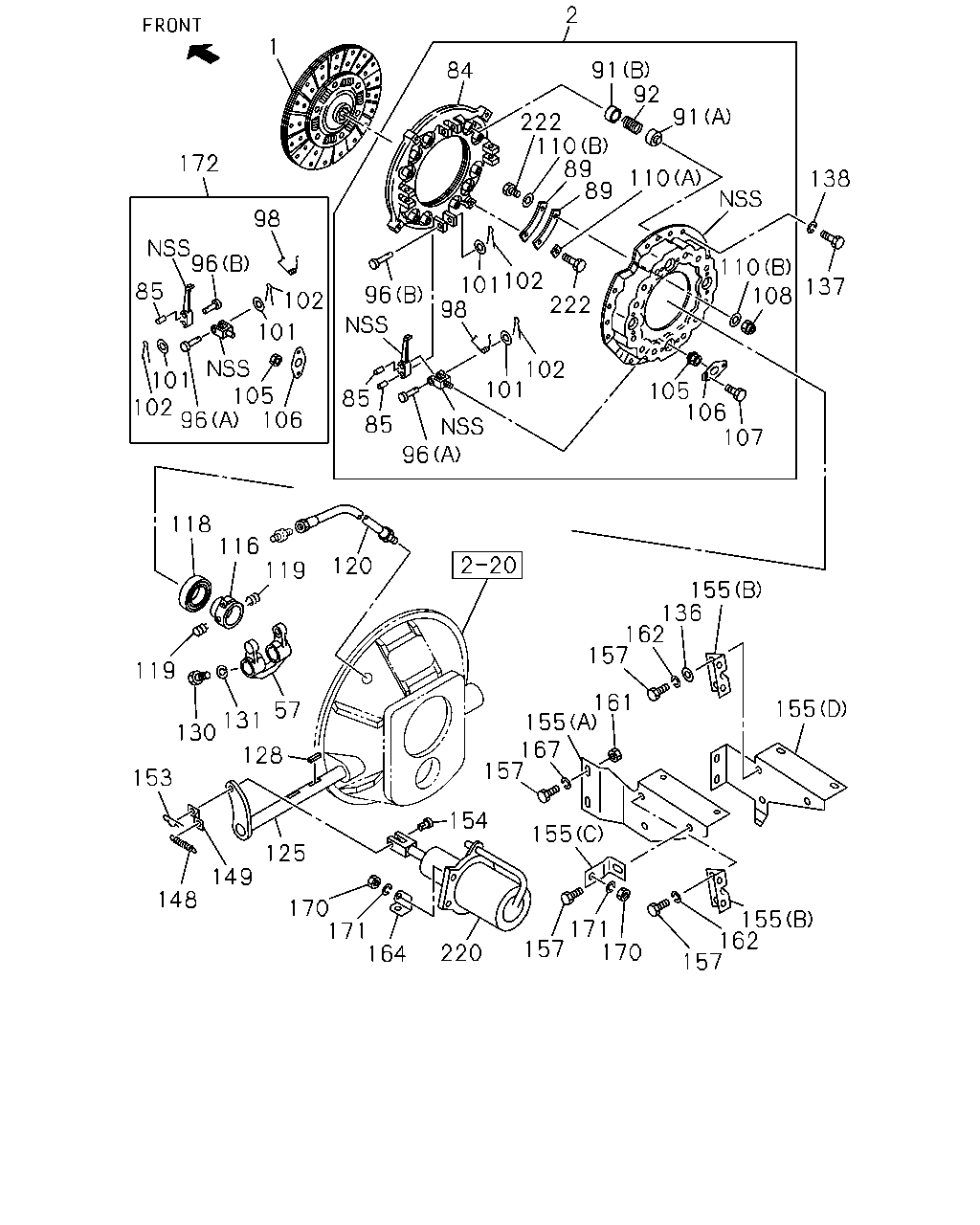

çizim 29863
2 1 91 92 84 222 110 89 89 91 172 110 138 98 110 108 96 101 102 222 98 137 85 96 102 101 105 106 102 101 101 102 96 105 106 107 85 85 96 118 116 119 120 155 136 162 157 119 161 155 57 131 130 155 167 157 128 153 154 155 125 149 148 170 171 164 155 162 157 171 157 170 220
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
15" 		1-31240-547-0 01 1 9203-9309 ● ●
1 DISC; CLUTCH
15" 		1-31240-657-0 01 1 9310- ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-207-1 01 1 9203- ● ●
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 9203- ● ●
84 PLATE; PRESSURE
15" 		1-31221-067-0 01 1 9203- ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9203- ● ●
89 PLATE; STRAP 1-31229-001-0 12 1 9203- ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9203- ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9203- ● ●
92 SPRING; CLU 1-31214-019-0 12 1 9203- ● ●
96 PIN; RELEASE LEVER
(B) L=57 		1-31232-004-0 04 1 9203- ● ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 9203- ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 9203- ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9203- ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9203- ● ●
105 NUT; SUPPORT 9-31235-061-0 04 1 9203- ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 9203- ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9203- ● ●
108 NUT; STRAP 1-09449-036-0 04 1 9203- ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 9203- ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 9203- ● ●
116 BLOCK; SHIFT,CLU 1-31321-063-1 01 1 9203- ● ●
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9203- ● ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9203- ● ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9203- ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=204 		1-09364-633-0 01 1 9203- ● ●
125 SHAFT; CLU 1-31342-255-0 01 1 9203- ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9203- ● ●
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 9203- ● ●
131 WASHER; LK,SHIFT FORK
FINAL GEAR 16.5 INCH SPIRAL 4.875 EATON(W4Z) ID=8.2 		9-09150-508-0 01 1 9203-9406 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9203-9406 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9407- ● ●
136 WASHER; PL
6SA1TC ENG(28L) ID=15 		9-09160-514-0 01 1 9203- ● ●
137 BOLT; CLU COVER
M10X25 		0-23801-025-0 12 1 9203-9504 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9505- ● ●
138 WASHER; LK,CLU COVER
ID=10.2 		9-09150-510-0 12 1 9203-9504 ● ●
148 SPRING; CLU RETURN
6SA1 STD ENG(06L) 		1-09583-212-0 01 1 9203- ● ●
148 SPRING; CLU RETURN
6SA1TC ENG(28L) L=137.7 		1-09583-284-0 01 1 9203- ● ●
149 EYE; SPRING,RETURN SPRING
6SA1 STD ENG(06L) 		1-31426-019-1 01 1 9203- ● ●
149 EYE; SPRING,RETURN SPRING
6SA1TC ENG(28L) 		1-31426-025-0 01 1 9203- ● ●
153 PIN; SPLIT,CLU SHAFT
6SA1TC ENG(28L) 		1-09747-009-0 01 1 9203- ● ●
154 PIN; JAW JOINT
6SA1 STD ENG(06L) 		1-31424-001-1 01 1 9203-9312 ● ●
154 PIN; JAW JOINT
6SA1 STD ENG(06L) 		1-31424-009-0 01 1 9401- ● ●
154 PIN; JAW JOINT
6SA1TC ENG(28L) 		1-31424-003-0 01 1 9203- ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-066-0 01 1 9203- ● ●
155 BRACKET; MINIPACK
(C) 		1-31429-322-0 01 1 9203- ● ●
155 BRACKET; MINIPACK
6SA1 STD ENG(06L) (A) 		1-31429-321-1 01 1 9203- ● ●
155 BRACKET; MINIPACK
6SA1TC ENG(28L) (D) 		1-31429-332-0 01 1 9203- ● ●
157 BOLT; BRKT
M10X25 		0-28081-025-0 02 1 9203- ● ●
157 BOLT; BRKT
6SA1 STD ENG(06L) M10X16 FLANGE 		0-28181-016-0 01 1 9203- ● ●
157 BOLT; BRKT
6SA1 STD ENG(06L) 3/4"-10UNC 		1-09087-033-0 02 1 9203- ● ●
157 BOLT; BRKT
6SA1TC ENG(28L) M10X16 FLANGE 		0-28181-016-0 03 1 9203- ● ●
161 NUT; BRKT
M10 		9-09110-510-0 04 1 9203- ● ●
162 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9203- ● ●
164 EYE; SPRING
6SA1 STD ENG(06L) 		1-31426-016-1 01 1 9203- ● ●
167 WASHER; LK,SPRING EYE
6SA1 STD ENG(06L) ID=20.2 		9-09150-520-0 02 1 9203- ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9203- ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9203- ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-513-0 01 1 9203-9412 ● ●
172 LEVER KIT; RELEASE,CLU
15" 		1-87830-760-0 01 1 9501- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-350-0 01 1 9203- ● ●
222 BOLT; STRAP
M10X23.2 		1-09040-042-0 04 1 9203- ● ●
222 BOLT; STRAP
M10X26 HEX SOCKET 		1-09040-043-0 04 1 9203- ● ●
