◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#14201) — 188 parça

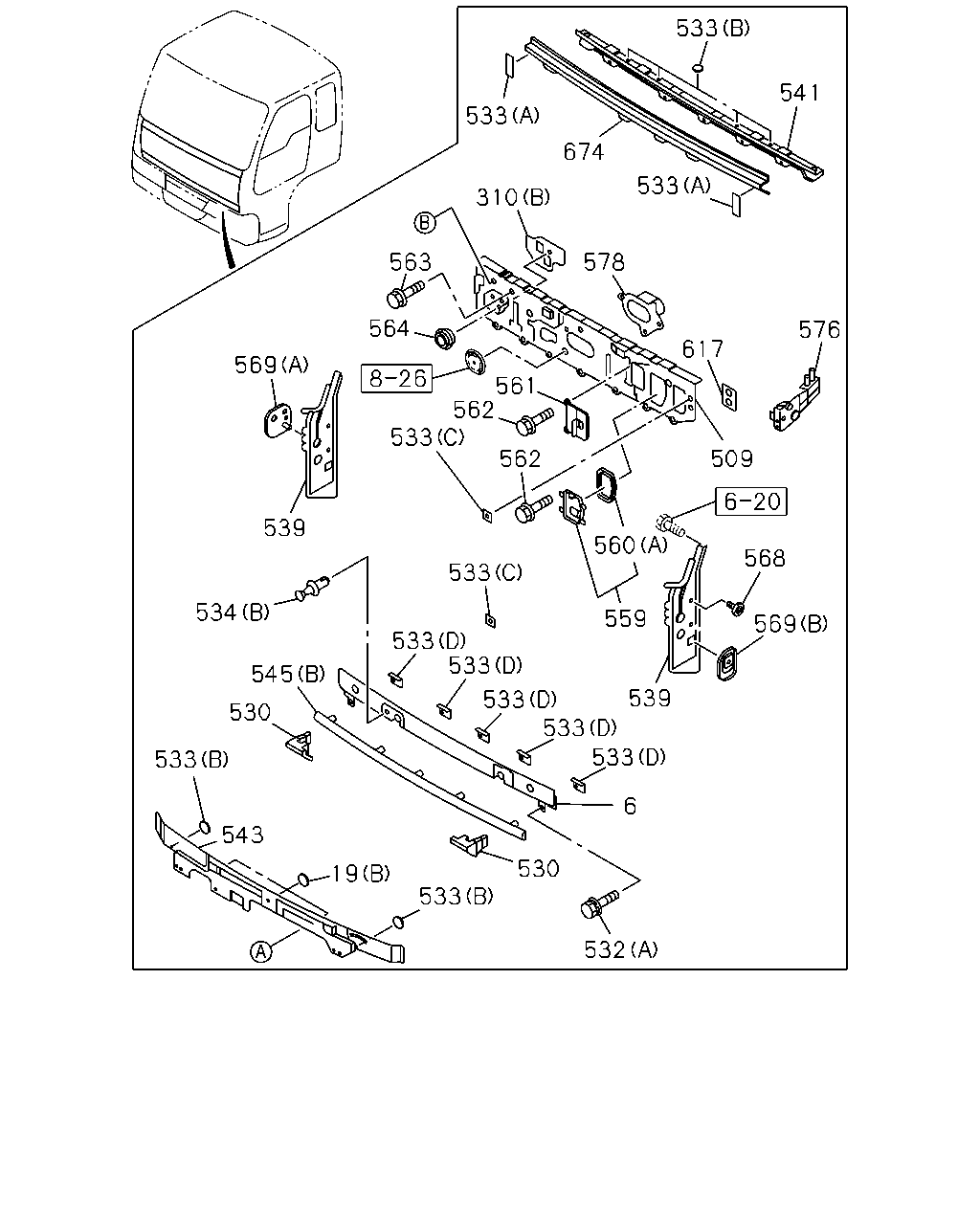

çizim 142186
533 541 533 674 533 310 563 578 564 576 617 569 561 562 533 509 562 539 560 568 533 534 559 569 533 533 545 539 533 533 530 533 533 6 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65473-144-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0710-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0710-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0710- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0710- ● ●
509 PANEL; DASH 1-62270-478-6 01 1 0710- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0710- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0710- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0710- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0710- ● ●
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 0710- ● ●
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0710- ● ●
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0710- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0710-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0710- ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0710- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0710- ● ●
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0710- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0710- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0710- ● ●
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 0710- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 0710- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 0710- ● ●
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 0710- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0710- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0710- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-1105 ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0710-1105 ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0710- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0710- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0710- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0710- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0710- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0710- ● ●
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0710- ● ●
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0710- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0710- ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0710- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0710- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 0710- ● ●
674 PANEL; UPR 1-61470-688-2 01 1 0710- ● ●

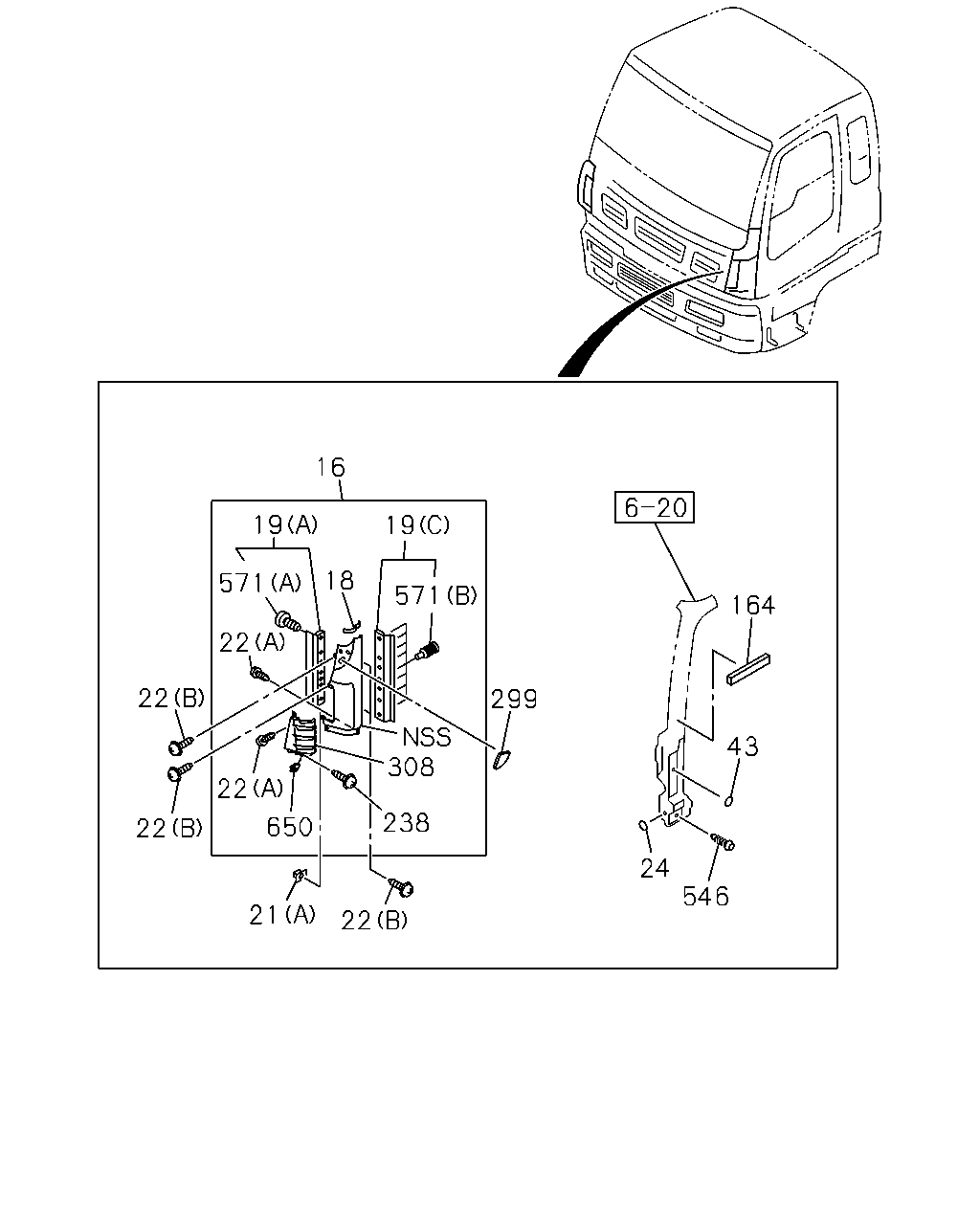

çizim 142188
16 19 19 18 571 571 164 22 22 299 308 43 22 238 650 22 24 546 21 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65473-185-4 01 1 0710- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65473-182-4 01 1 0710- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0710- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0710-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0710- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0710-1111 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0710- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0710- ● ●
22 SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 0710- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0710-0810 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 0811-1010 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 0710- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0710- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0710- ● ●
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0710- ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR TOLL GREEN(543) 		1-71998-995-1 01 1 1203- ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR TOLL GREEN(543) 		1-71998-996-1 01 1 1203- ● ●
299 COVER; FRT PANEL SIDE 1-71996-350-0 01 1 0710-1202 ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) 		1-71996-350-0 01 1 1203- ● ●
299 COVER; FRT PANEL SIDE 1-71996-349-0 01 1 0710-1202 ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) 		1-71996-349-0 01 1 1203- ● ●
308 PLATE; FRT PANEL
BODY COLOR TOLL GREEN(543) 		8-98213-770-0 01 1 1203- ● ●
308 PLATE; FRT PANEL
BODY COLOR TOLL GREEN(543) 		8-98213-771-0 01 1 1203- ● ●
308 PLATE; FRT PANEL 1-65473-184-3 01 1 0710-1202 ● ●
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) 		1-65473-184-3 01 1 1203- ● ●
308 PLATE; FRT PANEL 1-65473-181-3 01 1 0710-1202 ● ●
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) 		1-65473-181-3 01 1 1203- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 01 1 0710- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0710- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0710- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0710- ● ●
650 NUT; SPIRE
M5 		1-09984-162-0 04 1 0710- ● ●

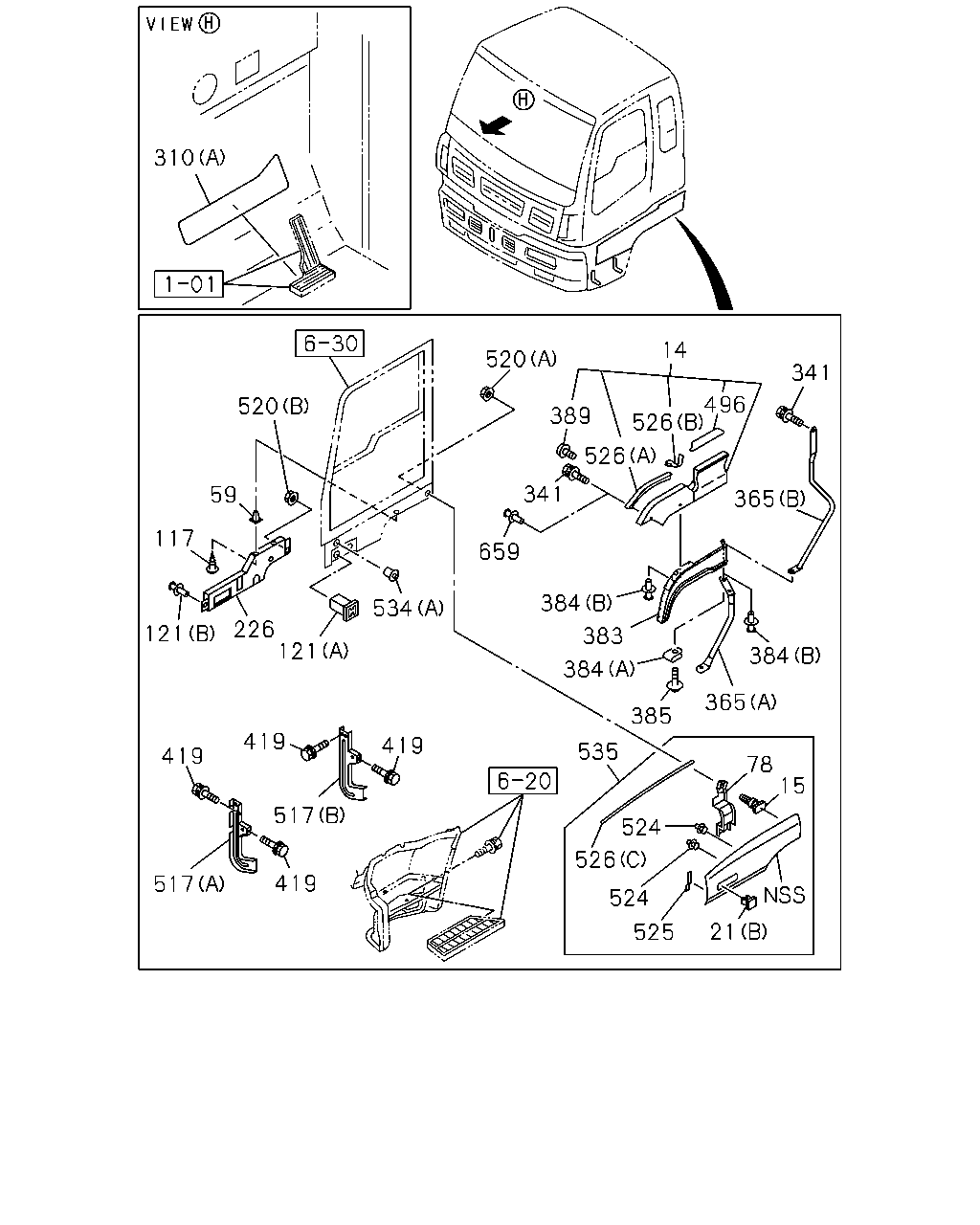

çizim 142193
310 14 520 341 496 526 520 389 526 365 341 59 117 659 384 534 226 121 21 383 384 384 365 385 419 419 535 419 78 15 517 524 526 419 517 524 21 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT 1-65472-875-9 01 1 0710-0901 ● ●
14 FENDER; FRT 8-98137-384-0 01 1 0902-0910 ● ●
14 FENDER; FRT 8-98154-745-1 01 1 0911- ● ●
14 FENDER; FRT 1-65472-874-9 01 1 0710-0901 ● ●
14 FENDER; FRT 8-98137-383-0 01 1 0902-0910 ● ●
14 FENDER; FRT 8-98154-744-1 01 1 0911- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0710- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0710- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0710- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0710- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 0710- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 0710- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0710- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0710- ● ●
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0710- ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 0710- ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 0710- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0710- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0710- ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0710-0810 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0910 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911- ● ●
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 0710-0810 ● ●
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811- ● ●
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 0710-0810 ● ●
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0710- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0710- ● ●
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 09 1 0710-0810 ● ●
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 13 1 0811- ● ●
384 CLIP; FENDER LWR
(A) ID=6 		1-09987-266-0 04 1 0710-0810 ● ●
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 0710-0810 ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0710- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0710-0904 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
496 RUBBER; STEP 1-71998-862-2 01 1 0710- ● ●
496 RUBBER; STEP 1-71998-861-2 01 1 0710- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0710- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-774-0 01 1 0710- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0710- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0710- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0710- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0710- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0710- ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0710- ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0710- ● ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0710- ● ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0710- ● ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0710- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0710-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0710- ● ●
535 FENDER; BLISTER 1-71267-294-1 01 1 0710- ● ●
535 FENDER; BLISTER 1-71267-293-1 01 1 0710- ● ●
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 0911- ● ●

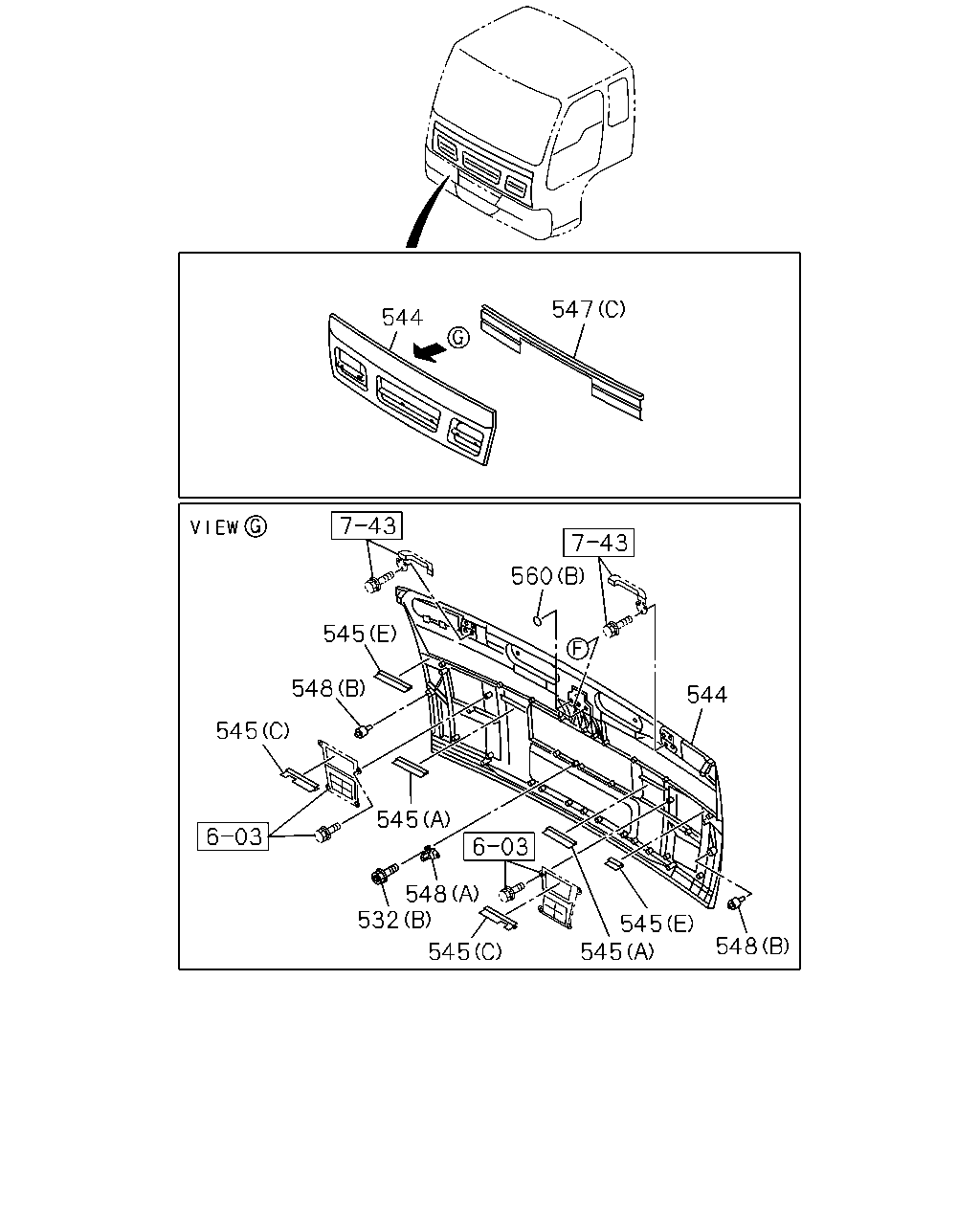

çizim 142204
547 544 560 545 548 544 545 545 548 532 545 545 548 545
BalonParca AdiParca NoAdetTipApplied Date A B
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0710- ● ●
544 LID; FRT
WHITE 		1-71101-023-1 01 1 0710- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0710- ● ●
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 0710- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 0710- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 0710- ● ●
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 0710- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0710- ● ●
547 RUBBER; CUSHION
(C) 		1-71907-804-2 01 1 0710- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0710- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0710- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0710- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0710- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-1105 ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0710-1105 ● ●

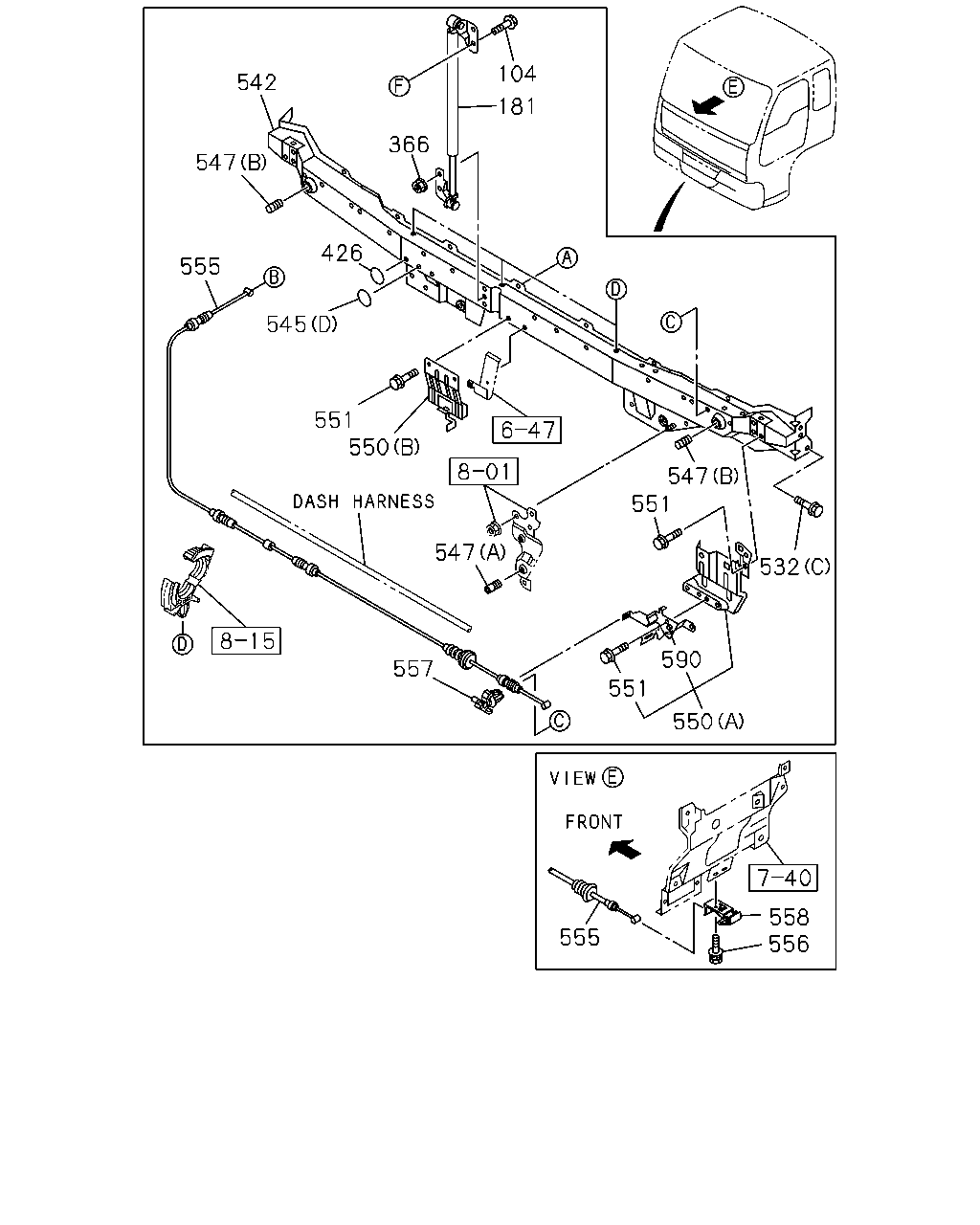

çizim 142214
104 542 181 366 547 426 555 545 551 550 547 551 547 532 590 557 551 550 558 556 555
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0710- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0710- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0710- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0710- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0710- ● ●
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 0710- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0710- ● ●
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 0710- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 0710- ● ●
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 0710- ● ●
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 0710- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0710- ● ●
547 RUBBER; CUSHION
(C) 		1-71907-804-2 01 1 0710- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0710- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79317-020-1 01 1 0710- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-026-1 01 1 0710- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-025-1 01 1 0710- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0710- ● ●
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 0710- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0710- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0710- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 0710- ● ●
590 LOCK; FRT LID 1-79318-010-2 01 1 0710- ● ●
590 LOCK; FRT LID 1-79318-009-4 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
