Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#1420) — 30 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
◀

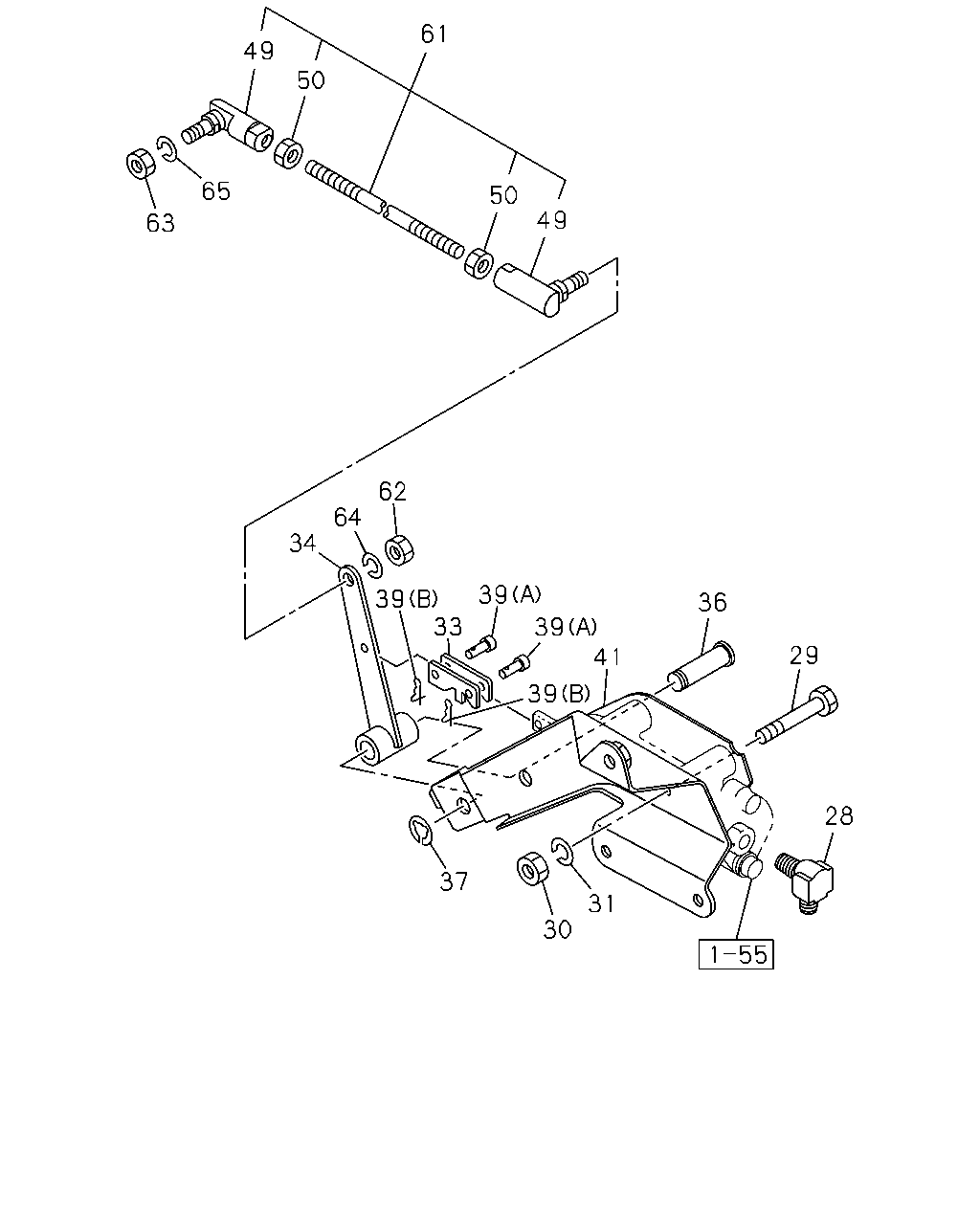

[156A] NO.1 (19 parça)
[156A] NO.2 (11 parça)
▶
61
49
50
65
50
49
63
62
64
34
39
39
33
36
39
29
41
39
28
37
31
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
28
CONNECTOR; ELBOW,CONT CYL
1-09650-247-2
01
1
9203-
●
●
29
BOLT; CONT CYL
M10X60
9-01046-060-0
02
1
9203-9204
●
●
29
BOLT; CONT CYL
M10X60
0-10806-060-0
02
1
9205-
●
●
30
NUT; CONT CYL
M10
9-09110-410-0
02
1
9203-
●
●
31
WASHER; PL,CONT CYL
ID=10.2
9-09150-510-0
02
1
9203-
●
●
33
JOINT; YOKE,POWER CHAMBER
1-22199-053-0
01
1
9203-
●
●
34
LEVER; CONT BOX
1-22196-149-0
01
1
9203-
●
●
36
PIN; JOINT,CONT LEVER
9-08204-241-0
01
1
9203-
●
●
37
RING; SNAP,CONT LEVER
ID=9
9-09185-409-0
01
1
9203-
●
●
39
PIN; JOINT YOKE
(A)
1-22199-054-0
02
1
9203-
●
●
39
PIN; JOINT YOKE
(B)
8-94157-840-0
02
1
9203-
●
●
41
BRACKET
1-22186-103-0
01
1
9203-
●
●
49
JOINT; BALL,LINK ROD
RH THREAD
1-09760-009-0
02
1
9203-
●
●
50
NUT; JOINT BALL,LK
M8
9-09110-408-0
02
1
9203-
●
●
61
ROD; LINK,EXH BRK
1-22190-515-0
01
1
9203-
●
●
62
NUT; LINK ROD
M8
9-09110-408-0
01
1
9203-
●
●
63
NUT; LINK ROD,EXH BRK VLV
M8
9-09110-408-0
01
1
9203-
●
●
64
WASHER; LK,LINK ROD
ID=8.2
9-09150-508-0
01
1
9203-
●
●
65
WASHER; LK,LINK ROD,EXH BRK VLV
ID=8.2
9-09150-508-0
01
1
9203-
●
●
59
62
64
59
93
60
92
87
86
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
59
BOLT; CONT BOX TO BRKT
M8X25 FLANGE
0-28010-825-0
03
1
9203-9204
●
●
59
BOLT; CONT BOX TO BRKT
M8X25 FLANGE
0-28080-825-0
03
1
9205-
●
●
60
NUT; CONT BOX
M8
9-09110-408-0
01
1
9203-
●
●
62
NUT; LINK ROD
M8
9-09110-408-0
01
1
9203-
●
●
64
WASHER; LK,LINK ROD
ID=8.2
9-09150-508-0
01
1
9203-
●
●
86
VALVE; MAG,EXH BRK
EXHAUST BRAKE
1-82563-196-0
01
1
9203-
●
●
87
CONNECTOR
(A)
1-09650-074-1
01
1
9203-
●
●
87
CONNECTOR
(B)
1-09660-552-0
01
1
9203-
●
●
92
BOLT; MAG VLV
M8X30 FLANGE
0-28010-830-0
02
1
9203-9204
●
●
92
BOLT; MAG VLV
M8X30 FLANGE
0-28080-830-0
02
1
9205-
●
●
93
NUT; MAG VLV
M8
9-09110-408-0
02
1
9203-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
