6-01 — FRONT BUMPER (#14199) — 209 parça

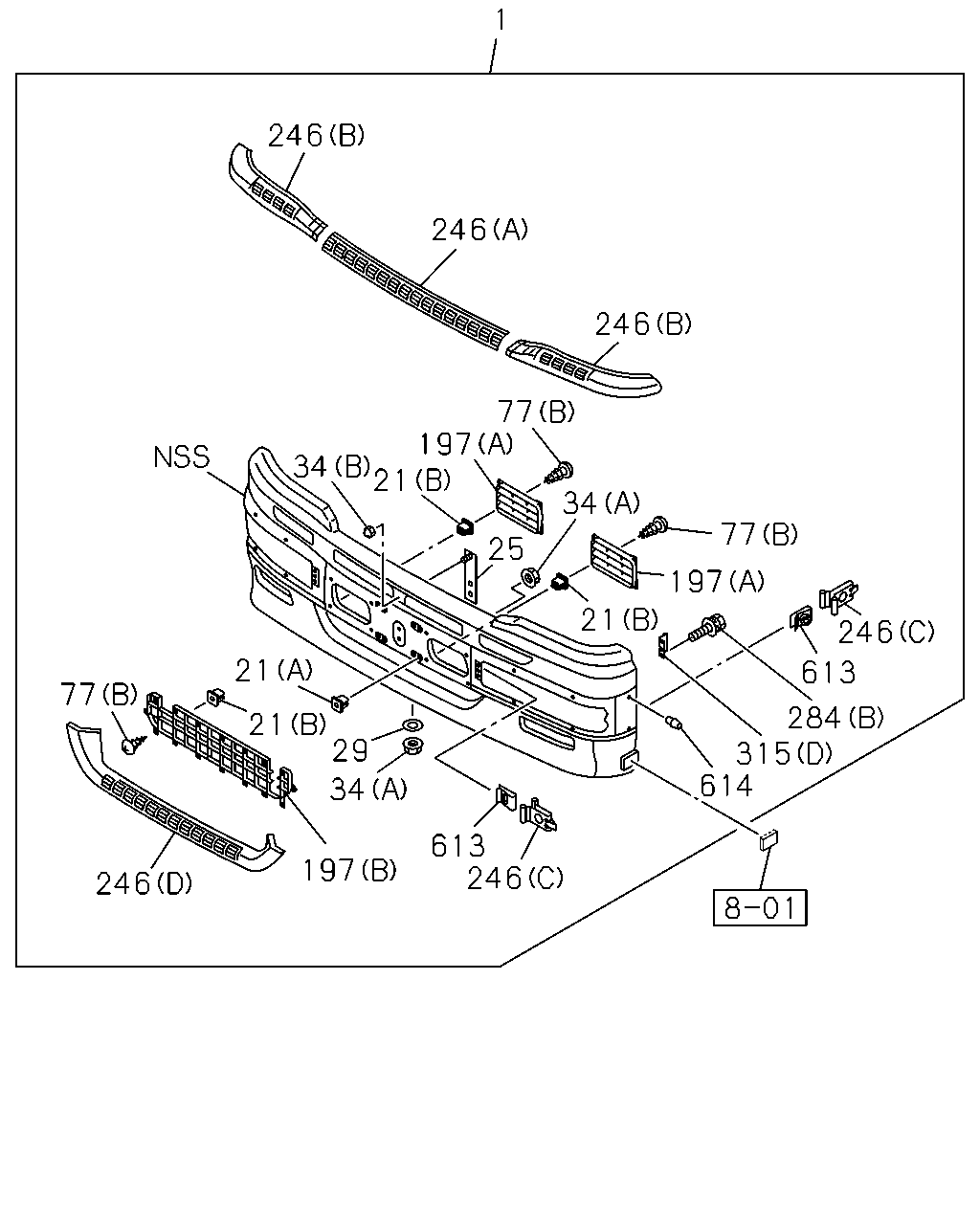

çizim 141976
1 246 246 246 77 197 34 21 34 77 25 197 21 246 21 613 77 21 29 284 315 614 34 613 246 197 246
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
BODY COLOR TOLL GREEN(543) FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
BODY COLOR TOLL GREEN(543) EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1009-1202 ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
WHITE 		8-98098-600-1 01 1 0710-1008 ● ●
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1009-1202 ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1203- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5 		8-94163-979-0 08 1 1009- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0710-1008 ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
FRONT SPOILER<VP1> (B) D=9X9 L=7 M5 		8-94163-979-0 22 1 1009- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710- ● ●
25 SPACER; PLATFORM 1-71230-640-0 01 1 0710- ● ●
29 WASHER; FRT BUMPER
EXC. FRONT SPOILER<VP1> ID=8.4 OD=22 		0-91610-708-0 13 1 1009- ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0710-1008 ● ●
29 WASHER; FRT BUMPER
FRONT SPOILER<VP1> ID=8.4 OD=22 		0-91610-708-0 17 1 1009- ● ●
34 NUT; BRKT,BUMPER
EXC. FRONT SPOILER<VP1> (A) M8 FLANGE 		0-91180-108-0 13 1 1009- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0710-1008 ● ●
34 NUT; BRKT,BUMPER
FRONT SPOILER<VP1> (A) M8 FLANGE 		0-91180-108-0 17 1 1009- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0710- ● ●
77 SCREW; BRKT
EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING 		0-71240-516-0 08 1 1009- ● ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0710-1008 ● ●
77 SCREW; BRKT
FRONT SPOILER<VP1> (B) M5X16 TAPPING 		0-71240-516-0 36 1 1009- ● ●
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0710-1008 ● ●
77 SCREW; BRKT
EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 1009- ● ●
197 GRILLE; BUMPER
BODY COLOR TOLL GREEN(543) (A) 		8-98214-501-0 01 1 1203- ● ●
197 GRILLE; BUMPER
BODY COLOR TOLL GREEN(543) (A) 		8-98214-502-0 01 1 1203- ● ●
197 GRILLE; BUMPER
FRONT SPOILER<VP1> (B) 		8-97617-998-0 01 1 1009- ● ●
197 GRILLE; BUMPER
(A) 		8-97619-503-0 01 1 0710-1202 ● ●
197 GRILLE; BUMPER
BODY COLOR ARC WHITE(729) (A) 		8-97619-503-0 01 1 1203- ● ●
197 GRILLE; BUMPER
(A) 		8-97619-504-0 01 1 0710-1202 ● ●
197 GRILLE; BUMPER
BODY COLOR ARC WHITE(729) (A) 		8-97619-504-0 01 1 1203- ● ●
246 PROTECTOR; BUMPER
FRONT SPOILER<VP1> (D) 		8-97619-484-0 01 1 1009- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0710- ● ●
246 PROTECTOR; BUMPER
(A) 		8-97619-479-1 01 1 0710- ● ●
246 PROTECTOR; BUMPER
(B) 		8-97619-480-1 01 1 0710- ● ●
246 PROTECTOR; BUMPER
(B) 		8-97619-481-1 01 1 0710- ● ●
284 BOLT; BRKT
(A) M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0710-1008 ● ●
284 BOLT; BRKT
EXC. FRONT SPOILER<VP1> (A) M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 1009- ● ●
284 BOLT; BRKT
(B) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0710- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (D) 		1-71230-346-2 01 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (D) 		1-71230-347-2 01 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (C) 		1-71230-435-0 02 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (B) 		8-97608-941-0 02 1 1009- ● ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (C) 		1-71230-434-0 02 1 1009- ● ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (A) 		1-71230-636-0 01 1 1009- ● ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (A) 		1-71230-637-0 01 1 1009- ● ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (B) 		1-71230-491-0 01 1 1009- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (B) 		1-71230-492-0 01 1 1009- ● ●
613 CLIP 1-71260-174-0 06 1 0710- ● ●
614 STOPPER; LID 1-71260-163-0 12 1 0710- ● ●

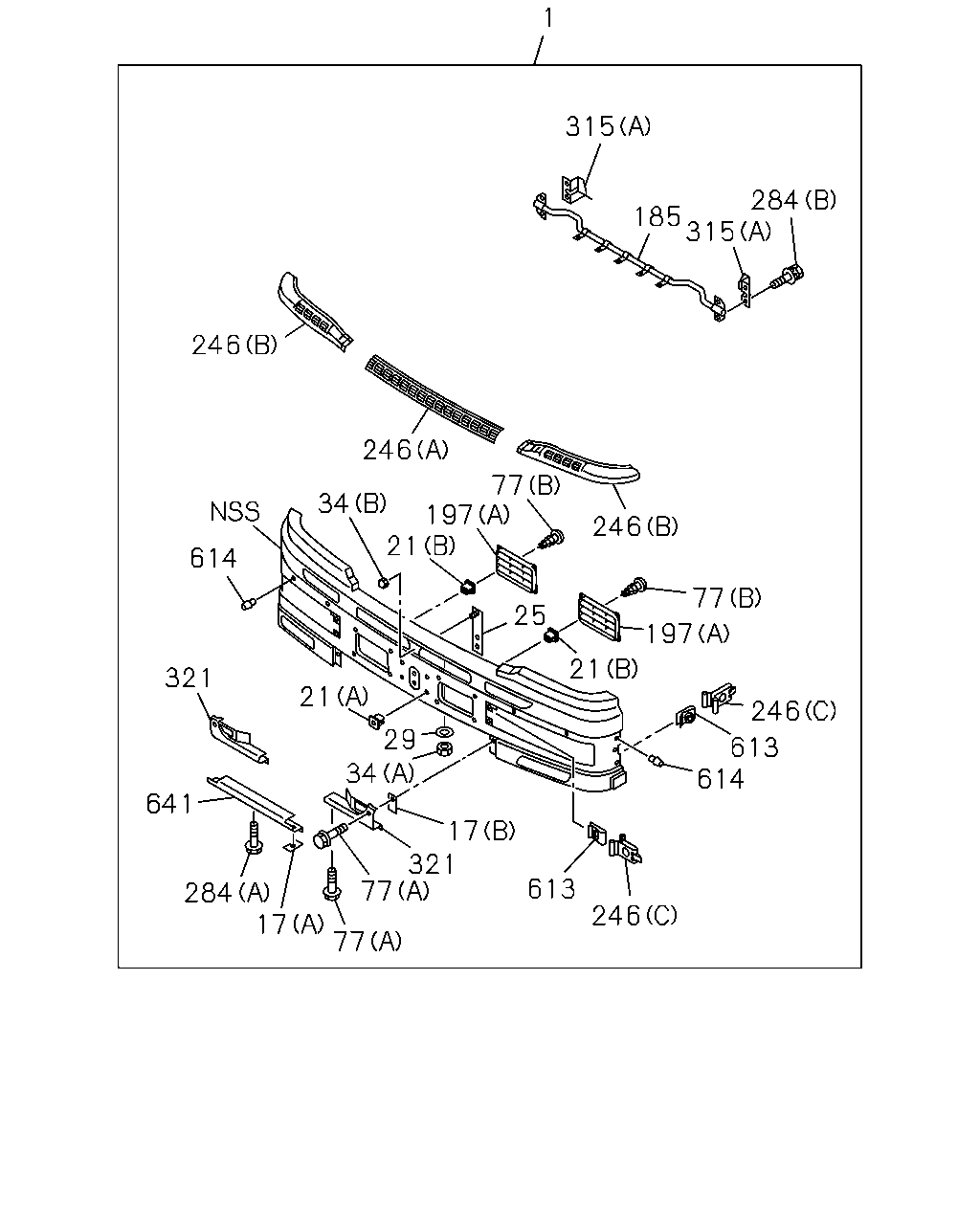

çizim 142173
1 315 284 185 315 246 246 77 197 21 34 246 614 77 25 197 21 321 21 246 29 613 614 34 641 17 321 77 613 284 17 246 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
BODY COLOR TOLL GREEN(543) FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
BODY COLOR TOLL GREEN(543) EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1009-1202 ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
WHITE 		8-98098-600-1 01 1 0710-1008 ● ●
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1009-1202 ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1203- ● ●
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 0710-1008 ● ●
17 PROTECTOR; FRT BUMPER
EXC. FRONT SPOILER<VP1> (A) 		1-71260-185-0 02 1 1009- ● ●
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 0710-1008 ● ●
17 PROTECTOR; FRT BUMPER
EXC. FRONT SPOILER<VP1> (B) 		1-71260-277-0 02 1 1009- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5 		8-94163-979-0 08 1 1009- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0710-1008 ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
FRONT SPOILER<VP1> (B) D=9X9 L=7 M5 		8-94163-979-0 22 1 1009- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710- ● ●
25 SPACER; PLATFORM 1-71230-640-0 01 1 0710- ● ●
29 WASHER; FRT BUMPER
EXC. FRONT SPOILER<VP1> ID=8.4 OD=22 		0-91610-708-0 13 1 1009- ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0710-1008 ● ●
29 WASHER; FRT BUMPER
FRONT SPOILER<VP1> ID=8.4 OD=22 		0-91610-708-0 17 1 1009- ● ●
34 NUT; BRKT,BUMPER
EXC. FRONT SPOILER<VP1> (A) M8 FLANGE 		0-91180-108-0 13 1 1009- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0710-1008 ● ●
34 NUT; BRKT,BUMPER
FRONT SPOILER<VP1> (A) M8 FLANGE 		0-91180-108-0 17 1 1009- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0710- ● ●
77 SCREW; BRKT
EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING 		0-71240-516-0 08 1 1009- ● ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0710-1008 ● ●
77 SCREW; BRKT
FRONT SPOILER<VP1> (B) M5X16 TAPPING 		0-71240-516-0 36 1 1009- ● ●
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0710-1008 ● ●
77 SCREW; BRKT
EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 1009- ● ●
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 0710-1008 ● ●
185 BRACKET; BUMPER,INNER
EXC. FRONT SPOILER<VP1> 		1-71230-610-0 01 1 1009- ● ●
197 GRILLE; BUMPER
BODY COLOR TOLL GREEN(543) (A) 		8-98214-501-0 01 1 1203- ● ●
197 GRILLE; BUMPER
BODY COLOR TOLL GREEN(543) (A) 		8-98214-502-0 01 1 1203- ● ●
197 GRILLE; BUMPER
FRONT SPOILER<VP1> (B) 		8-97617-998-0 01 1 1009- ● ●
197 GRILLE; BUMPER
(A) 		8-97619-503-0 01 1 0710-1202 ● ●
197 GRILLE; BUMPER
BODY COLOR ARC WHITE(729) (A) 		8-97619-503-0 01 1 1203- ● ●
197 GRILLE; BUMPER
(A) 		8-97619-504-0 01 1 0710-1202 ● ●
197 GRILLE; BUMPER
BODY COLOR ARC WHITE(729) (A) 		8-97619-504-0 01 1 1203- ● ●
246 PROTECTOR; BUMPER
FRONT SPOILER<VP1> (D) 		8-97619-484-0 01 1 1009- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0710- ● ●
246 PROTECTOR; BUMPER
(A) 		8-97619-479-1 01 1 0710- ● ●
246 PROTECTOR; BUMPER
(B) 		8-97619-480-1 01 1 0710- ● ●
246 PROTECTOR; BUMPER
(B) 		8-97619-481-1 01 1 0710- ● ●
284 BOLT; BRKT
(A) M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0710-1008 ● ●
284 BOLT; BRKT
EXC. FRONT SPOILER<VP1> (A) M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 1009- ● ●
284 BOLT; BRKT
(B) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0710- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (D) 		1-71230-346-2 01 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (D) 		1-71230-347-2 01 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (C) 		1-71230-435-0 02 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (B) 		8-97608-941-0 02 1 1009- ● ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (C) 		1-71230-434-0 02 1 1009- ● ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (A) 		1-71230-636-0 01 1 1009- ● ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (A) 		1-71230-637-0 01 1 1009- ● ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (B) 		1-71230-491-0 01 1 1009- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (B) 		1-71230-492-0 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
BODY COLOR TOLL GREEN(543) EXC. FRONT SPOILER<VP1> 		8-98214-585-0 01 1 1203- ● ●
321 COVER; BUMPER FRT SIDE
BODY COLOR TOLL GREEN(543) EXC. FRONT SPOILER<VP1> 		8-98214-586-0 01 1 1203- ● ●
321 COVER; BUMPER FRT SIDE 1-71260-263-1 01 1 0710-1008 ● ●
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> 		1-71260-263-1 01 1 1009-1202 ● ●
321 COVER; BUMPER FRT SIDE
BODY COLOR ARC WHITE(729) EXC. FRONT SPOILER<VP1> 		1-71260-263-1 01 1 1203- ● ●
321 COVER; BUMPER FRT SIDE 1-71260-264-1 01 1 0710-1008 ● ●
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> 		1-71260-264-1 01 1 1009-1202 ● ●
321 COVER; BUMPER FRT SIDE
BODY COLOR ARC WHITE(729) EXC. FRONT SPOILER<VP1> 		1-71260-264-1 01 1 1203- ● ●
613 CLIP 1-71260-174-0 06 1 0710- ● ●
614 STOPPER; LID 1-71260-163-0 12 1 0710- ● ●
641 BUMPER; FRT,LWR
BODY COLOR TOLL GREEN(543) EXC. FRONT SPOILER<VP1> 		8-98214-584-0 01 1 1203- ● ●
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 0710-1008 ● ●
641 BUMPER; FRT,LWR
EXC. FRONT SPOILER<VP1> 		1-71211-304-1 01 1 1009-1202 ● ●
641 BUMPER; FRT,LWR
BODY COLOR ARC WHITE(729) EXC. FRONT SPOILER<VP1> 		1-71211-304-1 01 1 1203- ● ●

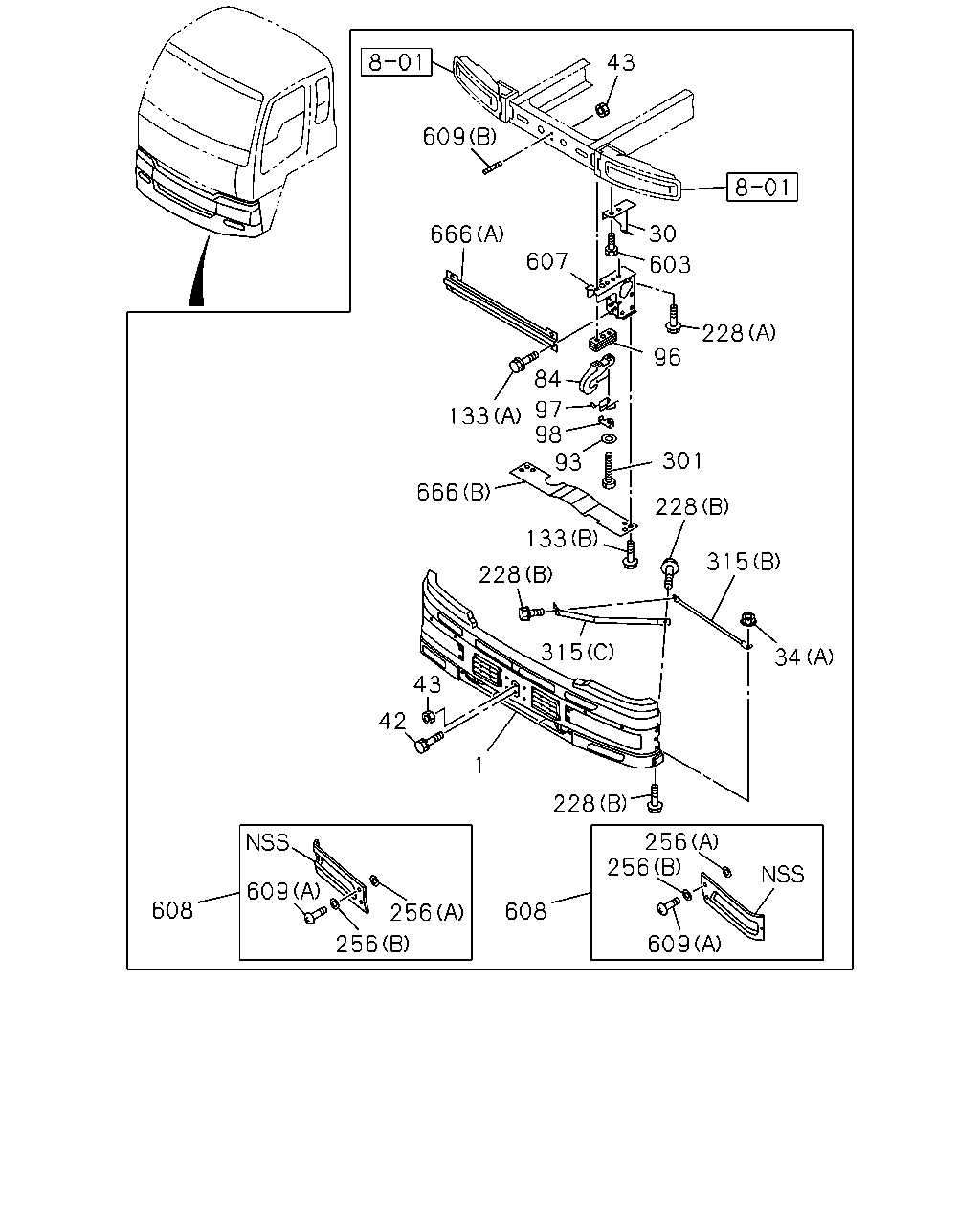

çizim 142181
43 609 30 666 607 603 228 96 84 97 98 93 133 301 666 228 133 315 228 315 34 43 42 1 228 256 256 609 608 608 256 256 609
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
BODY COLOR TOLL GREEN(543) FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
BODY COLOR TOLL GREEN(543) EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1009-1202 ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> WHITE 		8-98098-599-1 01 1 1203- ● ●
1 BUMPER ASM; FRT
WHITE 		8-98098-600-1 01 1 0710-1008 ● ●
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1009-1202 ● ●
1 BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) EXC. FRONT SPOILER<VP1> WHITE 		8-98098-600-1 01 1 1203- ● ●
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> 		1-71230-428-0 01 1 1009- ● ●
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> 		1-71230-429-0 01 1 1009- ● ●
30 BRACKET; FRT BUMPER 1-71230-638-0 01 1 0710-1008 ● ●
30 BRACKET; FRT BUMPER
EXC. FRONT SPOILER<VP1> 		1-71230-638-0 01 1 1009- ● ●
30 BRACKET; FRT BUMPER 1-71230-639-0 01 1 0710-1008 ● ●
30 BRACKET; FRT BUMPER
EXC. FRONT SPOILER<VP1> 		1-71230-639-0 01 1 1009- ● ●
34 NUT; BRKT,BUMPER
EXC. FRONT SPOILER<VP1> (A) M8 FLANGE 		0-91180-108-0 13 1 1009- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0710-1008 ● ●
34 NUT; BRKT,BUMPER
FRONT SPOILER<VP1> (A) M8 FLANGE 		0-91180-108-0 17 1 1009- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0710- ● ●
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0710- ● ●
43 NUT; BRKT TO BUMPER
EXC. FRONT SPOILER<VP1> M10 FLANGE 		0-91180-210-0 03 1 1009- ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0710-1008 ● ●
43 NUT; BRKT TO BUMPER
FRONT SPOILER<VP1> M10 FLANGE 		0-91180-210-0 01 1 1009- ● ●
84 HOOK 1-57181-027-1 01 1 0710- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0710- ● ●
96 PLATE; DIST,HOOK
EXC. RADIATOR GUARD<WV1> 		1-53497-473-0 01 1 1009- ● ●
96 PLATE; DIST,HOOK
RADIATOR GUARD<WV1> 		1-53497-595-0 01 1 0710- ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0710- ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0710- ● ●
133 BOLT; PROTECTOR FIX
RADIATOR GUARD<WV1> (A) M12X60 FLANGE 		0-28051-260-0 04 1 0710-1008 ● ●
133 BOLT; PROTECTOR FIX
RADIATOR GUARD<WV1> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE 		0-28051-260-0 04 1 1009- ● ●
133 BOLT; PROTECTOR FIX
RADIATOR GUARD<WV1> (B) M12X25 FLANGE 		0-28661-225-0 06 1 0710-1008 ● ●
133 BOLT; PROTECTOR FIX
RADIATOR GUARD<WV1> EXC. FRONT SPOILER<VP1> (B) M12X25 FLANGE 		0-28661-225-0 06 1 1009-1207 ● ●
133 BOLT; PROTECTOR FIX
RADIATOR GUARD<WV1> EXC. FRONT SPOILER<VP1> (B) M12X30 FLANGE 		0-28661-230-0 06 1 1208- ● ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0710- ● ●
228 BOLT; BRKT
RADIATOR GUARD<WV1> (A) M16X40 		0-20951-640-0 06 1 0710-1008 ● ●
228 BOLT; BRKT
RADIATOR GUARD<WV1> EXC. FRONT SPOILER<VP1> (A) M16X40 		0-20951-640-0 06 1 1009- ● ●
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0710- ● ●
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0710- ● ●
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0710- ● ●
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0710- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (D) 		1-71230-346-2 01 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (D) 		1-71230-347-2 01 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (C) 		1-71230-435-0 02 1 1009- ● ●
315 STAY; BUMPER
FRONT SPOILER<VP1> (B) 		8-97608-941-0 02 1 1009- ● ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (C) 		1-71230-434-0 02 1 1009- ● ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (A) 		1-71230-636-0 01 1 1009- ● ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (A) 		1-71230-637-0 01 1 1009- ● ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (B) 		1-71230-491-0 01 1 1009- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0710-1008 ● ●
315 STAY; BUMPER
EXC. FRONT SPOILER<VP1> (B) 		1-71230-492-0 01 1 1009- ● ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
607 BRACKET
RADIATOR GUARD<WV1> 		8-97610-034-2 01 1 0710-1008 ● ●
607 BRACKET
RADIATOR GUARD<WV1> EXC. FRONT SPOILER<VP1> 		8-97610-034-2 01 1 1009- ● ●
607 BRACKET
RADIATOR GUARD<WV1> 		8-97610-035-2 01 1 0710-1008 ● ●
607 BRACKET
RADIATOR GUARD<WV1> EXC. FRONT SPOILER<VP1> 		8-97610-035-2 01 1 1009- ● ●
608 LID; BUMPER
BODY COLOR TOLL GREEN(543) FRONT SPOILER<VP1> 		8-98213-856-0 01 1 1203- ● ●
608 LID; BUMPER
BODY COLOR TOLL GREEN(543) FRONT SPOILER<VP1> 		8-98213-857-0 01 1 1203- ● ●
608 LID; BUMPER
BODY COLOR TOLL GREEN(543) EXC. FRONT SPOILER<VP1> 		8-98213-854-0 01 1 1203- ● ●
608 LID; BUMPER
BODY COLOR TOLL GREEN(543) EXC. FRONT SPOILER<VP1> 		8-98213-855-0 01 1 1203- ● ●
608 LID; BUMPER
FRONT SPOILER<VP1> 		1-71210-752-6 01 1 1009-1202 ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> 		1-71210-752-6 01 1 1203- ● ●
608 LID; BUMPER
FRONT SPOILER<VP1> 		1-71210-753-6 01 1 1009-1202 ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> 		1-71210-753-6 01 1 1203- ● ●
608 LID; BUMPER 1-71211-285-2 01 1 0710-1008 ● ●
608 LID; BUMPER
EXC. FRONT SPOILER<VP1> 		1-71211-285-2 01 1 1009-1202 ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) EXC. FRONT SPOILER<VP1> 		1-71211-285-2 01 1 1203- ● ●
608 LID; BUMPER 1-71211-284-2 01 1 0710-1008 ● ●
608 LID; BUMPER
EXC. FRONT SPOILER<VP1> 		1-71211-284-2 01 1 1009-1202 ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) EXC. FRONT SPOILER<VP1> 		1-71211-284-2 01 1 1203- ● ●
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0710- ● ●
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0710- ● ●
666 PROTECTOR; UNDER
RADIATOR GUARD<WV1> (B) 		8-97608-467-1 01 1 0710-1008 ● ●
666 PROTECTOR; UNDER
RADIATOR GUARD<WV1> EXC. FRONT SPOILER<VP1> (B) 		8-97608-467-1 01 1 1009- ● ●
666 PROTECTOR; UNDER
RADIATOR GUARD<WV1> (A) 		8-97610-033-0 01 1 0710-1008 ● ●
666 PROTECTOR; UNDER
RADIATOR GUARD<WV1> EXC. FRONT SPOILER<VP1> (A) 		8-97610-033-0 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
