◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#14198) — 12 parça

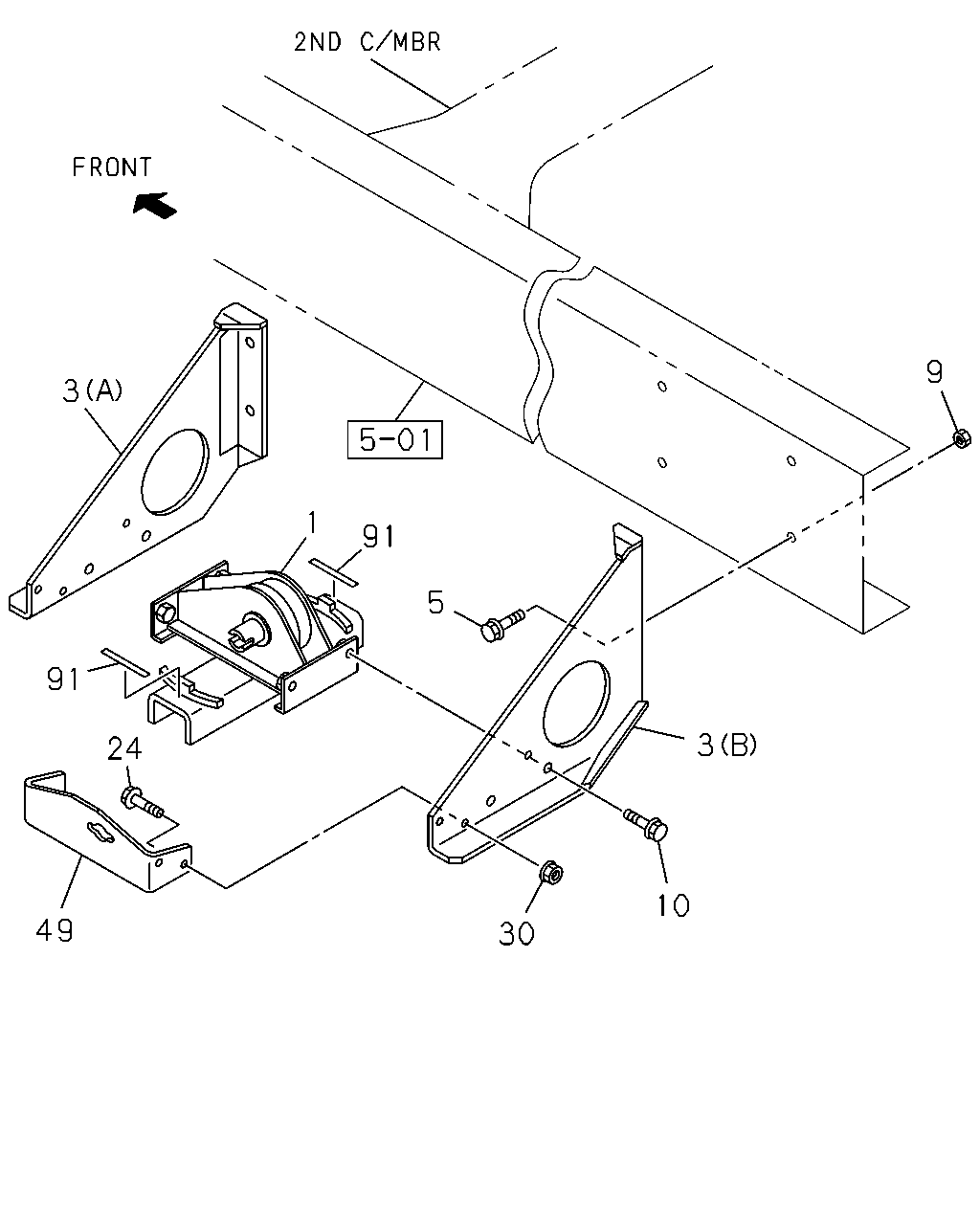

çizim 142255
9 3 1 91 5 91 3 24 10 49 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53630-210-4 01 1 0710- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B) 		8-97383-720-0 01 1 0710- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) 		8-97383-721-0 01 1 0710- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B) 		8-97383-718-1 01 1 0710- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) 		8-97383-719-1 01 1 0710- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28651-235-0 04 1 0710- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 02 1 0710- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0710- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-97383-722-0 01 1 0710- ● ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0710- ● ●
