5-20 — BATTERY CARRIER (#14197) — 26 parça

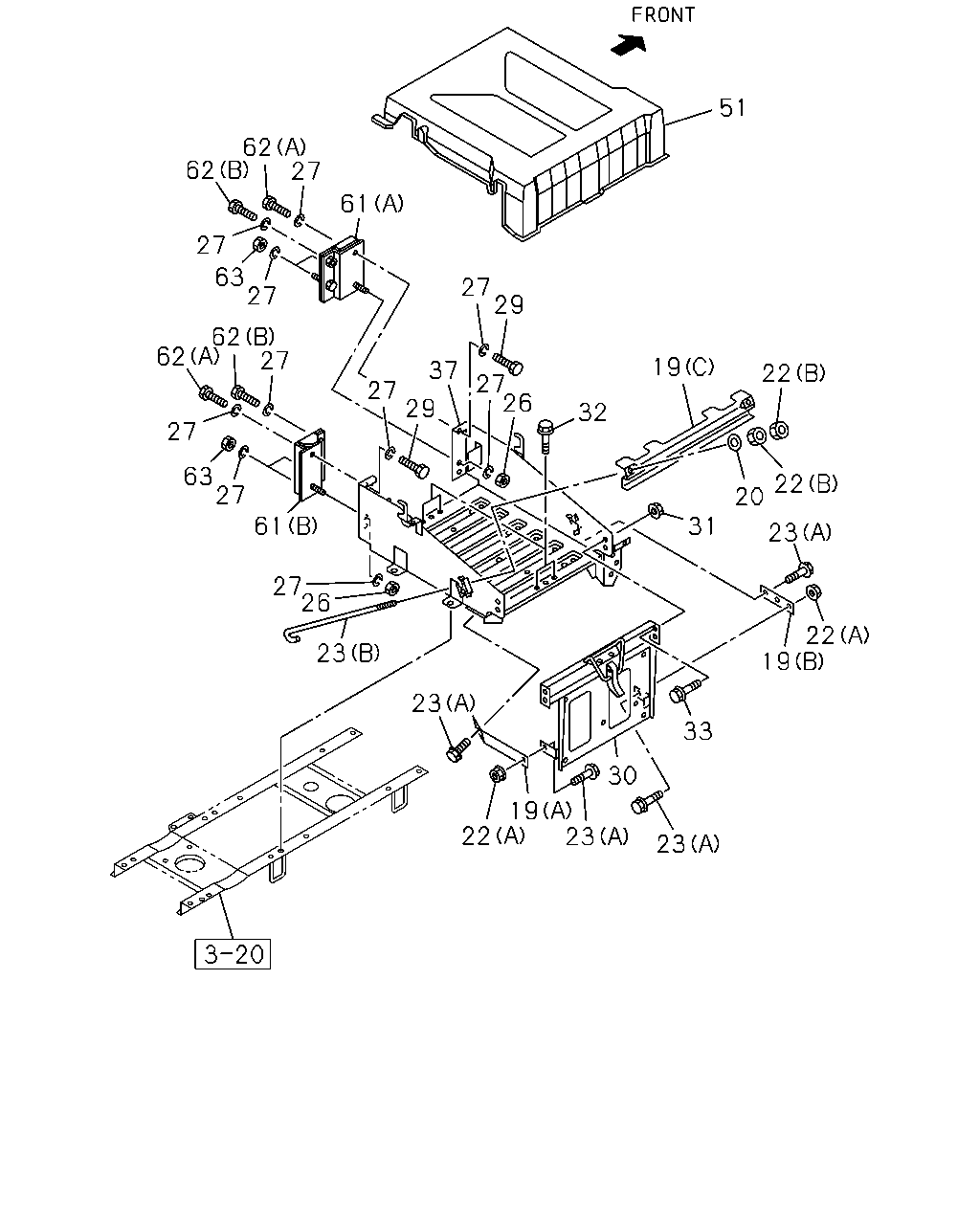

çizim 142206
51 62 62 27 61 27 63 27 27 29 62 27 62 19 37 22 27 26 27 29 32 27 63 27 22 20 61 31 23 27 26 22 19 23 30 23 33 19 22 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
19 STAY; BATTERY
(B) 		1-47479-118-0 01 1 0710- ● ●
19 STAY; BATTERY
(A) 		1-47479-874-0 01 1 0710- ● ●
19 STAY; BATTERY
(C) 		1-53618-039-2 01 1 0710- ● ●
20 WASHER; PL,STAY
ID=8.4 OD=22 		0-91614-708-0 02 1 0710- ● ●
22 NUT; STAY
(B) M8 		0-91110-508-0 04 1 0710- ● ●
22 NUT; STAY
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
23 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
23 BOLT; STAY
(B) L=250 		1-53616-108-0 02 1 0710- ● ●
26 NUT; BRKT
M14 		0-91110-514-0 02 1 0710- ● ●
27 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 12 1 0710- ● ●
29 BOLT; BRKT TO FRAME
M14X30 		0-20851-430-0 02 1 0710- ● ●
30 PLATE; BATTERY 1-53619-148-1 01 1 0710- ● ●
31 NUT; PLATE
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8> M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
33 BOLT; PLATE TO BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-1007 ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
37 BRACKET; BATTERY 1-53610-159-2 01 1 0710- ● ●
51 COVER; BATTERY 1-53612-068-0 01 1 0710- ● ●
61 DISTANCE; BRKT,BATTERY
EURO5 SPECIFICATION<NT5> (A) 		8-97623-013-0 01 1 1108- ●
61 DISTANCE; BRKT,BATTERY
(A) 		1-53613-504-0 01 1 0710-1107 ● ●
61 DISTANCE; BRKT,BATTERY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		1-53613-504-0 01 1 1108- ●
61 DISTANCE; BRKT,BATTERY
(A) 		1-53613-504-0 01 1 1108- ●
61 DISTANCE; BRKT,BATTERY
(B) 		1-53613-505-0 01 1 0710- ● ●
62 BOLT; DIST TO FRAME,BATTERY
(A) M14X45 		1-09000-764-0 02 1 0710- ● ●
62 BOLT; DIST TO FRAME,BATTERY
(B) M14X60 		1-09000-778-0 02 1 0710- ● ●
63 NUT; DIST TO FRAME
M14 		1-09440-072-0 04 1 0710- ● ●
