5-01 — FRAME AND OTHER PARTS (#14192) — 131 parça

13 13 12 12 11 11 25 23 23 25 24 26 23 25 25 26 26 39 46 25 25 46 26 35 36 24 23 37 25 23 44 25 25 26 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0710-0811	●	●
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0812-	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0710-0811	●	●
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0812-	●	●	●
11	BRACKET; ENG MTG (B)	8-98056-611-0	01	1	0710-0811	●	●
11	BRACKET; ENG MTG (B)	8-98056-611-1	01	1	0812-	●	●	●
11	BRACKET; ENG MTG (B)	8-98056-612-0	01	1	0710-0811	●	●
11	BRACKET; ENG MTG (B)	8-98056-612-0	01	1	0812-	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	05	1	1106-1110			●
12	WASHER; PL,BRKT,ENG MTG EXC. RADIATOR GUARD<WV1> ID=15	8-98010-627-1	05	1	1111-1201	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	05	1	1111-1201			●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	05	1	1202-	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	05	1	0710-0811	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	05	1	0812-1105	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	05	1	1106-1110	●	●
12	WASHER; PL,BRKT,ENG MTG RADIATOR GUARD<WV1> ID=15	9-09651-069-0	05	1	1111-1201	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	05	1	0710-0811	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	05	1	0812-	●	●	●
23	BOLT; BRKT,SPR (C) M12X25,M14X45 L=81	1-09029-103-0	02	1	1111-	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	05	1	0710-0811	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	05	1	0812-	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0710-0811	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0812-	●	●	●
23	BOLT; BRKT,SPR (C) M12X35,M14X45 L=100	1-09029-075-0	03	1	0710-0811	●	●
23	BOLT; BRKT,SPR (C) M12X35,M14X45 L=100	1-09029-075-0	03	1	0812-1110	●	●	●
23	BOLT; BRKT,SPR (C) M12X35,M14X45 L=100	1-09029-075-0	01	1	1111-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0710-0811	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0812-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0710-0811	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0812-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1106-1110			●
25	WASHER; PL,BRKT EXC. RADIATOR GUARD<WV1> (B) ID=16.2	1-09503-316-0	08	1	1111-1504	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1111-1504			●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1505-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1106-1110			●
25	WASHER; PL,BRKT EXC. RADIATOR GUARD<WV1> (A) ID=15	8-98010-627-1	16	1	1111-1201	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1111-1201			●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1202-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0710-0811	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0812-1105	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	1106-1110	●	●
25	WASHER; PL,BRKT RADIATOR GUARD<WV1> (B) ID=16.2	1-09503-223-0	08	1	1111-1504	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0710-0811	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0812-1105	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	1106-1110	●	●
25	WASHER; PL,BRKT RADIATOR GUARD<WV1> (A) ID=15	9-09651-069-0	16	1	1111-1201	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	0710-0811	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	0812-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-0811	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0812-	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0710-	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0710-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0710-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0710-0811	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0812-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0710-0811	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0812-	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0710-	●	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	0710-0811	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	0812-	●	●	●
46	BOLT; BRKT FIX (B) M14X50	0-20951-450-0	04	1	0710-0811	●	●
46	BOLT; BRKT FIX (B) M14X50	0-20951-450-0	04	1	0812-	●	●	●

69 69 130 86 81 201 57 55 201 201 201 21 69 55 82 19 148 21 194 197 69 2 71 148 191 16 130 69 130 131 55 201 69 86 81 132 55 57 201 201 69 55 82 65 19 201 21 344 34 148 69 21 71 194 2 197 191 148 16

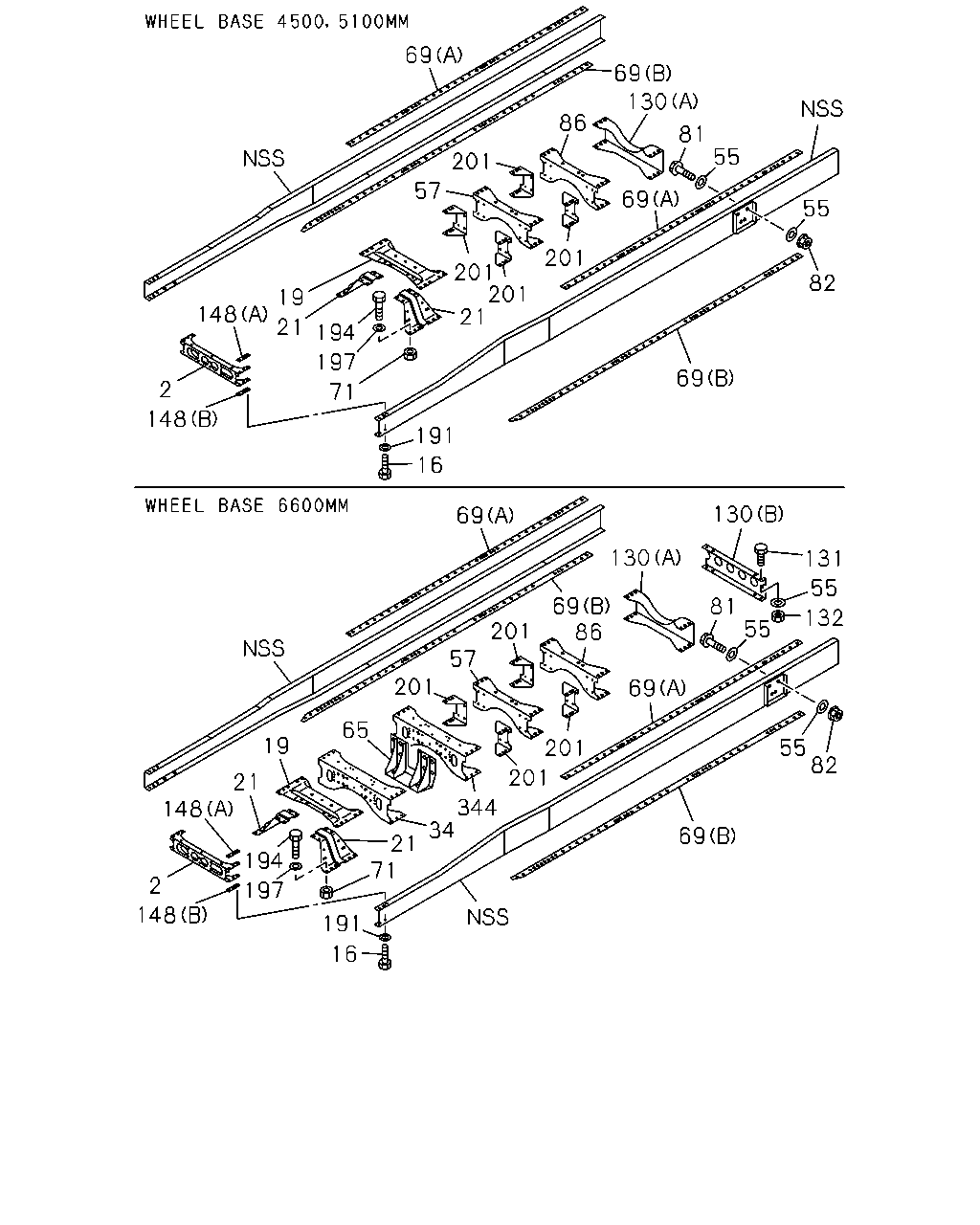

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97604-959-1	01	1	0710-0811	●	●
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0812-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. RADIATOR GUARD<WV1> M16X40	0-20951-640-0	02	1	1111-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0710-0811	●	●
19	MEMBER; CROSS,2ND	1-53174-231-2	01	1	0812-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-226-0	01	1	0710-0811	●	●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	0812-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-227-0	01	1	0710-0811	●	●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	0812-	●	●	●
34	MEMBER; CROSS,3RD	1-53181-649-3	01	1	0710-		●
55	WASHER; PL EXC. RADIATOR GUARD<WV1> ID=15	8-98010-627-1	12	1	1111-1201		●
55	WASHER; PL ID=15	8-98010-627-1	12	1	1202-		●
55	WASHER; PL ID=16.2	1-09503-316-0	16	1	1106-1110			●
55	WASHER; PL EXC. RADIATOR GUARD<WV1> ID=16.2	1-09503-316-0	16	1	1111-1504	●	●
55	WASHER; PL ID=16.2	1-09503-316-0	16	1	1111-1504			●
55	WASHER; PL ID=16.2	1-09503-316-0	16	1	1505-	●	●	●
55	WASHER; PL ID=15	8-98010-627-1	08	1	1106-1110			●
55	WASHER; PL EXC. RADIATOR GUARD<WV1> ID=15	8-98010-627-1	08	1	1111-1201	●
55	WASHER; PL ID=15	8-98010-627-1	08	1	1111-1201			●
55	WASHER; PL ID=15	8-98010-627-1	08	1	1202-	●		●
55	WASHER; PL ID=15	9-09651-069-0	12	1	0710-1110		●
55	WASHER; PL RADIATOR GUARD<WV1> ID=15	9-09651-069-0	12	1	1111-1201		●
55	WASHER; PL ID=15	9-09651-069-0	08	1	0710-0811	●
55	WASHER; PL ID=15	9-09651-069-0	08	1	0812-1105	●		●
55	WASHER; PL ID=15	9-09651-069-0	08	1	1106-1110	●
55	WASHER; PL RADIATOR GUARD<WV1> ID=15	9-09651-069-0	08	1	1111-1201	●
55	WASHER; PL ID=16.2	1-09503-223-0	16	1	0710-0811	●	●
55	WASHER; PL ID=16.2	1-09503-223-0	16	1	0812-1105	●	●	●
55	WASHER; PL ID=16.2	1-09503-223-0	16	1	1106-1110	●	●
55	WASHER; PL RADIATOR GUARD<WV1> ID=16.2	1-09503-223-0	16	1	1111-1504	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-937-3	01	1	0710-0811	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-937-3	01	1	0812-	●	●	●
65	BRACKET; CENTER BRG	8-97624-017-1	01	1	0710-		●
69	GUSSET; RR SUSP,UPR (B)	8-98134-970-0	02	1	0812-			●
69	GUSSET; RR SUSP,UPR (A)	8-98134-988-0	02	1	0812-			●
69	GUSSET; RR SUSP,UPR (B)	1-53161-804-2	02	1	0710-	●
69	GUSSET; RR SUSP,UPR (A)	1-53161-803-0	02	1	0710-	●	●
69	GUSSET; RR SUSP,UPR (B)	8-97619-656-0	02	1	0710-		●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0710-0811	●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0812-	●	●	●
81	BOLT; BRKT M14X50	0-20951-450-0	04	1	0710-0811	●	●
81	BOLT; BRKT M14X50	0-20951-450-0	04	1	0812-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0710-0811	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0812-	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-937-3	01	1	0710-0811	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-937-3	01	1	0812-	●	●	●
130	MEMBER; CROSS,END (A)	1-53181-875-1	01	1	0710-0811	●	●
130	MEMBER; CROSS,END (A)	1-53181-875-1	01	1	0812-	●	●	●
130	MEMBER; CROSS,END (B)	1-53181-613-1	01	1	0710-		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0710-		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0710-		●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0710-0811	●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0812-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0710-0811	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0812-	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR EXC. RADIATOR GUARD<WV1> ID=16.2	1-09503-316-0	02	1	1111-	●	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0710-0811	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0812-	●	●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	08	1	1106-1110			●
197	WASHER; PL,2ND C/MBR EXC. RADIATOR GUARD<WV1> ID=15	8-98010-627-1	08	1	1111-1201	●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	08	1	1111-1201			●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	08	1	1202-	●	●	●
197	WASHER; PL,2ND C/MBR ID=15	9-09651-069-0	08	1	0710-0811	●	●
197	WASHER; PL,2ND C/MBR ID=15	9-09651-069-0	08	1	0812-1105	●	●	●
197	WASHER; PL,2ND C/MBR ID=15	9-09651-069-0	08	1	1106-1110	●	●
197	WASHER; PL,2ND C/MBR RADIATOR GUARD<WV1> ID=15	9-09651-069-0	08	1	1111-1201	●	●
201	GUSSET; C/MBR	1-53167-544-1	04	1	0710-0811	●	●
201	GUSSET; C/MBR	1-53167-544-1	04	1	0812-	●	●	●
344	MEMBER; CROSS,4TH	1-53181-649-3	01	1	0710-		●
