◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#14191) — 22 parça

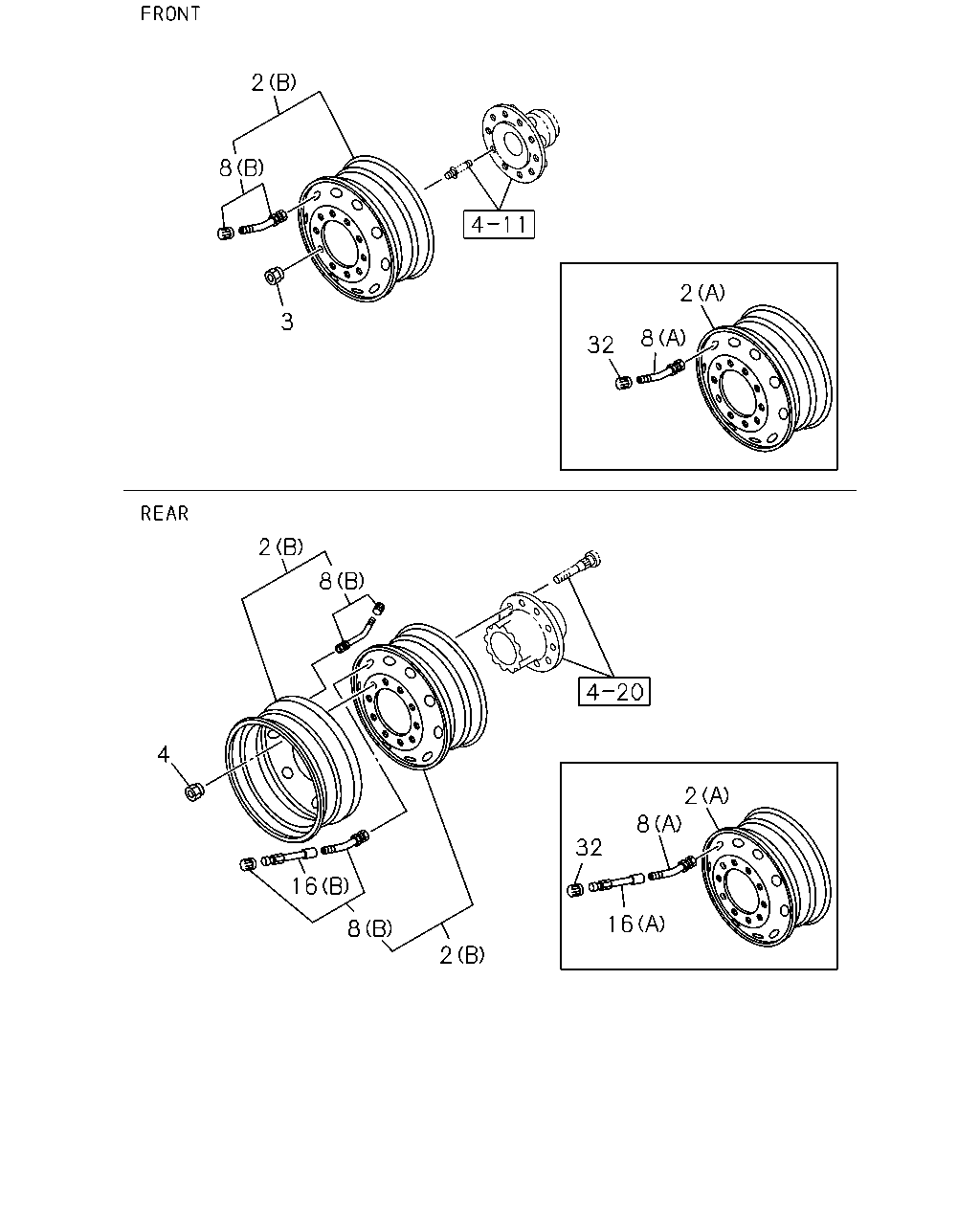

çizim 142167
2 8 2 3 8 32 2 8 4 2 8 32 16 16 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) SPARE 		1-42350-729-0 01 1 0710- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-694-0 01 1 0710-0907 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE 		1-42350-694-0 01 1 0908- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) 		1-42350-729-0 10 1 0710- ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-694-0 10 1 0710-0907 ● ●
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) 		1-42350-694-0 10 1 0908- ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0710-0907 ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 40 1 0710-0907 ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 0908- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) SPARE 		1-42370-020-3 01 1 0710- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42370-044-0 01 1 0710-0907 ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE 		1-42370-044-0 01 1 0908- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) 		1-42370-020-3 10 1 0710- ● ●
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42370-044-0 10 1 0710-0907 ● ●
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) 		1-42370-044-0 10 1 0908- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) L=170 		1-42370-024-0 04 1 0710-1003 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) L=170 		8-98167-052-0 04 1 1004- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) L=115 		1-42370-015-2 04 1 0710-1003 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) L=115 		8-98167-051-0 04 1 1004- ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42374-001-0 01 1 0710- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42374-001-0 10 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
