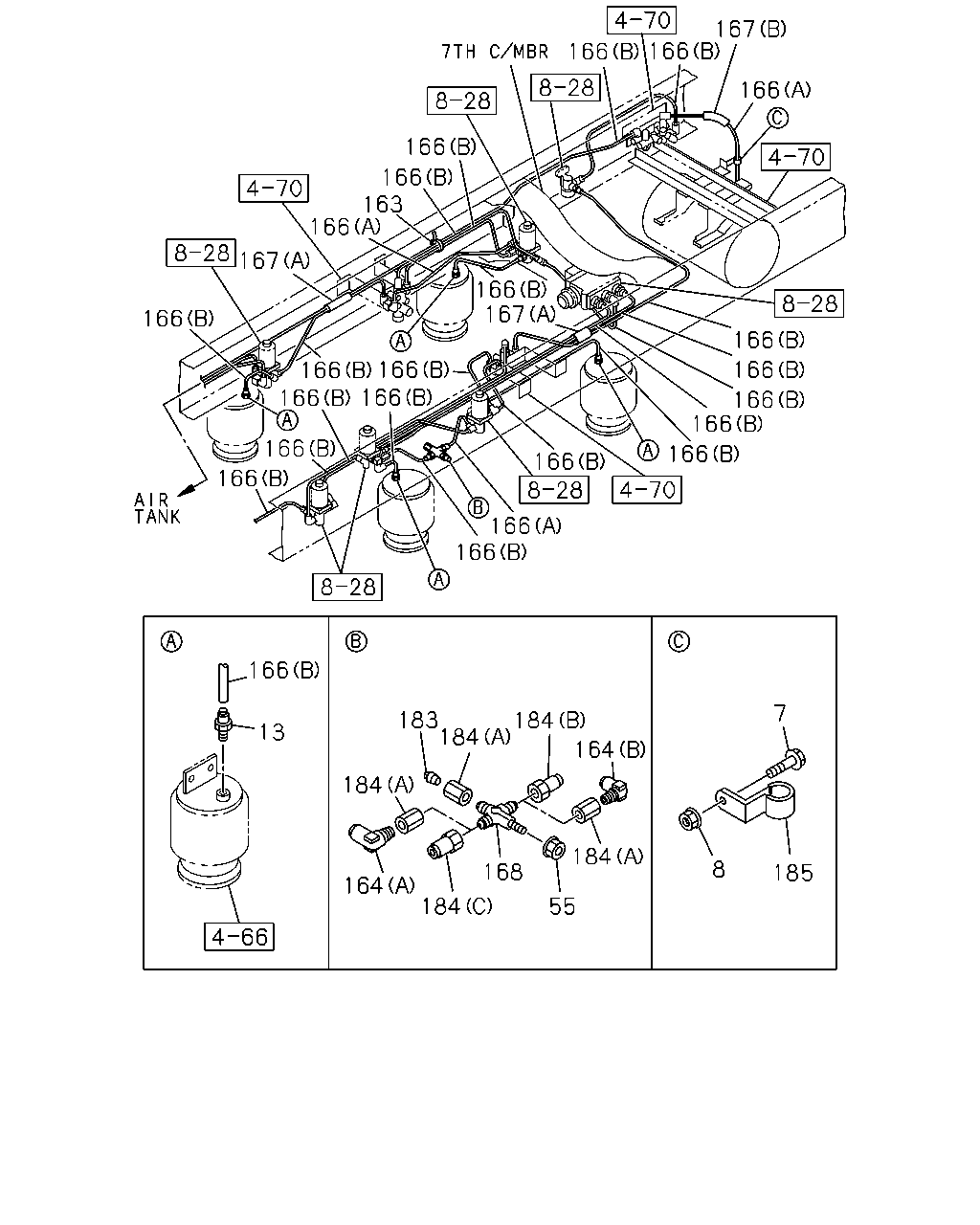

4-71 — AIR SUSPENSION PIPING
(#14190) — 30 parça
Tümü
A - CXY5MC
B - CXY5MF
167
166
166
166
166
166
163
166
167
166
167
166
166
166
166
166
166
166
166
166
166
166
166
7
183
184
184
13
164
184
184
8
168
185
164
184
55
166
166
166
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0710-
●
●
8
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0710-
●
●
13
UNION; AIR PIPE
DIN12 & R1/4 STRAIGHT
1-09661-214-0
04
1
0710-
●
●
55
NUT; UNION
M10 FLANGE
0-91180-210-0
01
1
0710-
●
●
163
CLIP; BAND
WHEEL BASE 5100MM(51W) L=350
1-09707-183-0
03
1
0710-0811
●
163
CLIP; BAND
L=350
1-09707-183-0
03
1
0812-
●
163
CLIP; BAND
L=350
1-09707-183-0
01
1
0710-
●
164
CONNECTOR
WHEEL BASE 4500MM(45W) (A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0812-
●
164
CONNECTOR
WHEEL BASE 4500MM(45W) (B) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0812-
●
166
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
●
●
166
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
●
●
166
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
●
●
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0710-
●
●
166
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0710-
●
●
166
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
●
●
167
TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0710-
●
●
167
TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0802-
●
●
168
UNION; 3WAY
1-09656-714-0
01
1
0710-
●
●
183
ADAPTER
PT1/4
9-99204-513-0
01
1
0710-
●
●
184
PLUG
WHEEL BASE 4500MM(45W) (A) M16 & RC1/4 STRAIGHT
1-09660-886-0
03
1
0812-
●
184
PLUG
(B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0710-0810
●
●
184
PLUG
WHEEL BASE 5100MM(51W) (B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0811-
●
184
PLUG
(B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0811-
●
184
PLUG
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0710-0810
●
●
184
PLUG
WHEEL BASE 5100MM(51W) (C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0811-
●
184
PLUG
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0811-
●
184
PLUG
(A) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
0710-0810
●
●
184
PLUG
WHEEL BASE 5100MM(51W) (A) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
0811-
●
184
PLUG
(A) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
0811-
●
185
CLIP; NYLON TUBE
ID=9 H=20 L=25
1-09701-073-0
01
1
0710-
●
●
