1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#1419) — 31 parça

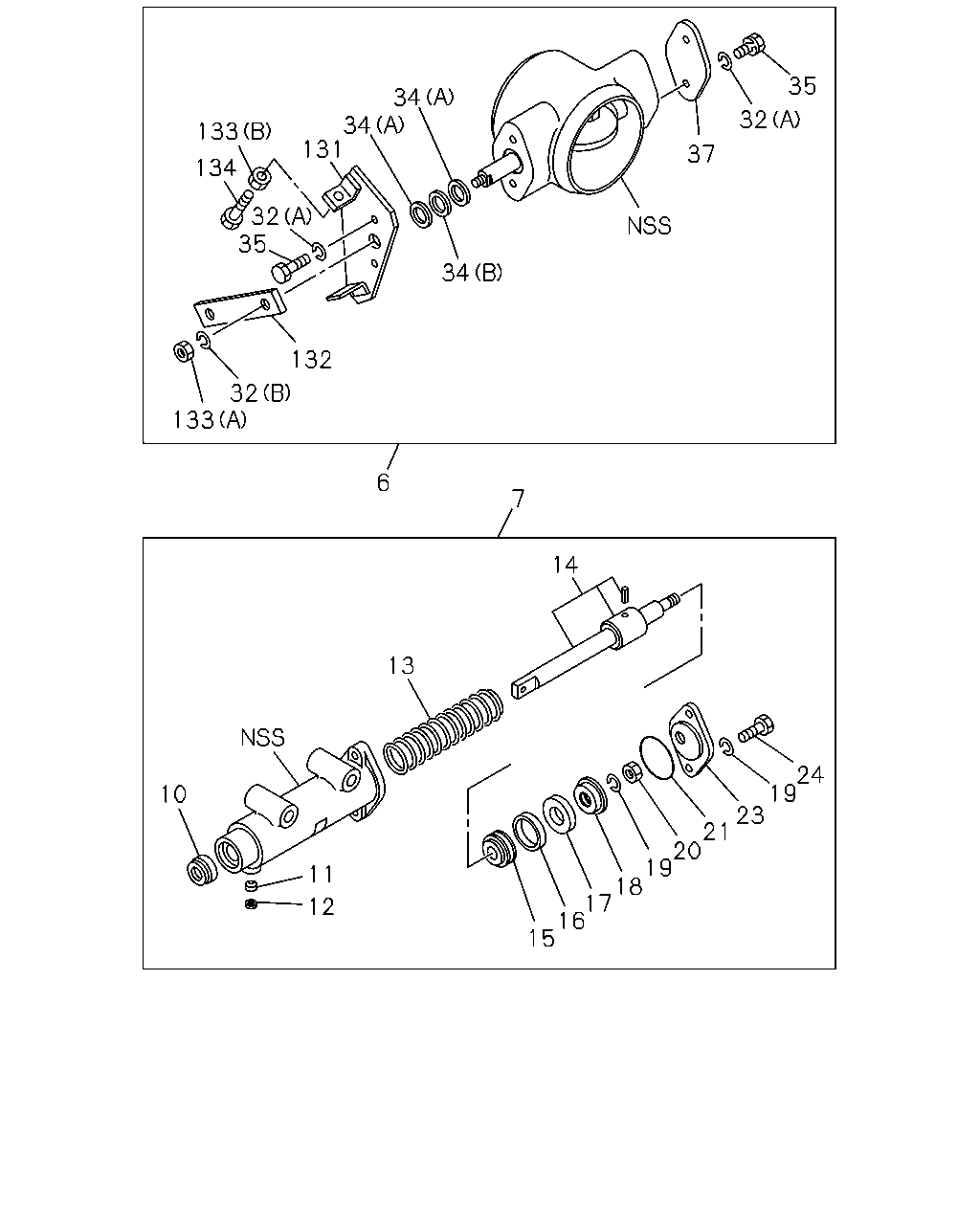

çizim 94200
35 34 34 131 32 133 37 134 32 35 34 132 32 133 6 7 14 13 24 19 23 21 20 19 18 17 16 15 10 11 12
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 1-22180-255-1 01 1 9203- ●
6 VALVE; EXH BRAKE 1-22180-291-1 01 1 9203- ●
7 CYLINDER ASM; CONT 1-22190-464-0 01 1 9203- ● ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 9203- ● ●
11 FILTER; CYL 9-88510-330-0 01 1 9203- ● ●
12 RING; RET 9-88510-331-0 01 1 9203- ● ●
13 SPRING; CONT CYL 9-88510-374-0 01 1 9203- ● ●
14 SHAFT; CONT CYL 1-22199-051-0 01 1 9203- ● ●
15 PLATE; CONT CYL 1-22199-001-0 01 1 9203- ● ●
16 RING; WEAR,CONT CYL 1-22199-002-0 01 1 9203- ● ●
17 GASKET; CONT CYL 9-88510-373-0 01 1 9203- ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9203- ● ●
19 WASHER; CONT,DUCT
ID=8.2 		9-09150-508-0 03 1 9203- ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9203- ● ●
21 GASKET; COVER 9-88510-372-0 01 1 9203- ● ●
23 COVER; CONT CYL 9-88510-375-0 01 1 9203- ● ●
24 BOLT; COVER
M8X16 		9-02050-816-0 02 1 9203- ● ●
32 WASHER; LK
(A) ID=10.2 		9-09150-010-0 04 1 9203- ● ●
32 WASHER; LK
(B) ID=8.2 		9-09150-508-0 01 1 9203- ● ●
34 RING; SEAL
(A) ID=15 		1-22189-025-0 02 1 9203- ● ●
34 RING; SEAL
(B) ID=14 		9-22189-104-0 01 1 9203- ● ●
35 BOLT; PLATE FIX
M10X20 		9-02051-020-0 04 1 9203- ● ●
37 COVER; BODY 1-22189-141-0 01 1 9203- ● ●
131 PLATE; BODY 1-22196-223-0 01 1 9203- ● ●
132 LEVER; BRK VLV 1-22196-221-0 01 1 9203- ● ●
133 NUT; LK
(A) 		9-09111-408-0 01 1 9203- ● ●
133 NUT; LK
(B) 		9-88510-123-0 02 1 9203- ● ●
134 BOLT; STOPPER 1-22199-048-0 02 1 9203- ● ●

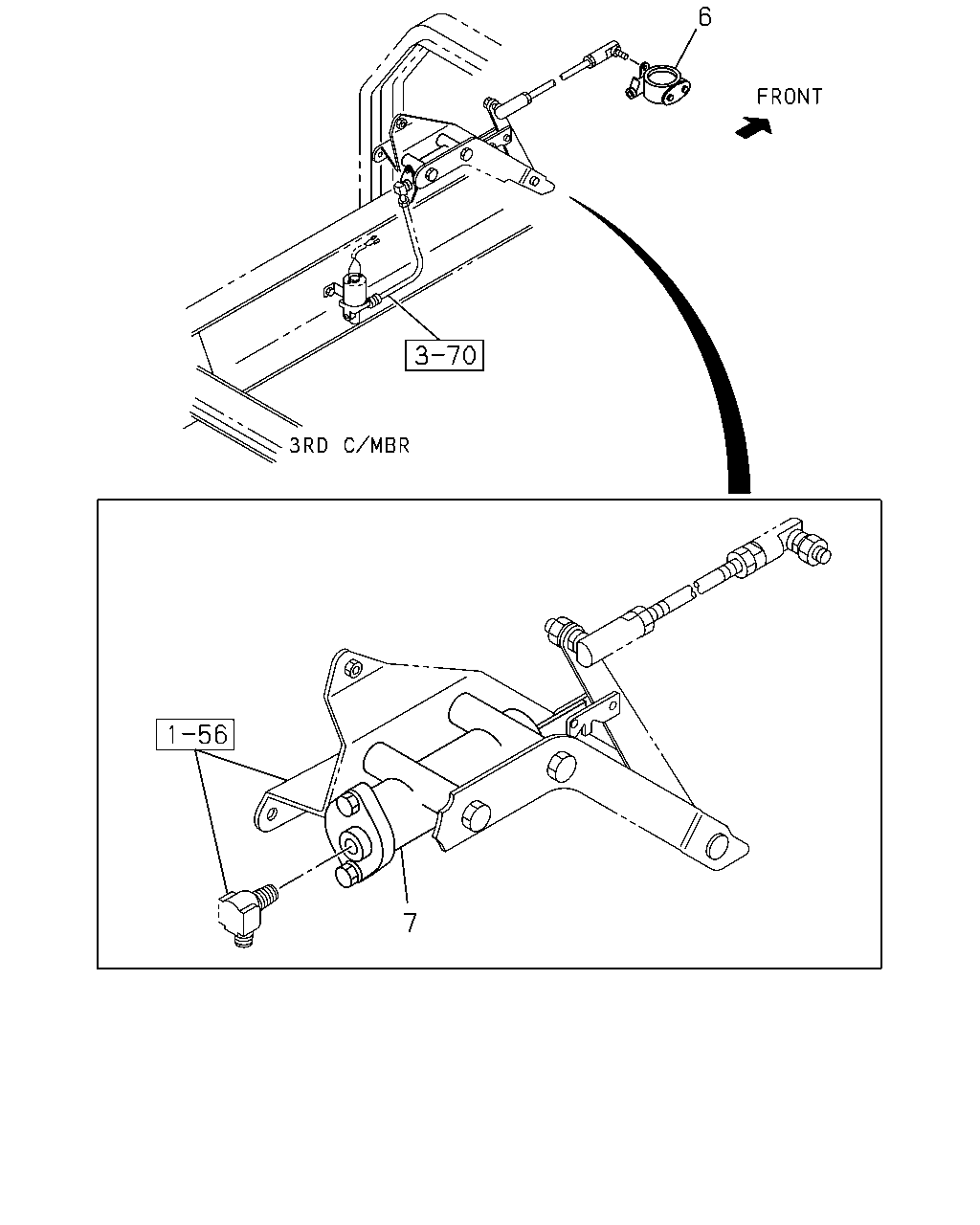

çizim 95437
6 7
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 1-22180-255-1 01 1 9203- ●
6 VALVE; EXH BRAKE 1-22180-291-1 01 1 9203- ●
7 CYLINDER ASM; CONT 1-22190-464-0 01 1 9203- ● ●
