◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#14185) — 38 parça

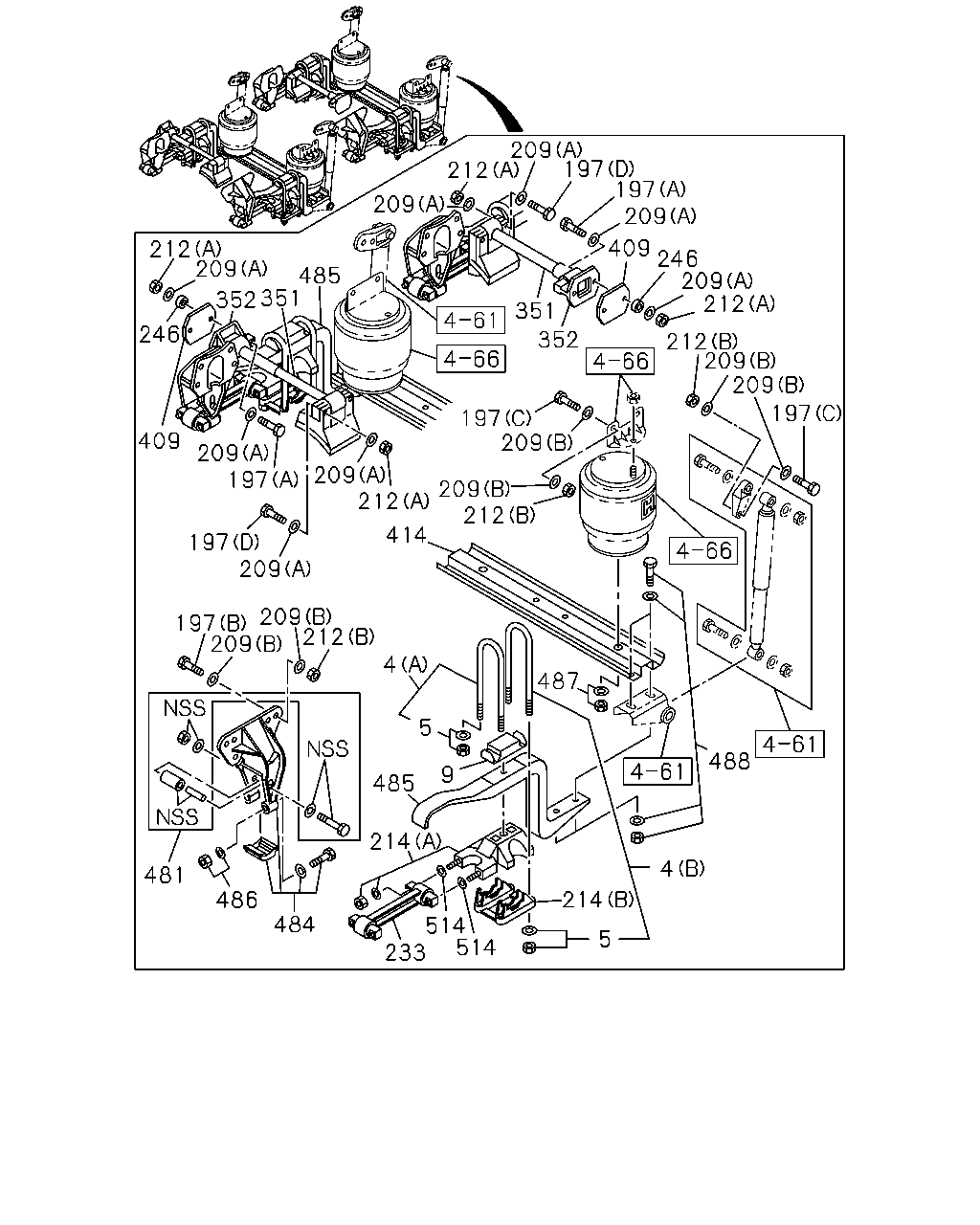

çizim 142157
209 197 197 209 212 209 409 246 209 212 212 209 485 212 209 209 351 246 352 197 197 209 409 209 197 209 212 209 212 414 197 209 209 197 212 209 4 487 5 488 9 485 214 4 481 214 486 484 514 514 233 5 352 351
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0710- ● ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0710- ● ●
5 NUT; U-BOLT,RR SPR 1-52179-039-0 02 1 0710- ● ●
9 PAD; U BOLT,RR SPR 1-51372-073-0 04 1 0710- ● ●
197 BOLT
(D) 		1-09000-767-0 04 1 0710- ● ●
197 BOLT
(A) 		1-09000-768-0 04 1 0710- ● ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0710- ● ●
197 BOLT
(C) 		1-09000-771-0 16 1 0710- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0710- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0710- ● ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0710- ● ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0710- ● ●
214 SEAT; SPR
(B) FORWARD 		1-51385-103-0 02 1 0710- ● ●
214 SEAT; SPR
(B) REARWARD 		1-51385-104-0 02 1 0710- ● ●
214 SEAT; SPR
(A) FORWARD 		1-51385-105-0 02 1 0710- ● ●
214 SEAT; SPR
(A) REARWARD 		1-51385-106-0 02 1 0710- ● ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 04 1 0710- ● ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1102- ● ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0710- ● ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0710- ● ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 0710- ● ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0710- ● ●
481 ROLLER; REBOUND 1-53357-044-0 02 1 0710- ● ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0710- ● ●
485 SPRING; LEAF 1-51410-259-0 04 1 0710- ● ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0710- ● ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0710- ● ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0710- ● ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 0710- ● ●

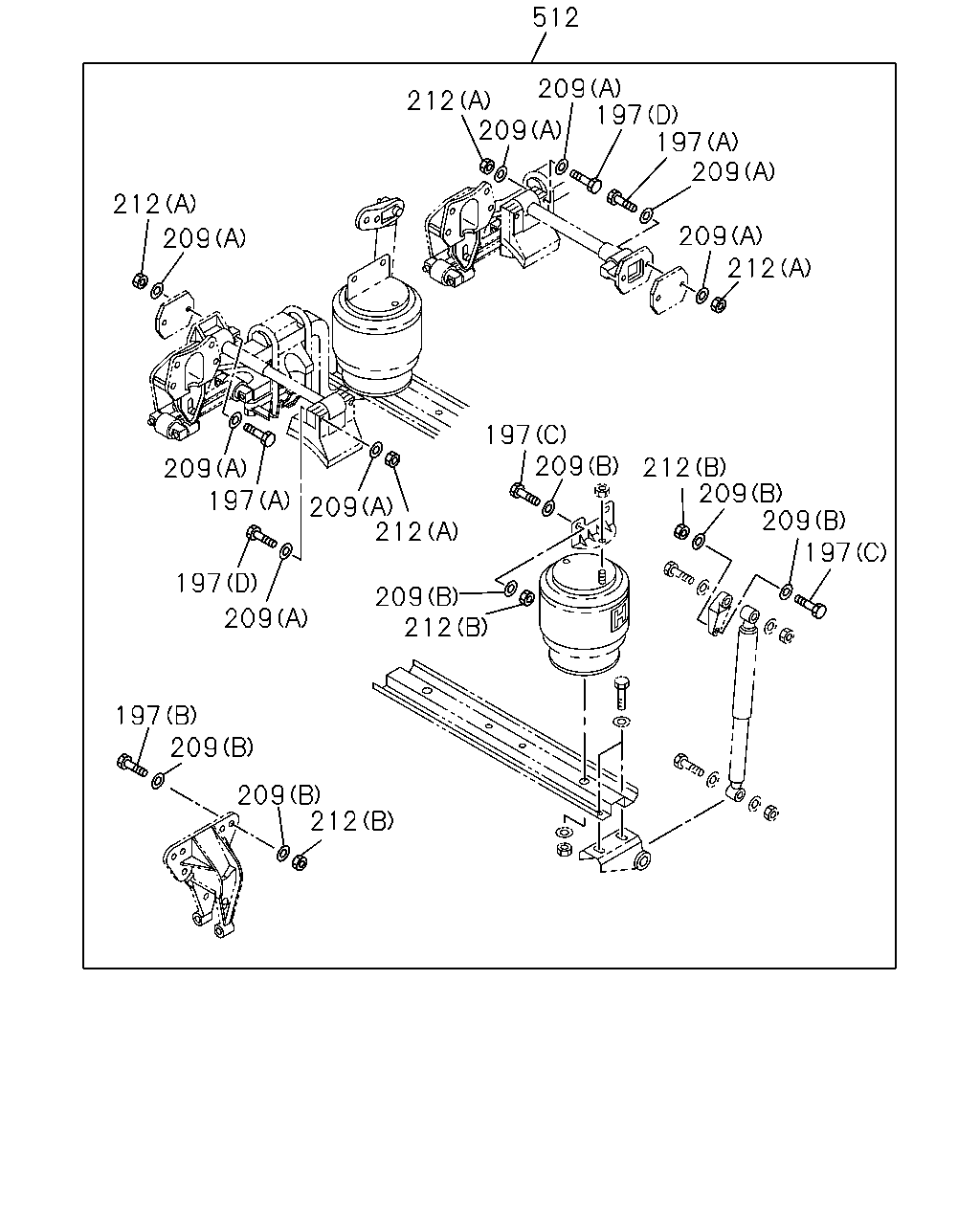

çizim 142166
512 209 197 197 209 212 209 212 209 212 209 197 209 212 209 209 197 209 197 209 212 197 209 212 209 197 209 209 212
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 0710- ● ●
197 BOLT
(A) 		1-09000-768-0 04 1 0710- ● ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0710- ● ●
197 BOLT
(C) 		1-09000-771-0 16 1 0710- ● ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0710- ● ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0710- ● ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0710- ● ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0710- ● ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 0710- ● ●
