4-36 — POWER STEERING CONTROL; ENGINE SIDE (#14180) — 46 parça

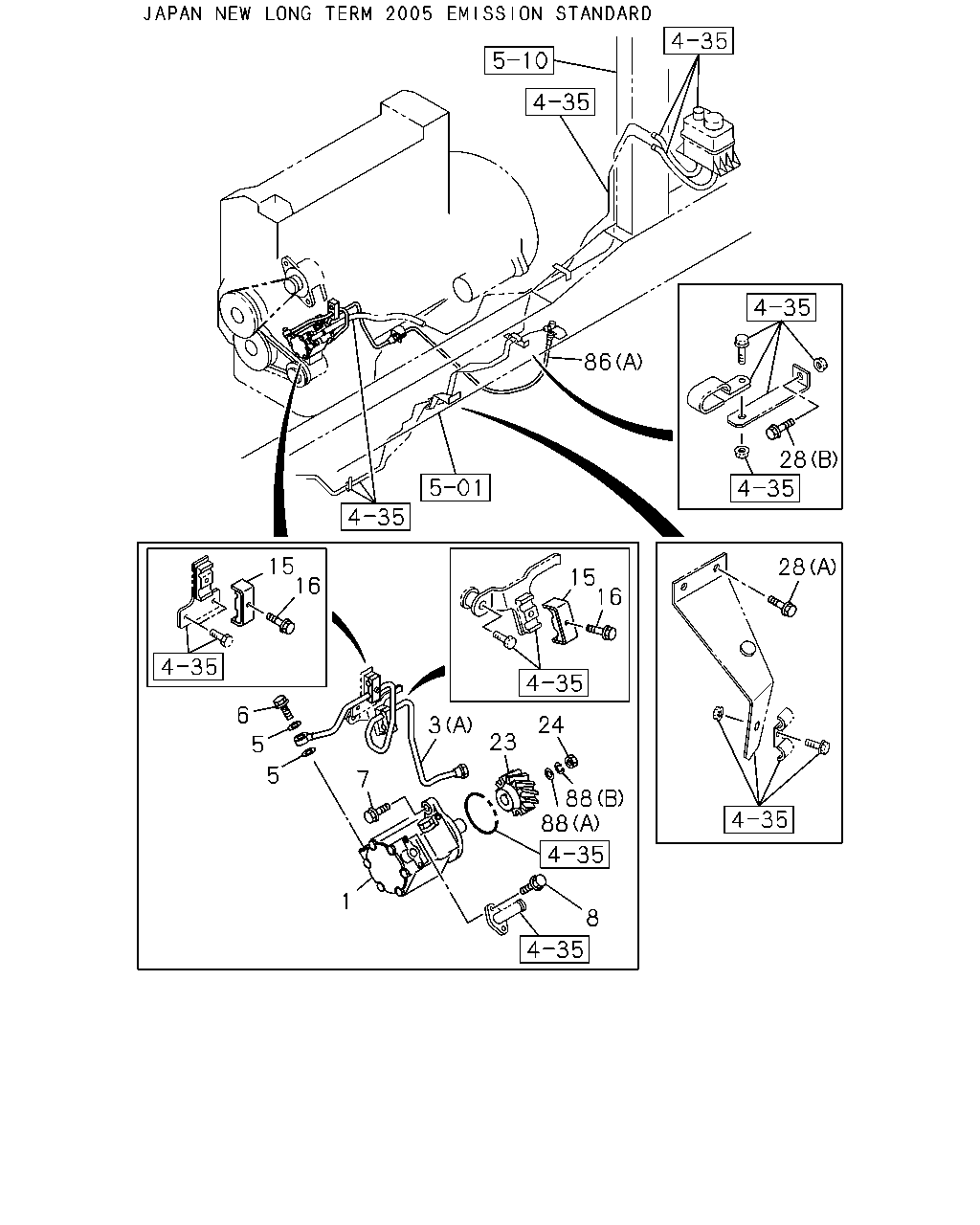

çizim 142177
86 28 15 16 28 15 16 6 24 3 23 5 5 7 88 88 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-616-3 01 1 0710- ● ●
3 PIPE; OIL,CHARGE,P/S
6WG1 TC-N(71L) (B) 		8-97618-554-0 01 1 1108- ●
3 PIPE; OIL,CHARGE,P/S
(A) 		1-13314-057-0 01 1 0710-1107 ● ●
3 PIPE; OIL,CHARGE,P/S
6WG1 TC-C(72L) (A) 		1-13314-057-0 01 1 1108- ●
3 PIPE; OIL,CHARGE,P/S
(A) 		1-13314-057-0 01 1 1108- ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 0710- ● ●
6 BOLT; EYE,P/S PIPE
M18X33 		1-09675-058-0 01 1 0710- ● ●
7 BOLT; OIL PUMP,P/S
M10X130 FLANGE 		0-28156-013-0 02 1 0710- ● ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 0710- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 0710- ● ●
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 0710- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0710- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
86 HOSE; FLEX,P/S
EURO5 SPECIFICATION<NT5> (B) L=380 		1-09365-226-0 01 1 1108- ●
86 HOSE; FLEX,P/S
(A) L=470 		1-09365-177-0 01 1 0710-1107 ● ●
86 HOSE; FLEX,P/S
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=470 		1-09365-177-0 01 1 1108- ●
86 HOSE; FLEX,P/S
(A) L=470 		1-09365-177-0 01 1 1108- ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0710- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0710- ● ●

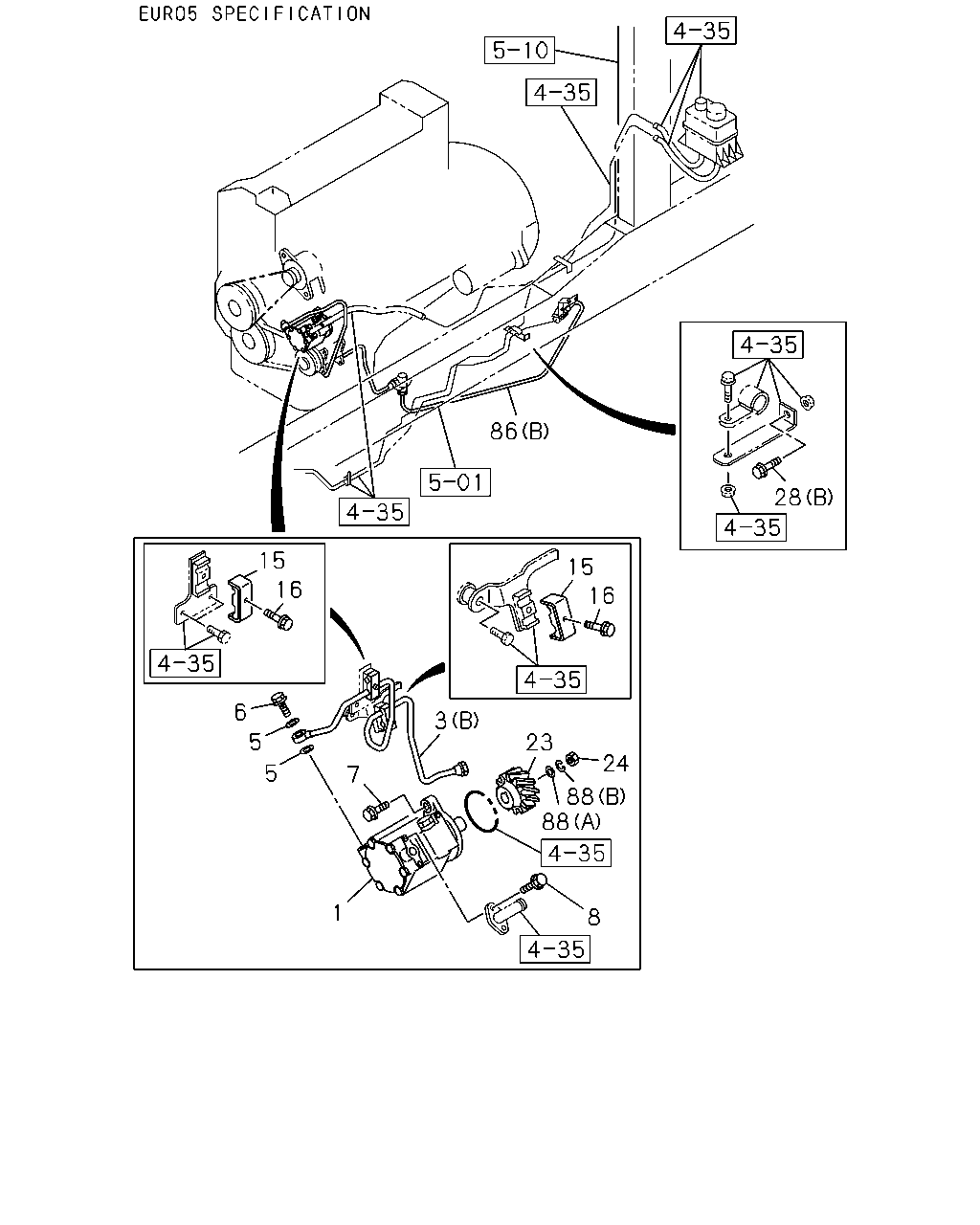

çizim 142261
86 28 15 15 16 16 6 3 5 23 24 5 7 88 88 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-616-3 01 1 0710- ● ●
3 PIPE; OIL,CHARGE,P/S
6WG1 TC-N(71L) (B) 		8-97618-554-0 01 1 1108- ●
3 PIPE; OIL,CHARGE,P/S
(A) 		1-13314-057-0 01 1 0710-1107 ● ●
3 PIPE; OIL,CHARGE,P/S
6WG1 TC-C(72L) (A) 		1-13314-057-0 01 1 1108- ●
3 PIPE; OIL,CHARGE,P/S
(A) 		1-13314-057-0 01 1 1108- ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 0710- ● ●
6 BOLT; EYE,P/S PIPE
M18X33 		1-09675-058-0 01 1 0710- ● ●
7 BOLT; OIL PUMP,P/S
M10X130 FLANGE 		0-28156-013-0 02 1 0710- ● ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 0710- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 0710- ● ●
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 0710- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0710- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1108- ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
86 HOSE; FLEX,P/S
EURO5 SPECIFICATION<NT5> (B) L=380 		1-09365-226-0 01 1 1108- ●
86 HOSE; FLEX,P/S
(A) L=470 		1-09365-177-0 01 1 0710-1107 ● ●
86 HOSE; FLEX,P/S
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=470 		1-09365-177-0 01 1 1108- ●
86 HOSE; FLEX,P/S
(A) L=470 		1-09365-177-0 01 1 1108- ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0710- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0710- ● ●
