Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#1418) — 229 parça

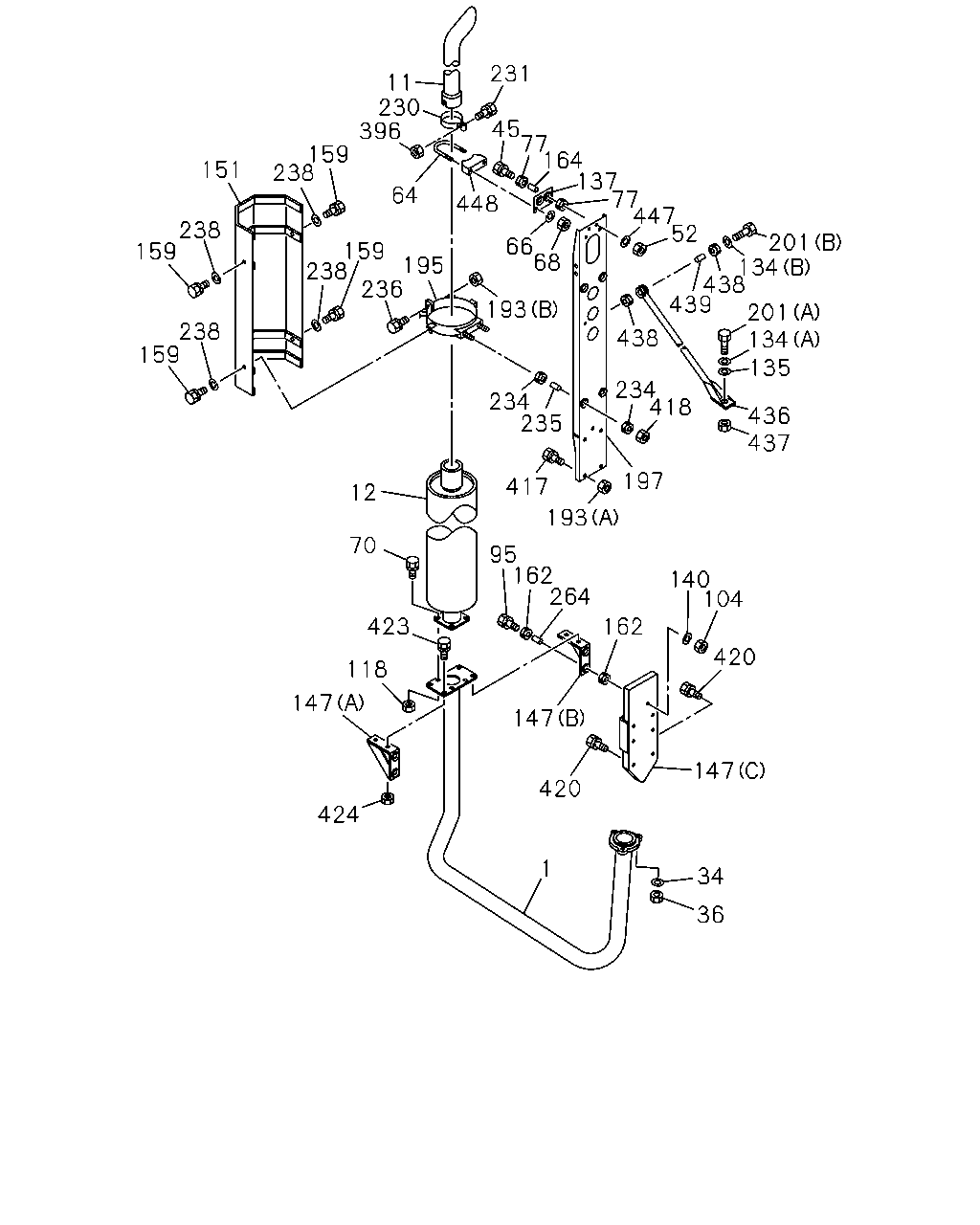

231 11 230 396 45 77 164 137 77 447 52 159 238 151 64 448 238 159 201 134 438 439 201 134 135 66 68 159 238 195 236 193 238 159 438 234 235 234 418 436 437 197 417 12 193 70 95 162 264 140 104 423 162 420 118 147 147 147 420 424 1 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9203-	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) NEW ZEALAND EQUIPMENT(PK5)	1-22121-579-1	01	1	9203-9404	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22121-579-1	01	1	9405-	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> AUSTRALIA EQUIPMENT(RR3)	1-22122-259-1	01	1	9203-9404	●	●
1	PIPE; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-	●	●
1	PIPE; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22122-157-2	01	1	9203-9404	●	●
11	PIPE; EXH,RR WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22112-566-1	01	1	9203-	●	●
11	PIPE; EXH,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22112-967-1	01	1	9203-	●	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>,AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-606-3	01	1	9203-	●
12	SILENCER ASM; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22140-531-3	01	1	9203-	●	●
12	SILENCER ASM; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9203-	●	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>,AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-649-0	01	1	9203-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9203-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9203-	●	●
45	BOLT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10X50	0-10806-050-0	04	1	9203-	●	●
52	NUT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	04	1	9203-9407	●	●
52	NUT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	04	1	9408-	●	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22113-063-1	01	1	9203-	●	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A)	1-22139-033-1	01	1	9203-	●	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B)	1-22139-053-0	02	1	9203-9502	●	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) L=140	1-22113-030-1	02	1	9503-	●	●
66	WASHER; LK,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.2	9-09150-508-0	02	1	9203-	●	●
68	NUT; U BOLT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9203-	●	●
68	NUT; U BOLT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	10	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	0-50041-230-0	04	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	02	1	9203-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	02	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X30 FLANGE	0-28010-830-0	02	1	9203-9204	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-	●	●
77	RUBBER; CUSHION,BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22159-119-0	08	1	9203-	●	●
95	BOLT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10X50	0-10806-050-0	02	1	9203-	●	●
104	NUT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9203-9407	●	●
104	NUT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	02	1	9408-	●	●
118	NUT; SILENCER MTG BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12	9-99110-412-0	04	1	9203-	●	●
134	WASHER; LK,STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (A) ID=10.2	9-09150-510-0	01	1	9203-	●	●
134	WASHER; LK,STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (B) ID=14.2	9-09150-614-0	01	1	9203-	●	●
135	WASHER; PL,STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> ID=15	9-09160-514-0	01	1	9203-	●	●
135	WASHER; PL,STAY WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=10.5 OD=22	9-09160-610-0	01	1	9203-	●	●
137	BRACKET; TAIL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22131-169-0	01	1	9203-	●	●
140	WASHER; LK,BRKT TO FRAME WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	06	1	9203-	●	●
147	BRACKET; VERTICAL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (A)	1-22151-405-2	01	1	9203-	●	●
147	BRACKET; VERTICAL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (B)	1-22151-409-2	01	1	9203-	●	●
147	BRACKET; VERTICAL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (C)	1-22151-645-1	01	1	9203-	●	●
151	PROTECTOR; HEAT,EXH PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22159-099-1	01	1	9203-	●	●
151	PROTECTOR; HEAT,EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22159-169-3	01	1	9203-	●	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M8X20 W/LK WASHER	0-50040-820-0	08	1	9203-	●	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M8X22	9-01900-822-0	10	1	9203-9204	●	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-	●	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22159-119-0	04	1	9203-	●	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	02	1	9203-	●	●
193	NUT; BRKT,VERTICAL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-510-0	06	1	9203-	●	●
193	NUT; BRKT,VERTICAL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (A) M12	9-99110-412-0	02	1	9203-	●	●
195	CLAMP; EXH PIPE,VERTICAL WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22133-163-0	02	1	9203-	●	●
197	BRACKET; EXH PIPE,VERTICAL WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22151-408-5	01	1	9203-	●	●
197	BRACKET; EXH PIPE,VERTICAL WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22131-605-2	01	1	9203-	●	●
201	BOLT; STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (A) M10X55	9-01066-055-0	01	1	9203-	●	●
201	BOLT; STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (B) M14X45	9-92061-445-0	01	1	9203-	●	●
201	BOLT; STAY WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9203-	●	●
201	BOLT; STAY WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9203-	●	●
230	CLAMP; TAIL & VERTICAL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> ID=97	1-22133-043-1	01	1	9203-	●	●
231	BOLT; CLAMP WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	01	1	9203-	●	●
234	RUBBER; SUPPORT,CLAMP WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22159-119-0	08	1	9203-	●	●
235	TUBE; DIST,SUPPORT RUBBER WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	04	1	9203-	●	●
236	BOLT; PIPE CLAMP TO BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	02	1	9203-	●	●
238	WASHER; LK,HEAT PROTECTOR WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> ID=8.4 OD=26	9-09164-808-0	08	1	9203-	●	●
238	WASHER; LK,HEAT PROTECTOR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=8.4 OD=22	9-09160-708-0	10	1	9203-	●	●
264	TUBE; DIST,SUPPORT RUBBER WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	04	1	9203-	●	●
396	NUT; CLAMP WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9203-	●	●
417	BOLT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12X25 W/LK WASHER	0-50041-225-0	04	1	9203-	●	●
417	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10X35 W/LK WASHER	0-50041-035-0	05	1	9203-9307	●	●
417	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10X35 FLANGE	0-28081-035-0	05	1	9308-	●	●
418	NUT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	04	1	9203-	●	●
418	NUT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	05	1	9203-	●	●
420	BOLT; BRKT,VERTICAL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12X35 W/LK WASHER	0-50041-235-0	05	1	9203-9307	●	●
420	BOLT; BRKT,VERTICAL PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12X35 FLANGE	0-28081-235-0	05	1	9308-	●	●
423	BOLT; PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	0-50041-230-0	04	1	9203-	●	●
424	NUT; BRKT TO PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12	9-99110-412-0	04	1	9203-	●	●
436	STAY; SUPPORT,EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22151-481-1	01	1	9203-9203	●	●
436	STAY; SUPPORT,EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22151-657-0	01	1	9204-	●	●
436	STAY; SUPPORT,EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22131-659-0	01	1	9203-	●	●
437	NUT; STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M14	9-99110-414-0	01	1	9203-	●	●
437	NUT; STAY WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9203-	●	●
438	RUBBER; SUPPORT,STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22159-119-0	02	1	9203-	●	●
439	TUBE; DIST,SUPPORT RUBBER WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	01	1	9203-	●	●
447	WASHER; LK,BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	04	1	9203-	●	●
448	PIECE; DIST,U-BOLT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22113-064-0	01	1	9203-	●	●
448	PIECE; DIST,U-BOLT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A)	1-22113-074-0	02	1	9203-	●	●
448	PIECE; DIST,U-BOLT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B)	1-22119-214-0	01	1	9203-	●	●

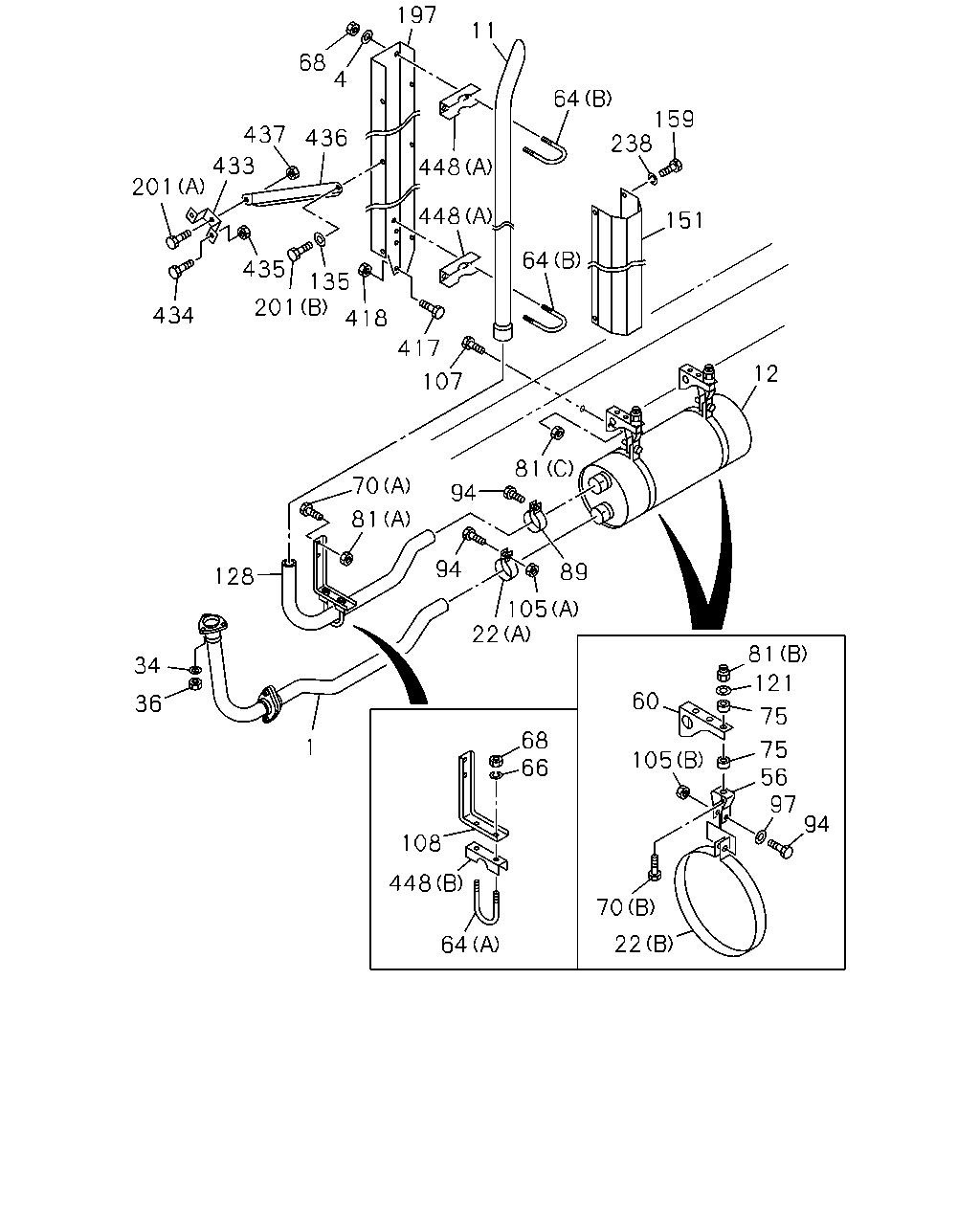

197 11 68 4 64 159 238 437 436 448 433 201 448 151 64 435 135 201 434 418 417 12 107 81 70 94 81 94 89 128 105 22 81 34 121 60 36 75 68 66 1 75 56 97 94 105 108 448 70 22 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9203-	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) NEW ZEALAND EQUIPMENT(PK5)	1-22121-579-1	01	1	9203-9404	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22121-579-1	01	1	9405-	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> AUSTRALIA EQUIPMENT(RR3)	1-22122-259-1	01	1	9203-9404	●	●
1	PIPE; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-	●	●
1	PIPE; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22122-157-2	01	1	9203-9404	●	●
4	WASHER; PL,U BOLT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=8.4	9-09160-508-0	06	1	9203-	●	●
11	PIPE; EXH,RR WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22112-566-1	01	1	9203-	●	●
11	PIPE; EXH,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22112-967-1	01	1	9203-	●	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>,AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-606-3	01	1	9203-	●
12	SILENCER ASM; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22140-531-3	01	1	9203-	●	●
12	SILENCER ASM; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9203-	●	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>,AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-649-0	01	1	9203-		●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> ID=80-84	1-22133-233-0	04	1	9203-	●	●
22	CLAMP; EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) ID=83.5	1-22133-178-1	01	1	9203-	●	●
22	CLAMP; EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) ID=284	1-22133-185-0	02	1	9203-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9203-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9203-	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> H=92	1-22139-076-0	02	1	9203-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> H=84	1-22139-042-0	02	1	9203-	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4>	1-22151-512-2	02	1	9203-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22151-397-1	02	1	9203-	●	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22113-063-1	01	1	9203-	●	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A)	1-22139-033-1	01	1	9203-	●	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B)	1-22139-053-0	02	1	9203-9502	●	●
64	U-BOLT; EXH PIPE,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) L=140	1-22113-030-1	02	1	9503-	●	●
66	WASHER; LK,U BOLT VERTICAL TAIL PIPE<NC4> ID=8.2	9-09150-508-0	02	1	9203-	●	●
68	NUT; U BOLT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9203-	●	●
68	NUT; U BOLT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	10	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	0-50041-230-0	04	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	02	1	9203-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	02	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X30 FLANGE	0-28010-830-0	02	1	9203-9204	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> OD=30	1-22159-106-1	04	1	9203-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> OD=30	1-22159-106-1	04	1	9203-	●	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (C) M10	9-09110-410-0	04	1	9203-	●	●
81	NUT; BRKT WHEEL BASE 6300MM(63W) (C) M10	9-09110-410-0	04	1	9203-	●	●
81	NUT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	02	1	9203-	●	●
81	NUT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9203-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9203-	●	●
89	CLAMP; EXH SILENCER,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=83.5	1-22133-178-1	01	1	9203-	●	●
94	BOLT; CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9203-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9203-	●	●
97	WASHER; PL,CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	04	1	9203-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	04	1	9203-	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-510-0	04	1	9408-	●	●
105	NUT; CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-410-0	04	1	9203-9407	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-410-0	04	1	9203-9407	●	●
105	NUT; CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-410-0	02	1	9408-	●	●
105	NUT; CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-510-0	02	1	9408-	●	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9203-9307	●	●
107	BOLT; BRKT WHEEL BASE 6300MM(63W) M10X40 W/LK WASHER	0-50041-040-0	04	1	9203-9307	●	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-	●	●
107	BOLT; BRKT WHEEL BASE 6300MM(63W) M10X40 FLANGE	0-28081-040-0	04	1	9308-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22131-426-0	01	1	9203-	●	●
121	WASHER; PL,BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9203-	●	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9203-	●	●
128	PIPE; EXH,RR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22112-980-1	01	1	9203-	●	●
135	WASHER; PL,STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> ID=15	9-09160-514-0	01	1	9203-	●	●
135	WASHER; PL,STAY WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=10.5 OD=22	9-09160-610-0	01	1	9203-	●	●
151	PROTECTOR; HEAT,EXH PIPE WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22159-099-1	01	1	9203-	●	●
151	PROTECTOR; HEAT,EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22159-169-3	01	1	9203-	●	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M8X20 W/LK WASHER	0-50040-820-0	08	1	9203-	●	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M8X22	9-01900-822-0	10	1	9203-9204	●	●
159	BOLT; HEAT PROTECTOR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-	●	●
197	BRACKET; EXH PIPE,VERTICAL WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22151-408-5	01	1	9203-	●	●
197	BRACKET; EXH PIPE,VERTICAL WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22131-605-2	01	1	9203-	●	●
201	BOLT; STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (A) M10X55	9-01066-055-0	01	1	9203-	●	●
201	BOLT; STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> (B) M14X45	9-92061-445-0	01	1	9203-	●	●
201	BOLT; STAY WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9203-	●	●
201	BOLT; STAY WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9203-	●	●
238	WASHER; LK,HEAT PROTECTOR WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> ID=8.4 OD=26	9-09164-808-0	08	1	9203-	●	●
238	WASHER; LK,HEAT PROTECTOR WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=8.4 OD=22	9-09160-708-0	10	1	9203-	●	●
417	BOLT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12X25 W/LK WASHER	0-50041-225-0	04	1	9203-	●	●
417	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10X35 W/LK WASHER	0-50041-035-0	05	1	9203-9307	●	●
417	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10X35 FLANGE	0-28081-035-0	05	1	9308-	●	●
418	NUT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	04	1	9203-	●	●
418	NUT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	05	1	9203-	●	●
433	BRACKET; STAY,EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22131-501-1	01	1	9203-	●	●
434	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M8X20 W/LK WASHER	0-50040-820-0	02	1	9203-	●	●
435	NUT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M8	9-09110-408-0	02	1	9203-	●	●
436	STAY; SUPPORT,EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22151-481-1	01	1	9203-9203	●	●
436	STAY; SUPPORT,EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22151-657-0	01	1	9204-	●	●
436	STAY; SUPPORT,EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22131-659-0	01	1	9203-	●	●
437	NUT; STAY WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M14	9-99110-414-0	01	1	9203-	●	●
437	NUT; STAY WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	01	1	9203-	●	●
448	PIECE; DIST,U-BOLT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22113-064-0	01	1	9203-	●	●
448	PIECE; DIST,U-BOLT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A)	1-22113-074-0	02	1	9203-	●	●
448	PIECE; DIST,U-BOLT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B)	1-22119-214-0	01	1	9203-	●	●

81 81 81 121 75 107 60 81 121 75 107 75 56 97 22 60 70 105 75 105 56 70 22 94 105 105 97 22 63 126 63 34 36 12 22 94 1

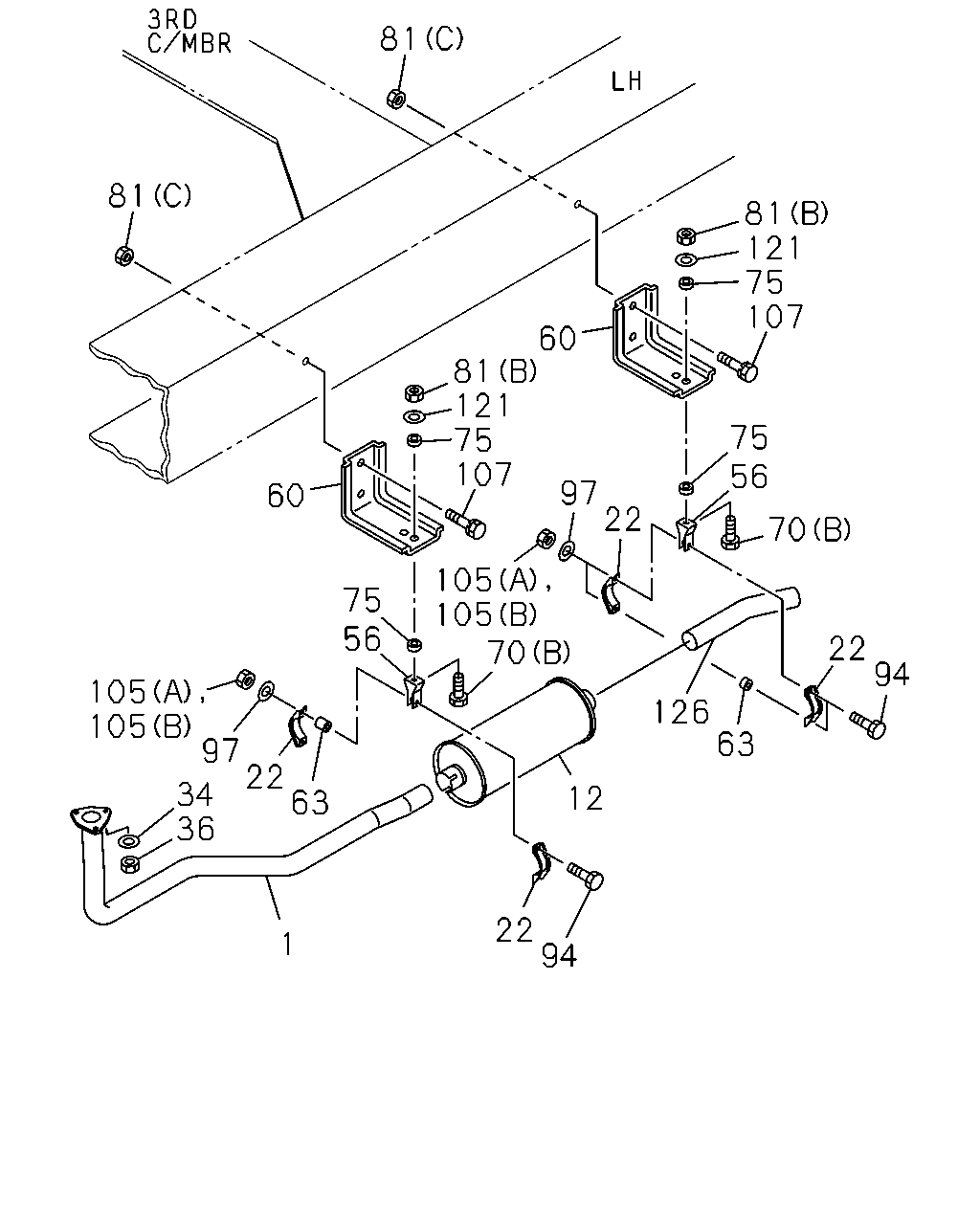

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9203-	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) NEW ZEALAND EQUIPMENT(PK5)	1-22121-579-1	01	1	9203-9404	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22121-579-1	01	1	9405-	●	●
1	PIPE; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> AUSTRALIA EQUIPMENT(RR3)	1-22122-259-1	01	1	9203-9404	●	●
1	PIPE; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-	●	●
1	PIPE; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22122-157-2	01	1	9203-9404	●	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>,AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-606-3	01	1	9203-	●
12	SILENCER ASM; EXH WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4>	1-22140-531-3	01	1	9203-	●	●
12	SILENCER ASM; EXH WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22140-735-0	01	1	9203-	●	●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>,AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-649-0	01	1	9203-		●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> ID=80-84	1-22133-233-0	04	1	9203-	●	●
22	CLAMP; EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) ID=83.5	1-22133-178-1	01	1	9203-	●	●
22	CLAMP; EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) ID=284	1-22133-185-0	02	1	9203-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9203-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9203-	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> H=92	1-22139-076-0	02	1	9203-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> H=84	1-22139-042-0	02	1	9203-	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4>	1-22151-512-2	02	1	9203-	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4>	1-22151-397-1	02	1	9203-	●	●
63	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	02	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 5000MM(50W) VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	0-50041-230-0	04	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	02	1	9203-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10X50	0-10806-050-0	02	1	9203-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X30 FLANGE	0-28010-830-0	02	1	9203-9204	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9205-	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> OD=30	1-22159-106-1	04	1	9203-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> OD=30	1-22159-106-1	04	1	9203-	●	●
81	NUT; BRKT WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> (C) M10	9-09110-410-0	04	1	9203-	●	●
81	NUT; BRKT WHEEL BASE 6300MM(63W) (C) M10	9-09110-410-0	04	1	9203-	●	●
81	NUT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M8	9-09110-408-0	02	1	9203-	●	●
81	NUT; BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9203-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9203-	●	●
94	BOLT; CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9203-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9203-	●	●
97	WASHER; PL,CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	04	1	9203-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	04	1	9203-	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-510-0	04	1	9408-	●	●
105	NUT; CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-410-0	04	1	9203-9407	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> (A),(B) M10	9-09110-410-0	04	1	9203-9407	●	●
105	NUT; CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-410-0	02	1	9408-	●	●
105	NUT; CLAMP WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> (B) M10	9-09110-510-0	02	1	9408-	●	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9203-9307	●	●
107	BOLT; BRKT WHEEL BASE 6300MM(63W) M10X40 W/LK WASHER	0-50041-040-0	04	1	9203-9307	●	●
107	BOLT; BRKT WHEEL BASE 5000MM(50W) EXC. VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-	●	●
107	BOLT; BRKT WHEEL BASE 6300MM(63W) M10X40 FLANGE	0-28081-040-0	04	1	9308-	●	●
121	WASHER; PL,BRKT WHEEL BASE 6300MM(63W) VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9203-	●	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9203-	●	●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22112-981-1	01	1	9203-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
