Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#14179) — 312 parça

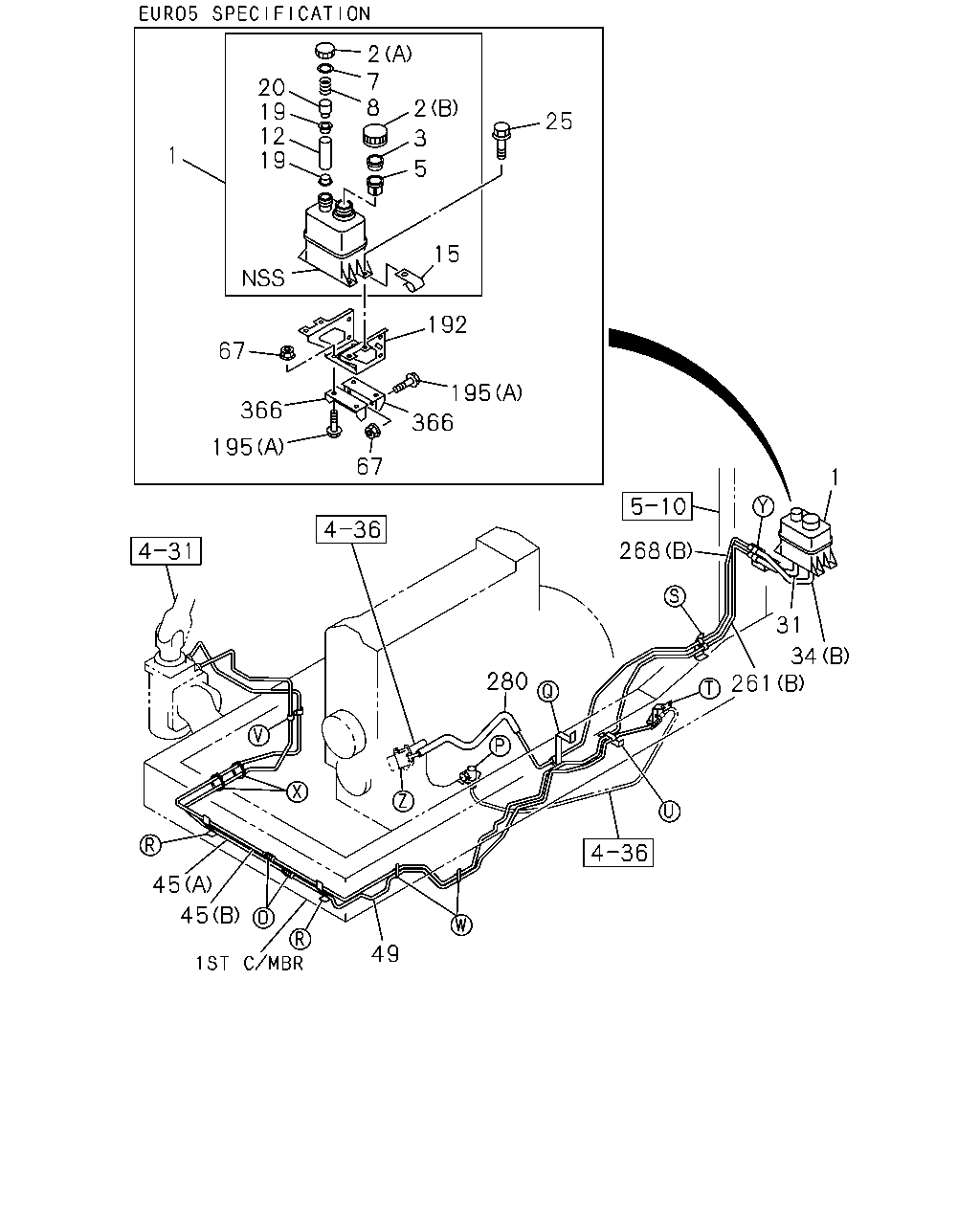

1 20 19 12 19 2 7 8 2 3 5 25 15 192 67 366 195 67 366 195 1 31 34 261 268 280 49 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0710-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0710-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0710-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0710-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0710-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0710-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0710-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0710-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0710-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0710-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0710-0711	●	●
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0712-	●	●
34	HOSE; P/S OIL TANK,OUTLET EURO5 SPECIFICATION<NT5> (B)	8-98190-057-0	01	1	1108-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98035-000-0	01	1	0710-0711	●	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98105-152-0	01	1	0712-1107	●	●
34	HOSE; P/S OIL TANK,OUTLET JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98105-152-0	01	1	1108-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98105-152-0	01	1	1108-		●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98056-504-0	01	1	0710-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98056-505-0	01	1	0710-1309	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98257-649-0	01	1	1310-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION EURO5 SPECIFICATION<NT5> L=1358	8-98155-326-0	01	1	1108-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0710-1107	●	●
49	PIPE; OIL,FLEX HOSE TO UNION JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=2074	1-21117-850-0	01	1	1108-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	1108-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	0710-0710	●	●
192	BRACKET; P/S OIL TANK	8-98105-149-0	01	1	0711-1009	●	●
192	BRACKET; P/S OIL TANK	8-98137-323-0	01	1	1010-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0710-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0710-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●	●
261	PIPE; OIL,UNION TO HOSE EURO5 SPECIFICATION<NT5> (B)	8-98155-327-0	01	1	1108-	●
261	PIPE; OIL,UNION TO HOSE (A)	8-98034-831-0	01	1	0710-1107	●	●
261	PIPE; OIL,UNION TO HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98034-831-0	01	1	1108-	●
261	PIPE; OIL,UNION TO HOSE (A)	8-98034-831-0	01	1	1108-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EURO5 SPECIFICATION<NT5> (B)	8-98142-365-0	01	1	1108-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) L=1340	8-98034-832-0	01	1	0710-1107	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=1340	8-98034-832-0	01	1	1108-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) L=1340	8-98034-832-0	01	1	1108-		●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-	●	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0710-	●	●

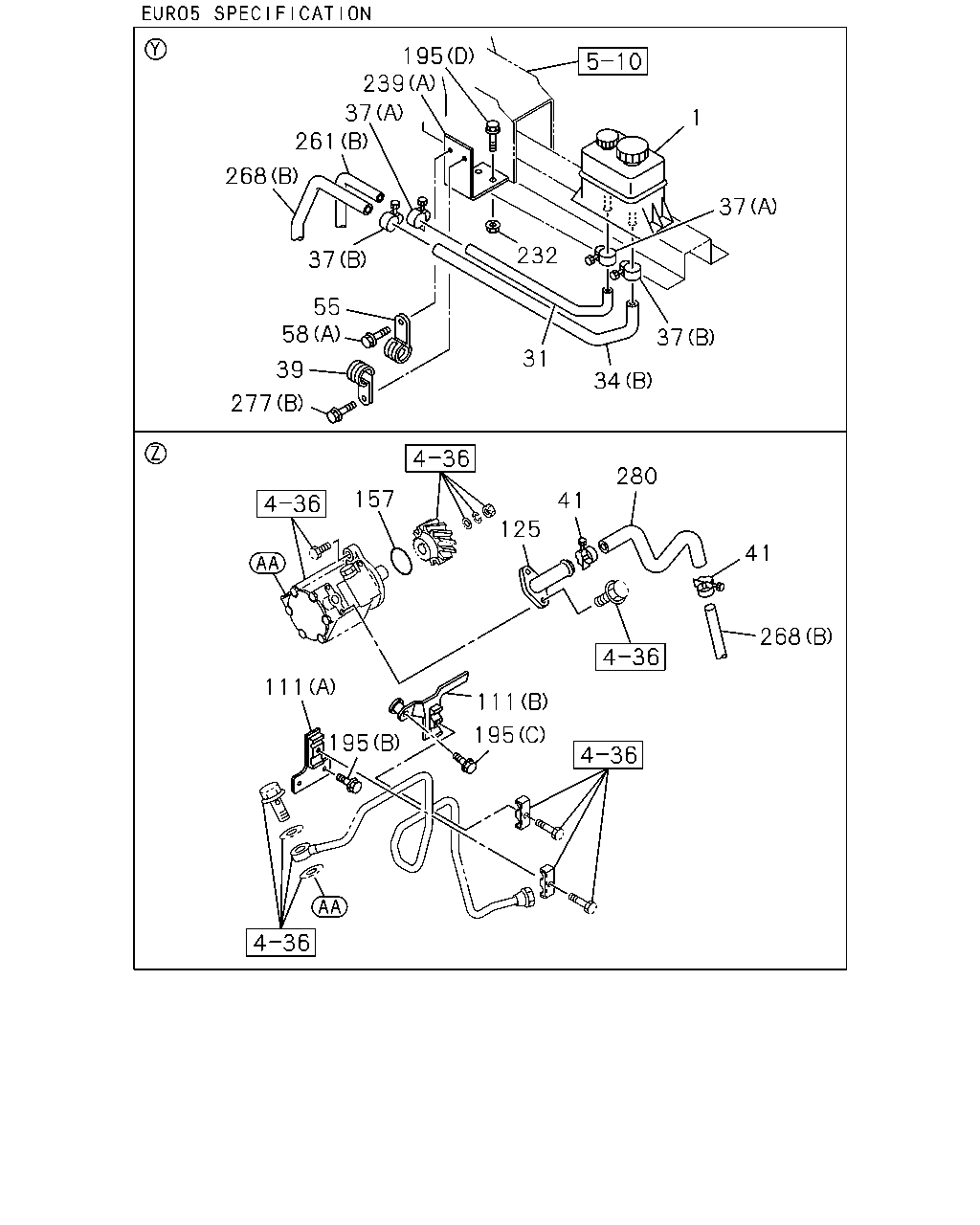

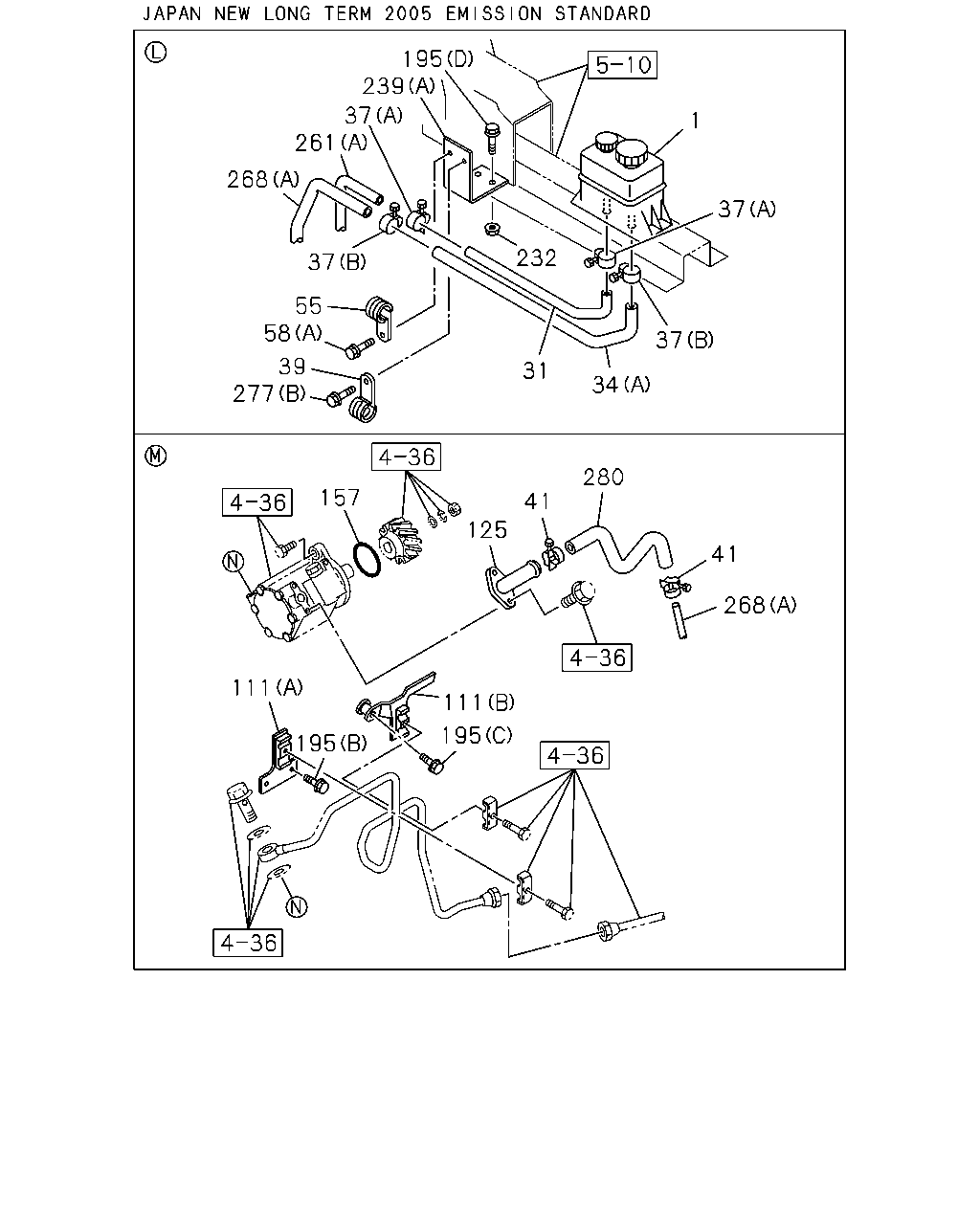

1 37 37 34 31 232 195 239 37 261 268 37 55 58 39 277 41 268 280 41 125 157 111 195 111 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0710-0711	●	●
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0712-	●	●
34	HOSE; P/S OIL TANK,OUTLET EURO5 SPECIFICATION<NT5> (B)	8-98190-057-0	01	1	1108-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98035-000-0	01	1	0710-0711	●	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98105-152-0	01	1	0712-1107	●	●
34	HOSE; P/S OIL TANK,OUTLET JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98105-152-0	01	1	1108-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98105-152-0	01	1	1108-		●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0710-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0710-	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	0710-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0710-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	0710-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0710-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0710-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0710-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0710-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0710-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0710-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
239	BRACKET; FLEX HOSE EURO5 SPECIFICATION<NT5> (C)	8-97618-278-1	01	1	1108-	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0710-	●	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0710-1107	●	●
239	BRACKET; FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	1-47471-227-0	01	1	1108-	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	1108-		●
261	PIPE; OIL,UNION TO HOSE EURO5 SPECIFICATION<NT5> (B)	8-98155-327-0	01	1	1108-	●
261	PIPE; OIL,UNION TO HOSE (A)	8-98034-831-0	01	1	0710-1107	●	●
261	PIPE; OIL,UNION TO HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98034-831-0	01	1	1108-	●
261	PIPE; OIL,UNION TO HOSE (A)	8-98034-831-0	01	1	1108-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EURO5 SPECIFICATION<NT5> (B)	8-98142-365-0	01	1	1108-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) L=1340	8-98034-832-0	01	1	0710-1107	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=1340	8-98034-832-0	01	1	1108-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) L=1340	8-98034-832-0	01	1	1108-		●
277	BOLT; HOSE CLIP EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28650-825-0	03	1	1108-	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-1107	●	●
277	BOLT; HOSE CLIP JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 FLANGE	0-28650-825-0	04	1	1108-	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	1108-		●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-	●	●

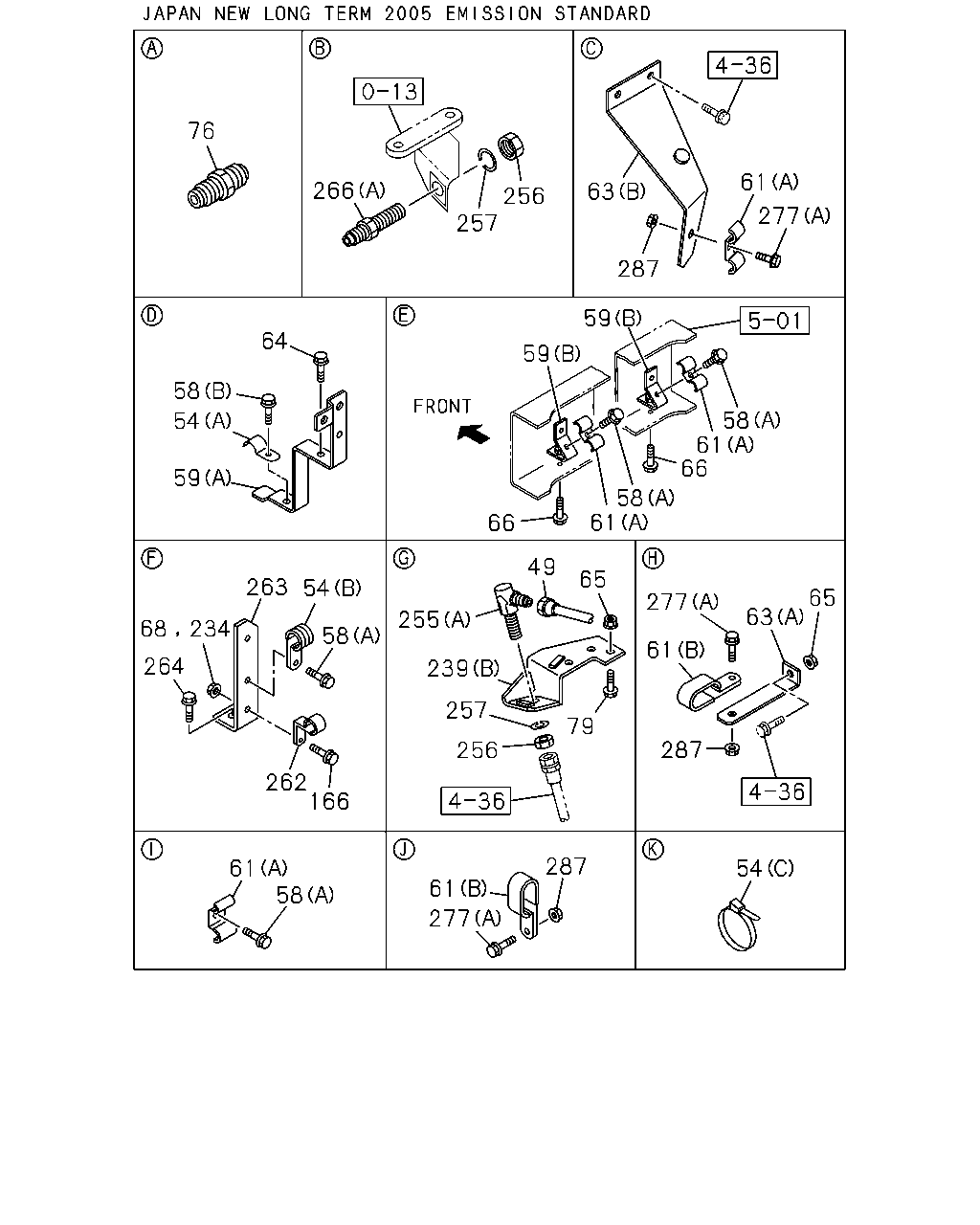

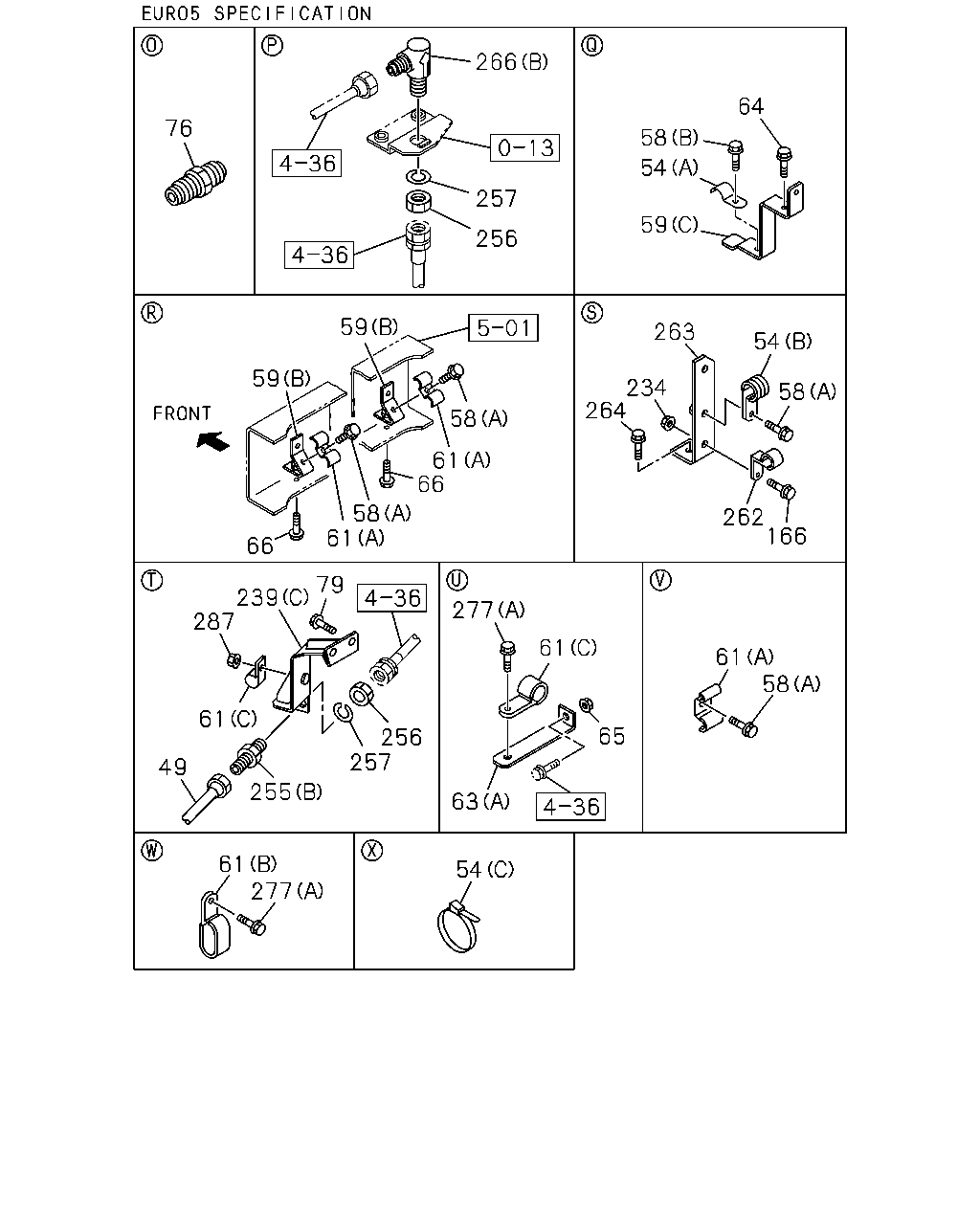

76 266 257 256 63 287 61 277 64 58 54 59 59 59 58 61 66 58 61 66 263 54 68 234 58 264 262 166 255 239 257 256 79 49 65 277 65 63 61 287 61 58 61 277 287 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION EURO5 SPECIFICATION<NT5> L=1358	8-98155-326-0	01	1	1108-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0710-1107	●	●
49	PIPE; OIL,FLEX HOSE TO UNION JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=2074	1-21117-850-0	01	1	1108-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	1108-		●
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	02	1	1310-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-	●	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0710-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE EURO5 SPECIFICATION<NT5> (C)	1-47471-183-0	01	1	1108-	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-98063-710-0	01	1	0710-1107	●	●
59	BRACKET; CLIP,OIL PIPE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98063-710-0	01	1	1108-	●
59	BRACKET; CLIP,OIL PIPE (A)	8-98063-710-0	01	1	1108-		●
61	CLIP; OIL PIPE EURO5 SPECIFICATION<NT5> (C) ID=16 L=20	0-95235-535-0	02	1	1108-	●
61	CLIP; OIL PIPE EURO5 SPECIFICATION<NT5> (B) ID=16X2 L=20	0-95325-535-0	02	1	1108-	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1105-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	0710-1107	●	●
61	CLIP; OIL PIPE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) ID=16X2 L=20	0-95325-535-0	03	1	1108-	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	1108-		●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0710-1104	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1105-1107	●	●
61	CLIP; OIL PIPE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1108-	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1108-		●
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	0710-1107	●	●
63	BRACKET; CLIP,P/S JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	1-47471-146-0	01	1	1108-	●
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	1108-		●
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	0710-	●	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28050-825-0	01	1	0710-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1105-1107	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1108-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-1104	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1105-1107	●	●
65	NUT; BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE	0-91180-108-0	02	1	1108-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1108-		●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-1104	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0710-	●	●
79	BOLT; BRKT EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28650-825-0	02	1	1108-	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0710-1107	●	●
79	BOLT; BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X35 FLANGE	0-28650-835-0	02	1	1108-	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1108-		●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1105-	●	●
239	BRACKET; FLEX HOSE EURO5 SPECIFICATION<NT5> (C)	8-97618-278-1	01	1	1108-	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0710-	●	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0710-1107	●	●
239	BRACKET; FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	1-47471-227-0	01	1	1108-	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	1108-		●
255	UNION; FLEX HOSE EURO5 SPECIFICATION<NT5> (B) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1108-	●
255	UNION; FLEX HOSE (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0710-1107	●	●
255	UNION; FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M22 & M22 ELBOW	1-09654-163-1	01	1	1108-	●
255	UNION; FLEX HOSE (A) M22 & M22 ELBOW	1-09654-163-1	01	1	1108-		●
256	NUT; UNION M22	0-91111-522-0	01	1	0710-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	0710-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	0710-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
266	UNION; OIL PIPE,P/S 6WG1 TC-N(71L) (B) M20 & M22 ELBOW	1-09654-154-1	01	1	1108-	●
266	UNION; OIL PIPE,P/S (A) M20 & M22 STRAIGHT	1-09654-167-1	01	1	0710-1107	●	●
266	UNION; OIL PIPE,P/S 6WG1 TC-C(72L) (A) M20 & M22 STRAIGHT	1-09654-167-1	01	1	1108-	●
266	UNION; OIL PIPE,P/S (A) M20 & M22 STRAIGHT	1-09654-167-1	01	1	1108-		●
277	BOLT; HOSE CLIP EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28650-825-0	03	1	1108-	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-1107	●	●
277	BOLT; HOSE CLIP JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 FLANGE	0-28650-825-0	04	1	1108-	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	1108-		●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-	●	●

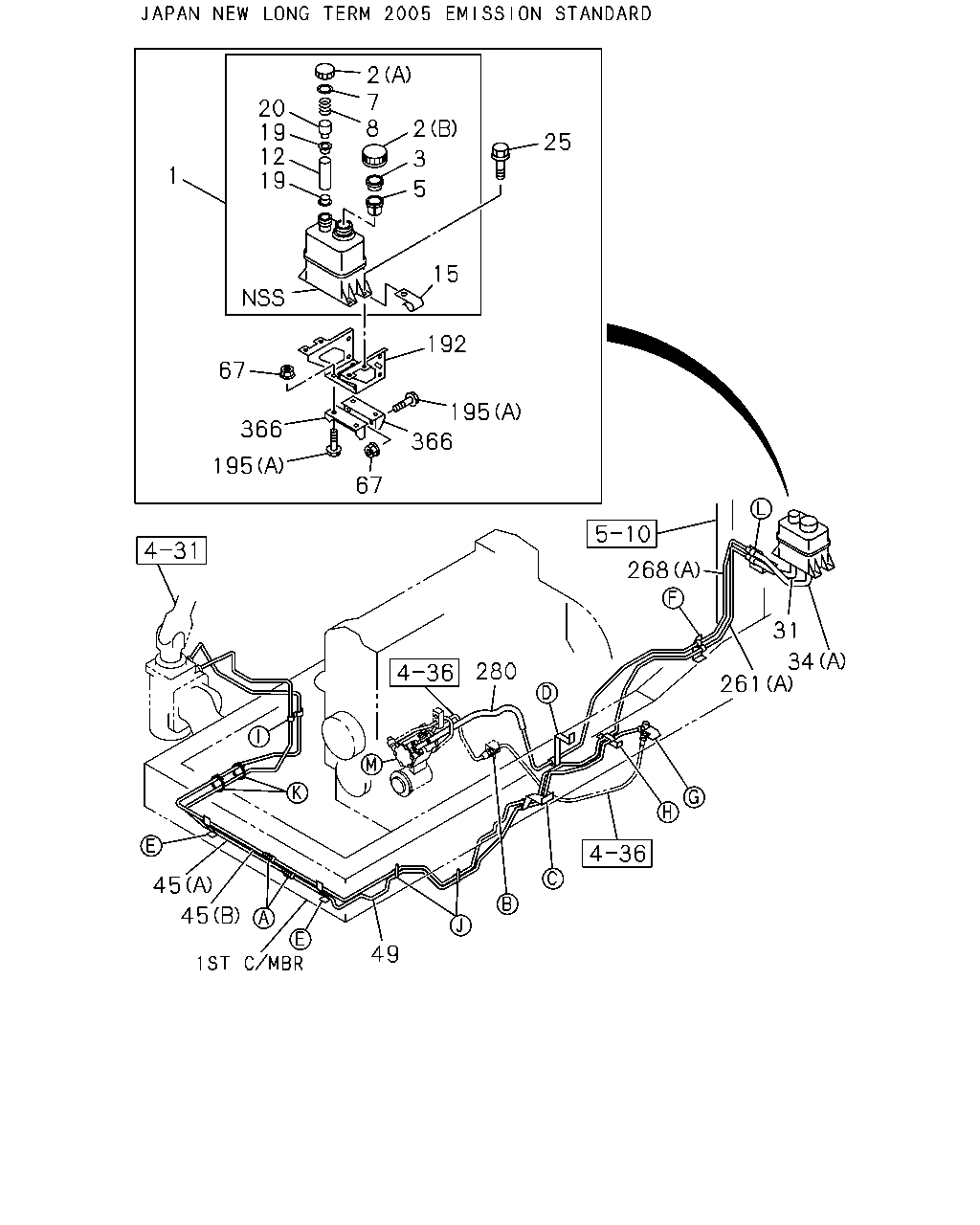

31 34 261 268 280 49 45 45 366 195 67 195 366 67 15 25 3 2 5 19 12 20 1 2 7 8 19 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0710-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0710-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0710-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0710-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0710-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0710-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0710-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0710-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0710-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0710-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0710-0711	●	●
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0712-	●	●
34	HOSE; P/S OIL TANK,OUTLET EURO5 SPECIFICATION<NT5> (B)	8-98190-057-0	01	1	1108-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98035-000-0	01	1	0710-0711	●	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98105-152-0	01	1	0712-1107	●	●
34	HOSE; P/S OIL TANK,OUTLET JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98105-152-0	01	1	1108-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98105-152-0	01	1	1108-		●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98056-504-0	01	1	0710-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98056-505-0	01	1	0710-1309	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98257-649-0	01	1	1310-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION EURO5 SPECIFICATION<NT5> L=1358	8-98155-326-0	01	1	1108-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0710-1107	●	●
49	PIPE; OIL,FLEX HOSE TO UNION JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=2074	1-21117-850-0	01	1	1108-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	1108-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	0710-0710	●	●
192	BRACKET; P/S OIL TANK	8-98105-149-0	01	1	0711-1009	●	●
192	BRACKET; P/S OIL TANK	8-98137-323-0	01	1	1010-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0710-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0710-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●	●
261	PIPE; OIL,UNION TO HOSE EURO5 SPECIFICATION<NT5> (B)	8-98155-327-0	01	1	1108-	●
261	PIPE; OIL,UNION TO HOSE (A)	8-98034-831-0	01	1	0710-1107	●	●
261	PIPE; OIL,UNION TO HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98034-831-0	01	1	1108-	●
261	PIPE; OIL,UNION TO HOSE (A)	8-98034-831-0	01	1	1108-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EURO5 SPECIFICATION<NT5> (B)	8-98142-365-0	01	1	1108-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) L=1340	8-98034-832-0	01	1	0710-1107	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=1340	8-98034-832-0	01	1	1108-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) L=1340	8-98034-832-0	01	1	1108-		●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-	●	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0710-	●	●

76 266 257 256 64 58 54 59 54 263 58 234 264 262 266 59 59 58 61 66 58 61 66 79 239 287 61 49 255 257 256 277 61 65 63 61 58 54 61 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION EURO5 SPECIFICATION<NT5> L=1358	8-98155-326-0	01	1	1108-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0710-1107	●	●
49	PIPE; OIL,FLEX HOSE TO UNION JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=2074	1-21117-850-0	01	1	1108-	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	1108-		●
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	02	1	1310-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-	●	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0710-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE EURO5 SPECIFICATION<NT5> (C)	1-47471-183-0	01	1	1108-	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0710-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-98063-710-0	01	1	0710-1107	●	●
59	BRACKET; CLIP,OIL PIPE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98063-710-0	01	1	1108-	●
59	BRACKET; CLIP,OIL PIPE (A)	8-98063-710-0	01	1	1108-		●
61	CLIP; OIL PIPE EURO5 SPECIFICATION<NT5> (C) ID=16 L=20	0-95235-535-0	02	1	1108-	●
61	CLIP; OIL PIPE EURO5 SPECIFICATION<NT5> (B) ID=16X2 L=20	0-95325-535-0	02	1	1108-	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1105-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	0710-1107	●	●
61	CLIP; OIL PIPE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) ID=16X2 L=20	0-95325-535-0	03	1	1108-	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	1108-		●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0710-1104	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1105-1107	●	●
61	CLIP; OIL PIPE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1108-	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1108-		●
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	0710-1107	●	●
63	BRACKET; CLIP,P/S JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	1-47471-146-0	01	1	1108-	●
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	1108-		●
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	0710-	●	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28050-825-0	01	1	0710-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1105-1107	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1108-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-1104	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1105-1107	●	●
65	NUT; BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE	0-91180-108-0	02	1	1108-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1108-		●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0710-	●	●
79	BOLT; BRKT EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28650-825-0	02	1	1108-	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0710-1107	●	●
79	BOLT; BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X35 FLANGE	0-28650-835-0	02	1	1108-	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1108-		●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1105-	●	●
239	BRACKET; FLEX HOSE EURO5 SPECIFICATION<NT5> (C)	8-97618-278-1	01	1	1108-	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0710-	●	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0710-1107	●	●
239	BRACKET; FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	1-47471-227-0	01	1	1108-	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	1108-		●
255	UNION; FLEX HOSE EURO5 SPECIFICATION<NT5> (B) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1108-	●
255	UNION; FLEX HOSE (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0710-1107	●	●
255	UNION; FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M22 & M22 ELBOW	1-09654-163-1	01	1	1108-	●
255	UNION; FLEX HOSE (A) M22 & M22 ELBOW	1-09654-163-1	01	1	1108-		●
256	NUT; UNION M22	0-91111-522-0	01	1	0710-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	0710-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	0710-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
266	UNION; OIL PIPE,P/S 6WG1 TC-N(71L) (B) M20 & M22 ELBOW	1-09654-154-1	01	1	1108-	●
266	UNION; OIL PIPE,P/S (A) M20 & M22 STRAIGHT	1-09654-167-1	01	1	0710-1107	●	●
266	UNION; OIL PIPE,P/S 6WG1 TC-C(72L) (A) M20 & M22 STRAIGHT	1-09654-167-1	01	1	1108-	●
266	UNION; OIL PIPE,P/S (A) M20 & M22 STRAIGHT	1-09654-167-1	01	1	1108-		●
277	BOLT; HOSE CLIP EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28650-825-0	03	1	1108-	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-1107	●	●
277	BOLT; HOSE CLIP JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 FLANGE	0-28650-825-0	04	1	1108-	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	1108-		●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-	●	●

1 37 37 34 31 232 195 239 37 261 268 37 55 58 39 277 157 125 41 280 41 268 111 111 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0710-0711	●	●
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0712-	●	●
34	HOSE; P/S OIL TANK,OUTLET EURO5 SPECIFICATION<NT5> (B)	8-98190-057-0	01	1	1108-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98035-000-0	01	1	0710-0711	●	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98105-152-0	01	1	0712-1107	●	●
34	HOSE; P/S OIL TANK,OUTLET JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98105-152-0	01	1	1108-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98105-152-0	01	1	1108-		●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0710-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0710-	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	0710-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0710-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	0710-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0710-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0710-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0710-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0710-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0710-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0710-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0710-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
239	BRACKET; FLEX HOSE EURO5 SPECIFICATION<NT5> (C)	8-97618-278-1	01	1	1108-	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0710-	●	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0710-1107	●	●
239	BRACKET; FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	1-47471-227-0	01	1	1108-	●
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	1108-		●
261	PIPE; OIL,UNION TO HOSE EURO5 SPECIFICATION<NT5> (B)	8-98155-327-0	01	1	1108-	●
261	PIPE; OIL,UNION TO HOSE (A)	8-98034-831-0	01	1	0710-1107	●	●
261	PIPE; OIL,UNION TO HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98034-831-0	01	1	1108-	●
261	PIPE; OIL,UNION TO HOSE (A)	8-98034-831-0	01	1	1108-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EURO5 SPECIFICATION<NT5> (B)	8-98142-365-0	01	1	1108-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) L=1340	8-98034-832-0	01	1	0710-1107	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) L=1340	8-98034-832-0	01	1	1108-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) L=1340	8-98034-832-0	01	1	1108-		●
277	BOLT; HOSE CLIP EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28650-825-0	03	1	1108-	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-1107	●	●
277	BOLT; HOSE CLIP JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X25 FLANGE	0-28650-825-0	04	1	1108-	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	1108-		●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
