Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#14175) — 418 parça

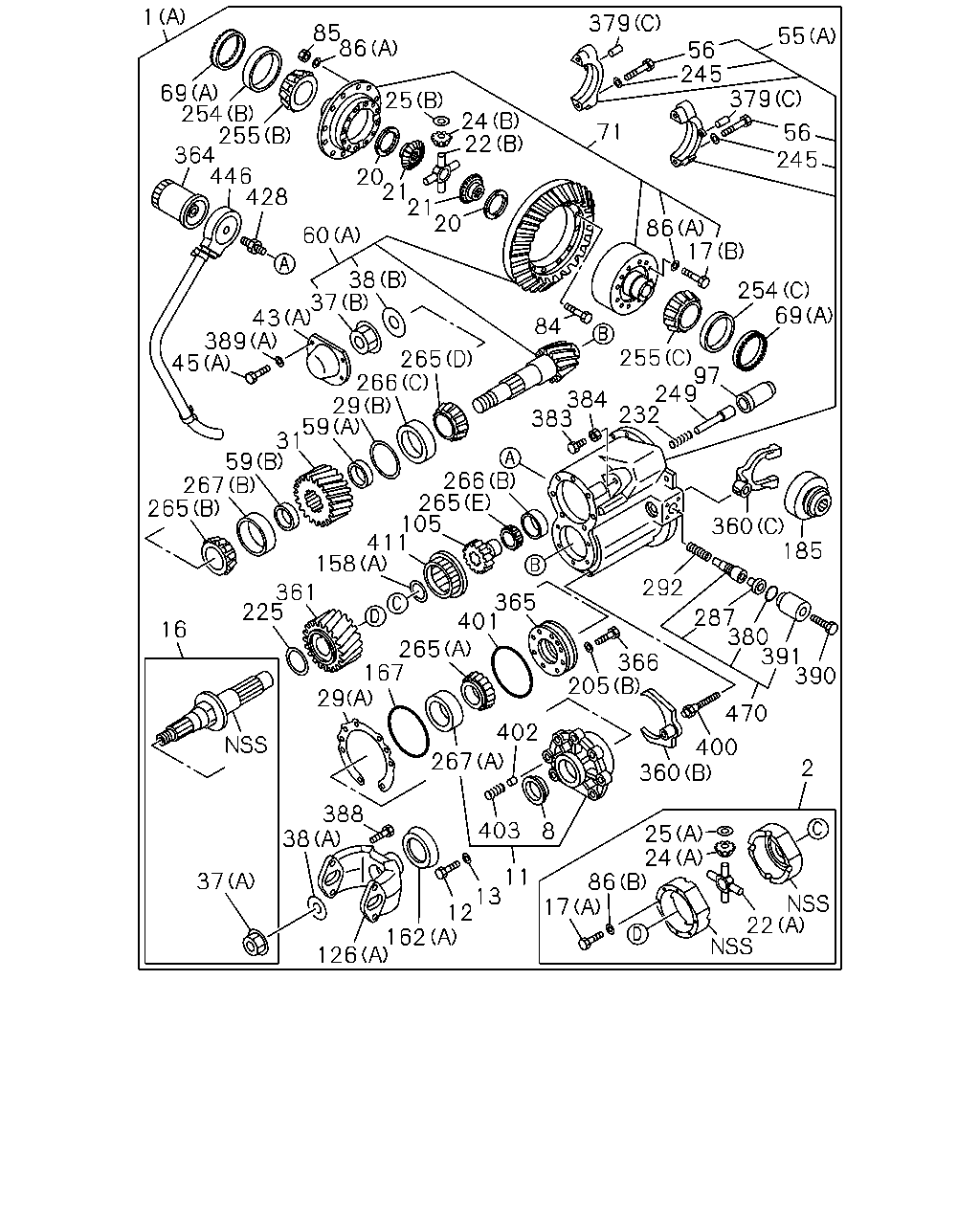

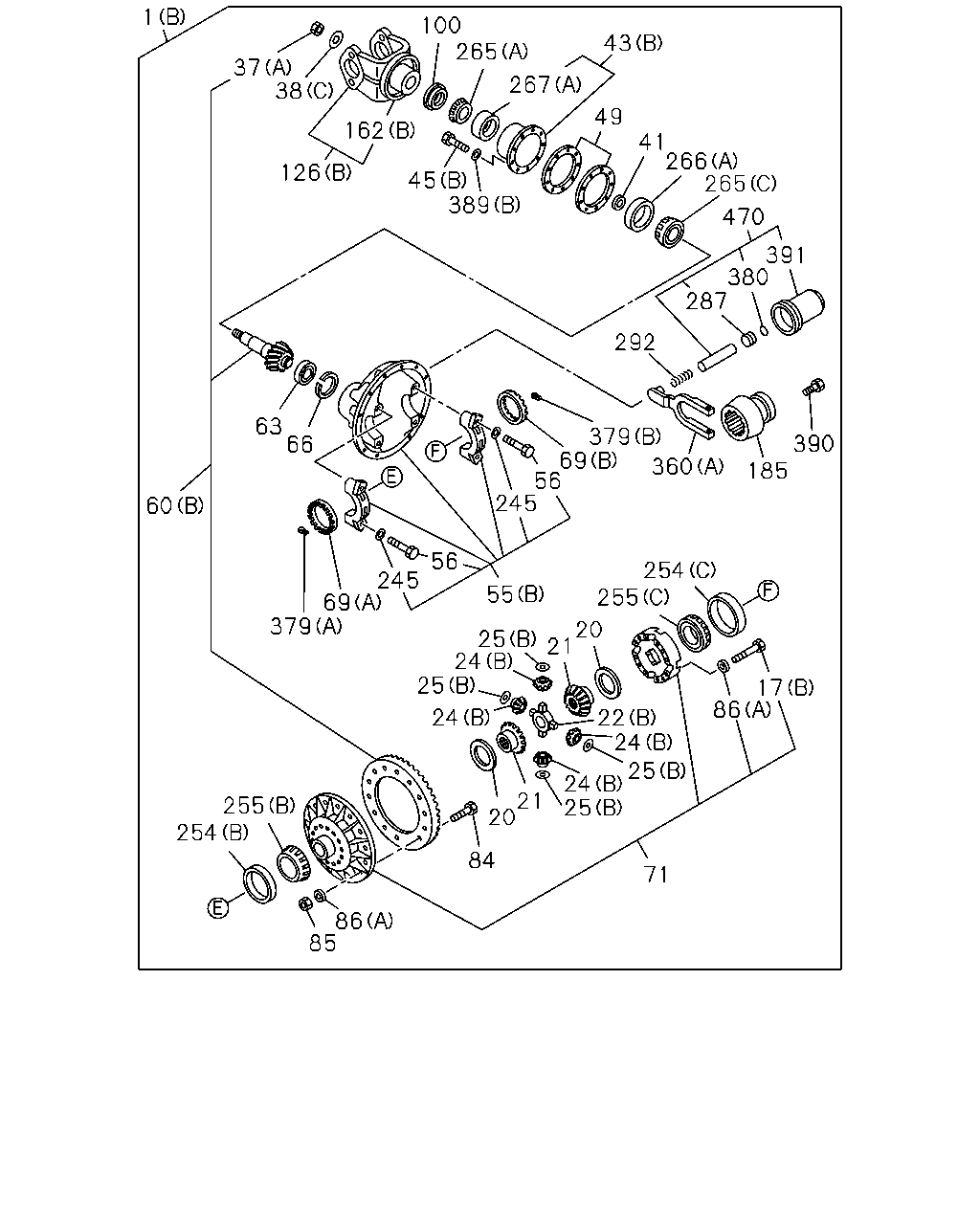

1 100 265 43 37 38 267 49 162 41 266 265 126 45 389 470 391 380 287 292 63 66 379 69 56 245 390 185 360 60 56 254 255 245 69 379 20 21 25 24 25 17 86 24 22 24 25 24 25 21 20 255 254 84 71 86 85 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (A) 41/11	1-41003-529-0	01	1	1009-	●
1	DRIVE ASM; FINAL,RR (B) 41/11	1-41003-531-0	01	1	1009-	●
1	DRIVE ASM; FINAL,RR (A) 41/12	1-41003-528-0	01	1	1009-		●
1	DRIVE ASM; FINAL,RR (B) 41/12	1-41003-530-0	01	1	1009-		●
1	DRIVE ASM; FINAL,RR (B) 43/11	1-41002-741-0	01	1	0710-			●
1	DRIVE ASM; FINAL,RR (A) 43/11	1-41003-360-0	01	1	0710-			●
1	DRIVE ASM; FINAL,RR (B) 43/10	1-41002-742-0	01	1	0710-				●
1	DRIVE ASM; FINAL,RR (A) 43/10	1-41003-362-0	01	1	0710-				●
17	BOLT; DIFF CAGE SETTING (B)	1-41519-095-0	24	1	0710-1008			●	●
17	BOLT; DIFF CAGE SETTING (B)	1-41519-095-0	24	1	1009-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A)	1-41329-085-0	08	1	0710-1008			●	●
17	BOLT; DIFF CAGE SETTING (A)	1-41329-085-0	08	1	1009-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	04	1	0710-1008			●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	04	1	1009-	●	●	●	●
21	GEAR; SIDE,DIFF	1-41561-116-0	04	1	0710-1008			●	●
21	GEAR; SIDE,DIFF	1-41561-116-0	04	1	1009-	●	●	●	●
22	SPIDER; DIFF PINION (A)	1-41521-025-0	01	1	0710-1008			●	●
22	SPIDER; DIFF PINION (A)	1-41521-025-0	01	1	1009-	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-054-0	02	1	0710-1008			●	●
22	SPIDER; DIFF PINION (B)	1-41521-054-0	02	1	1009-	●	●	●	●
24	GEAR; PINION,DIFF (A)	1-41211-238-0	04	1	0710-1008			●	●
24	GEAR; PINION,DIFF (A)	1-41211-238-0	04	1	1009-	●	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-035-0	08	1	0710-1008			●	●
24	GEAR; PINION,DIFF (B)	1-41551-035-0	08	1	1009-	●	●	●	●
25	WASHER; THRUST,PINION (B)	1-41552-037-0	08	1	0710-1008			●	●
25	WASHER; THRUST,PINION (B)	1-41552-037-0	08	1	1009-	●	●	●	●
25	WASHER; THRUST,PINION (A)	1-41552-041-0	04	1	0710-1008			●	●
25	WASHER; THRUST,PINION (A)	1-41552-041-0	04	1	1009-	●	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	0710-1008			●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1009-	●	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-130-0	01	1	0710-1008			●	●
37	NUT; DRIVING PINION (B)	1-41219-130-0	01	1	1009-	●	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	0710-1008			●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	1009-	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41219-129-0	01	1	0710-1008			●	●
38	WASHER; PL,DRIVING PINION (B)	1-41219-129-0	01	1	1009-	●	●	●	●
38	WASHER; PL,DRIVING PINION (C)	1-41349-058-0	01	1	0710-1008			●	●
38	WASHER; PL,DRIVING PINION (C)	1-41349-058-0	01	1	1009-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0710-1008			●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	1009-	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-098-0	01	1	0710-1008			●	●
43	CAGE; FINAL PINION (B)	1-41151-098-0	01	1	1009-	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	0710-1008			●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	1009-	●	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	0710-1008			●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	1009-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	0710-1008			●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	1009-	●	●	●	●
49	SHIM; FINAL PINION CAGE	1-41154-114-0	01	1	0710-1008			●	●
49	SHIM; FINAL PINION CAGE	1-41154-114-0	01	1	1009-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-126-0	01	1	0710-1008			●	●
55	CARRIER; DIFF (B)	1-41110-126-0	01	1	1009-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-060-0	01	1	0710-1008			●	●
55	CARRIER; DIFF (A)	1-41310-060-0	01	1	1009-	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	08	1	0710-1008			●	●
56	BOLT; BRG CAP	1-41119-066-0	08	1	1009-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/11	1-41210-749-0	01	1	1009-	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/11	1-41210-751-0	01	1	1009-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/12	1-41210-748-0	01	1	1009-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/12	1-41210-750-0	01	1	1009-		●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-648-0	01	1	0710-			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-655-0	01	1	0710-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/10	1-41210-649-0	01	1	0710-				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	1-41210-657-0	01	1	0710-				●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0710-1008			●	●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	1009-	●	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0710-1008			●	●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	1009-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-040-0	03	1	0710-1008			●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-040-0	03	1	1009-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-049-0	01	1	0710-1008			●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-049-0	01	1	1009-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-285-0	02	1	0710-			●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-284-0	02	1	1009-	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	24	1	0710-1008			●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	24	1	1009-	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	0710-1008			●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	1009-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	48	1	0710-1008			●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	48	1	1009-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-037-0	08	1	0710-1008			●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-037-0	08	1	1009-	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-184-0	01	1	0710-1008			●	●
100	SEAL; OIL,FINAL PINION	1-41349-184-0	01	1	1009-	●	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-413-0	01	1	0710-1008			●	●
126	COUPLING; DRIVING PINION (B)	1-37245-413-0	01	1	1009-	●	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	0710-1008			●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	1009-	●	●	●	●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-190-0	01	1	0710-1008			●	●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-190-0	01	1	1009-	●	●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-209-0	01	1	0710-1008			●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-209-0	01	1	1009-	●	●	●	●
185	COLLAR; SHIFT FORK	1-41379-004-0	02	1	0710-1008			●	●
185	COLLAR; SHIFT FORK	1-41379-004-0	02	1	1009-	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	08	1	0710-1008			●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	08	1	1009-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	1009-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	1009-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-033-0	01	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-033-0	01	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-124-0	02	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-124-0	02	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-128-0	01	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-128-0	01	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	1009-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	0710-1008			●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	1009-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-032-0	01	1	0710-1008			●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-032-0	01	1	1009-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41519-089-0	01	1	0710-1008			●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41519-089-0	01	1	1009-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-127-0	01	1	0710-1008			●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-127-0	01	1	1009-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41349-050-0	02	1	0710-1008			●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41349-050-0	02	1	1009-	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	02	1	0710-1008			●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	02	1	1009-	●	●	●	●
292	SPRING; PISTON	1-48265-008-0	02	1	0710-1008			●	●
292	SPRING; PISTON	1-48265-008-0	02	1	1009-	●	●	●	●
360	FORK; SHIFT (A)	1-41371-008-0	01	1	0710-1008			●	●
360	FORK; SHIFT (A)	1-41371-008-0	01	1	1009-	●	●	●	●
360	FORK; SHIFT (C)	1-41371-009-0	01	1	0710-1008			●	●
360	FORK; SHIFT (C)	1-41371-009-0	01	1	1009-	●	●	●	●
360	FORK; SHIFT (B)	1-41519-087-0	01	1	0710-1008			●	●
360	FORK; SHIFT (B)	1-41519-087-0	01	1	1009-	●	●	●	●
379	PIN; SPLIT (A)	1-41129-012-0	01	1	0710-1008			●	●
379	PIN; SPLIT (A)	1-41129-012-0	01	1	1009-	●	●	●	●
379	PIN; SPLIT (B)	1-41129-013-0	01	1	0710-1008			●	●
379	PIN; SPLIT (B)	1-41129-013-0	01	1	1009-	●	●	●	●
379	PIN; SPLIT (C)	1-41129-021-0	02	1	0710-1008			●	●
379	PIN; SPLIT (C)	1-41129-021-0	02	1	1009-	●	●	●	●
380	GASKET; PISTON	1-48269-075-0	02	1	0710-1008			●	●
380	GASKET; PISTON	1-48269-075-0	02	1	1009-	●	●	●	●
389	WASHER; FINAL PINION CAGE (A)	1-41329-007-0	05	1	0710-1008			●	●
389	WASHER; FINAL PINION CAGE (A)	1-41329-007-0	05	1	1009-	●	●	●	●
389	WASHER; FINAL PINION CAGE (B)	1-41329-084-0	08	1	0710-1008			●	●
389	WASHER; FINAL PINION CAGE (B)	1-41329-084-0	08	1	1009-	●	●	●	●
390	BOLT; CAGING	1-48269-071-0	02	1	0710-1008			●	●
390	BOLT; CAGING	1-48269-071-0	02	1	1009-	●	●	●	●
391	CYLINDER; SHIFT	1-48269-070-0	02	1	0710-1008			●	●
391	CYLINDER; SHIFT	1-48269-070-0	02	1	1009-	●	●	●	●
470	SHIFT KIT	1-48269-258-0	02	1	0710-1008			●	●
470	SHIFT KIT	1-48269-258-0	02	1	1009-	●	●	●	●

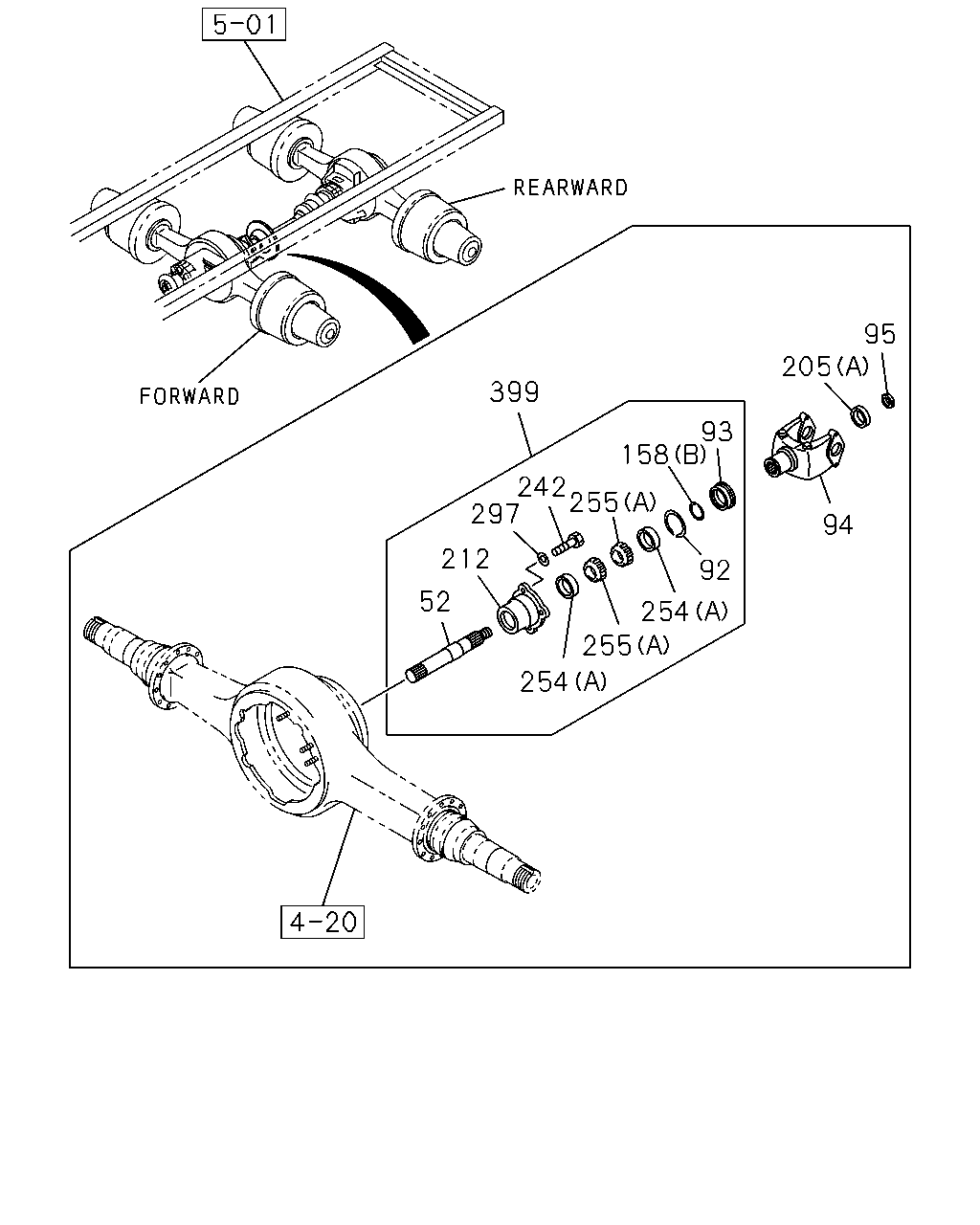

95 205 399 93 158 242 255 297 94 212 92 52 254 255 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	SHAFT; OUTPUT	1-41343-031-0	01	1	0710-1008			●	●
52	SHAFT; OUTPUT	1-41343-031-0	01	1	1009-	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT	1-41349-161-0	01	1	0710-1008			●	●
92	RING; SNAP,BRG,OUTPUT SHAFT	1-41349-161-0	01	1	1009-	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-41349-191-0	01	1	0710-1008			●	●
93	SEAL; OIL,OUTPUT SHAFT	1-41349-191-0	01	1	1009-	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-427-0	01	1	0710-1008			●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-427-0	01	1	1009-	●	●	●	●
95	NUT; OUTPUT SHAFT	1-41349-164-0	01	1	0710-1008			●	●
95	NUT; OUTPUT SHAFT	1-41349-164-0	01	1	1009-	●	●	●	●
158	RING; SNAP (B)	1-41349-162-0	01	1	0710-1008			●	●
158	RING; SNAP (B)	1-41349-162-0	01	1	1009-	●	●	●	●
158	RING; SNAP (A)	1-41519-085-0	01	1	0710-1008			●	●
158	RING; SNAP (A)	1-41519-085-0	01	1	1009-	●	●	●	●
205	WASHER; PL (A)	1-41219-040-0	01	1	0710-1008			●	●
205	WASHER; PL (A)	1-41219-040-0	01	1	1009-	●	●	●	●
205	WASHER; PL (B)	1-41329-016-0	06	1	0710-1008			●	●
205	WASHER; PL (B)	1-41329-016-0	06	1	1009-	●	●	●	●
212	COVER	1-41519-049-0	01	1	0710-1008			●	●
212	COVER	1-41519-049-0	01	1	1009-	●	●	●	●
242	BOLT; COVER	1-42119-226-0	04	1	0710-1008			●	●
242	BOLT; COVER	1-42119-226-0	04	1	1009-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	1009-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	1009-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	1009-	●	●	●	●
297	WASHER; COVER	1-41329-037-0	04	1	0710-1008			●	●
297	WASHER; COVER	1-41329-037-0	04	1	1009-	●	●	●	●
399	SHAFT ASM; OUTPUT	1-41343-030-0	01	1	0710-1008			●	●
399	SHAFT ASM; OUTPUT	1-41343-030-0	01	1	1009-	●	●	●	●

1 379 85 86 55 56 245 379 25 69 254 255 364 446 428 24 22 71 56 245 20 21 21 20 86 17 60 38 37 254 69 43 389 45 84 255 97 249 232 265 266 29 59 31 59 267 265 384 383 266 265 105 411 158 360 185 292 361 225 365 401 265 167 287 380 391 390 16 366 205 29 470 402 400 360 267 2 388 38 403 8 25 24 86 17 11 13 12 37 2 162 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (A) 41/11	1-41003-529-0	01	1	1009-	●
1	DRIVE ASM; FINAL,RR (B) 41/11	1-41003-531-0	01	1	1009-	●
1	DRIVE ASM; FINAL,RR (A) 41/12	1-41003-528-0	01	1	1009-		●
1	DRIVE ASM; FINAL,RR (B) 41/12	1-41003-530-0	01	1	1009-		●
1	DRIVE ASM; FINAL,RR (B) 43/11	1-41002-741-0	01	1	0710-			●
1	DRIVE ASM; FINAL,RR (A) 43/11	1-41003-360-0	01	1	0710-			●
1	DRIVE ASM; FINAL,RR (B) 43/10	1-41002-742-0	01	1	0710-				●
1	DRIVE ASM; FINAL,RR (A) 43/10	1-41003-362-0	01	1	0710-				●
2	DIFF ASM; INTER,FINAL	1-41510-306-0	01	1	0710-1008			●	●
2	DIFF ASM; INTER,FINAL	1-41510-306-0	01	1	1009-	●	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	0710-1008			●	●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	1009-	●	●	●	●
11	COVER; INTER AXLE DIFF	1-41321-028-0	01	1	0710-1008			●	●
11	COVER; INTER AXLE DIFF	1-41321-028-0	01	1	1009-	●	●	●	●
12	BOLT; COVER TO CASE	1-41159-058-0	07	1	0710-1008			●	●
12	BOLT; COVER TO CASE	1-41159-058-0	07	1	1009-	●	●	●	●
13	WASHER; COVER TO CASE	1-41159-009-0	07	1	0710-1008			●	●
13	WASHER; COVER TO CASE	1-41159-009-0	07	1	1009-	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-031-0	01	1	0710-1008			●	●
16	SHAFT ASM; INPUT	1-41341-031-0	01	1	1009-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B)	1-41519-095-0	24	1	0710-1008			●	●
17	BOLT; DIFF CAGE SETTING (B)	1-41519-095-0	24	1	1009-	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A)	1-41329-085-0	08	1	0710-1008			●	●
17	BOLT; DIFF CAGE SETTING (A)	1-41329-085-0	08	1	1009-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	04	1	0710-1008			●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	04	1	1009-	●	●	●	●
21	GEAR; SIDE,DIFF	1-41561-116-0	04	1	0710-1008			●	●
21	GEAR; SIDE,DIFF	1-41561-116-0	04	1	1009-	●	●	●	●
22	SPIDER; DIFF PINION (A)	1-41521-025-0	01	1	0710-1008			●	●
22	SPIDER; DIFF PINION (A)	1-41521-025-0	01	1	1009-	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-054-0	02	1	0710-1008			●	●
22	SPIDER; DIFF PINION (B)	1-41521-054-0	02	1	1009-	●	●	●	●
24	GEAR; PINION,DIFF (A)	1-41211-238-0	04	1	0710-1008			●	●
24	GEAR; PINION,DIFF (A)	1-41211-238-0	04	1	1009-	●	●	●	●
24	GEAR; PINION,DIFF (B)	1-41551-035-0	08	1	0710-1008			●	●
24	GEAR; PINION,DIFF (B)	1-41551-035-0	08	1	1009-	●	●	●	●
25	WASHER; THRUST,PINION (B)	1-41552-037-0	08	1	0710-1008			●	●
25	WASHER; THRUST,PINION (B)	1-41552-037-0	08	1	1009-	●	●	●	●
25	WASHER; THRUST,PINION (A)	1-41552-041-0	04	1	0710-1008			●	●
25	WASHER; THRUST,PINION (A)	1-41552-041-0	04	1	1009-	●	●	●	●
29	SHIM; BRG RET (A) T=0.076	1-41154-096-0	01	1	0710-1008			●	●
29	SHIM; BRG RET (A) T=0.076	1-41154-096-0	01	1	1009-	●	●	●	●
29	SHIM; BRG RET (A) T=0.127	1-41154-097-0	01	1	0710-1008			●	●
29	SHIM; BRG RET (A) T=0.127	1-41154-097-0	01	1	1009-	●	●	●	●
29	SHIM; BRG RET (A) T=0.254	1-41154-098-0	01	1	0710-1008			●	●
29	SHIM; BRG RET (A) T=0.254	1-41154-098-0	01	1	1009-	●	●	●	●
29	SHIM; BRG RET (B) T=0.076	1-41219-053-0	01	1	0710-1008			●	●
29	SHIM; BRG RET (B) T=0.076	1-41219-053-0	01	1	1009-	●	●	●	●
29	SHIM; BRG RET (B) T=0.127	1-41219-054-0	01	1	0710-1008			●	●
29	SHIM; BRG RET (B) T=0.127	1-41219-054-0	01	1	1009-	●	●	●	●
29	SHIM; BRG RET (B) T=0.254	1-41219-055-0	01	1	0710-1008			●	●
29	SHIM; BRG RET (B) T=0.254	1-41219-055-0	01	1	1009-	●	●	●	●
31	GEAR; DRIVEN,HELICAL	1-41251-426-0	01	1	0710-1008			●	●
31	GEAR; DRIVEN,HELICAL	1-41251-426-0	01	1	1009-	●	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	0710-1008			●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1009-	●	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-130-0	01	1	0710-1008			●	●
37	NUT; DRIVING PINION (B)	1-41219-130-0	01	1	1009-	●	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	0710-1008			●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	1009-	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41219-129-0	01	1	0710-1008			●	●
38	WASHER; PL,DRIVING PINION (B)	1-41219-129-0	01	1	1009-	●	●	●	●
38	WASHER; PL,DRIVING PINION (C)	1-41349-058-0	01	1	0710-1008			●	●
38	WASHER; PL,DRIVING PINION (C)	1-41349-058-0	01	1	1009-	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-098-0	01	1	0710-1008			●	●
43	CAGE; FINAL PINION (B)	1-41151-098-0	01	1	1009-	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	0710-1008			●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	1009-	●	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	0710-1008			●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	1009-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	0710-1008			●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	1009-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-126-0	01	1	0710-1008			●	●
55	CARRIER; DIFF (B)	1-41110-126-0	01	1	1009-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-060-0	01	1	0710-1008			●	●
55	CARRIER; DIFF (A)	1-41310-060-0	01	1	1009-	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	08	1	0710-1008			●	●
56	BOLT; BRG CAP	1-41119-066-0	08	1	1009-	●	●	●	●
59	SPACER; FINAL PINION (A)	1-41219-126-0	01	1	0710-1008			●	●
59	SPACER; FINAL PINION (A)	1-41219-126-0	01	1	1009-	●	●	●	●
59	SPACER; FINAL PINION (B)	1-41229-362-0	01	1	0710-1008			●	●
59	SPACER; FINAL PINION (B)	1-41229-362-0	01	1	1009-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/11	1-41210-749-0	01	1	1009-	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/11	1-41210-751-0	01	1	1009-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/12	1-41210-748-0	01	1	1009-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/12	1-41210-750-0	01	1	1009-		●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-648-0	01	1	0710-			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-655-0	01	1	0710-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/10	1-41210-649-0	01	1	0710-				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	1-41210-657-0	01	1	0710-				●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-040-0	03	1	0710-1008			●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-040-0	03	1	1009-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-049-0	01	1	0710-1008			●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-049-0	01	1	1009-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-285-0	02	1	0710-			●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-284-0	02	1	1009-	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	24	1	0710-1008			●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	24	1	1009-	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	0710-1008			●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	1009-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	48	1	0710-1008			●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	48	1	1009-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-037-0	08	1	0710-1008			●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-037-0	08	1	1009-	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-41329-067-0	01	1	0710-1008			●	●
97	SHIFT UNIT; DIFF LOCK	1-41329-067-0	01	1	1009-	●	●	●	●
105	GEAR; SIDE	1-41561-122-0	01	1	0710-1008			●	●
105	GEAR; SIDE	1-41561-122-0	01	1	1009-	●	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-413-0	01	1	0710-1008			●	●
126	COUPLING; DRIVING PINION (B)	1-37245-413-0	01	1	1009-	●	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	0710-1008			●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	1009-	●	●	●	●
158	RING; SNAP (B)	1-41349-162-0	01	1	0710-1008			●	●
158	RING; SNAP (B)	1-41349-162-0	01	1	1009-	●	●	●	●
158	RING; SNAP (A)	1-41519-085-0	01	1	0710-1008			●	●
158	RING; SNAP (A)	1-41519-085-0	01	1	1009-	●	●	●	●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-190-0	01	1	0710-1008			●	●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-190-0	01	1	1009-	●	●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-209-0	01	1	0710-1008			●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-209-0	01	1	1009-	●	●	●	●
167	GASKET; FINAL PINION CAGE	1-41349-155-0	01	1	0710-1008			●	●
167	GASKET; FINAL PINION CAGE	1-41349-155-0	01	1	1009-	●	●	●	●
185	COLLAR; SHIFT FORK	1-41379-004-0	02	1	0710-1008			●	●
185	COLLAR; SHIFT FORK	1-41379-004-0	02	1	1009-	●	●	●	●
205	WASHER; PL (A)	1-41219-040-0	01	1	0710-1008			●	●
205	WASHER; PL (A)	1-41219-040-0	01	1	1009-	●	●	●	●
205	WASHER; PL (B)	1-41329-016-0	06	1	0710-1008			●	●
205	WASHER; PL (B)	1-41329-016-0	06	1	1009-	●	●	●	●
225	WASHER; THRUST	1-41349-160-0	01	1	0710-1008			●	●
225	WASHER; THRUST	1-41349-160-0	01	1	1009-	●	●	●	●
232	SPRING; PISTON	1-41329-086-0	01	1	0710-1008			●	●
232	SPRING; PISTON	1-41329-086-0	01	1	1009-	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	08	1	0710-1008			●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	08	1	1009-	●	●	●	●
249	SHAFT; SHIFT FORK	1-41329-066-0	01	1	0710-1008			●	●
249	SHAFT; SHIFT FORK	1-41329-066-0	01	1	1009-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (B)	1-41229-131-0	02	1	1009-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (A)	1-41349-033-0	02	1	1009-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	0710-1008			●	●
254	CUP; DIFF BRG (C)	1-41519-083-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (A)	1-41349-034-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (B)	1-41519-032-0	02	1	1009-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	0710-1008			●	●
255	CONE; DIFF BRG (C)	1-41519-084-0	02	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-033-0	01	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-033-0	01	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-124-0	02	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-124-0	02	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-128-0	01	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-128-0	01	1	1009-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	0710-1008			●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	1009-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	0710-1008			●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	1009-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-032-0	01	1	0710-1008			●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-032-0	01	1	1009-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41519-089-0	01	1	0710-1008			●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41519-089-0	01	1	1009-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-127-0	01	1	0710-1008			●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-127-0	01	1	1009-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41349-050-0	02	1	0710-1008			●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41349-050-0	02	1	1009-	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	02	1	0710-1008			●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	02	1	1009-	●	●	●	●
292	SPRING; PISTON	1-48265-008-0	02	1	0710-1008			●	●
292	SPRING; PISTON	1-48265-008-0	02	1	1009-	●	●	●	●
360	FORK; SHIFT (A)	1-41371-008-0	01	1	0710-1008			●	●
360	FORK; SHIFT (A)	1-41371-008-0	01	1	1009-	●	●	●	●
360	FORK; SHIFT (C)	1-41371-009-0	01	1	0710-1008			●	●
360	FORK; SHIFT (C)	1-41371-009-0	01	1	1009-	●	●	●	●
360	FORK; SHIFT (B)	1-41519-087-0	01	1	0710-1008			●	●
360	FORK; SHIFT (B)	1-41519-087-0	01	1	1009-	●	●	●	●
361	GEAR; DRIVE	1-41351-040-0	01	1	0710-1008			●	●
361	GEAR; DRIVE	1-41351-040-0	01	1	1009-	●	●	●	●
364	FILTER; OIL PUMP	1-41383-004-0	01	1	0710-1008			●	●
364	FILTER; OIL PUMP	1-41383-004-0	01	1	1009-	●	●	●	●
365	PUMP ASM; OIL	1-41381-010-0	01	1	0710-1008			●	●
365	PUMP ASM; OIL	1-41381-010-0	01	1	1009-	●	●	●	●
366	BOLT; PUMP	1-41389-018-0	06	1	0710-1008			●	●
366	BOLT; PUMP	1-41389-018-0	06	1	1009-	●	●	●	●
379	PIN; SPLIT (A)	1-41129-012-0	01	1	0710-1008			●	●
379	PIN; SPLIT (A)	1-41129-012-0	01	1	1009-	●	●	●	●
379	PIN; SPLIT (B)	1-41129-013-0	01	1	0710-1008			●	●
379	PIN; SPLIT (B)	1-41129-013-0	01	1	1009-	●	●	●	●
379	PIN; SPLIT (C)	1-41129-021-0	02	1	0710-1008			●	●
379	PIN; SPLIT (C)	1-41129-021-0	02	1	1009-	●	●	●	●
380	GASKET; PISTON	1-48269-075-0	02	1	0710-1008			●	●
380	GASKET; PISTON	1-48269-075-0	02	1	1009-	●	●	●	●
383	BOLT; SET,SHIFT UNIT	1-41329-064-0	01	1	0710-1008			●	●
383	BOLT; SET,SHIFT UNIT	1-41329-064-0	01	1	1009-	●	●	●	●
384	NUT; LK,SHIFT UNIT	1-41329-065-0	01	1	0710-1008			●	●
384	NUT; LK,SHIFT UNIT	1-41329-065-0	01	1	1009-	●	●	●	●
388	BOLT; COUPLING	1-37249-204-0	04	1	0710-1008			●	●
388	BOLT; COUPLING	1-37249-204-0	04	1	1009-	●	●	●	●
389	WASHER; FINAL PINION CAGE (A)	1-41329-007-0	05	1	0710-1008			●	●
389	WASHER; FINAL PINION CAGE (A)	1-41329-007-0	05	1	1009-	●	●	●	●
389	WASHER; FINAL PINION CAGE (B)	1-41329-084-0	08	1	0710-1008			●	●
389	WASHER; FINAL PINION CAGE (B)	1-41329-084-0	08	1	1009-	●	●	●	●
390	BOLT; CAGING	1-48269-071-0	02	1	0710-1008			●	●
390	BOLT; CAGING	1-48269-071-0	02	1	1009-	●	●	●	●
391	CYLINDER; SHIFT	1-48269-070-0	02	1	0710-1008			●	●
391	CYLINDER; SHIFT	1-48269-070-0	02	1	1009-	●	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	0710-1008			●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	1009-	●	●	●	●
401	GASKET; OIL PUMP	1-41349-155-0	01	1	0710-1008			●	●
401	GASKET; OIL PUMP	1-41349-155-0	01	1	1009-	●	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	0710-1008			●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	1009-	●	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	0710-1008			●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	1009-	●	●	●	●
411	SLEEVE; CLU	1-41519-090-0	01	1	0710-1008			●	●
411	SLEEVE; CLU	1-41519-090-0	01	1	1009-	●	●	●	●
428	ADAPTER; OIL FILTER	1-41389-020-0	01	1	0710-1008			●	●
428	ADAPTER; OIL FILTER	1-41389-020-0	01	1	1009-	●	●	●	●
446	ADAPTER ASM; OIL RETURN	1-41389-021-0	01	1	0710-1008			●	●
446	ADAPTER ASM; OIL RETURN	1-41389-021-0	01	1	1009-	●	●	●	●
470	SHIFT KIT	1-48269-258-0	02	1	0710-1008			●	●
470	SHIFT KIT	1-48269-258-0	02	1	1009-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
