◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#14169) — 27 parça

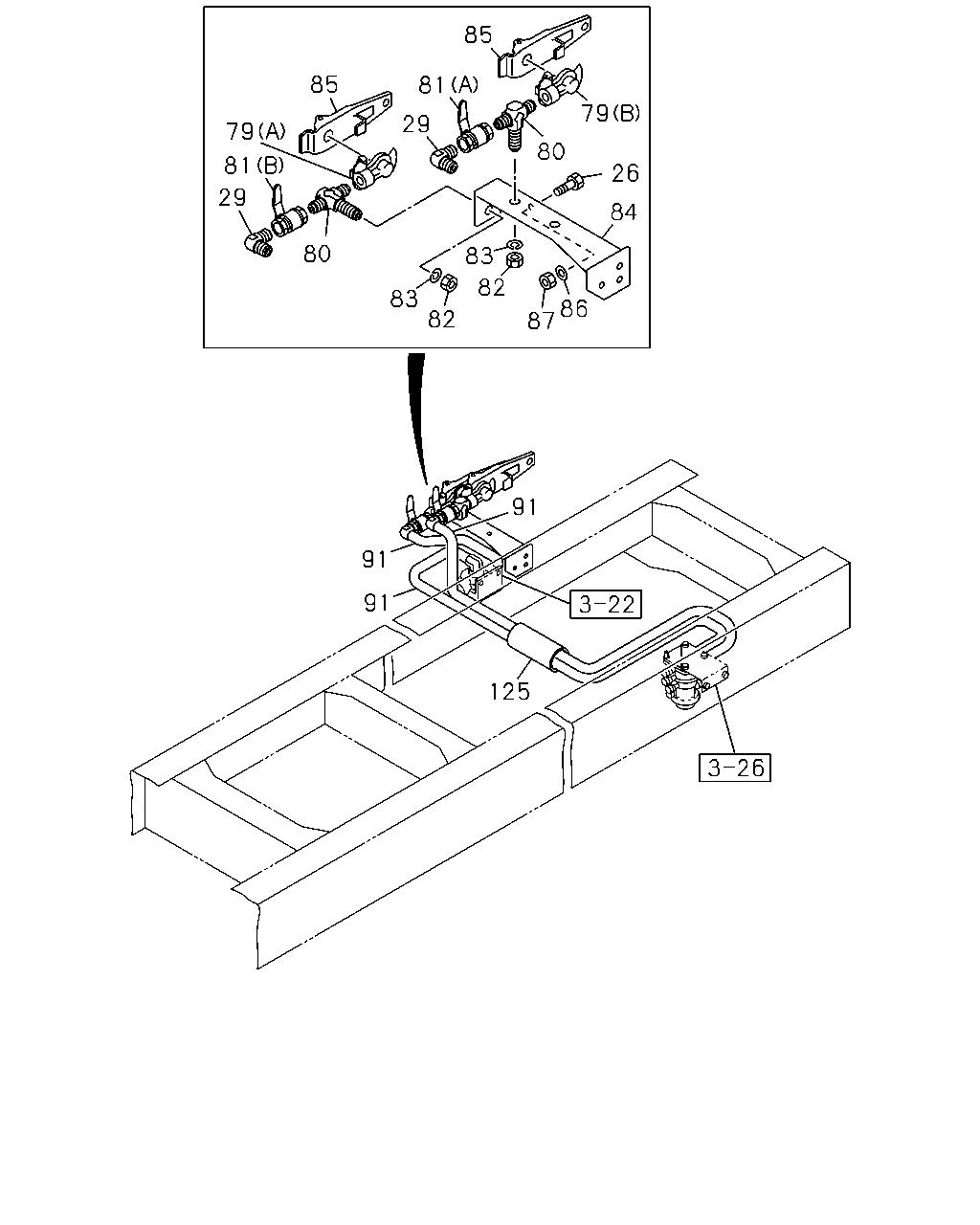

çizim 142141
85 85 81 79 29 81 79 80 26 29 83 84 80 86 87 82 83 82 91 91 91 125
BalonParca AdiParca NoAdetTipApplied Date A B
26 BOLT; CHAIN
M10X33 		9-09808-590-0 02 1 0710- ● ●
29 CONNECTOR; COCK
DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0710- ● ●
79 COUPLING; AIR,TRAILER
(A) BLUE 		1-47465-151-0 01 1 0710- ● ●
79 COUPLING; AIR,TRAILER
(B) RED 		1-47465-152-0 01 1 0710- ● ●
80 NIPPLE; AIR COUPLING 1-09656-377-1 02 1 0710- ● ●
81 COCK; AIR COUPLING
(A) RED 		1-09680-091-0 01 1 0710- ● ●
81 COCK; AIR COUPLING
(B) BLUE 		1-09680-092-0 01 1 0710- ● ●
82 NUT; LK,CONNECTOR
M16 		0-91111-516-0 02 1 0710- ● ●
83 WASHER; LK,CONNECTOR
ID=16.2 		0-91510-516-0 02 1 0710- ● ●
84 BRACKET; COUPLER 1-47465-883-1 01 1 0710- ● ●
85 CHAIN; AIR HOSE 1-47469-010-0 02 1 0710- ● ●
86 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 02 1 0710- ● ●
87 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ●
çizim 142147

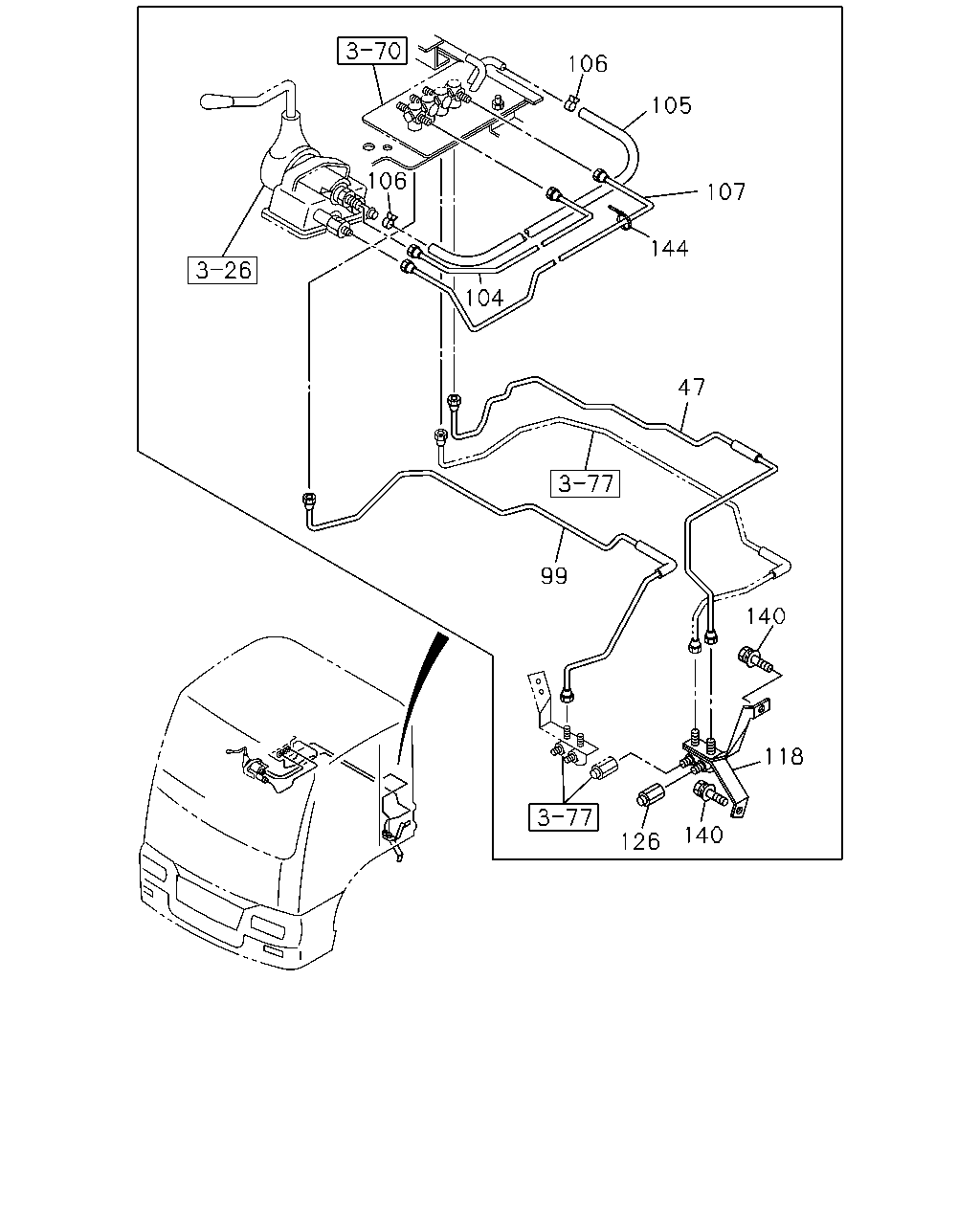

106 105 106 107 144 104 47 99 140 118 140 126
BalonParca AdiParca NoAdetTipApplied Date A B
47 PIPE; AIR,UNION TO UNION 1-49121-763-2 01 1 0710- ● ●
99 PIPE; AIR,JOINT TO JOINT 1-49122-058-1 01 1 0710- ● ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 0710- ● ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0710- ● ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0710- ● ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 0710- ● ●
118 JOINT; AIR PIPE 1-47470-608-1 01 1 0710- ● ●
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0710- ● ●
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
144 CLIP; BAND
L=140 		5-09707-031-1 01 1 0710- ● ●
