◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#14168) — 482 parça

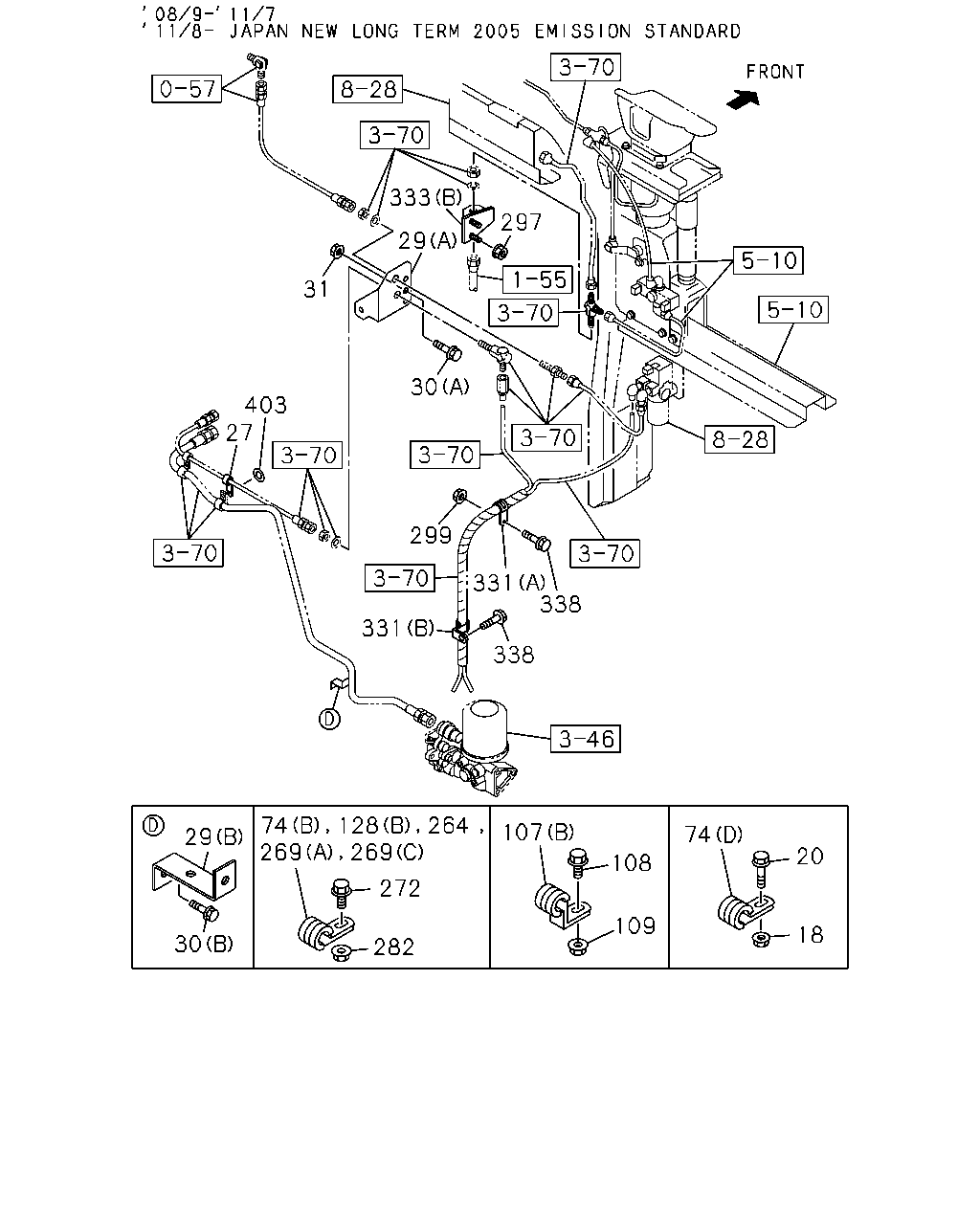

çizim 141936
333 297 29 31 30 403 27 299 331 331 338 338 29 30 282 272 269 74 128 269 264 107 108 109 18 20 74
BalonParca AdiParca NoAdetTipApplied Date A B
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1110 ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-1107 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1108-1211 ● ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1108-1211 ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1212- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0710-1211 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1212- ● ●
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 0710- ● ●
29 BRACKET; CLIP,AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		8-98169-621-1 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98095-833-0 01 1 0710-1107 ● ●
29 BRACKET; CLIP,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 0710- ● ●
30 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0803 ● ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 0804- ●
31 NUT; CLIP BRKT
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ● ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 0804- ●
74 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 17 1 0812- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 20 1 0710- ●
74 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0710- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710- ● ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 22 1 0812-1001 ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 25 1 1002- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 21 1 0710-1001 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 24 1 1002- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0710-1001 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 1002- ●
128 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) L=350 		1-09707-183-0 01 1 0710- ●
128 CLIP; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 01 1 0710- ●
128 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
272 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
297 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 08 1 0812- ●
297 NUT; BRKT
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 10 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1110 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-1107 ● ●
299 NUT; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1108- ●
331 CLIP; NYLON TUBE
(A) ID=19 L=20 		0-95235-836-0 01 1 0809-1107 ● ●
331 CLIP; NYLON TUBE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=19 L=20 		0-95235-836-0 01 1 1108- ●
331 CLIP; NYLON TUBE
(A) ID=19 L=20 		0-95235-836-0 01 1 1108- ●
331 CLIP; NYLON TUBE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 0809-1107 ● ●
331 CLIP; NYLON TUBE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1108- ●
331 CLIP; NYLON TUBE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		1-47477-045-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-1107 ● ●
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802- ● ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0809-1107 ● ●
338 BOLT; PIPE CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X30 FLANGE 		0-28650-830-0 02 1 1108- ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1108- ●
403 WASHER; PL
SMOOTHER-G(C1W) D=12 		0-91614-612-0 01 1 1212- ●
403 WASHER; PL
D=12 		0-91614-612-0 01 1 1212- ●

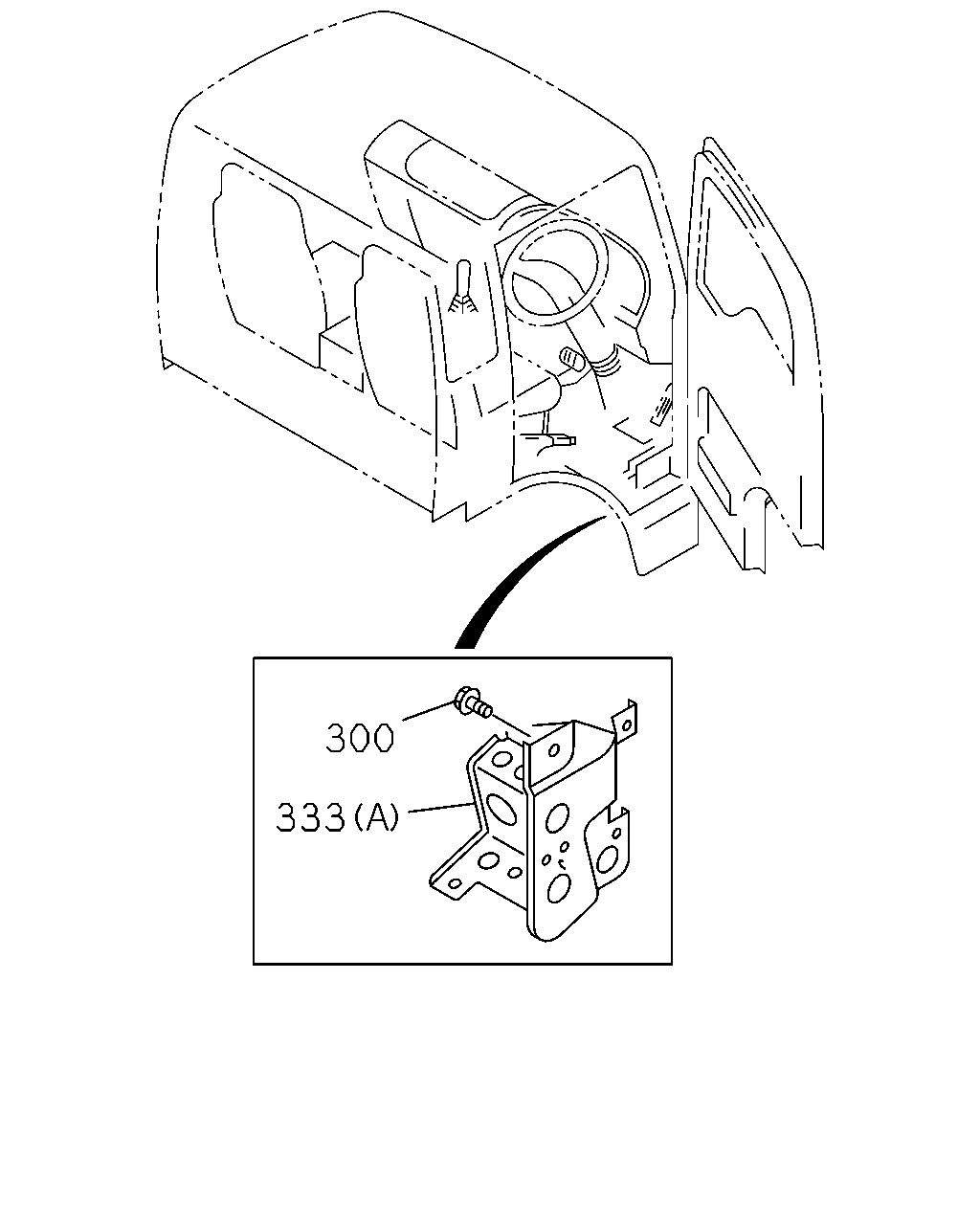

çizim 142122
300 333
BalonParca AdiParca NoAdetTipApplied Date A B
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904 ● ●
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
333 BRACKET; BRK AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		1-47477-045-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-1107 ● ●
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802- ● ●

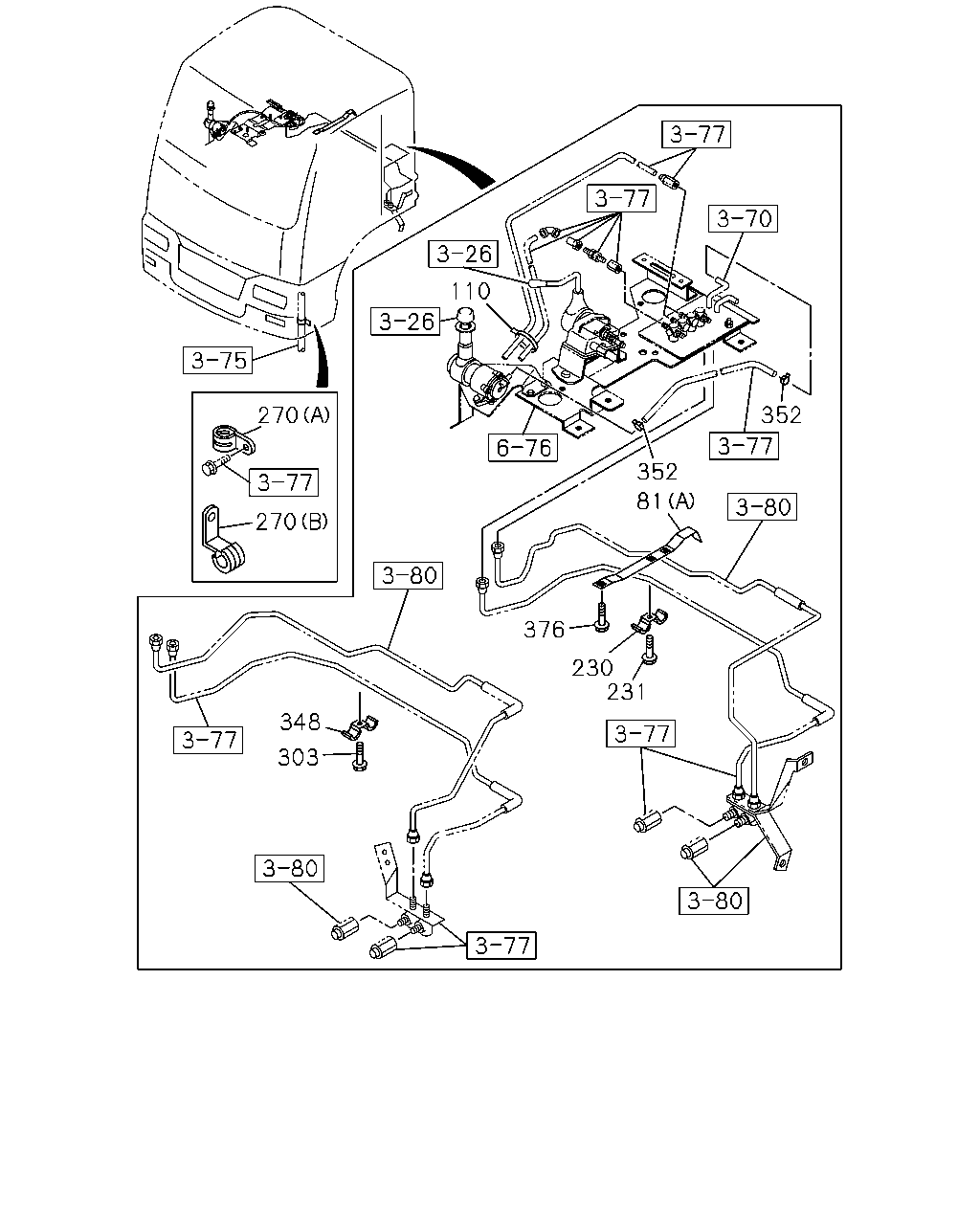

çizim 142134
110 352 270 352 81 376 230 231 348 303 270
BalonParca AdiParca NoAdetTipApplied Date A B
81 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (C) L=100 H=30 		1-47477-645-2 01 1 0812- ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710- ● ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-0908 ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0909- ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-0810 ● ●
81 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (I) 		1-47479-381-2 01 1 0811-0908 ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0811-0908 ●
81 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (C) L=100 H=30 		1-47477-645-2 02 1 0909- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0909- ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710- ● ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710- ● ●
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0710- ● ●
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0710- ● ●
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 01 1 0710-0910 ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0911- ● ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0710- ● ●
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0710- ● ●
376 BOLT; BRKT
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●

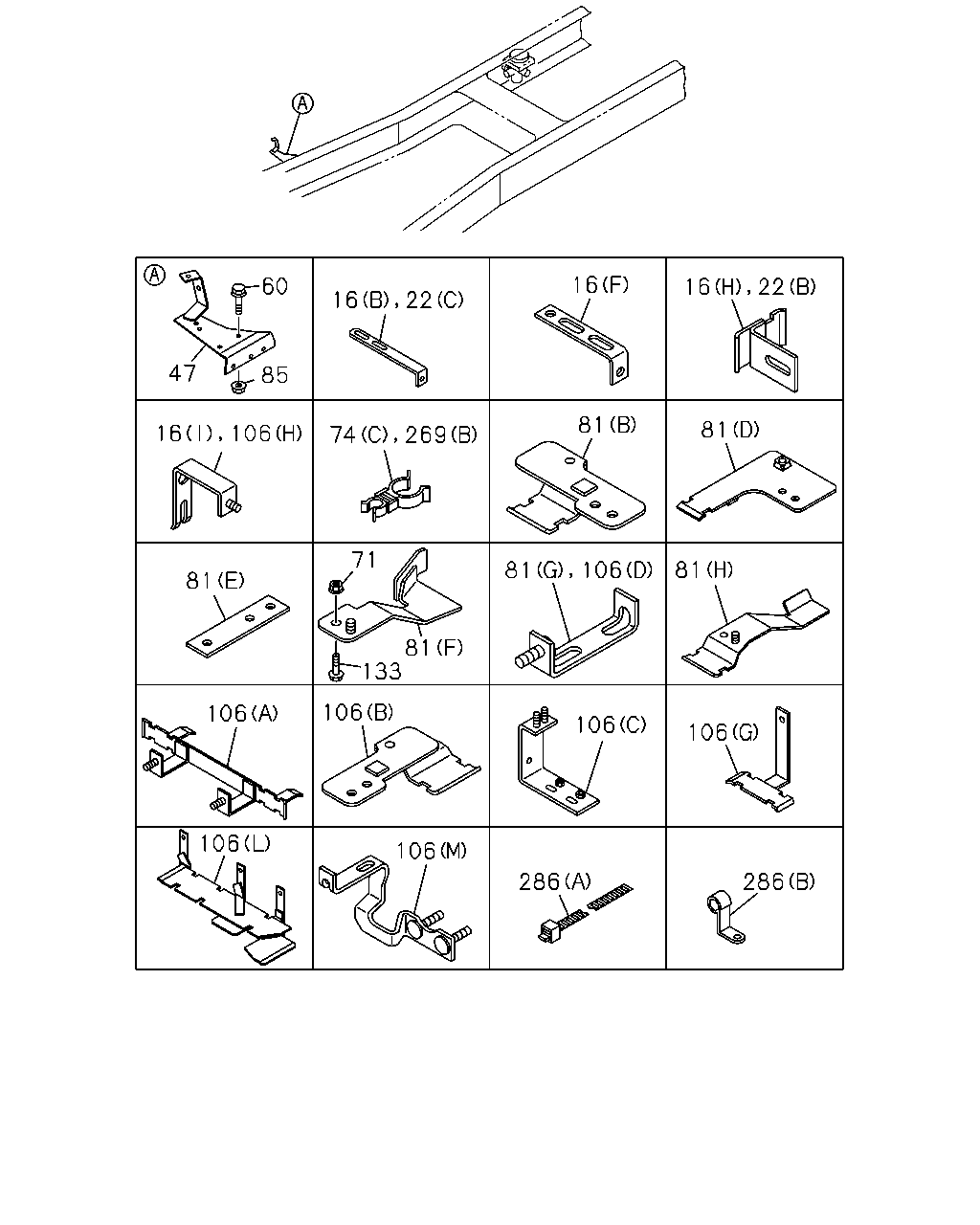

çizim 142138
60 47 16 106 16 74 269 16 81 81 16 22 81 106 106 106 106 81 133 71 81 106 106 106 286 286 81 85 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
WHEEL BASE 4500MM(45W) (I) 		1-47479-381-2 01 1 1007- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5100MM(51W) (A) L=100 H=30 		1-47477-645-2 10 1 0710- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5100MM(51W) (H) 		1-47479-693-0 01 1 0710-0811 ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 01 1 0812- ●
16 BRACKET; PIPE CLIP
(G) 		8-98075-300-1 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0710-0811 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4500MM(45W) (A) L=100 H=30 		1-47477-645-2 07 1 0812- ●
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0812- ●
16 BRACKET; PIPE CLIP
(D) 		1-47478-588-0 01 1 0710-1110 ● ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-763-0 01 1 1111-1211 ● ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-967-0 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-249-0 01 1 0710-1110 ● ●
16 BRACKET; PIPE CLIP
(C) W/PROJECTION WELD NUT 		8-98199-937-0 01 1 1111-1211 ● ●
16 BRACKET; PIPE CLIP
(C) W/PROJECTION WELD NUT 		8-98212-968-0 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-598-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 0710- ●
22 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (I) L=50 		1-47475-299-2 01 1 1108- ●
22 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (E) L=100 H=30 		1-47477-645-2 04 1 0710-0811 ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0812- ●
22 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (A) 		1-47479-381-2 02 1 0710- ●
22 BRACKET; CLIP
(E) L=150 H=30 		1-47477-629-2 01 1 0710- ● ●
22 BRACKET; CLIP
(H) 		8-98075-301-1 02 1 0710- ● ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 06 1 0710- ●
22 BRACKET; CLIP
(D) 		1-47478-588-0 01 1 0710-1110 ● ●
22 BRACKET; CLIP
(C) WO/PROJECTION WELD NUT 		8-98199-761-0 01 1 1111-1211 ● ●
22 BRACKET; CLIP
(J) 		8-98212-967-0 01 1 1212- ● ●
22 BRACKET; CLIP
(F) 		1-47478-589-0 01 1 0710-1110 ● ●
22 BRACKET; CLIP
(J) 		8-98199-763-0 01 1 1111-1211 ● ●
22 BRACKET; CLIP
(C) W/PROJECTION WELD NUT 		8-98212-968-0 01 1 1212- ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0710- ●
22 BRACKET; CLIP
(G) L=95 		1-82699-085-0 01 1 0710- ● ●
47 BRACKET; PIPE CLIP 1-47471-389-0 01 1 0710- ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
71 NUT; BRKT
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 06 1 0909- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0909- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0710-0908 ● ●
71 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 05 1 0909- ●
74 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 17 1 0812- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 20 1 0710- ●
74 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0710- ●
81 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (C) L=100 H=30 		1-47477-645-2 01 1 0812- ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710- ● ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-0908 ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0909- ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-0810 ● ●
81 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (I) 		1-47479-381-2 01 1 0811-0908 ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0811-0908 ●
81 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (C) L=100 H=30 		1-47477-645-2 02 1 0909- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0909- ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710- ● ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710- ● ●
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4500MM(45W) (L) 		8-98134-453-0 01 1 0812- ●
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 0710-1504 ● ●
106 BRACKET; TUBE CLIP
(M) 		8-98302-600-0 01 1 1505- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47477-514-3 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 02 1 0710- ● ●
106 BRACKET; TUBE CLIP
(A) 		1-47479-553-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-870-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 0710-0810 ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (K) 		8-97615-493-0 01 1 0811- ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 0710-1412 ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501- ● ●
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0812- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-0810 ● ●
133 BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 03 1 0811- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-0908 ● ●
133 BOLT; BRKT
WHEEL BASE 5100MM(51W) M8X30 FLANGE 		0-28650-830-0 04 1 0909- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0909- ●
133 BOLT; BRKT
WHEEL BASE 5100MM(51W) M8X30 FLANGE 		0-28650-830-0 08 1 0710-0811 ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X30 FLANGE 		0-28650-830-0 05 1 0812-0908 ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X30 FLANGE 		0-28650-830-0 07 1 0909- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1110 ● ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (A) L=250 		1-09707-126-0 02 1 0710- ●
286 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=18 L=25 H=50 		1-09701-096-0 01 1 0710- ●

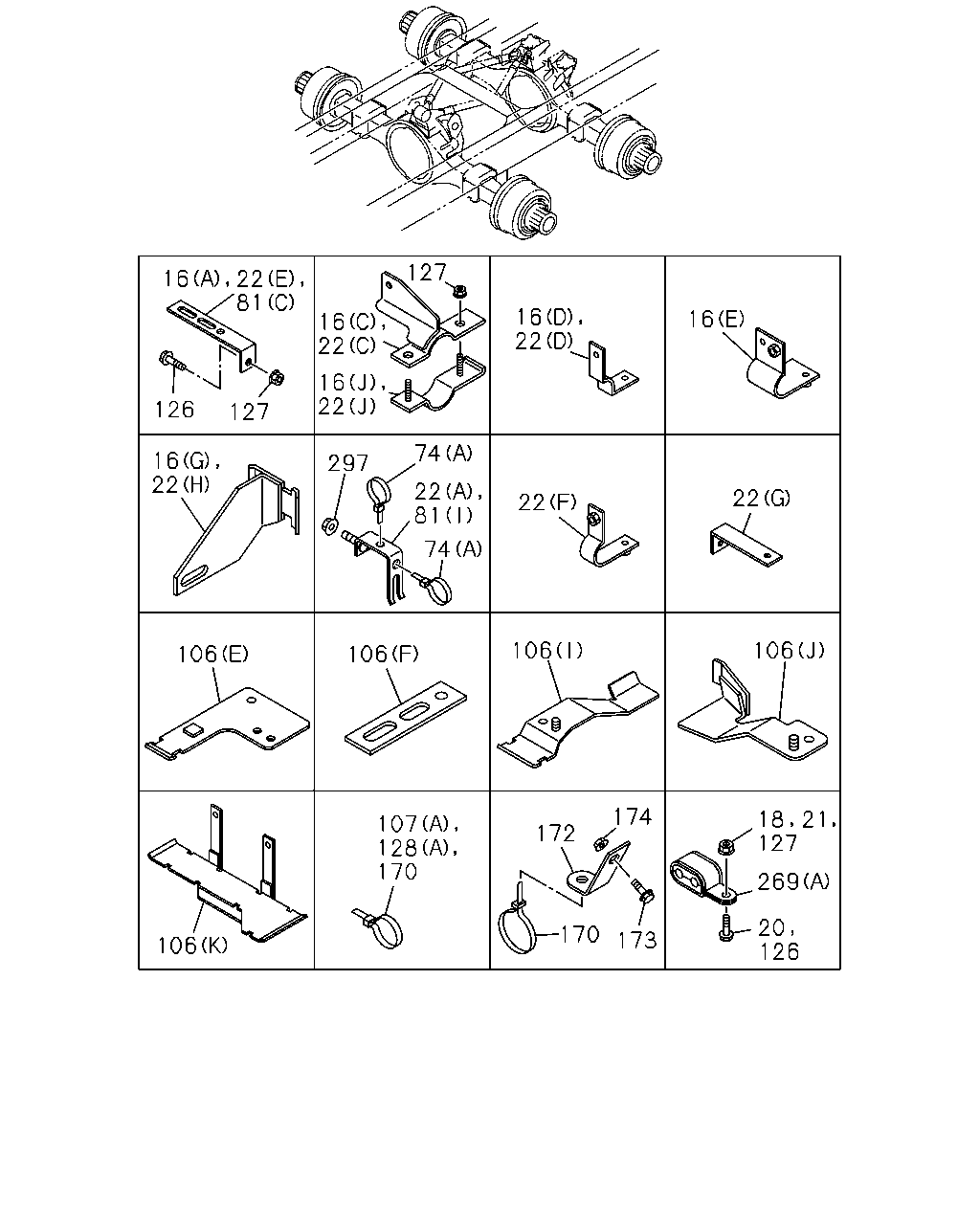

çizim 142140
127 16 22 81 16 22 16 16 22 16 22 126 127 74 16 22 297 22 81 22 22 74 106 106 106 106 174 127 107 128 170 172 269 20 126 170 173 106 18 21
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
WHEEL BASE 4500MM(45W) (I) 		1-47479-381-2 01 1 1007- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5100MM(51W) (A) L=100 H=30 		1-47477-645-2 10 1 0710- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5100MM(51W) (H) 		1-47479-693-0 01 1 0710-0811 ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 01 1 0812- ●
16 BRACKET; PIPE CLIP
(G) 		8-98075-300-1 02 1 0710- ● ●
16 BRACKET; PIPE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0710-0811 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4500MM(45W) (A) L=100 H=30 		1-47477-645-2 07 1 0812- ●
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0812- ●
16 BRACKET; PIPE CLIP
(D) 		1-47478-588-0 01 1 0710-1110 ● ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-763-0 01 1 1111-1211 ● ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-967-0 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-249-0 01 1 0710-1110 ● ●
16 BRACKET; PIPE CLIP
(C) W/PROJECTION WELD NUT 		8-98199-937-0 01 1 1111-1211 ● ●
16 BRACKET; PIPE CLIP
(C) W/PROJECTION WELD NUT 		8-98212-968-0 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-598-0 01 1 0710- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-693-0 02 1 0710- ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1110 ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-1107 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1108-1211 ● ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1108-1211 ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1212- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0710-1211 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1212- ● ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0710-1211 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
22 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (I) L=50 		1-47475-299-2 01 1 1108- ●
22 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (E) L=100 H=30 		1-47477-645-2 04 1 0710-0811 ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0812- ●
22 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (A) 		1-47479-381-2 02 1 0710- ●
22 BRACKET; CLIP
(E) L=150 H=30 		1-47477-629-2 01 1 0710- ● ●
22 BRACKET; CLIP
(H) 		8-98075-301-1 02 1 0710- ● ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 06 1 0710- ●
22 BRACKET; CLIP
(D) 		1-47478-588-0 01 1 0710-1110 ● ●
22 BRACKET; CLIP
(C) WO/PROJECTION WELD NUT 		8-98199-761-0 01 1 1111-1211 ● ●
22 BRACKET; CLIP
(J) 		8-98212-967-0 01 1 1212- ● ●
22 BRACKET; CLIP
(F) 		1-47478-589-0 01 1 0710-1110 ● ●
22 BRACKET; CLIP
(J) 		8-98199-763-0 01 1 1111-1211 ● ●
22 BRACKET; CLIP
(C) W/PROJECTION WELD NUT 		8-98212-968-0 01 1 1212- ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0710- ●
22 BRACKET; CLIP
(G) L=95 		1-82699-085-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 17 1 0812- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 20 1 0710- ●
74 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0710- ●
81 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (C) L=100 H=30 		1-47477-645-2 01 1 0812- ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0710- ● ●
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0710- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0710-0908 ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0909- ● ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0710-0810 ● ●
81 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (I) 		1-47479-381-2 01 1 0811-0908 ●
81 BRACKET; CLIP
(I) 		1-47479-381-2 01 1 0811-0908 ●
81 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (C) L=100 H=30 		1-47477-645-2 02 1 0909- ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0909- ●
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98052-413-0 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0710- ● ●
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4500MM(45W) (L) 		8-98134-453-0 01 1 0812- ●
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 0710-1504 ● ●
106 BRACKET; TUBE CLIP
(M) 		8-98302-600-0 01 1 1505- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47477-514-3 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 02 1 0710- ● ●
106 BRACKET; TUBE CLIP
(A) 		1-47479-553-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-870-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 0710-0810 ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (K) 		8-97615-493-0 01 1 0811- ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 0710-1412 ● ●
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501- ● ●
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 0710- ● ●
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W) M8X30 FLANGE 		0-28650-830-0 12 1 0812- ●
126 BOLT; CLIP BRKT
WHEEL BASE 5100MM(51W) M8X30 FLANGE 		0-28650-830-0 15 1 0710- ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1110 ● ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 14 1 0710- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
127 NUT; CLIP BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 12 1 0812-1006 ●
127 NUT; CLIP BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 13 1 1007- ●
127 NUT; CLIP BRKT
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 15 1 0710- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 14 1 0710- ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 22 1 0812-1001 ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 25 1 1002- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 21 1 0710-1001 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 24 1 1002- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0710-1001 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 1002- ●
128 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) L=350 		1-09707-183-0 01 1 0710- ●
128 CLIP; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 01 1 0710- ●
128 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
170 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) L=350 		1-09707-183-0 04 1 0710-0801 ●
170 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) L=350 		1-09707-183-0 05 1 0802- ●
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 0710-0801 ●
170 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 0802- ●
172 BRACKET; TUBE CLIP 1-47477-571-3 01 1 0710-0810 ● ●
172 BRACKET; TUBE CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) 		1-47477-571-3 01 1 0811- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-0810 ● ●
173 BOLT; CLIP BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0810 ● ●
174 NUT; CLIP BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 0811- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
297 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 08 1 0812- ●
297 NUT; BRKT
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 10 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1110 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710- ●

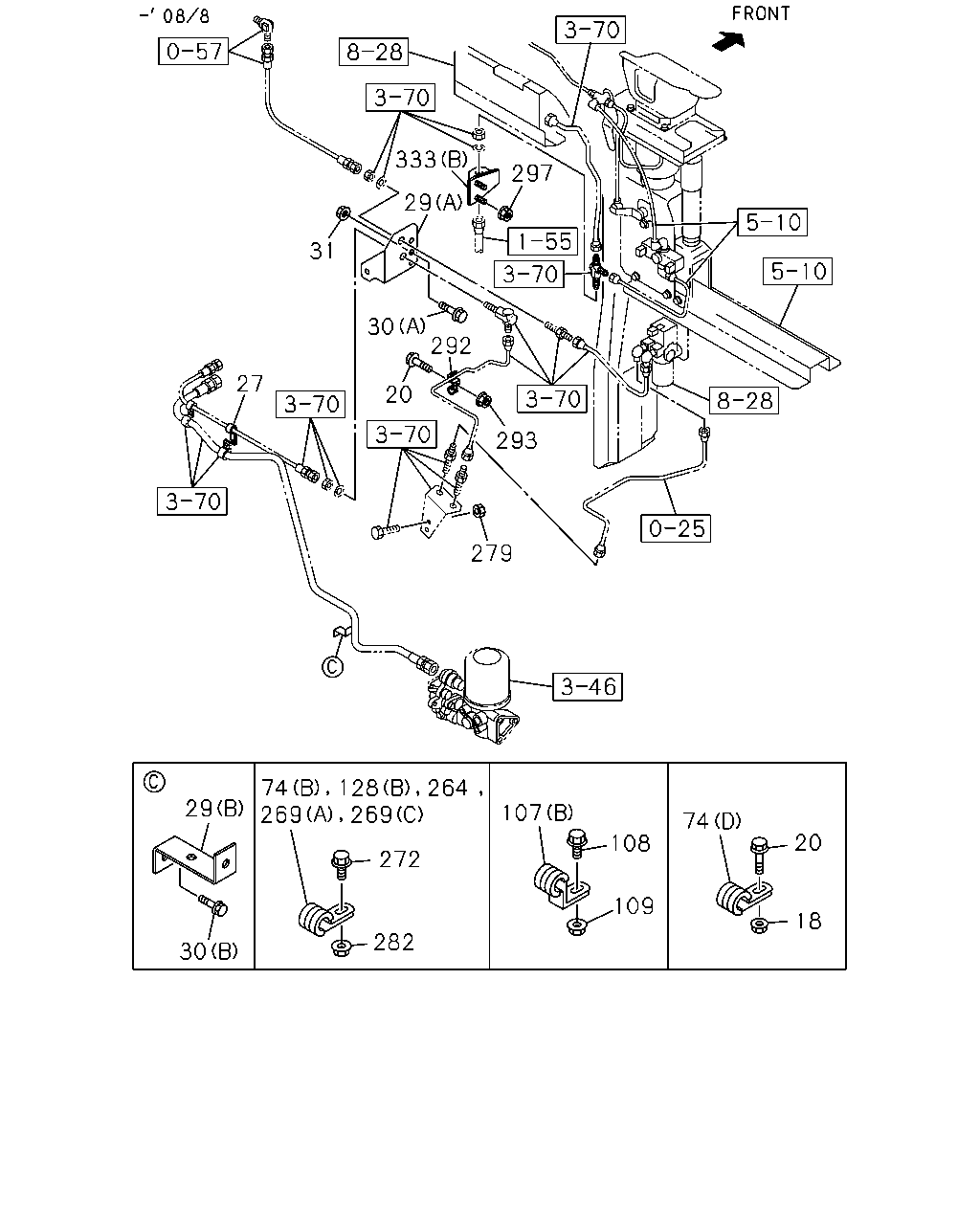

çizim 142163
333 297 29 31 30 292 27 20 293 279 74 29 107 74 20 108 272 109 18 282 30 269 269 128 264
BalonParca AdiParca NoAdetTipApplied Date A B
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-1110 ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-1107 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1108-1211 ● ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1108-1211 ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1212- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0710-1211 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1212- ● ●
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 0710- ● ●
29 BRACKET; CLIP,AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		8-98169-621-1 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98095-833-0 01 1 0710-1107 ● ●
29 BRACKET; CLIP,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 0710- ● ●
30 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0803 ● ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 0804- ●
31 NUT; CLIP BRKT
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ● ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 0804- ●
74 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 17 1 0812- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 20 1 0710- ●
74 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0710- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710- ● ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 22 1 0812-1001 ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 25 1 1002- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 21 1 0710-1001 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 24 1 1002- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0710-1001 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 1002- ●
128 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) L=350 		1-09707-183-0 01 1 0710- ●
128 CLIP; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 01 1 0710- ●
128 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0710- ● ●
272 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0710-1504 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 1505- ● ●
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
292 CLIP; AIR PIPE
EURO5 SPECIFICATION<NT5> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1108- ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0710-0808 ● ●
293 NUT; CLIP
EURO5 SPECIFICATION<NT5> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ● ●
297 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 08 1 0812- ●
297 NUT; BRKT
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 10 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1110 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710- ●
333 BRACKET; BRK AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		1-47477-045-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-1107 ● ●
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802- ● ●

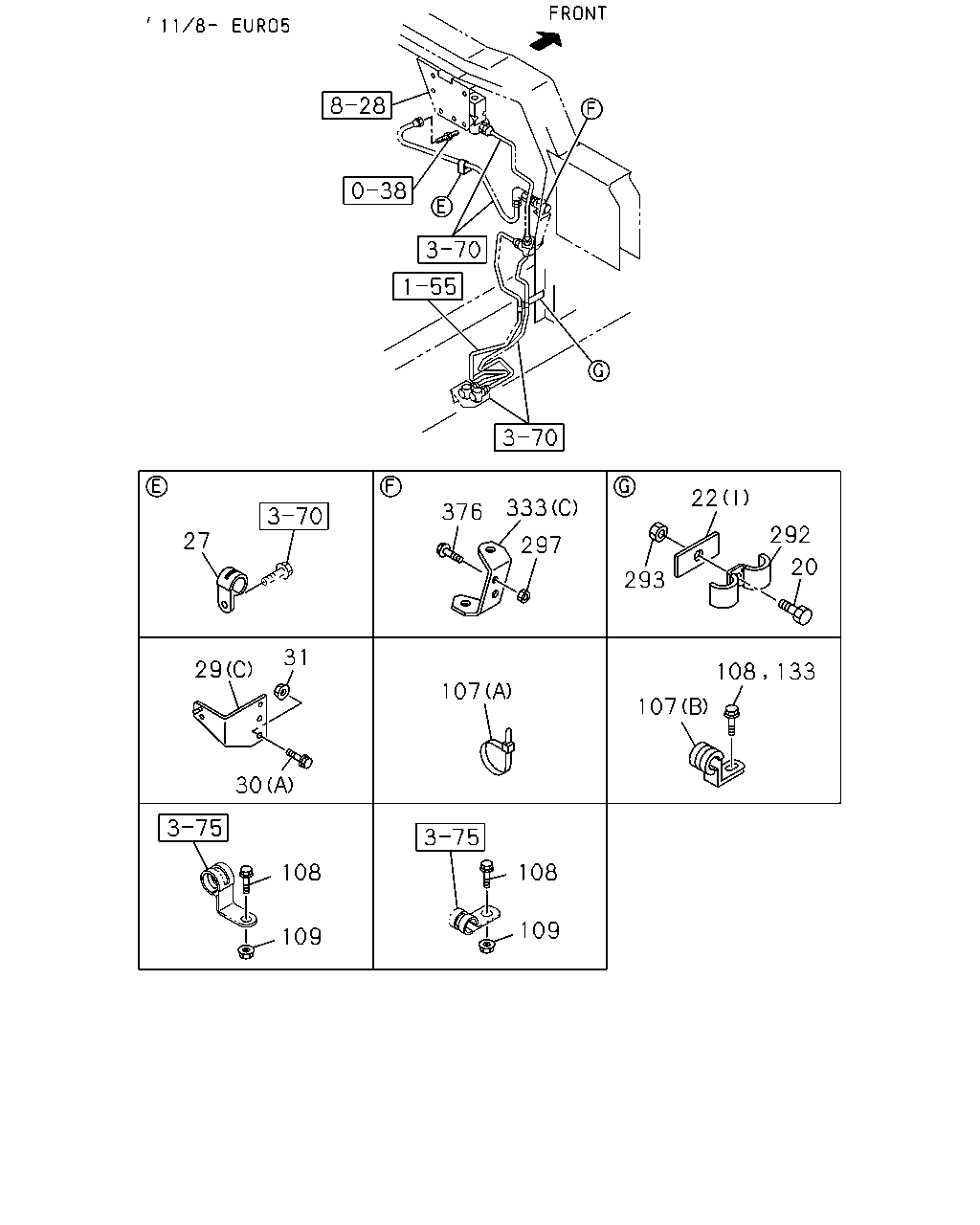

çizim 142263
22 292 27 297 20 293 31 29 108 133 107 107 30 108 108 109 109 376 333
BalonParca AdiParca NoAdetTipApplied Date A B
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-1107 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1108-1211 ● ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1108-1211 ●
20 BOLT; CLIP
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 01 1 1212- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0710-1211 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1212- ● ●
22 BRACKET; CLIP
EURO5 SPECIFICATION<NT5> (I) L=50 		1-47475-299-2 01 1 1108- ●
22 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (E) L=100 H=30 		1-47477-645-2 04 1 0710-0811 ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0812- ●
22 BRACKET; CLIP
WHEEL BASE 5100MM(51W) (A) 		1-47479-381-2 02 1 0710- ●
22 BRACKET; CLIP
(E) L=150 H=30 		1-47477-629-2 01 1 0710- ● ●
22 BRACKET; CLIP
(H) 		8-98075-301-1 02 1 0710- ● ●
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 06 1 0710- ●
22 BRACKET; CLIP
(D) 		1-47478-588-0 01 1 0710-1110 ● ●
22 BRACKET; CLIP
(C) WO/PROJECTION WELD NUT 		8-98199-761-0 01 1 1111-1211 ● ●
22 BRACKET; CLIP
(J) 		8-98212-967-0 01 1 1212- ● ●
22 BRACKET; CLIP
(F) 		1-47478-589-0 01 1 0710-1110 ● ●
22 BRACKET; CLIP
(J) 		8-98199-763-0 01 1 1111-1211 ● ●
22 BRACKET; CLIP
(C) W/PROJECTION WELD NUT 		8-98212-968-0 01 1 1212- ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 02 1 0710- ●
22 BRACKET; CLIP
(G) L=95 		1-82699-085-0 01 1 0710- ● ●
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 0710- ● ●
29 BRACKET; CLIP,AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		8-98169-621-1 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98095-833-0 01 1 0710-1107 ● ●
29 BRACKET; CLIP,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98095-833-0 01 1 1108- ●
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 0710- ● ●
30 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0803 ● ●
30 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10X25 FLANGE 		0-28651-025-0 01 1 0804- ●
31 NUT; CLIP BRKT
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0804- ●
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ● ●
31 NUT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 0804- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 03 1 0710- ● ●
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0812- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-0810 ● ●
133 BOLT; BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 03 1 0811- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-0908 ● ●
133 BOLT; BRKT
WHEEL BASE 5100MM(51W) M8X30 FLANGE 		0-28650-830-0 04 1 0909- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0909- ●
133 BOLT; BRKT
WHEEL BASE 5100MM(51W) M8X30 FLANGE 		0-28650-830-0 08 1 0710-0811 ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X30 FLANGE 		0-28650-830-0 05 1 0812-0908 ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X30 FLANGE 		0-28650-830-0 07 1 0909- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1110 ● ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 0710- ●
292 CLIP; AIR PIPE
EURO5 SPECIFICATION<NT5> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1108- ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0710-0808 ● ●
293 NUT; CLIP
EURO5 SPECIFICATION<NT5> M8 FLANGE 		0-91180-108-0 01 1 1108- ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ● ●
297 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 08 1 0812- ●
297 NUT; BRKT
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 10 1 0710- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-1110 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710- ●
333 BRACKET; BRK AIR PIPE
EURO5 SPECIFICATION<NT5> (C) 		1-47477-045-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0710-1107 ● ●
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 1108- ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801 ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802- ● ●
376 BOLT; BRKT
EURO5 SPECIFICATION<NT5> M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
