3-77 — BRAKE PIPING; AIR,REAR (#14167) — 128 parça
çizim 142109
192 192 223 73 225 223 223 192 223 223 223 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 1209- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 1208-1208 ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 1209- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ● ●
192 TUBE; NYLON
WHEEL BASE 5100MM(51W) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 03 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 1208-1208 ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●

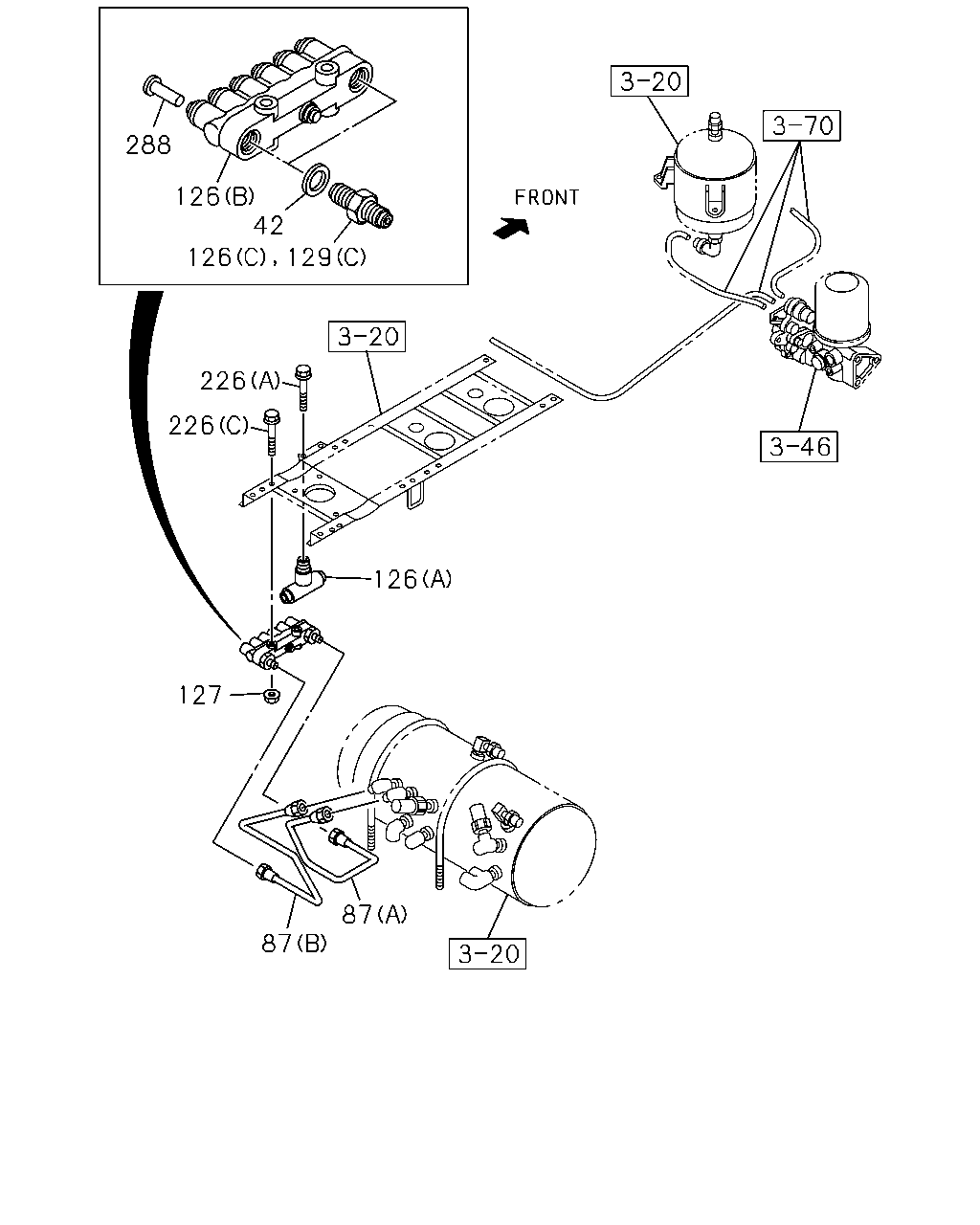

çizim 142123
288 126 42 126 129 226 226 126 127 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
42 GASKET; CONNECTOR 9-09572-022-0 02 1 0710-0803 ● ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=573 		8-98096-184-0 01 1 0710- ● ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 0710- ● ●
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 0804- ● ●
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0710- ● ●
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0710- ● ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0710-0803 ● ●
226 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710- ● ●
226 BOLT; UNION
(C) M8X45 FLANGE 		0-28050-845-0 02 1 0710- ● ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
288 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 0710- ● ●

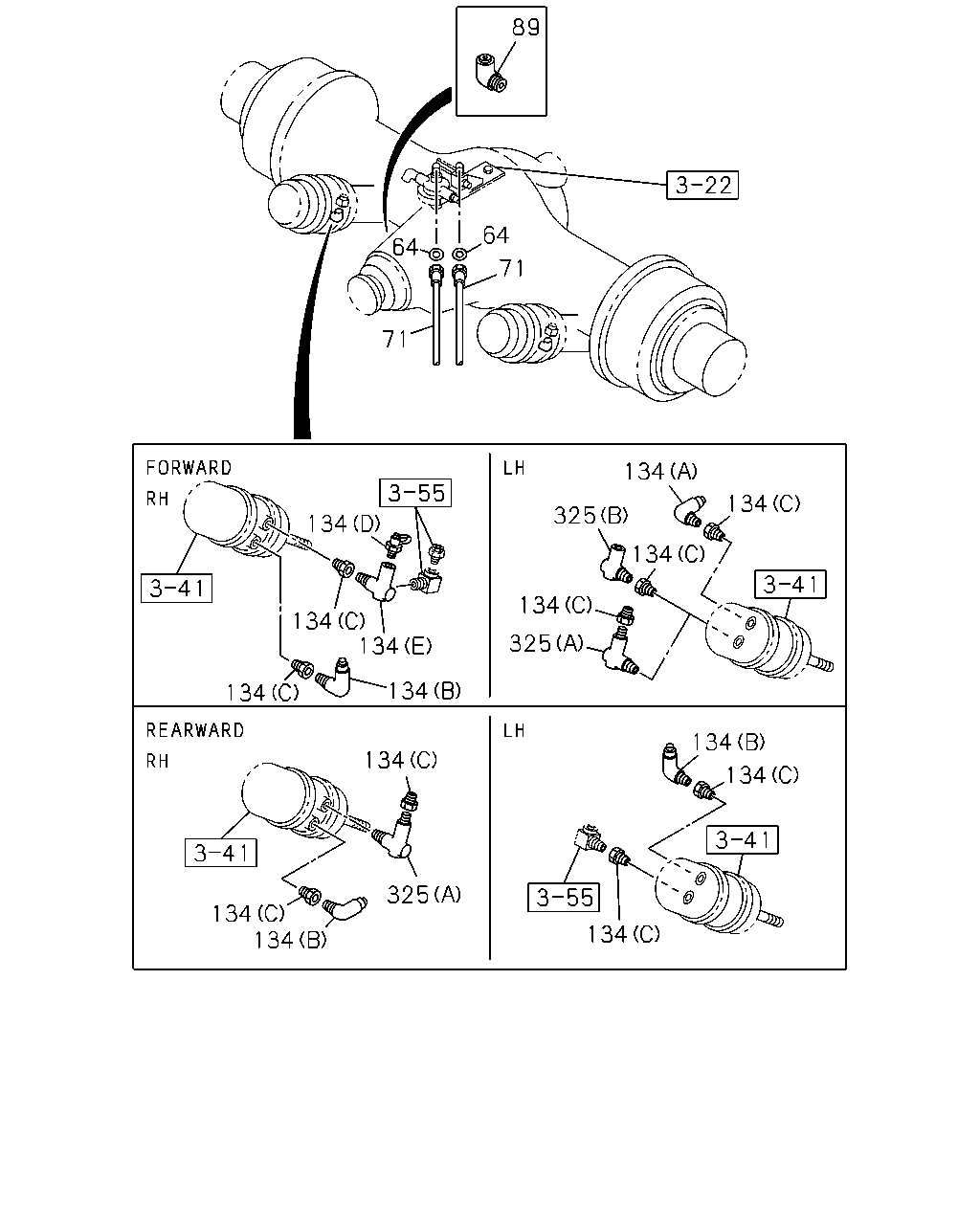

çizim 142126
134 134 134 325 134 134 134 134 134 134 134 134 71 71 64 64 89 325 325 134 134 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 08 1 0710- ● ●
71 HOSE; FLEX,RWD RR
L=550 		0-57909-550-0 01 1 0710- ● ●
71 HOSE; FLEX,RWD RR
L=550 		0-57909-550-0 01 1 0710- ● ●
71 HOSE; FLEX,RWD RR
L=580 		0-57909-580-0 02 1 0710- ● ●
89 CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09661-209-0 03 1 0710- ● ●
134 CONNECTOR
(C) NPTF3/8 & RC3/8 		1-09660-548-0 07 1 0710-1207 ● ●
134 CONNECTOR
(C) NPTF3/8 & RC3/8 		1-09660-548-0 05 1 1208- ● ●
134 CONNECTOR
(A) 		1-09660-741-0 01 1 0710- ● ●
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ● ●
134 CONNECTOR
(D) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0710- ● ●
134 CONNECTOR
(E) 		1-09660-697-1 01 1 0710- ● ●
325 UNION; 2WAY
(B) 		8-98227-700-0 01 1 1208- ● ●
325 UNION; 2WAY
(A) M27 & PT3/8 ELBOW 		1-09660-136-1 02 1 0710-1207 ● ●
325 UNION; 2WAY
(A) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 1208- ● ●

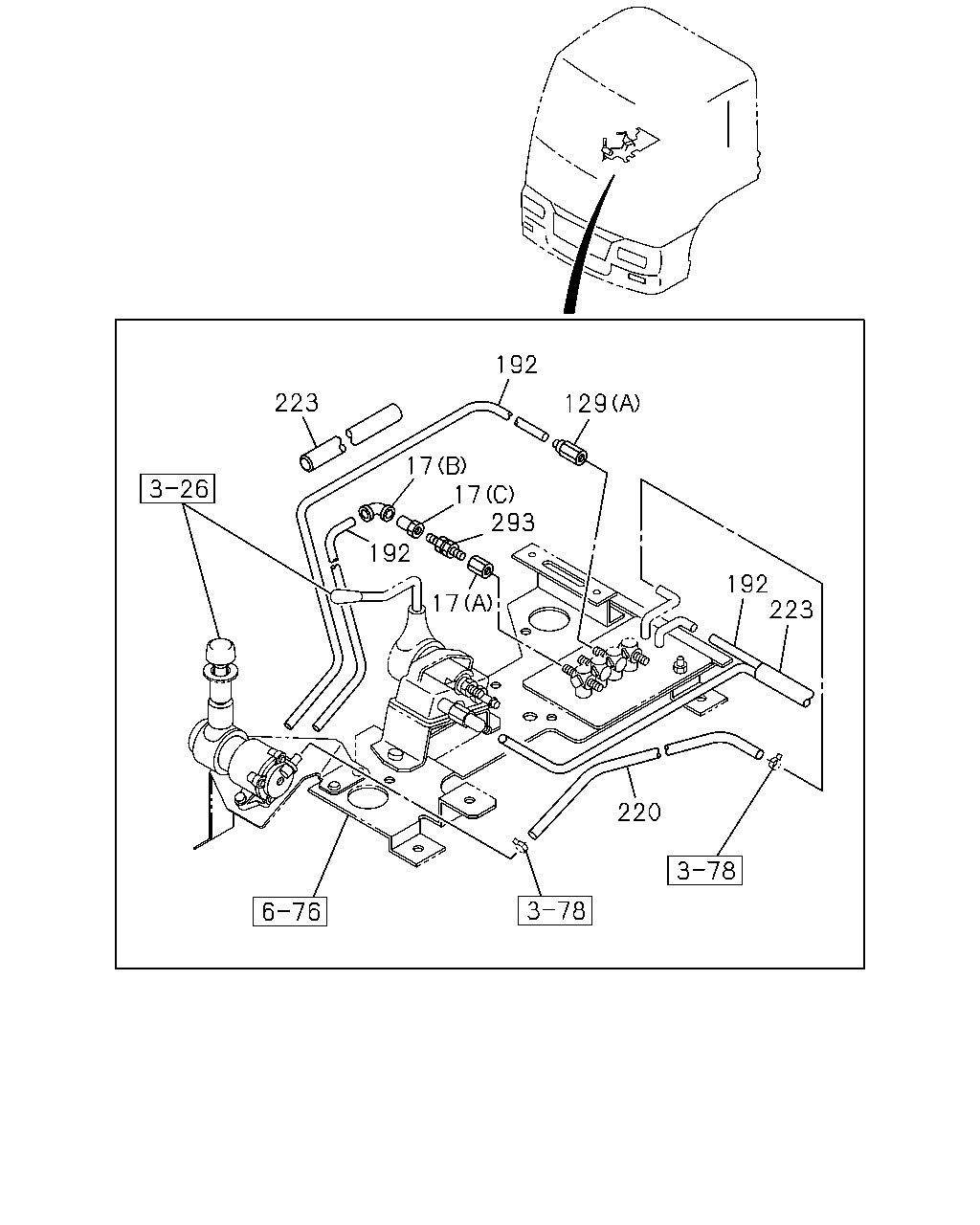

çizim 142127
192 223 129 17 17 293 192 192 223 17 220
BalonParca AdiParca NoAdetTipApplied Date A B
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710- ● ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0710-1006 ● ●
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1007- ● ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0710-1006 ● ●
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1007- ● ●
17 UNION; AIR PIPE
(D) 		1-47470-678-0 01 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0710-0803 ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 1209- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 1208-1208 ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 1209- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ● ●
192 TUBE; NYLON
WHEEL BASE 5100MM(51W) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 03 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 1208-1208 ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710- ● ●
293 VALVE; CHECK 1-48410-479-1 01 1 0710- ● ●

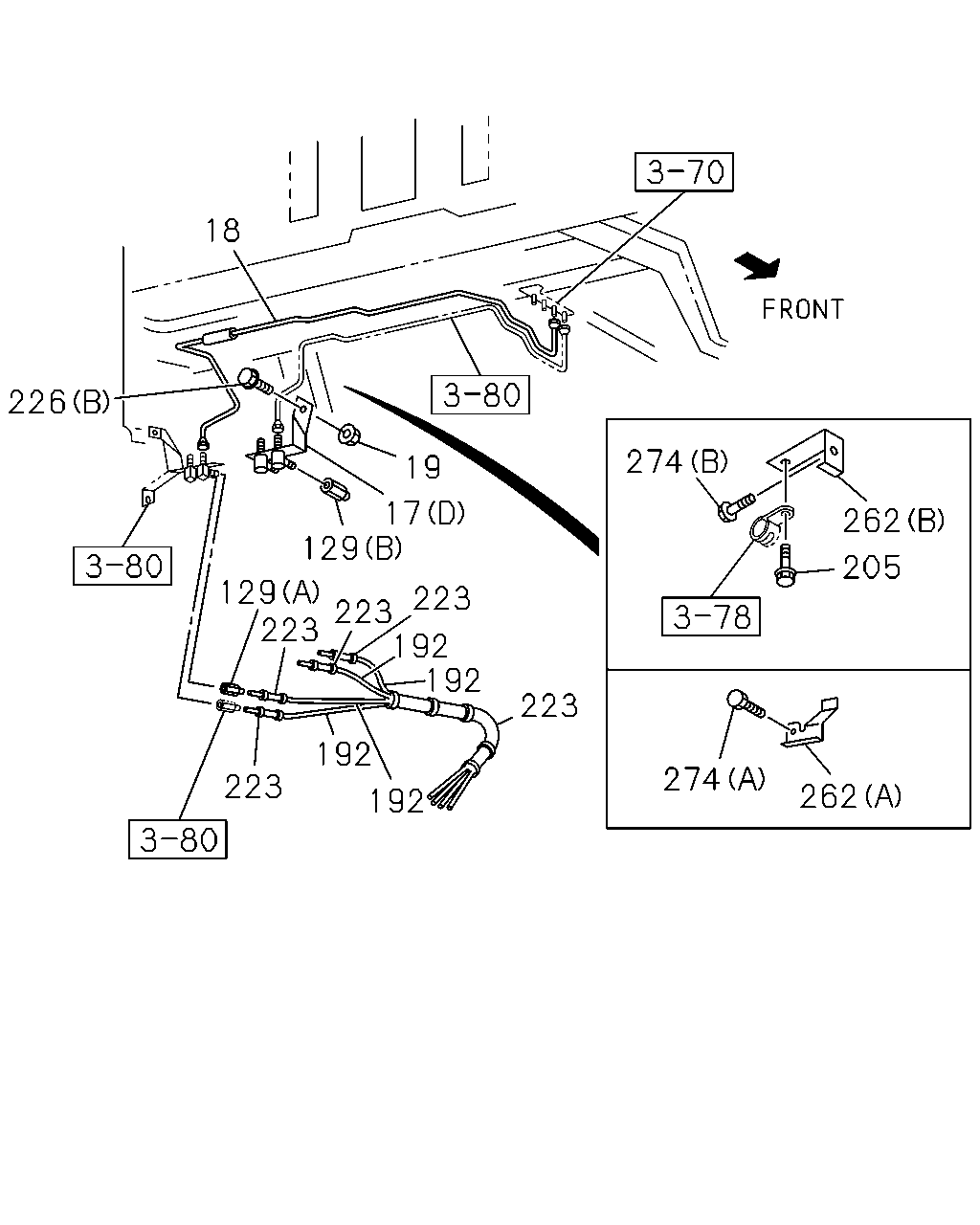

çizim 142128
18 226 274 19 17 129 262 205 129 223 223 192 192 223 223 192 274 223 262 192
BalonParca AdiParca NoAdetTipApplied Date A B
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710- ● ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0710-1006 ● ●
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1007- ● ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0710-1006 ● ●
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1007- ● ●
17 UNION; AIR PIPE
(D) 		1-47470-678-0 01 1 0710- ● ●
18 PIPE; AIR,UNION TO UNION
L=1937 		1-49122-060-1 01 1 0710- ● ●
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0710-0803 ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 1209- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 1208-1208 ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 1209- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ● ●
192 TUBE; NYLON
WHEEL BASE 5100MM(51W) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1209- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 03 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 1208-1208 ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710- ● ●
226 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710- ● ●
226 BOLT; UNION
(C) M8X45 FLANGE 		0-28050-845-0 02 1 0710- ● ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
226 BOLT; UNION
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
262 BRACKET
(B) 		1-79996-143-0 01 1 0710- ● ●
262 BRACKET
(A) 		1-79996-144-0 01 1 0710- ● ●
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710- ● ●
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710- ● ●
