◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#14165) — 266 parça

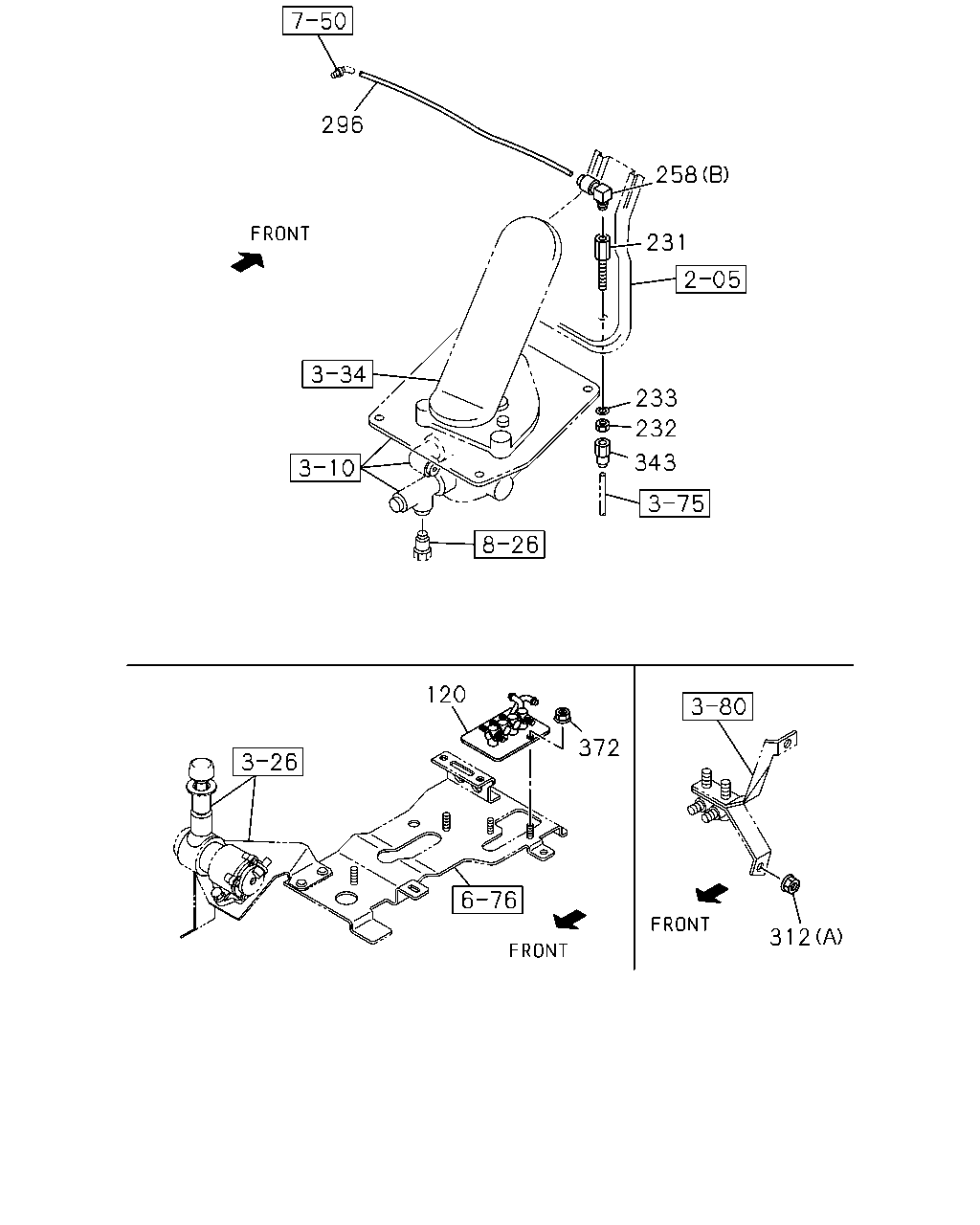

çizim 142106
296 258 231 233 232 343 120 372 312
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE 1-47470-677-0 01 1 0710- ● ●
231 UNION; AIR PIPE
PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 0710- ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0710- ● ●
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 0710- ● ●
258 CONNECTOR; NYLON TUBE
(B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0710- ● ●
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 0710-0810 ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0811- ●
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 0811- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0812- ● ●
312 NUT; UNION
(A) M8 		0-91110-508-0 01 1 0710- ● ●
312 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0710-1107 ● ●
312 NUT; UNION
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 		9-09840-280-0 01 1 1108- ●
312 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1108- ●
343 UNION; NYLON TUBE
DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 0710- ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●

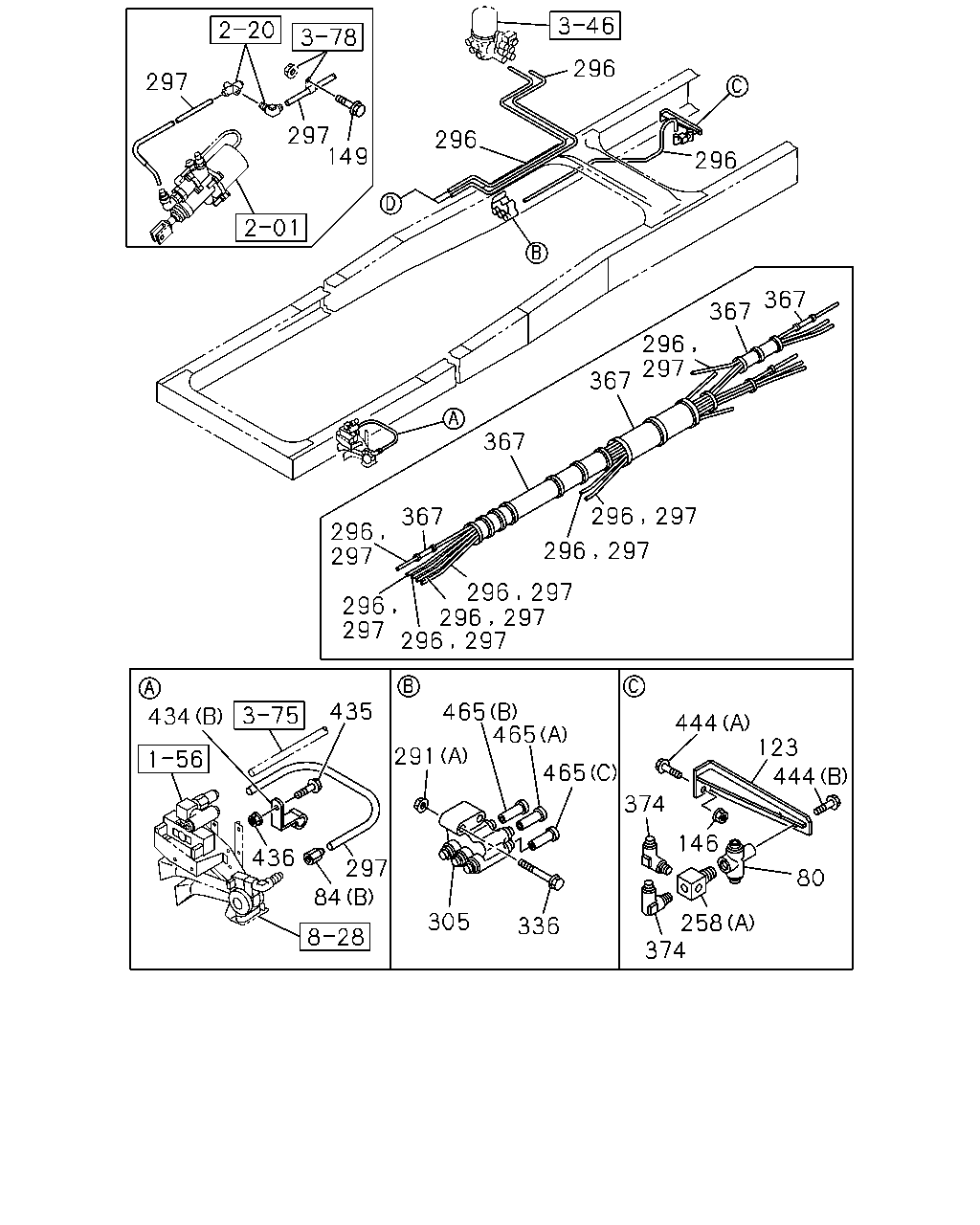

çizim 142119
296 297 297 149 296 296 367 367 296 297 367 367 367 296 297 296 297 435 465 465 434 123 444 291 465 444 374 146 436 297 84 80 305 258 374 336 296 297 296 297 296 297 296 297 297 296
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0710-0810 ● ●
80 UNION; 3 WAY
WHEEL BASE 5100MM(51W) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0811- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0811- ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0710- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710- ● ●
123 BRACKET; UNION 8-98114-558-0 01 1 0803- ●
123 BRACKET; UNION 1-47479-401-0 01 1 0710-0802 ● ●
123 BRACKET; UNION 1-47479-401-0 01 1 0803-0810 ●
123 BRACKET; UNION
WHEEL BASE 5100MM(51W) 		1-47479-401-0 01 1 0811- ●
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0710-0810 ● ●
146 NUT; UNION
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 02 1 0811- ● ●
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
258 CONNECTOR; NYLON TUBE
(B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0710- ● ●
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 0710-0810 ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 5100MM(51W) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0811- ●
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 0811- ●
291 NUT; UNION
EURO5 SPECIFICATION<NT5> (B) M12 		9-09840-280-0 02 1 1108- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0710-0808 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0812- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0710- ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0710-0906 ● ●
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 0907- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
374 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0810 ● ●
374 CONNECTOR
WHEEL BASE 5100MM(51W) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0811- ●
374 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0811- ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710- ● ●
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 0710- ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 0710- ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0710-0811 ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0812- ● ●
434 CLIP
WHEEL BASE 4500MM(45W) (D) L=350 		1-09707-183-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0810 ● ●
444 BOLT; UNION
WHEEL BASE 5100MM(51W) (B) M8X16 FLANGE 		0-28050-816-0 01 1 0811- ●
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0811- ●
444 BOLT; UNION
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710-0810 ● ●
444 BOLT; UNION
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (A) M8X35 FLANGE 		0-28650-835-0 02 1 0811- ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0710-0810 ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0710-0810 ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0811- ● ●
465 PLUG
WHEEL BASE 5100MM(51W) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 0811- ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0811- ●
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 0710- ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2> (A) OD=6 L=27 		1-09661-615-0 01 1 0710- ● ●

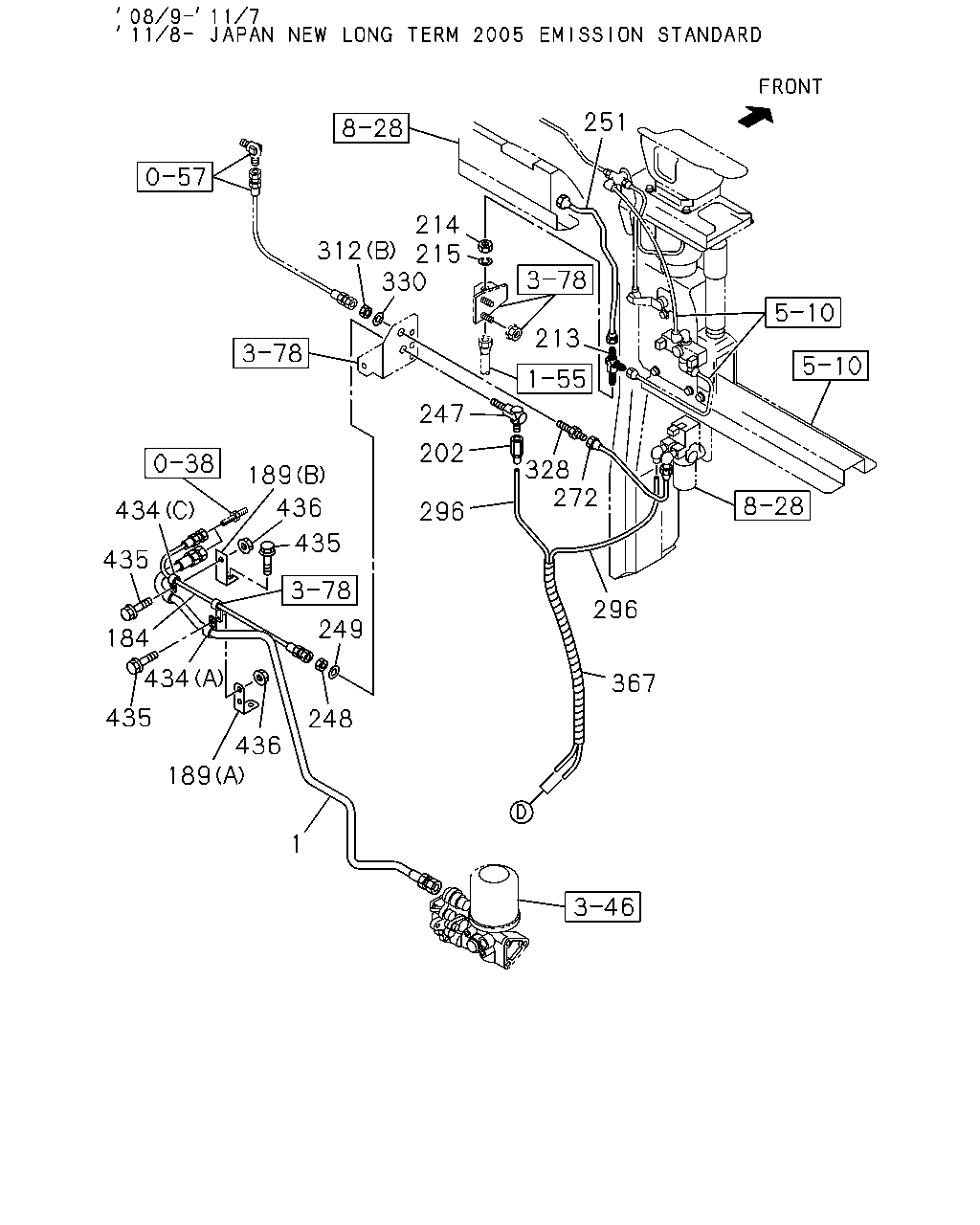

çizim 142125
251 214 215 330 312 213 247 202 328 272 189 436 434 296 435 435 296 249 184 434 367 435 248 436 189 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EURO5 SPECIFICATION<NT5> L=1480 		8-98169-578-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK 1-09363-959-0 01 1 0710-1107 ● ●
1 HOSE; FLEX,AIR TANK
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-09363-959-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK 1-09363-959-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV
EURO5 SPECIFICATION<NT5> L=740 		1-09363-675-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV 8-98095-831-0 01 1 0710-1107 ● ●
184 HOSE; FLEX,AIR GOV
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98095-831-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV 8-98095-831-0 01 1 1108- ●
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 0710- ● ●
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 0710- ● ●
202 ADAPTER
EURO5 SPECIFICATION<NT5> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1108- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0710-0808 ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809-1107 ● ●
202 ADAPTER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1108- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1108- ●
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0710- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0710- ● ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0710- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0710- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0710- ● ●
251 PIPE; AIR,UNION TO MAG VLV
EURO5 SPECIFICATION<NT5> L=375 		1-49124-511-0 01 1 1108- ●
251 PIPE; AIR,UNION TO MAG VLV
L=368 		8-98073-870-0 01 1 0710-1107 ● ●
251 PIPE; AIR,UNION TO MAG VLV
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=368 		8-98073-870-0 01 1 1108- ●
251 PIPE; AIR,UNION TO MAG VLV
L=368 		8-98073-870-0 01 1 1108- ●
272 PIPE; AIR,MAG VLV TO UNION
L=240 		8-98088-445-0 01 1 0710-1107 ● ●
272 PIPE; AIR,MAG VLV TO UNION
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=240 		8-98088-445-0 01 1 1108- ●
272 PIPE; AIR,MAG VLV TO UNION
L=240 		8-98088-445-0 01 1 1108- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0812- ● ●
312 NUT; UNION
(A) M8 		0-91110-508-0 01 1 0710- ● ●
312 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0710-1107 ● ●
312 NUT; UNION
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 		9-09840-280-0 01 1 1108- ●
312 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1108- ●
328 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 0710-1107 ● ●
328 UNION; AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12 L=66.5 		0-92113-306-0 01 1 1108- ●
328 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 1108- ●
330 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0710-1107 ● ●
330 WASHER; LK,UNION,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=12.2 		0-91510-512-0 01 1 1108- ●
330 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1108- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710- ● ●
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 0710- ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 0710- ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0710-0811 ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0812- ● ●
434 CLIP
WHEEL BASE 4500MM(45W) (D) L=350 		1-09707-183-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●

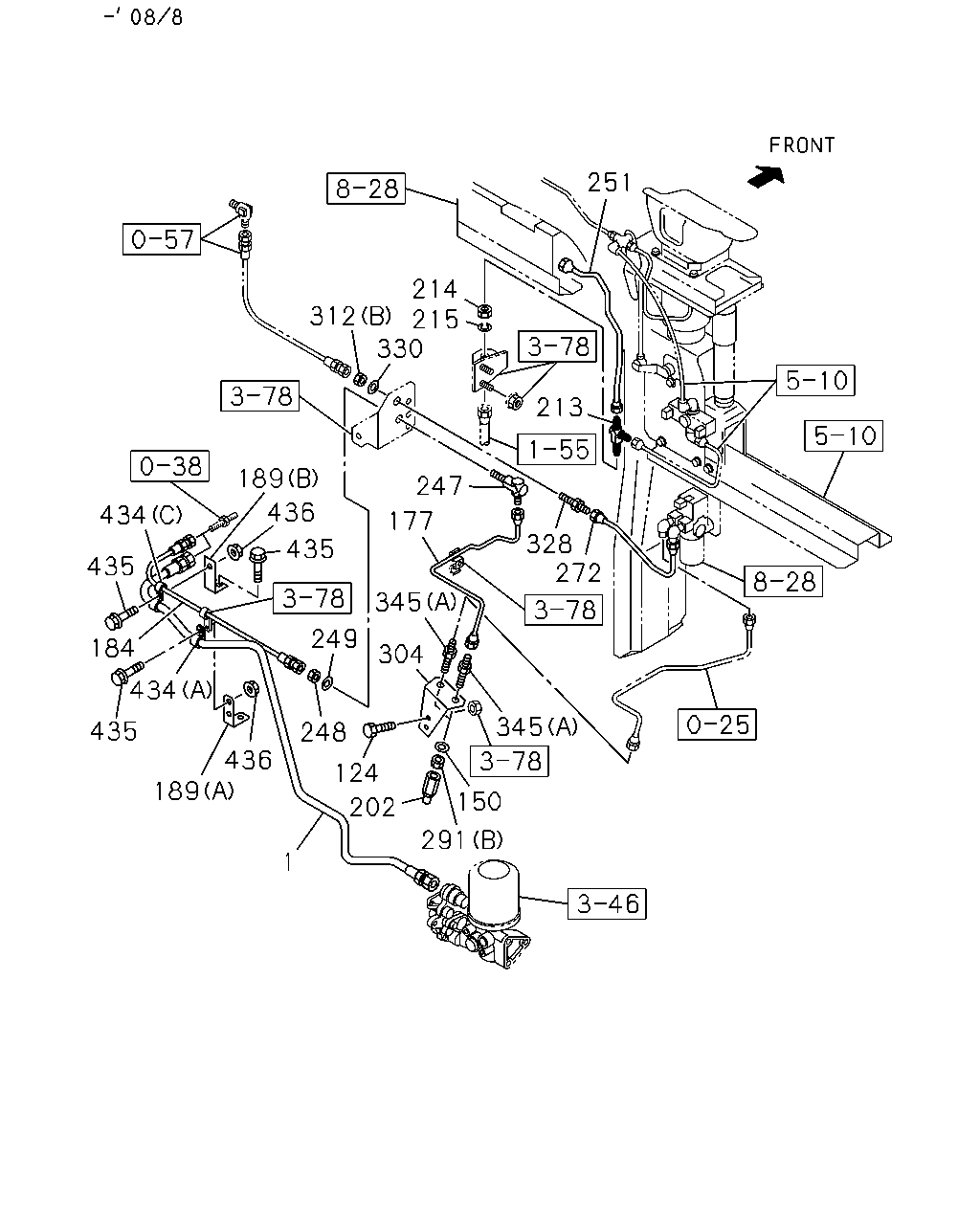

çizim 142150
251 214 215 330 312 213 189 247 436 434 177 328 272 435 435 345 249 184 304 434 345 435 248 436 124 189 150 202 291 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EURO5 SPECIFICATION<NT5> L=1480 		8-98169-578-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK 1-09363-959-0 01 1 0710-1107 ● ●
1 HOSE; FLEX,AIR TANK
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-09363-959-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK 1-09363-959-0 01 1 1108- ●
124 BOLT; BRKT
EURO5 SPECIFICATION<NT5> M8X30 FLANGE 		0-28650-830-0 02 1 1108- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0808 ● ●
150 WASHER; LK,UNION
EURO5 SPECIFICATION<NT5> ID=12.2 		0-91510-512-0 02 1 1108- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0710-0808 ● ●
177 PIPE; AIR,UNION TO UNION
EURO5 SPECIFICATION<NT5> L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1108- ●
177 PIPE; AIR,UNION TO UNION
L=539 SERVICED BY L=550 		1-47428-808-0 01 1 0710-0808 ● ●
184 HOSE; FLEX,AIR GOV
EURO5 SPECIFICATION<NT5> L=740 		1-09363-675-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV 8-98095-831-0 01 1 0710-1107 ● ●
184 HOSE; FLEX,AIR GOV
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98095-831-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV 8-98095-831-0 01 1 1108- ●
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 0710- ● ●
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 0710- ● ●
202 ADAPTER
EURO5 SPECIFICATION<NT5> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1108- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0710-0808 ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809-1107 ● ●
202 ADAPTER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1108- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1108- ●
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0710- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0710- ● ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0710- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0710- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0710- ● ●
251 PIPE; AIR,UNION TO MAG VLV
EURO5 SPECIFICATION<NT5> L=375 		1-49124-511-0 01 1 1108- ●
251 PIPE; AIR,UNION TO MAG VLV
L=368 		8-98073-870-0 01 1 0710-1107 ● ●
251 PIPE; AIR,UNION TO MAG VLV
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=368 		8-98073-870-0 01 1 1108- ●
251 PIPE; AIR,UNION TO MAG VLV
L=368 		8-98073-870-0 01 1 1108- ●
272 PIPE; AIR,MAG VLV TO UNION
L=240 		8-98088-445-0 01 1 0710-1107 ● ●
272 PIPE; AIR,MAG VLV TO UNION
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=240 		8-98088-445-0 01 1 1108- ●
272 PIPE; AIR,MAG VLV TO UNION
L=240 		8-98088-445-0 01 1 1108- ●
291 NUT; UNION
EURO5 SPECIFICATION<NT5> (B) M12 		9-09840-280-0 02 1 1108- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0710-0808 ● ●
304 BRACKET; UNION
EURO5 SPECIFICATION<NT5> 		8-98082-870-0 01 1 1108- ●
304 BRACKET; UNION 8-98082-870-0 01 1 0710-0808 ● ●
312 NUT; UNION
(A) M8 		0-91110-508-0 01 1 0710- ● ●
312 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0710-1107 ● ●
312 NUT; UNION
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 		9-09840-280-0 01 1 1108- ●
312 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1108- ●
328 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 0710-1107 ● ●
328 UNION; AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12 L=66.5 		0-92113-306-0 01 1 1108- ●
328 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 1108- ●
330 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0710-1107 ● ●
330 WASHER; LK,UNION,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=12.2 		0-91510-512-0 01 1 1108- ●
330 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1108- ●
345 UNION; AIR PIPE
EURO5 SPECIFICATION<NT5> (B) M12 ELBOW 		0-92125-206-0 02 1 1108- ●
345 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 02 1 0710-0808 ● ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710- ● ●
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 0710- ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 0710- ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0710-0811 ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0812- ● ●
434 CLIP
WHEEL BASE 4500MM(45W) (D) L=350 		1-09707-183-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●

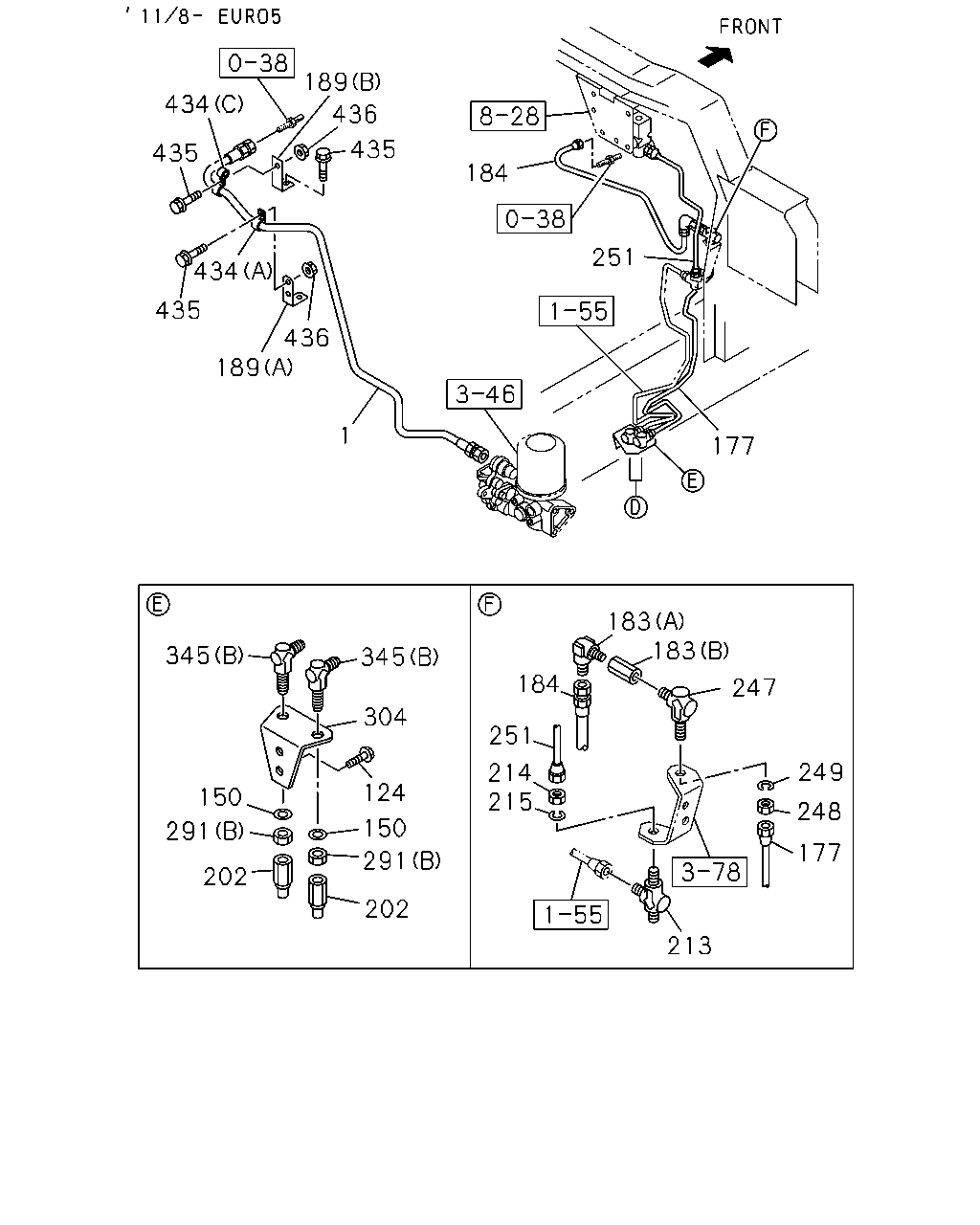

çizim 142296
189 434 436 435 435 184 251 434 435 436 189 1 177 183 183 345 345 184 247 304 251 249 214 215 124 150 248 150 291 177 291 202 202 213
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EURO5 SPECIFICATION<NT5> L=1480 		8-98169-578-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK 1-09363-959-0 01 1 0710-1107 ● ●
1 HOSE; FLEX,AIR TANK
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-09363-959-0 01 1 1108- ●
1 HOSE; FLEX,AIR TANK 1-09363-959-0 01 1 1108- ●
124 BOLT; BRKT
EURO5 SPECIFICATION<NT5> M8X30 FLANGE 		0-28650-830-0 02 1 1108- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0808 ● ●
150 WASHER; LK,UNION
EURO5 SPECIFICATION<NT5> ID=12.2 		0-91510-512-0 02 1 1108- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0710-0808 ● ●
177 PIPE; AIR,UNION TO UNION
EURO5 SPECIFICATION<NT5> L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1108- ●
177 PIPE; AIR,UNION TO UNION
L=539 SERVICED BY L=550 		1-47428-808-0 01 1 0710-0808 ● ●
183 UNION; FLEX HOSE,GOV
EURO5 SPECIFICATION<NT5> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1108- ●
183 UNION; FLEX HOSE,GOV
EURO5 SPECIFICATION<NT5> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV
EURO5 SPECIFICATION<NT5> L=740 		1-09363-675-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV 8-98095-831-0 01 1 0710-1107 ● ●
184 HOSE; FLEX,AIR GOV
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98095-831-0 01 1 1108- ●
184 HOSE; FLEX,AIR GOV 8-98095-831-0 01 1 1108- ●
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 0710- ● ●
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 0710- ● ●
202 ADAPTER
EURO5 SPECIFICATION<NT5> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1108- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0710-0808 ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809-1107 ● ●
202 ADAPTER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1108- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1108- ●
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0710- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0710- ● ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0710- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0710- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0710- ● ●
251 PIPE; AIR,UNION TO MAG VLV
EURO5 SPECIFICATION<NT5> L=375 		1-49124-511-0 01 1 1108- ●
251 PIPE; AIR,UNION TO MAG VLV
L=368 		8-98073-870-0 01 1 0710-1107 ● ●
251 PIPE; AIR,UNION TO MAG VLV
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=368 		8-98073-870-0 01 1 1108- ●
251 PIPE; AIR,UNION TO MAG VLV
L=368 		8-98073-870-0 01 1 1108- ●
291 NUT; UNION
EURO5 SPECIFICATION<NT5> (B) M12 		9-09840-280-0 02 1 1108- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0710-0808 ● ●
304 BRACKET; UNION
EURO5 SPECIFICATION<NT5> 		8-98082-870-0 01 1 1108- ●
304 BRACKET; UNION 8-98082-870-0 01 1 0710-0808 ● ●
345 UNION; AIR PIPE
EURO5 SPECIFICATION<NT5> (B) M12 ELBOW 		0-92125-206-0 02 1 1108- ●
345 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 02 1 0710-0808 ● ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710- ● ●
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 0710- ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 0710- ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0710-0811 ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0812- ● ●
434 CLIP
WHEEL BASE 4500MM(45W) (D) L=350 		1-09707-183-0 01 1 0812- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●

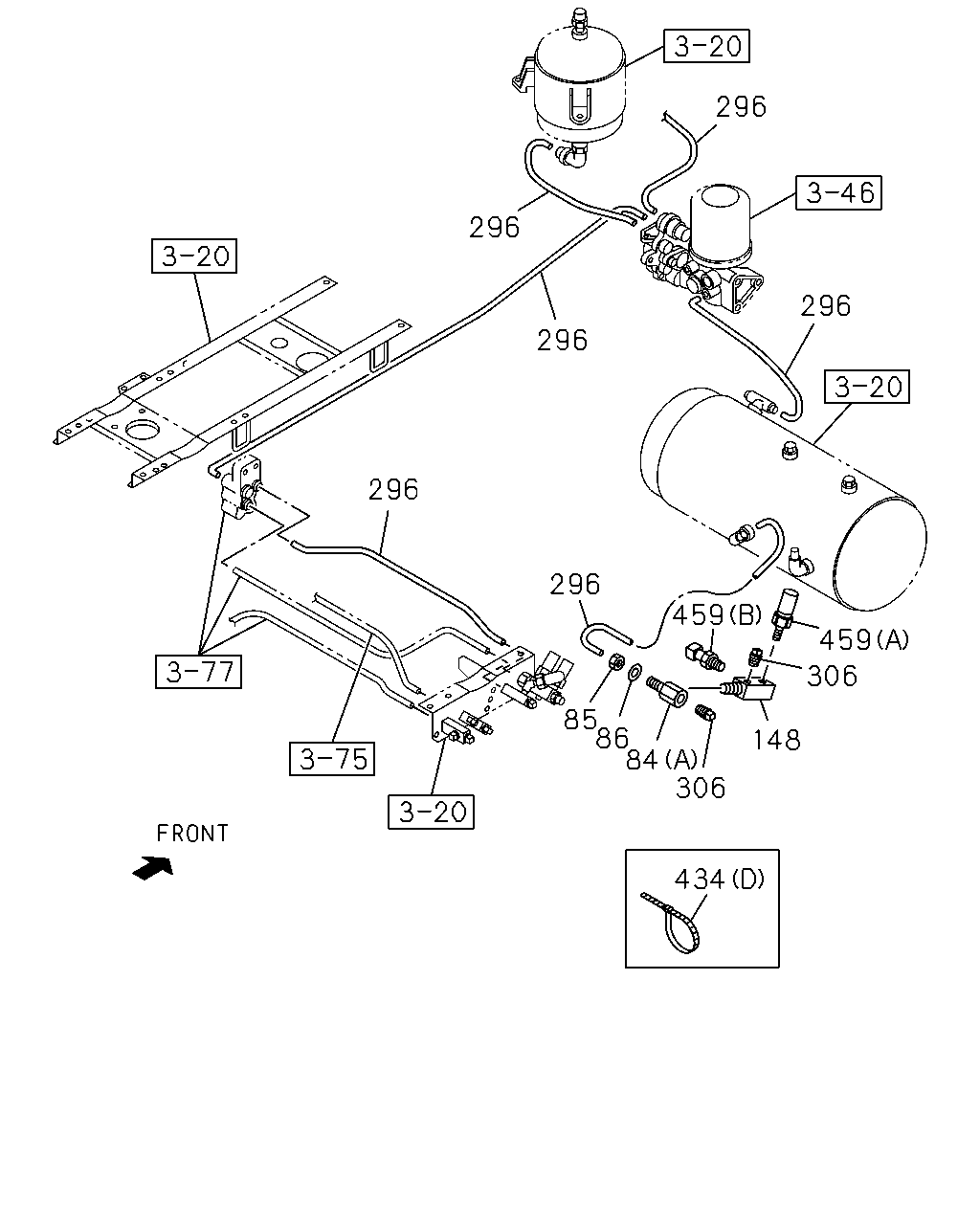

çizim 142304
296 296 296 296 296 296 459 459 306 85 86 84 306 148 434
BalonParca AdiParca NoAdetTipApplied Date A B
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0710- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710- ● ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 0710- ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0710- ● ●
148 CONNECTOR; UNION
PT1/4 4WAY 		1-09660-358-0 01 1 0710- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0812- ● ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0710- ● ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710- ● ●
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 0710- ● ●
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 0710- ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0710-0811 ● ●
434 CLIP
(D) L=350 		1-09707-183-0 01 1 0812- ● ●
434 CLIP
WHEEL BASE 4500MM(45W) (D) L=350 		1-09707-183-0 01 1 0812- ●
459 SWITCH; PRESS
(A) 		1-48340-066-0 01 1 0710- ● ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
