Isuzu WW
▶
TRUCKS
▶
CXY
▶
11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#14162) — 46 parça
Tümü
A - CXY5MC
B - CXY5MF
◀
[346A] KIT SET (7 parça)
[346A] FIXING (21 parça)
[346A] COMPONENT (18 parça)
▶

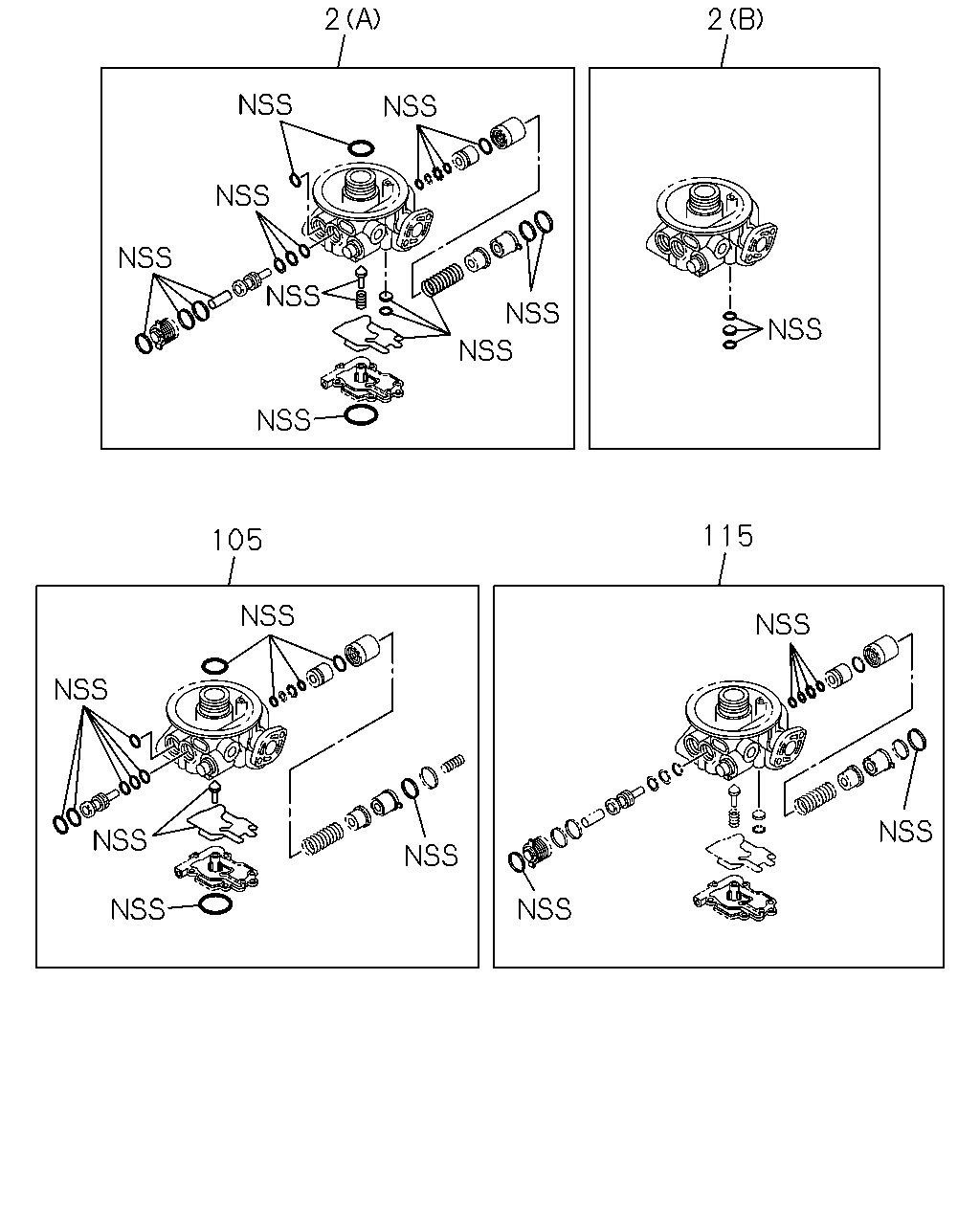

115
105
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; AIR DRYER
(B)
8-98302-391-0
01
1
1412-
●
●
2
REPAIR KIT; AIR DRYER
(A)
1-85576-398-0
01
1
0710-1102
●
●
2
REPAIR KIT; AIR DRYER
(A)
8-98161-324-0
01
1
1103-1401
●
●
2
REPAIR KIT; AIR DRYER
(A)
8-98185-664-0
01
1
1402-
●
●
105
SEAL KIT; AIR DRYER
1-85576-397-0
01
1
0710-1401
●
●
105
SEAL KIT; AIR DRYER
8-98185-665-0
01
1
1402-
●
●
115
REPAIR KIT; GOVERNOR,AIR DRYER
1-85576-400-0
01
1
0710-
●
●

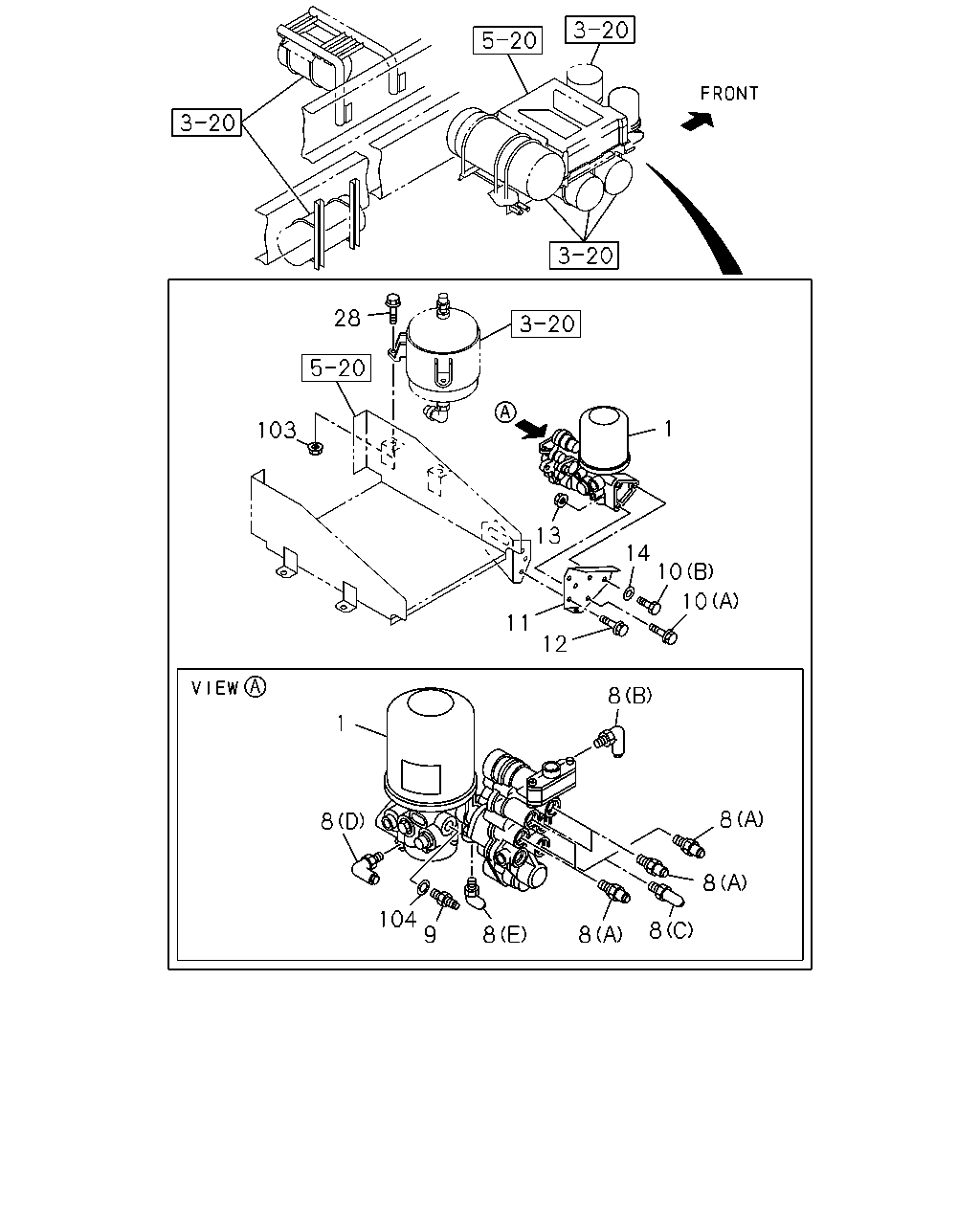

28
1
13
11
12
14
10
10
8
8
8
8
8
8
1
8
104
9
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-368-5
01
1
0710-1401
●
●
1
DRYER; AIR
8-98219-852-1
01
1
1402-
●
●
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
04
1
0710-1401
●
●
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
05
1
1402-1402
●
●
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
04
1
1402-
●
●
8
CONNECTOR; OUT,AIR DRYER
(E)
1-09661-499-0
01
1
0710-
●
●
8
CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW
1-09661-520-0
01
1
0710-
●
●
8
CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW
1-09661-521-0
01
1
0710-1401
●
●
8
CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW
1-09661-521-0
01
1
1402-
●
●
8
CONNECTOR; OUT,AIR DRYER
(D) DIN6 & M10 ELBOW
1-09661-574-0
01
1
0710-
●
●
9
CONNECTOR; PIPE,AIR DRYER
8-97618-539-0
01
1
0710-0803
●
●
9
CONNECTOR; PIPE,AIR DRYER
M22X2 STRAIGHT
8-98107-103-0
01
1
0804-
●
●
10
BOLT; AIR DRYER
(A) M12X50 FLANGE
0-28051-250-0
01
1
0710-
●
●
10
BOLT; AIR DRYER
(B) M12X25
1-09009-081-0
02
1
0710-
●
●
11
BRACKET; AIR DRYER
1-48316-019-0
01
1
0710-
●
●
12
BOLT; BRKT
M12X30 FLANGE
0-28651-230-0
03
1
0710-
●
●
13
NUT; AIR DRYER
M12 FLANGE
0-91180-212-0
01
1
0710-
●
●
14
WASHER; PL,AIR DRYER
ID=12.5 OD=22
0-91610-512-0
02
1
0710-
●
●
28
BOLT; PURGE TANK
M10X25 FLANGE
0-28651-025-0
02
1
0710-
●
●
103
NUT; PURGE TANK
M10 FLANGE
0-91180-210-0
02
1
0710-
●
●
104
GASKET
9-09572-022-0
01
1
0710-0803
●
●

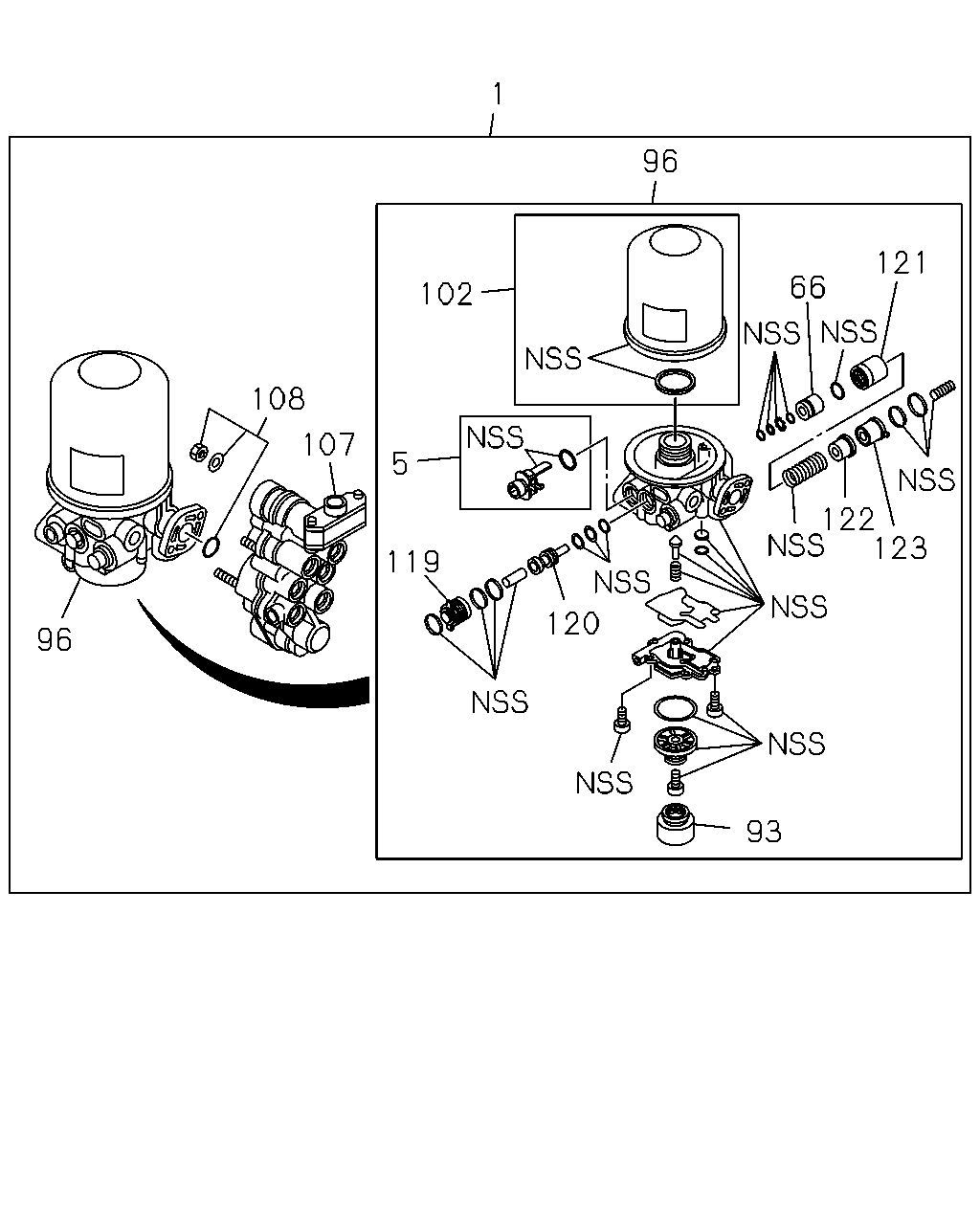

1
96
66
121
102
5
107
108
96
119
120
93
122
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-368-5
01
1
0710-1401
●
●
1
DRYER; AIR
8-98219-852-1
01
1
1402-
●
●
5
HEATER ASM; AIR DRYER
1-85576-363-0
01
1
0710-
●
●
66
PISTON; AIR DRYER
1-85576-475-0
01
1
0710-
●
●
93
SILENCER; AIR DRYER
1-85576-362-0
01
1
0710-1401
●
●
93
SILENCER; AIR DRYER
8-98219-823-0
01
1
1402-
●
●
96
DRYER KIT; AIR
1-85576-455-1
01
1
0710-1102
●
●
96
DRYER KIT; AIR
8-98161-322-1
01
1
1103-1401
●
●
96
DRYER KIT; AIR
8-98219-822-1
01
1
1402-
●
●
102
CARTRIDGE; AIR DRYER
1-85576-450-2
01
1
0710-
●
●
107
VALVE ASM; PROTECTION,AIR DRYER
1-85576-369-3
01
1
0710-
●
●
108
FIXING KIT; PROTECTION,AIR DRYER
1-85576-371-0
01
1
0710-
●
●
119
COVER; PURGE VALVE
1-85576-473-0
01
1
0710-
●
●
120
TAPPET
1-85576-474-0
01
1
0710-1401
●
●
120
TAPPET
8-98185-666-0
01
1
1402-
●
●
121
HOLDER; SPRING
1-85576-476-0
01
1
0710-
●
●
122
SEAT; SPRING
1-85576-477-0
01
1
0710-
●
●
123
COVER; GOVERNER
1-85576-478-0
01
1
0710-
●
●
