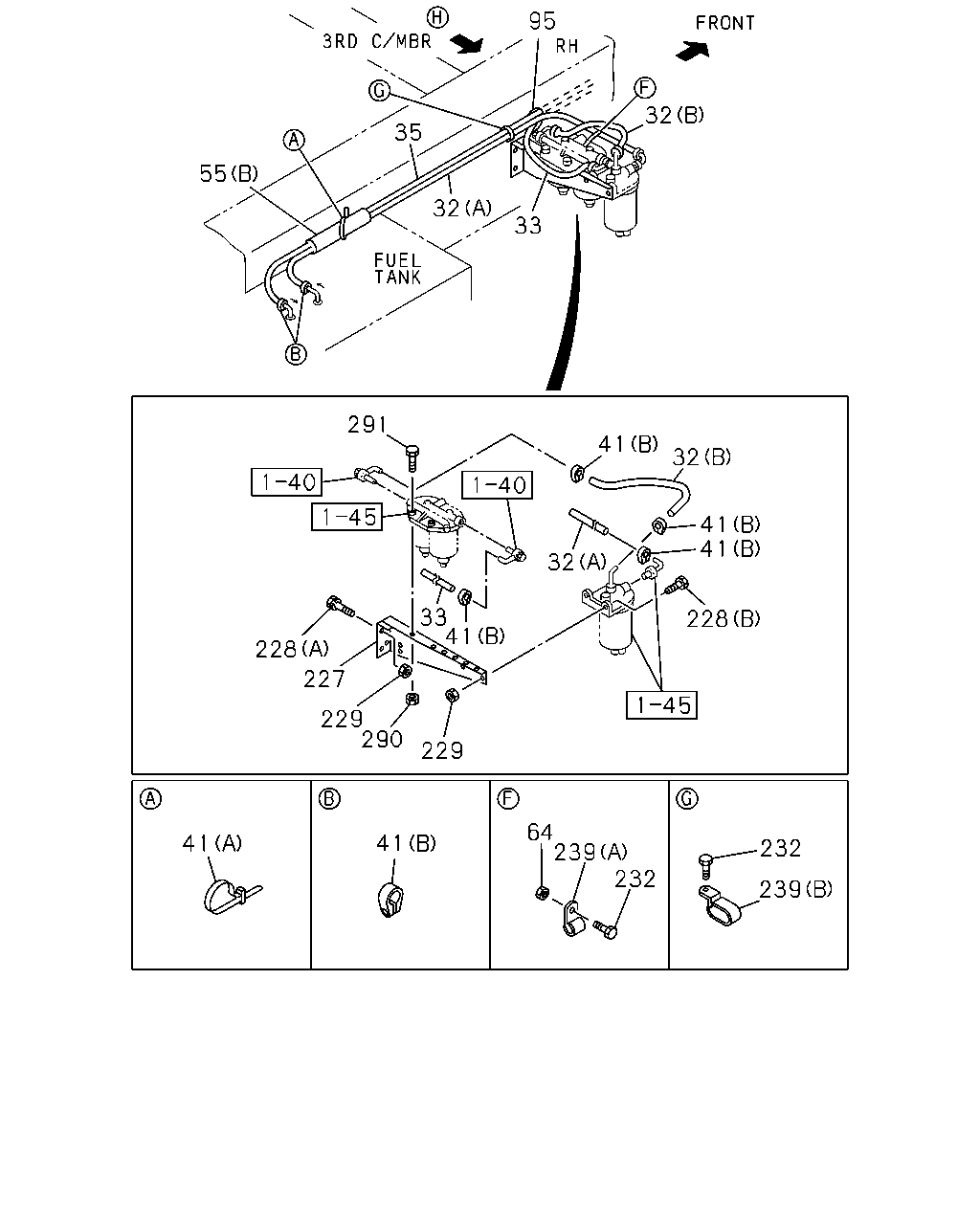

1-41 — FUEL PIPING; CHASSIS (#1416) — 38 parça

95 32 35 55 32 33 291 41 32 41 41 32 33 41 228 228 227 229 290 229 64 239 232 41 41 232 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (B) L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9203-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9203-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L MCSR(PK6) (A) L=1050 SERVICED BY L=10000	9-09914-701-0	01	1	9203-	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1900 SERVICED BY L=10000	9-09914-701-0	01	1	9203-	●	●
35	PIPE; FUEL TANK,RETURN L=2350 SERVICED BY L=10000	1-09366-161-0	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D)	1-09700-926-0	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E)	1-09700-927-0	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A)	1-09707-126-0	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C)	1-15419-210-1	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B)	9-09715-098-0	08	1	9203-	●	●
55	COVER; PIPE,FUEL TANK (A) L=900	1-09360-622-1	01	1	9203-	●	●
55	COVER; PIPE,FUEL TANK (B) L=150	1-09369-006-1	01	1	9203-	●	●
64	NUT; CLIP M8	9-09110-408-0	01	1	9203-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9203-	●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-137-2	01	1	9203-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X30 W/LK WASHER	0-50041-030-0	04	1	9203-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9203-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-410-0	06	1	9203-9404	●	●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28010-816-0	01	1	9203-9204	●	●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28010-820-0	01	1	9203-9204	●	●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9203-9204	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9205-9209	●	●
239	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	02	1	9210-	●	●
239	CLIP; FUEL PIPE (A) ID=31 L=30	1-09700-969-0	04	1	9203-9204	●	●
290	NUT; FILTER TO BRKT M10	9-09110-410-0	02	1	9203-	●	●
291	BOLT; FILER TO BRKT M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9203-	●	●

55 83 80 83 80 80 83 41 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (D)	1-09700-926-0	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E)	1-09700-927-0	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A)	1-09707-126-0	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C)	1-15419-210-1	01	1	9203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B)	9-09715-098-0	08	1	9203-	●	●
55	COVER; PIPE,FUEL TANK (A) L=900	1-09360-622-1	01	1	9203-	●	●
55	COVER; PIPE,FUEL TANK (B) L=150	1-09369-006-1	01	1	9203-	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28010-825-0	03	1	9203-9204	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
83	NUT; CLIP,FUEL TANK M8	9-09110-408-0	03	1	9203-	●	●
