3-26 — TRAILER CONTROL (#14158) — 96 parça

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	0710-	●	●

1 1 4 5 7 8 6 9 10 11 12 13 14 15 20 21 22 16 17 25 23 18 24 19 25 24 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-848-0	01	1	0710-	●	●
4	HANDLE ASM; BRK VLV	1-48119-517-0	01	1	0710-	●	●
5	GASKET; HANDLE	1-48119-128-0	01	1	0710-	●	●
6	PIN; SPR	1-48119-143-0	01	1	0710-	●	●
7	HEAD; BRK VLV (A)	1-48119-131-1	01	1	0710-	●	●
7	HEAD; BRK VLV (B)	1-48469-195-0	01	1	0710-	●	●
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	0710-	●	●
8	STOPPER; BRK VLV (B)	1-48469-194-0	01	1	0710-	●	●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0710-	●	●
10	RING; ADJ	1-48119-122-0	01	1	0710-	●	●
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0710-	●	●
12	COVER; BRK VLV	1-48129-097-1	01	1	0710-	●	●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0710-	●	●
14	FOLLOWER; CAM	1-48129-135-0	01	1	0710-	●	●
15	CAM; FOLLOWER	1-48129-134-0	01	1	0710-	●	●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0710-	●	●
17	PISTON; SPR	1-48129-095-0	01	1	0710-	●	●
18	GASKET; BODY	1-48129-096-0	01	1	0710-	●	●
19	SPRING; PISTON	1-48129-094-0	01	1	0710-	●	●
20	GUIDE; VLV	1-48129-090-0	01	1	0710-	●	●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0710-	●	●
22	SPRING; VLV	1-48123-024-0	01	1	0710-	●	●
23	BODY; BRK VLV	1-48111-060-1	01	1	0710-	●	●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0710-	●	●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0710-	●	●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0710-	●	●

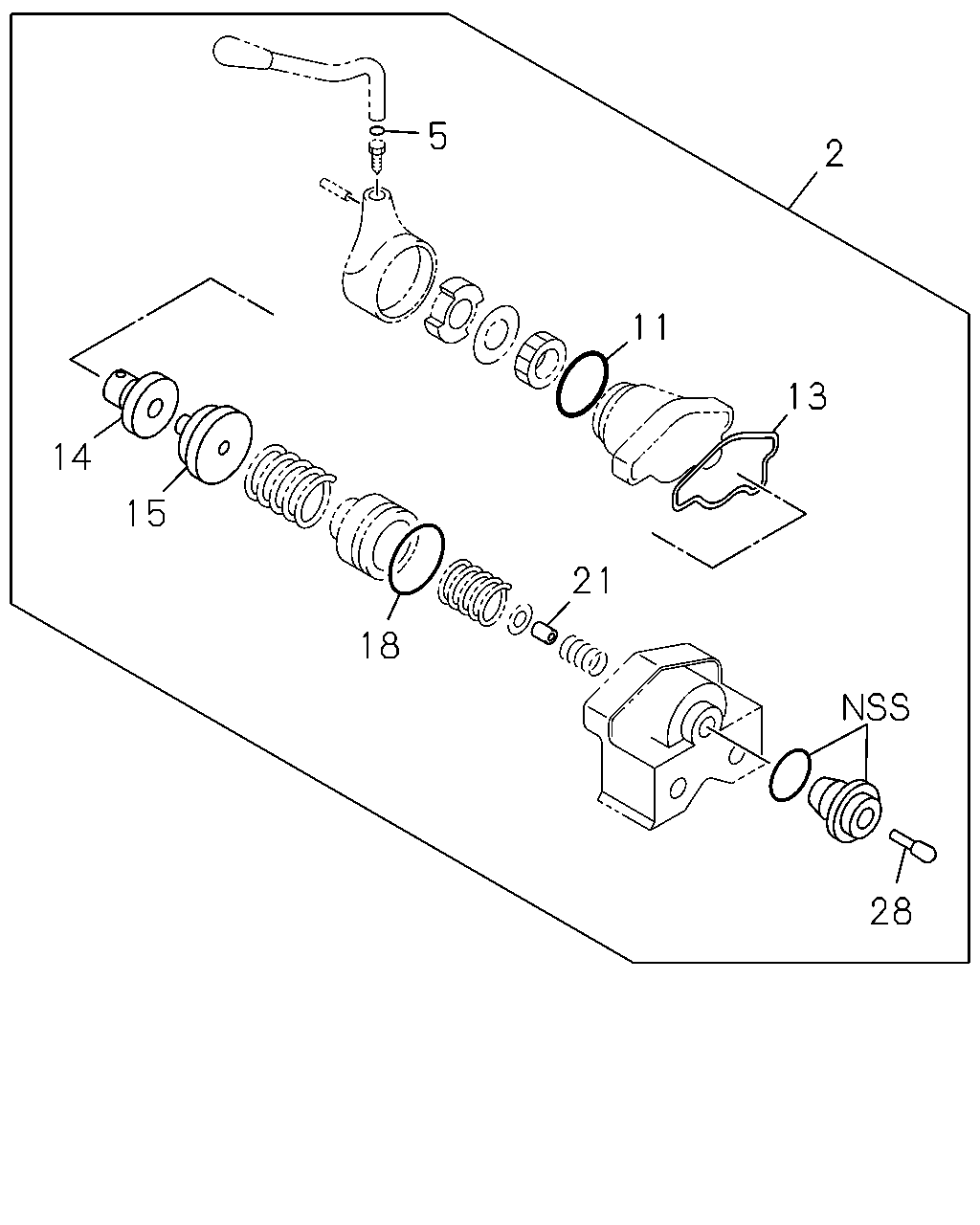

5 2 11 13 14 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; HAND BRK VLV	1-85576-181-0	01	1	0710-	●	●
5	GASKET; HANDLE	1-48119-128-0	01	1	0710-	●	●
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0710-	●	●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0710-	●	●
14	FOLLOWER; CAM	1-48129-135-0	01	1	0710-	●	●
15	CAM; FOLLOWER	1-48129-134-0	01	1	0710-	●	●
18	GASKET; BODY	1-48129-096-0	01	1	0710-	●	●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0710-	●	●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0710-	●	●

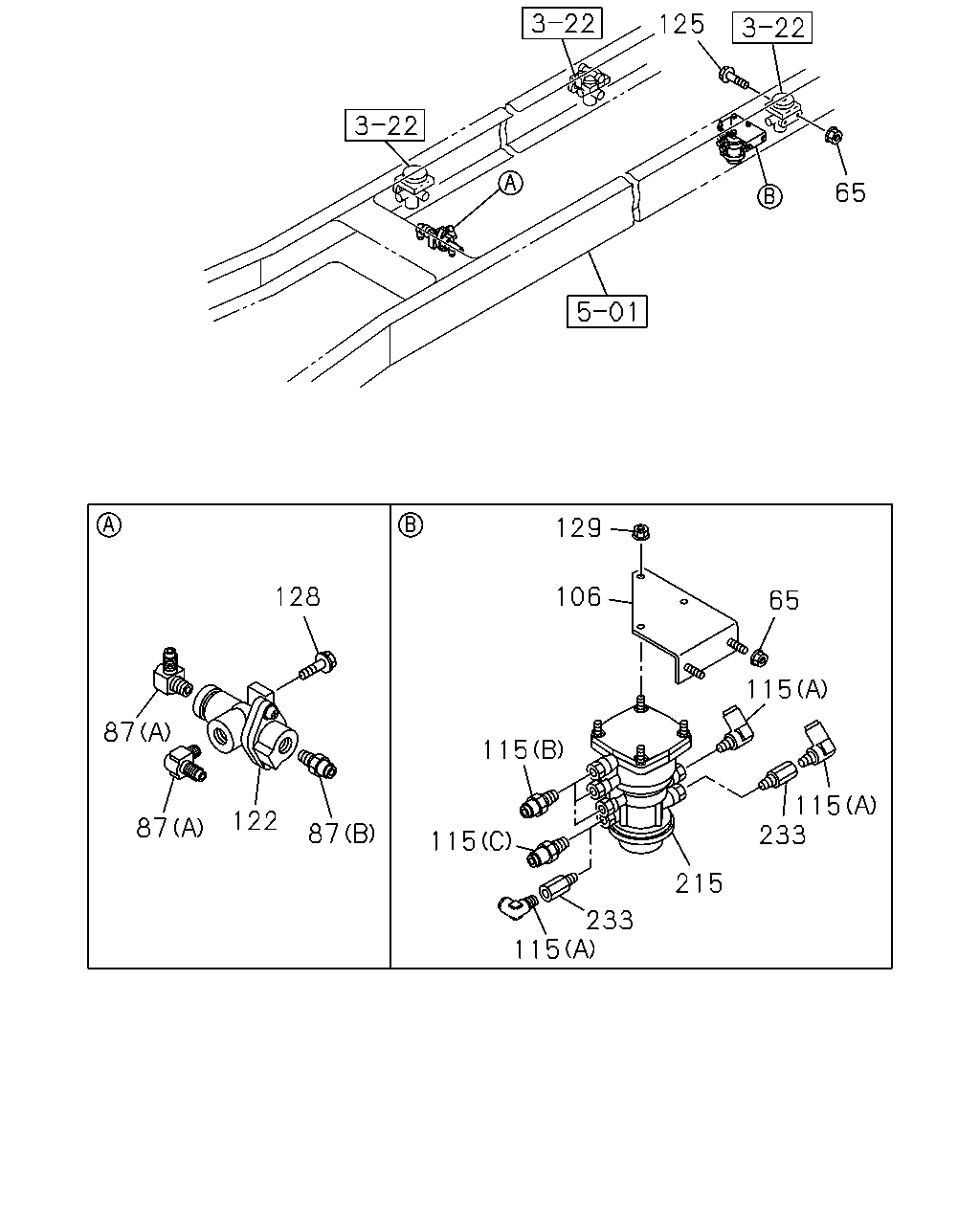

125 65 129 106 128 65 115 87 115 115 233 122 87 87 115 215 233 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0710-1001	●	●
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	1002-	●	●
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	1002-	●	●
87	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-	●	●
87	CONNECTOR; DBL CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0710-	●	●
106	BRACKET; VLV	1-48495-282-1	01	1	0710-0907	●	●
106	BRACKET; VLV	8-98110-679-1	01	1	0908-1001	●	●
106	BRACKET; VLV	8-98165-246-0	01	1	1002-	●	●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-1001	●	●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1002-	●	●
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0710-	●	●
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0710-1001	●	●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	0710-	●	●
125	BOLT; RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	1002-	●	●
128	BOLT; VLV M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	0710-	●	●
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	0710-1001	●	●
233	ADAPTER; VLV PT3/8	1-48319-058-0	02	1	1002-	●	●

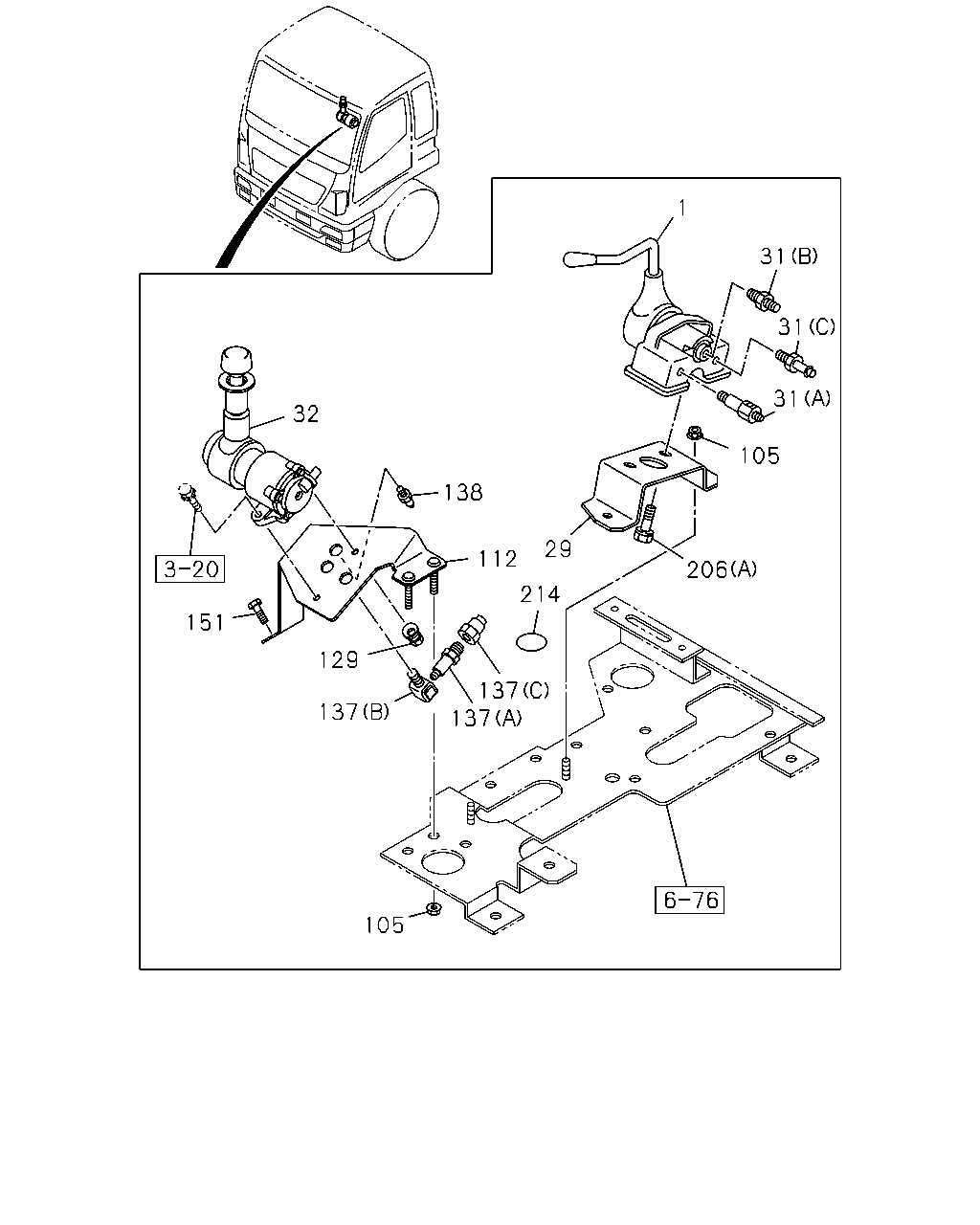

1 31 31 31 32 105 138 29 112 214 151 129 137 137 137 105 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-848-0	01	1	0710-	●	●
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0710-	●	●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0710-	●	●
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0710-	●	●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0710-	●	●
32	VALVE; BRK,HAND CONT	1-48460-340-1	01	1	0710-	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
112	BRACKET; CONT VLV	1-79996-387-0	01	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	0710-	●	●
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0710-	●	●
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0710-	●	●
138	CONNECTOR; DELIVERY DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-	●	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0710-	●	●
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	0710-	●	●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0710-	●	●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0710-	●	●

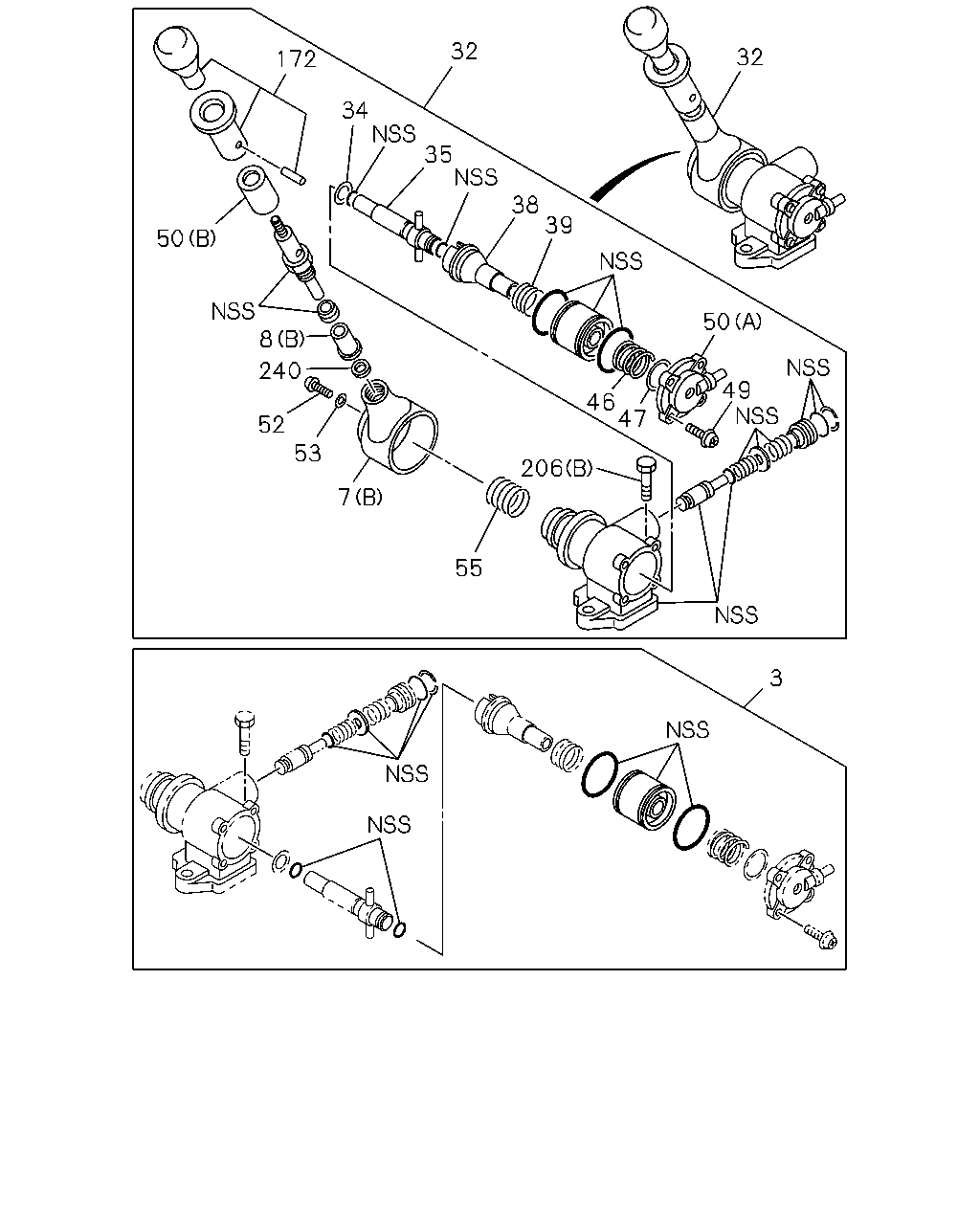

32 32 172 34 35 38 39 50 8 50 240 49 46 47 52 53 7 55 3 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV	1-85576-375-0	01	1	0710-	●	●
7	HEAD; BRK VLV (A)	1-48119-131-1	01	1	0710-	●	●
7	HEAD; BRK VLV (B)	1-48469-195-0	01	1	0710-	●	●
8	STOPPER; BRK VLV (A)	1-48119-239-0	01	1	0710-	●	●
8	STOPPER; BRK VLV (B)	1-48469-194-0	01	1	0710-	●	●
32	VALVE; BRK,HAND CONT	1-48460-340-1	01	1	0710-	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0710-	●	●
35	HOLDER; CAM	1-48469-148-0	01	1	0710-	●	●
38	SEAT; EXH VLV	1-48469-149-0	01	1	0710-	●	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0710-	●	●
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	0710-	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0710-	●	●
49	SCREW; COVER	1-48469-169-0	04	1	0710-	●	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0710-	●	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0710-	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0710-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0710-	●	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0710-	●	●
172	KNOB; VALVE	1-48469-204-0	01	1	0710-	●	●
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	0710-	●	●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0710-	●	●
240	RING; STOPPER	1-48469-193-0	01	1	0710-	●	●
