◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#14157) — 466 parça

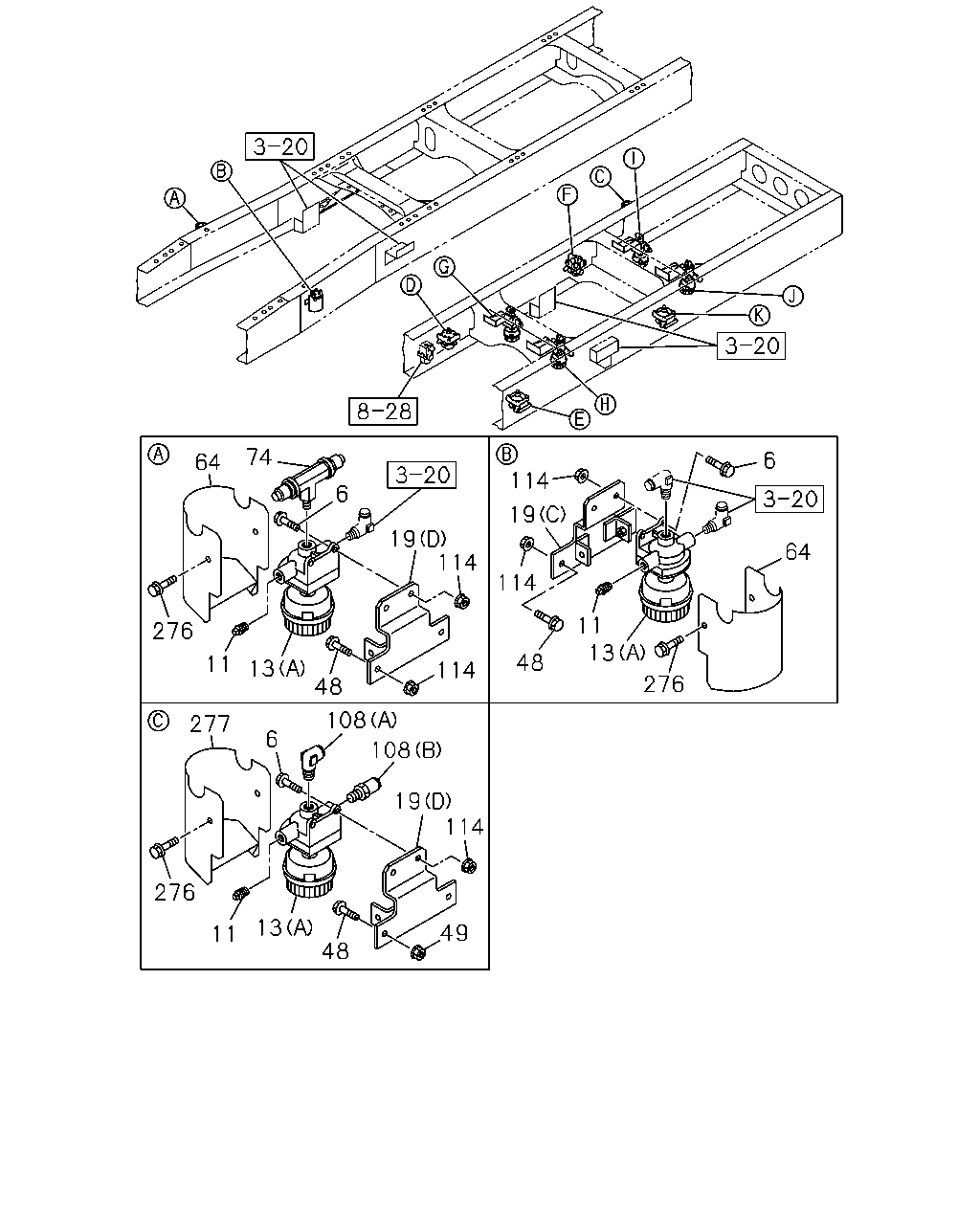

çizim 142091
114 74 6 64 6 19 19 114 64 114 11 13 276 48 11 13 48 114 276 108 277 6 108 19 114 276 13 48 49 11
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 08 1 0710- ● ●
6 BOLT; VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 0710- ● ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 0710- ● ●
11 PLUG
PT3/8 		9-09204-517-0 02 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 02 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 04 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 0710-1008 ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		8-98170-207-0 02 1 1009- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(C) 		1-47471-448-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 0710-1107 ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 1108-1108 ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98179-173-0 02 1 1108- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98075-267-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98075-267-0 02 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(E) 		8-98075-268-0 02 1 0710-1107 ● ●
19 BRACKET; QUICK RELEASE VLV
(E) 		8-98075-268-0 02 1 1108- ● ●
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 04 1 0710- ● ●
49 NUT; QUICK RELEASE VLV
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 02 1 0710- ● ●
74 CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 0710- ● ●
108 CONNECTOR; ELBOW
WHEEL BASE 5100MM(51W) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ●
108 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0811 ●
108 CONNECTOR; ELBOW
MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0812- ●
108 CONNECTOR; ELBOW
WHEEL BASE 6600MM(66W) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0812- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-1107 ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-1107 ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ●
277 PROTECTOR; VLV 8-98043-421-0 01 1 0710- ● ●

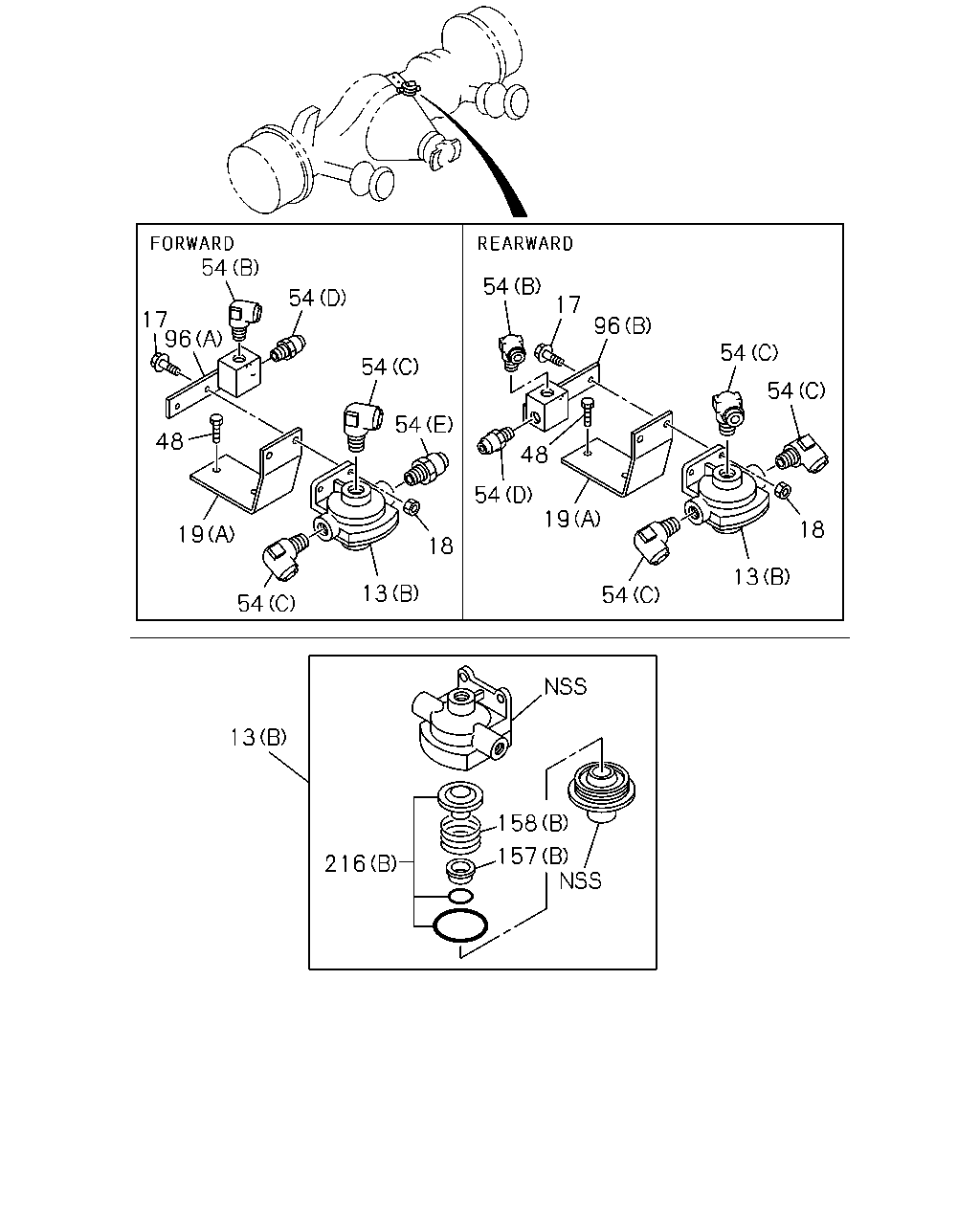

çizim 142093
54 54 54 17 17 96 96 54 54 54 54 48 48 54 19 18 19 18 13 13 54 54 13 158 157 216
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 02 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 04 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 0710-1008 ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		8-98170-207-0 02 1 1009- ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 04 1 0710-0711 ● ●
17 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0712- ● ●
18 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(C) 		1-47471-448-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 0710-1107 ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 1108-1108 ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98179-173-0 02 1 1108- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98075-267-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98075-267-0 02 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(E) 		8-98075-268-0 02 1 0710-1107 ● ●
19 BRACKET; QUICK RELEASE VLV
(E) 		8-98075-268-0 02 1 1108- ● ●
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 04 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(A) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(A) M27 & PT3/8 ELBOW 		1-09660-136-1 04 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1107 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1108-1108 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1108- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 09 1 0710-1107 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 09 1 1108-1108 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1108- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
96 BRACKET
(A) 		1-47470-597-0 01 1 0710- ● ●
96 BRACKET
(B) 		1-47470-598-0 01 1 0710- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 1108- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0810 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710-0810 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 03 1 1108- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 0710- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 0710-1008 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1009-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1008 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 04 1 1108- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0810 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710-0810 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 1108- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 01 1 0710-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 01 1 0710-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 02 1 0710-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 02 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 04 1 0710-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 04 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 02 1 0710-1008 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		8-98171-596-0 02 1 1009- ● ●

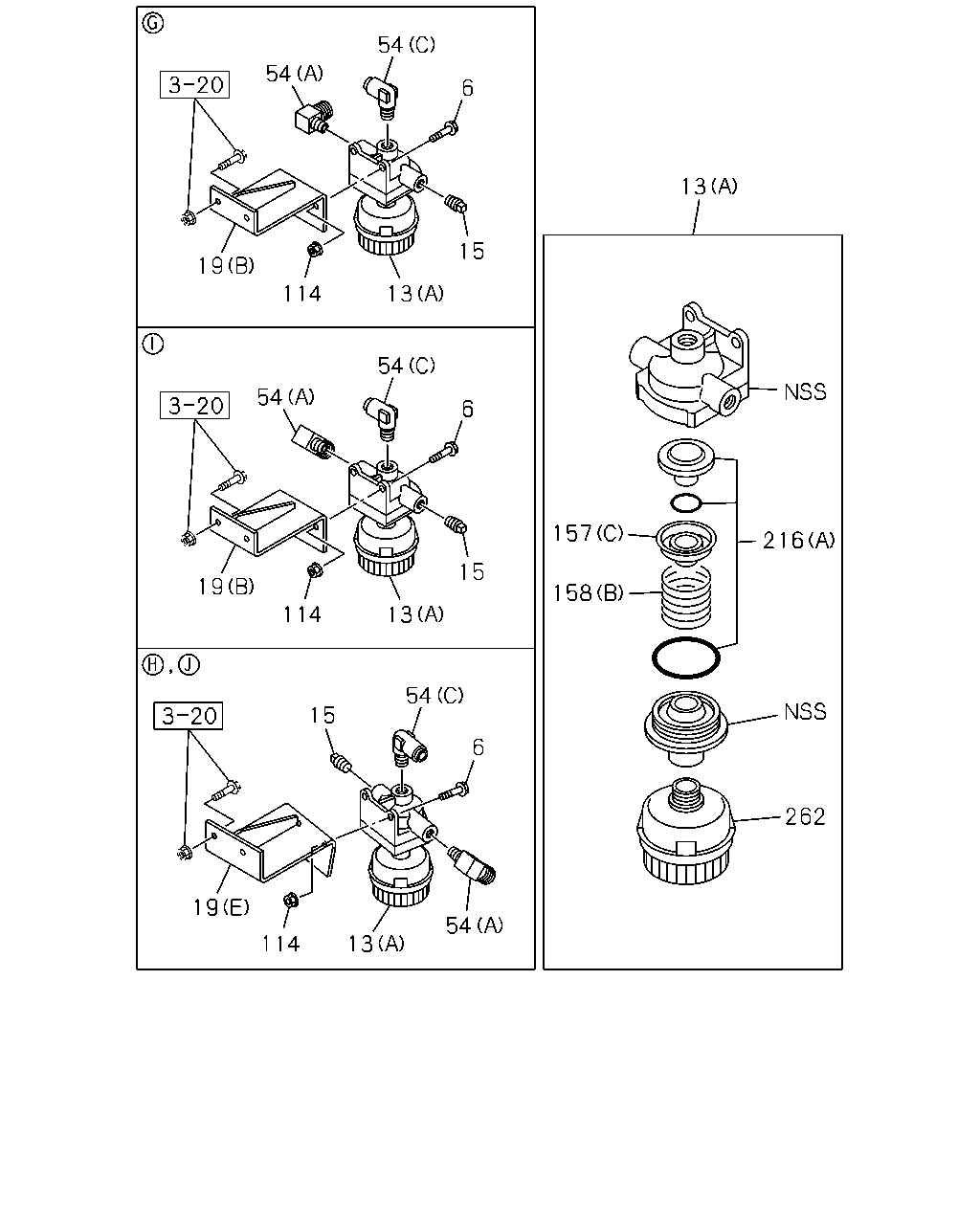

çizim 142101
54 54 6 1 15 19 13 114 54 54 6 157 216 15 19 158 13 114 54 15 6 262 19 54 13 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(A) 		1-48210-997-0 01 1 0710- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-469-0 01 1 0710- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 08 1 0710- ● ●
6 BOLT; VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 02 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 04 1 0710- ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 0710-1008 ● ●
13 VALVE ASM; QUICK RELEASE
(B) 		8-98170-207-0 02 1 1009- ● ●
15 PLUG; VALVE
PT3/8 		9-09204-517-0 01 1 0710- ● ●
15 PLUG; VALVE
PT3/8 		9-09204-517-0 04 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(D) 		1-47471-014-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(C) 		1-47471-448-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 0710-1107 ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98069-343-0 02 1 1108-1108 ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		8-98179-173-0 02 1 1108- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98075-267-0 01 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98075-267-0 02 1 0710- ● ●
19 BRACKET; QUICK RELEASE VLV
(E) 		8-98075-268-0 02 1 0710-1107 ● ●
19 BRACKET; QUICK RELEASE VLV
(E) 		8-98075-268-0 02 1 1108- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(A) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(A) M27 & PT3/8 ELBOW 		1-09660-136-1 04 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1107 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1108-1108 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1108- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 09 1 0710-1107 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 09 1 1108-1108 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1108- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-1107 ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-1107 ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 1108- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0810 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710-0810 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 03 1 1108- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 0710- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 0710-1008 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1009-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1008 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 04 1 1108- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0810 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710-0810 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 1108- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 01 1 0710-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 01 1 0710-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 02 1 0710-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 02 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 04 1 0710-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 04 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 02 1 0710-1008 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		8-98171-596-0 02 1 1009- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 03 1 0710-0810 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0811-1001 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0811-1001 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1002-1107 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1002-1107 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1002-1107 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 04 1 1108- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 04 1 1108- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0810 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0810 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0811-1001 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0811-1001 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0811-1001 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1002- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1002- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1002- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1002- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710-0810 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 06 1 0710-1107 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 06 1 1108-1108 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1108- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1108- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1108- ●

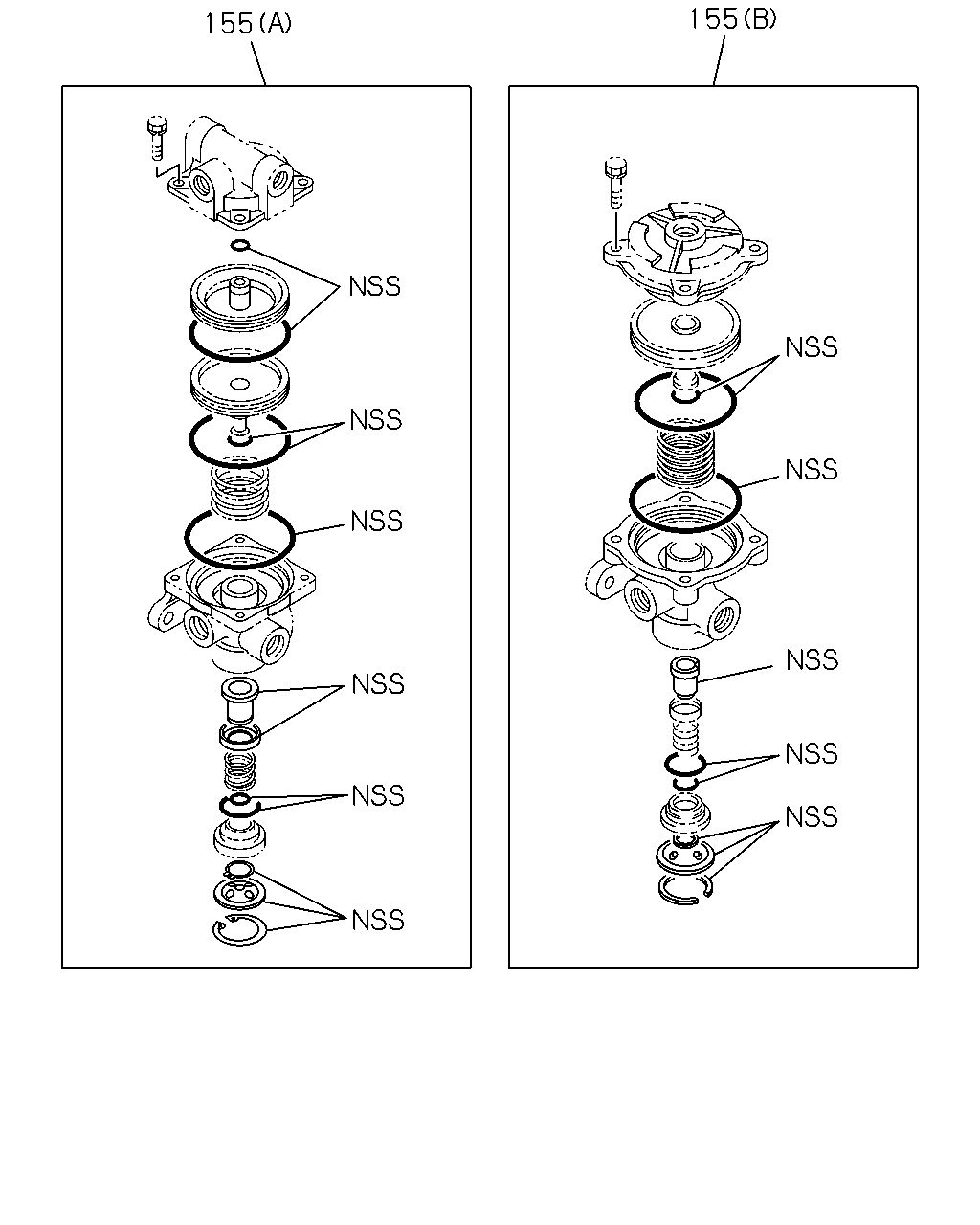

çizim 142104
155 155
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 02 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 0710-1001 ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 0710-1001 ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 1002- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 1002- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-453-0 01 1 0710- ● ●

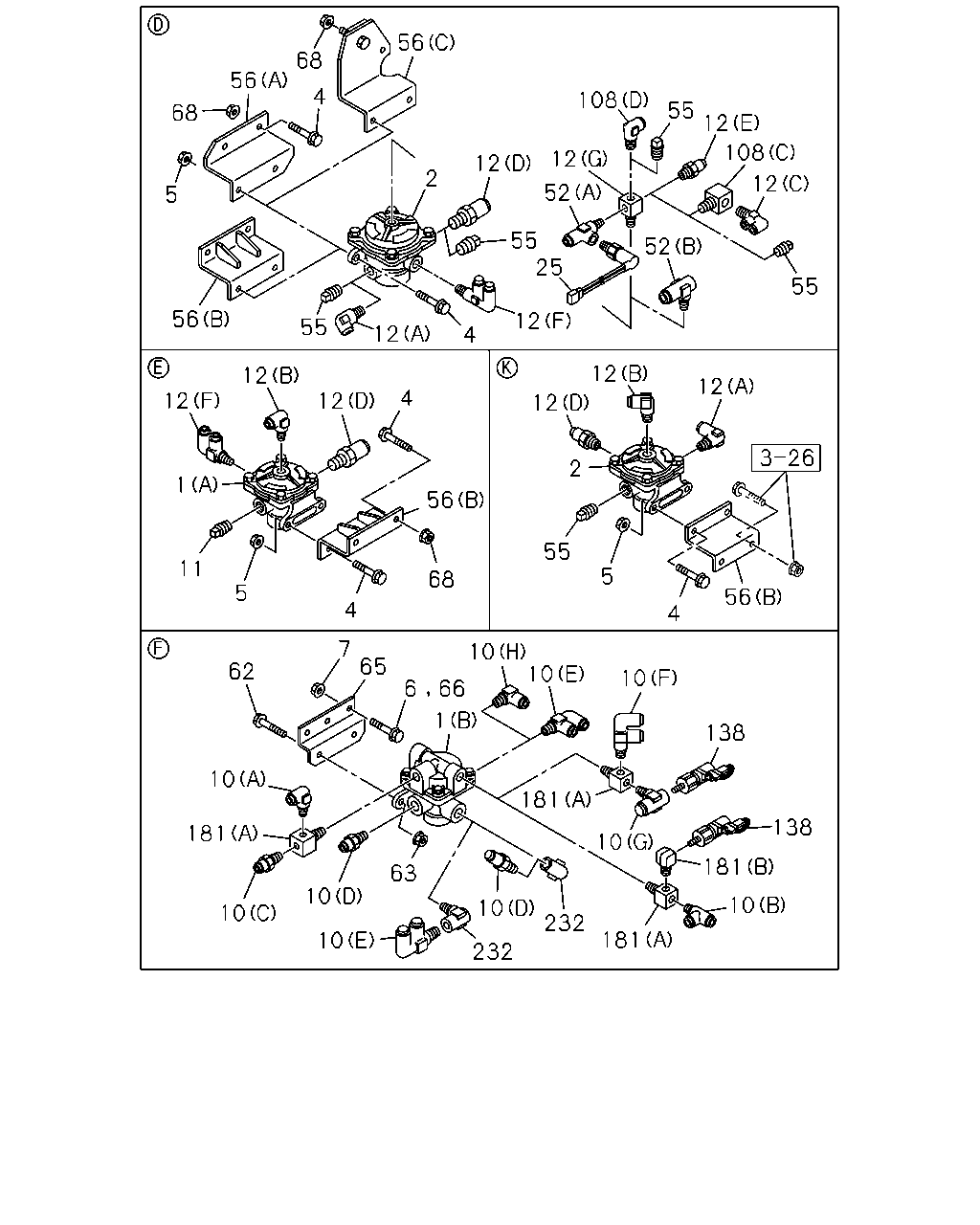

çizim 142111
56 68 56 4 108 55 68 12 108 12 12 2 12 52 5 55 25 52 55 56 12 55 12 4 2 12 12 4 12 12 12 2 1 56 55 11 5 68 5 56 4 4 7 10 10 65 62 10 6 66 1 138 10 181 138 181 10 181 63 10 10 10 232 10 181 10 232
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(A) 		1-48210-997-0 01 1 0710- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-469-0 01 1 0710- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 0710- ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710- ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 4500MM(45W) M10X35 FLANGE 		0-28651-035-0 05 1 0812- ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0810 ● ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M10X35 FLANGE 		0-28651-035-0 04 1 0811-1001 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1002- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1002- ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1002- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-1001 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-1001 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1002- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1002- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1002- ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1107 ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 08 1 0710- ● ●
6 BOLT; VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
10 CONNECTOR
(F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1002- ● ●
10 CONNECTOR
(G) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 1002- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0811 ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0812- ● ●
10 CONNECTOR
WHEEL BASE 4500MM(45W) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0812- ●
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710- ● ●
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710-1001 ● ●
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1002- ● ●
10 CONNECTOR
(B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-1001 ● ●
10 CONNECTOR
(H) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1002- ● ●
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ● ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 0710- ● ●
11 PLUG
PT3/8 		9-09204-517-0 01 1 0710- ● ●
11 PLUG
PT3/8 		9-09204-517-0 02 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1002- ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-0811 ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-0811 ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0812- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0812- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0812- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 5100MM(51W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0710-1107 ●
12 CONNECTOR; RELAY VLV
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1108- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1108- ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0810 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0810 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0810 ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0811-1001 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 5100MM(51W) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0811-1001 ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0811-1001 ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0811-1001 ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1002- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 5100MM(51W) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1002- ●
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-0810 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 5100MM(51W) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0811-1001 ●
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0811-1001 ●
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1002- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 5100MM(51W) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1002- ●
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1002- ●
12 CONNECTOR; RELAY VLV
(E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-0811 ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) (E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0812- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 6600MM(66W) (E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0812- ●
12 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (G) PT3/8 4WAY 		1-09661-489-0 01 1 0710- ● ●
25 SWITCH; PRESSURE
MJX12P M/T SMOOTHER-G(Y4S) 		8-97383-820-1 01 1 0710- ● ●
52 CONNECTOR; RELAY VLV
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) DIN12 & R3/8 & RC3/8 3WAY 		1-09661-232-0 01 1 0710- ●
52 CONNECTOR; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) (A) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 0710- ● ●
55 PLUG; SUPPLY
TRANSMISSION-FULLER RTLO189 18(Y4W) PT3/8 		9-09204-517-0 02 1 0710-1001 ● ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 0710-1001 ●
55 PLUG; SUPPLY
MJX12P M/T SMOOTHER-G(Y4S) PT3/8 		9-09204-517-0 02 1 1002- ● ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 0710-0811 ● ●
55 PLUG; SUPPLY
TRANSMISSION-FULLER RTLO189 18(Y4W) PT3/8 		9-09204-517-0 01 1 0710-0811 ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 0710-0811 ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 0812-1001 ● ●
55 PLUG; SUPPLY
TRANSMISSION-FULLER RTLO189 18(Y4W) WHEEL BASE 5100MM(51W) PT3/8 		9-09204-517-0 01 1 0812-1001 ●
55 PLUG; SUPPLY
MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) PT3/8 		9-09204-517-0 01 1 0812-1001 ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 0812-1001 ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 1002- ●
55 PLUG; SUPPLY
TRANSMISSION-FULLER RTLO189 18(Y4W) WHEEL BASE 5100MM(51W) PT3/8 		9-09204-517-0 01 1 1002- ●
55 PLUG; SUPPLY
MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) PT3/8 		9-09204-517-0 01 1 1002- ●
56 BRACKET; RELAY VLV
(B) 		8-98075-275-0 02 1 1002- ●
56 BRACKET; RELAY VLV
MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) (C) 		8-98097-495-0 01 1 0812- ●
56 BRACKET; RELAY VLV
WHEEL BASE 5100MM(51W) (A) 		8-98090-416-0 01 1 0710- ●
56 BRACKET; RELAY VLV
(B) 		8-98075-275-0 01 1 0710-1001 ● ●
56 BRACKET; RELAY VLV
(B) 		8-98075-275-0 01 1 0710-1001 ● ●
56 BRACKET; RELAY VLV
(B) 		8-98075-275-0 01 1 0710-1001 ●
56 BRACKET; RELAY VLV
(B) 		8-98075-275-0 01 1 1002- ● ●
56 BRACKET; RELAY VLV
(B) 		8-98075-275-0 01 1 1002- ●
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
65 BRACKET; RELAY VLV RR 8-98075-291-0 01 1 0710- ● ●
66 BOLT; BRKT,RELAY VLV RR
M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
68 NUT; RELAY VLV TO BRKT
WHEEL BASE 4500MM(45W) M10 FLANGE 		0-91180-210-0 03 1 0812- ●
68 NUT; RELAY VLV TO BRKT
WHEEL BASE 4500MM(45W) M12 FLANGE 		0-91180-212-0 01 1 0812- ●
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0810 ● ●
68 NUT; RELAY VLV TO BRKT
WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M10 FLANGE 		0-91180-210-0 04 1 0811- ● ●
108 CONNECTOR; ELBOW
WHEEL BASE 5100MM(51W) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ●
108 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0811 ●
108 CONNECTOR; ELBOW
MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0812- ●
108 CONNECTOR; ELBOW
WHEEL BASE 6600MM(66W) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0812- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0710- ● ●
181 ADAPTER; PRESSURE SW
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-1001 ● ●
181 ADAPTER; PRESSURE SW
(A) PT3/8 3WAY 		1-09661-300-0 02 1 0710- ● ●
232 VALVE; CHECK 1-48320-031-1 01 1 0710- ● ●

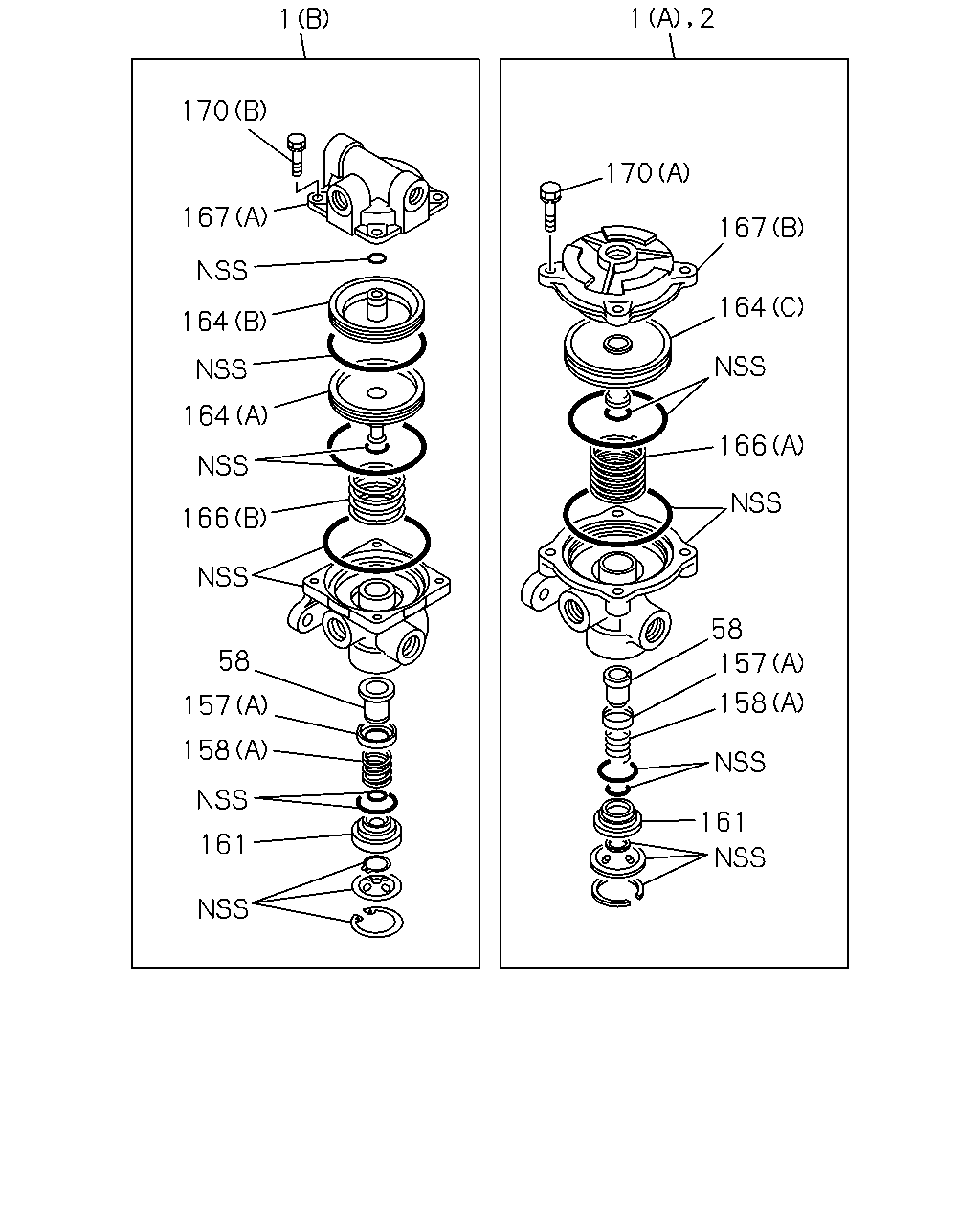

çizim 142117
2 1 1 170 170 167 167 164 164 164 166 166 58 58 157 158 157 158 161 161
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(A) 		1-48210-997-0 01 1 0710- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-469-0 01 1 0710- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 0710- ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710- ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710- ●
58 ADAPTER 1-48219-154-0 02 1 1002- ●
58 ADAPTER 1-48219-154-0 01 1 0710-0810 ● ●
58 ADAPTER 1-48219-154-0 01 1 0811-1001 ● ●
58 ADAPTER 1-48219-154-0 01 1 0811-1001 ● ●
58 ADAPTER 1-48219-154-0 01 1 0811-1001 ● ●
58 ADAPTER 1-48219-154-0 01 1 1002- ● ●
58 ADAPTER 1-48219-154-0 01 1 1002- ● ●
58 ADAPTER 1-48219-154-0 01 1 1002- ●
58 ADAPTER 1-48219-154-0 01 1 1002- ●
58 ADAPTER 1-48219-154-0 02 1 0710-0810 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 1108- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0810 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0811-1001 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1002- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710-0810 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0710-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 03 1 1108- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 02 1 0710- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 04 1 0710-1008 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1009-1107 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 06 1 1108-1108 ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 1108- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1008 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 04 1 1108- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0810 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0811-1001 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1002- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710-0810 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 1108- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0710-1107 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 1108-1108 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1108- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 1002- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-0810 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0811-1001 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0811-1001 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0811-1001 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1002- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1002- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1002- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1002- ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0710-0810 ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 02 1 1002- ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0710-1001 ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0710-1001 ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1002- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1002- ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1002- ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0710- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0710- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 02 1 1002- ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0710-1001 ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0710-1001 ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1002- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1002- ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1002- ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0710- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1002- ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0710-1001 ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0710-1001 ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1002- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1002- ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1002- ●
167 COVER; VALVE
(B) 		1-48219-050-1 01 1 0710- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 08 1 1002- ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0710-1001 ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0710-1001 ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1002- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1002- ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1002- ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
