Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#14156) — 298 parça

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0710-	●	●

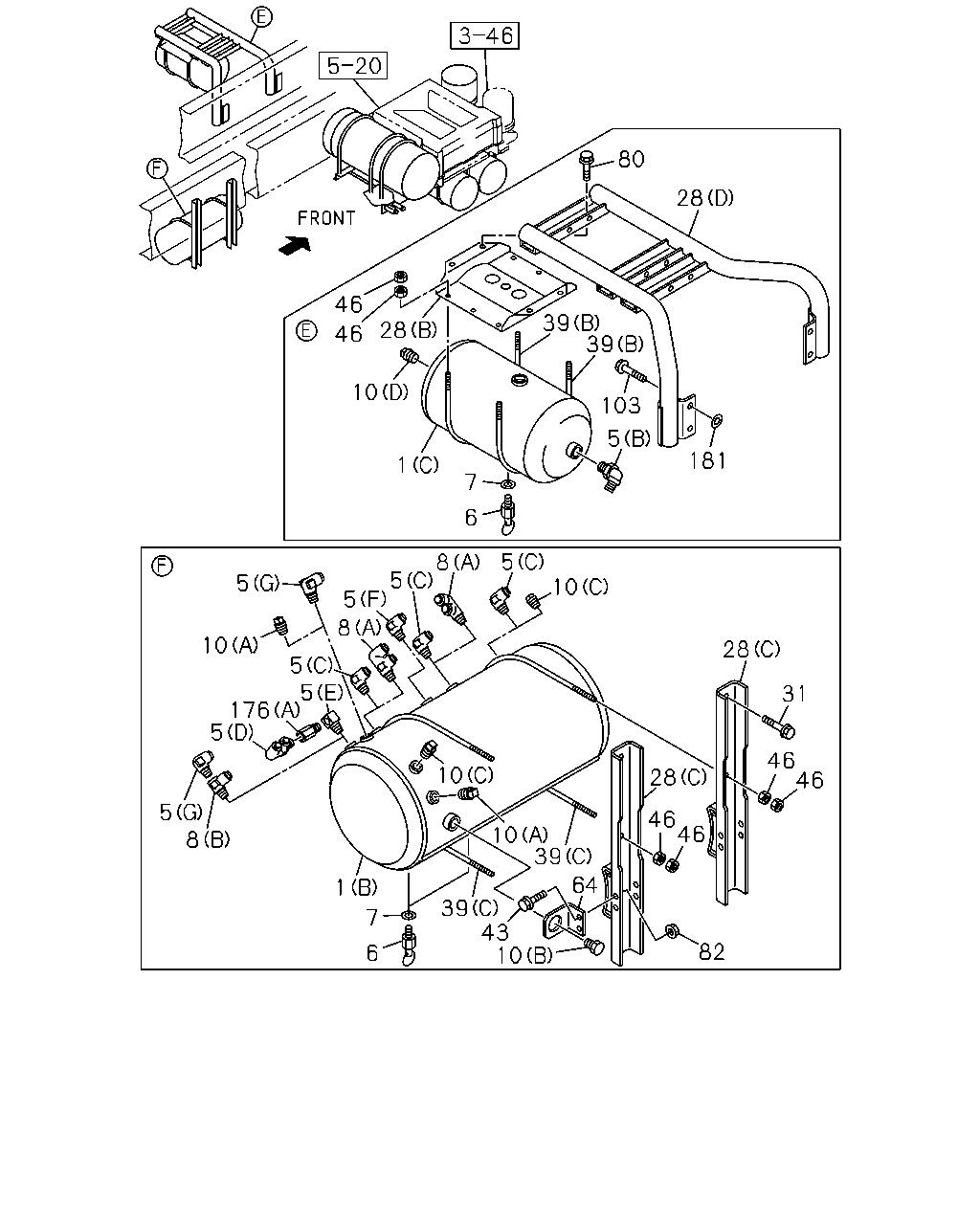

80 28 46 39 39 28 46 10 103 5 181 1 7 6 5 8 5 5 5 10 8 10 28 5 5 31 176 5 46 46 10 28 5 8 46 46 10 39 64 1 39 43 10 7 82 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (C)	1-48371-165-3	01	1	0710-	●	●
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	0710-	●	●
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	0710-	●	●
5	UNION; AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	0710-0810	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W) (E) PT3/8 ELBOW	1-09660-696-0	01	1	0811-1107	●
5	UNION; AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	0811-1107		●
5	UNION; AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	1108-	●	●
5	UNION; AIR TANK (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-0810	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-0810	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0811-	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0811-	●	●
5	UNION; AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-0810	●	●
5	UNION; AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-0810	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0811-	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0811-	●	●
5	UNION; AIR TANK (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0710-	●	●
5	UNION; AIR TANK (A)	1-09661-550-0	02	1	0710-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	04	1	0908-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	01	1	0710-0810	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	03	1	0811-0907	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W)	1-48312-017-0	03	1	0908-	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	02	1	0710-0810	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	01	1	0811-0907	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W)	1-48312-017-0	01	1	0811-0907	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5100MM(51W)	1-48312-017-0	01	1	0908-	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	01	1	0908-		●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	04	1	0710-0810	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5100MM(51W)	1-48312-017-0	02	1	0811-	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	02	1	0811-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0908-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0810	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0811-0907	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) ID=14	1-09630-145-0	03	1	0908-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0710-0810	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0811-0907	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	0811-0907	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5100MM(51W) ID=14	1-09630-145-0	01	1	0908-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0908-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0710-0810	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5100MM(51W) ID=14	1-09630-145-0	02	1	0811-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0811-		●
8	CONNECTOR; AIR TANK WHEEL BASE 4500MM(45W) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0812-	●
8	CONNECTOR; AIR TANK WHEEL BASE 4500MM(45W) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0812-	●
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) (C) PT3/8	9-09204-517-0	02	1	0812-	●
10	PLUG; AIR TANK (B) M22	1-09661-502-0	01	1	0710-	●	●
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	0710-0810	●	●
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	0710-0810	●	●
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	0811-	●	●
10	PLUG; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (C) PT3/8	9-09204-517-0	01	1	0811-	●	●
10	PLUG; AIR TANK (D) PT3/4	9-09204-526-0	01	1	0710-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0710-0810	●	●
10	PLUG; AIR TANK WHEEL BASE 5100MM(51W) (A) PT1/4	9-99204-513-0	01	1	0811-1107	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0811-1107		●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	0710-0811	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	0812-0907	●	●
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) (A) PT1/4	9-99204-513-0	02	1	0812-0907	●
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) (A) PT1/4	9-99204-513-0	02	1	0908-0908	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	0909-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	0710-0907	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	0908-0908	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	0909-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W) (C)	8-98134-353-0	02	1	0812-	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W) (D)	8-98135-510-0	01	1	0812-	●
28	BRACKET; AIR TANK (A)	1-47479-675-1	01	1	0710-	●	●
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	0710-	●	●
28	BRACKET; AIR TANK (D)	1-48317-985-1	01	1	0710-0810	●	●
28	BRACKET; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (D)	1-48317-985-1	01	1	0811-1107	●	●
28	BRACKET; AIR TANK (D)	1-48317-985-1	01	1	1108-	●	●
28	BRACKET; AIR TANK (C)	8-98075-304-0	02	1	0710-0810	●	●
28	BRACKET; AIR TANK WHEEL BASE 5100MM(51W) (C)	8-98075-304-0	02	1	0811-1107	●
28	BRACKET; AIR TANK (C)	8-98075-304-0	02	1	0811-1107		●
28	BRACKET; AIR TANK (C)	8-98075-304-0	02	1	1108-	●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	04	1	0710-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	02	1	0710-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	0710-	●	●
39	U-BOLT; AIR TANK (C)	1-48317-675-0	02	1	0710-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) M8	0-91110-508-0	16	1	0812-	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0810	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0810	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0810	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0811-	●	●
46	NUT; U-BOLT WHEEL BASE 5100MM(51W) M8	0-91110-508-0	08	1	0811-	●
46	NUT; U-BOLT WHEEL BASE 5100MM(51W) M8	0-91110-508-0	08	1	0811-	●
46	NUT; U-BOLT WHEEL BASE 6600MM(66W) M8	0-91110-508-0	08	1	0811-		●
46	NUT; U-BOLT WHEEL BASE 6600MM(66W) M8	0-91110-508-0	08	1	0811-		●
64	STAY; AIR TANK,MAIN	8-98075-305-0	01	1	0710-	●	●
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0710-	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0810	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0810	●	●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	0811-	●	●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	0811-	●	●
103	BOLT; BRKT M14X35	0-20851-435-0	04	1	0710-	●	●
103	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0710-	●	●
176	ADAPTER (C) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-	●	●
176	ADAPTER (B) PT3/8 ELBOW	1-09660-696-0	01	1	0710-0811	●	●
176	ADAPTER (B) PT3/8 ELBOW	1-09660-696-0	01	1	0812-1107	●	●
176	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0812-1107	●
176	ADAPTER (B) PT3/8 ELBOW	1-09660-696-0	01	1	1108-	●	●
176	ADAPTER (A) PT3/8	1-48319-058-0	01	1	0710-0810	●	●
176	ADAPTER WHEEL BASE 5100MM(51W) (A) PT3/8	1-48319-058-0	01	1	0811-	●
176	ADAPTER (A) PT3/8	1-48319-058-0	01	1	0811-		●
181	WASHER; LK,AIR TANK ID=14.2	0-91510-514-0	04	1	0710-	●	●

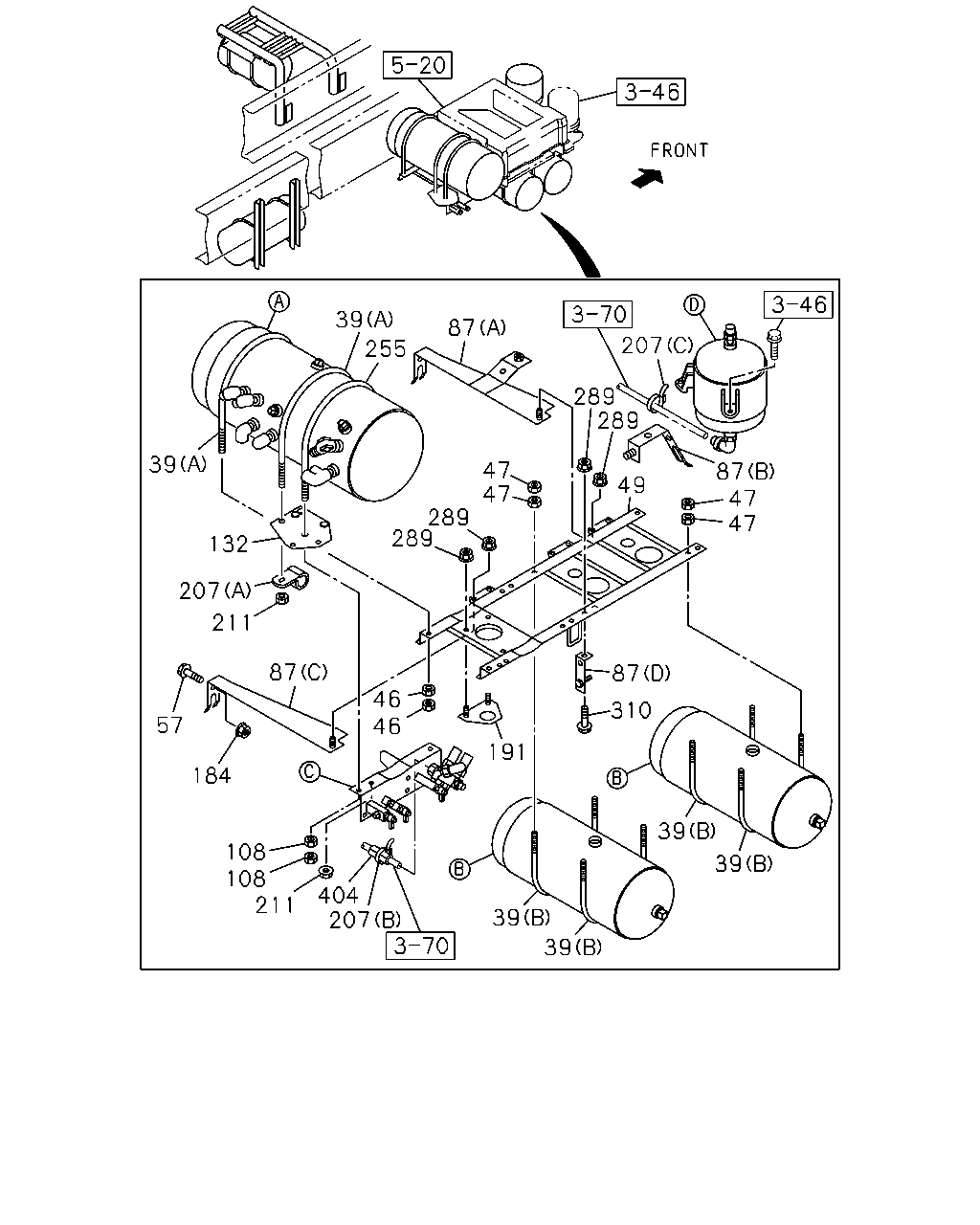

39 87 207 255 289 289 39 47 47 87 47 47 49 289 289 132 207 211 87 87 46 46 310 57 191 184 39 108 108 211 39 404 207 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	02	1	0710-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0710-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	0710-	●	●
39	U-BOLT; AIR TANK (C)	1-48317-675-0	02	1	0710-	●	●
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) M8	0-91110-508-0	16	1	0812-	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0810	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0810	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0710-0810	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0811-	●	●
46	NUT; U-BOLT WHEEL BASE 5100MM(51W) M8	0-91110-508-0	08	1	0811-	●
46	NUT; U-BOLT WHEEL BASE 5100MM(51W) M8	0-91110-508-0	08	1	0811-	●
46	NUT; U-BOLT WHEEL BASE 6600MM(66W) M8	0-91110-508-0	08	1	0811-		●
46	NUT; U-BOLT WHEEL BASE 6600MM(66W) M8	0-91110-508-0	08	1	0811-		●
47	NUT; LK,U BOLT,AIR TANK M8	0-91110-508-0	16	1	0710-	●	●
49	BRACKET; AIR TANK	1-48316-065-1	01	1	0710-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	0710-	●	●
87	BRACKET; AIR PIPE JOINT (D)	1-47471-189-0	02	1	0710-	●	●
87	BRACKET; AIR PIPE JOINT (C)	1-47471-241-0	01	1	0710-	●	●
87	BRACKET; AIR PIPE JOINT (A)	8-98054-525-0	01	1	0710-	●	●
87	BRACKET; AIR PIPE JOINT (B)	8-98060-053-0	01	1	0710-	●	●
108	NUT; CONNECTOR M8	0-91110-508-0	04	1	0710-	●	●
132	BRACKET; STRING GUIDE	1-47471-204-0	01	1	0710-	●	●
184	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0710-	●	●
191	BRACKET; STOPPER,AIR TANK	1-48316-015-1	01	1	0710-	●	●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	14	1	0710-	●	●
207	CLIP; AIR PIPE (A) ID=35 L=33	1-09700-945-0	02	1	0710-	●	●
207	CLIP; AIR PIPE (C) L=256	1-09707-189-0	02	1	0710-	●	●
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
255	BOLT; CONN L=303	1-48317-087-2	01	1	0710-	●	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	05	1	0710-	●	●
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	04	1	0710-	●	●
404	SLEEVE; RUBBER ID=15 OD=19 L=50	1-09337-014-0	01	1	0710-	●	●

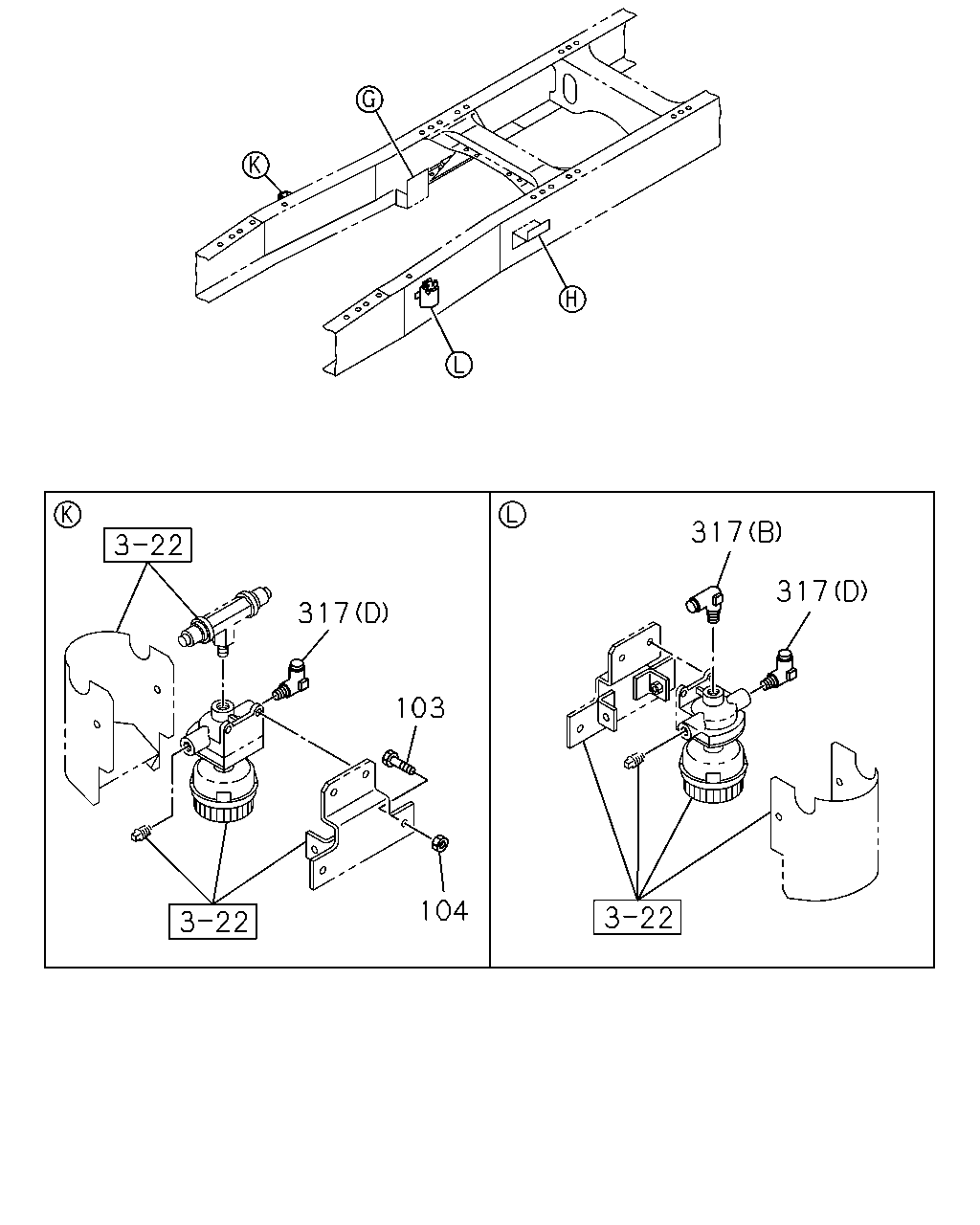

317 103 104 17 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	BOLT; BRKT M14X35	0-20851-435-0	04	1	0710-	●	●
103	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0710-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0710-	●	●
317	CONNECTOR; MODULATOR (A) PT3/8	1-09664-210-0	02	1	0710-	●	●
317	CONNECTOR; MODULATOR (D) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	0710-	●	●
317	CONNECTOR; MODULATOR (C) PT3/8 ELBOW	1-09660-696-0	02	1	0710-	●	●
317	CONNECTOR; MODULATOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-	●	●

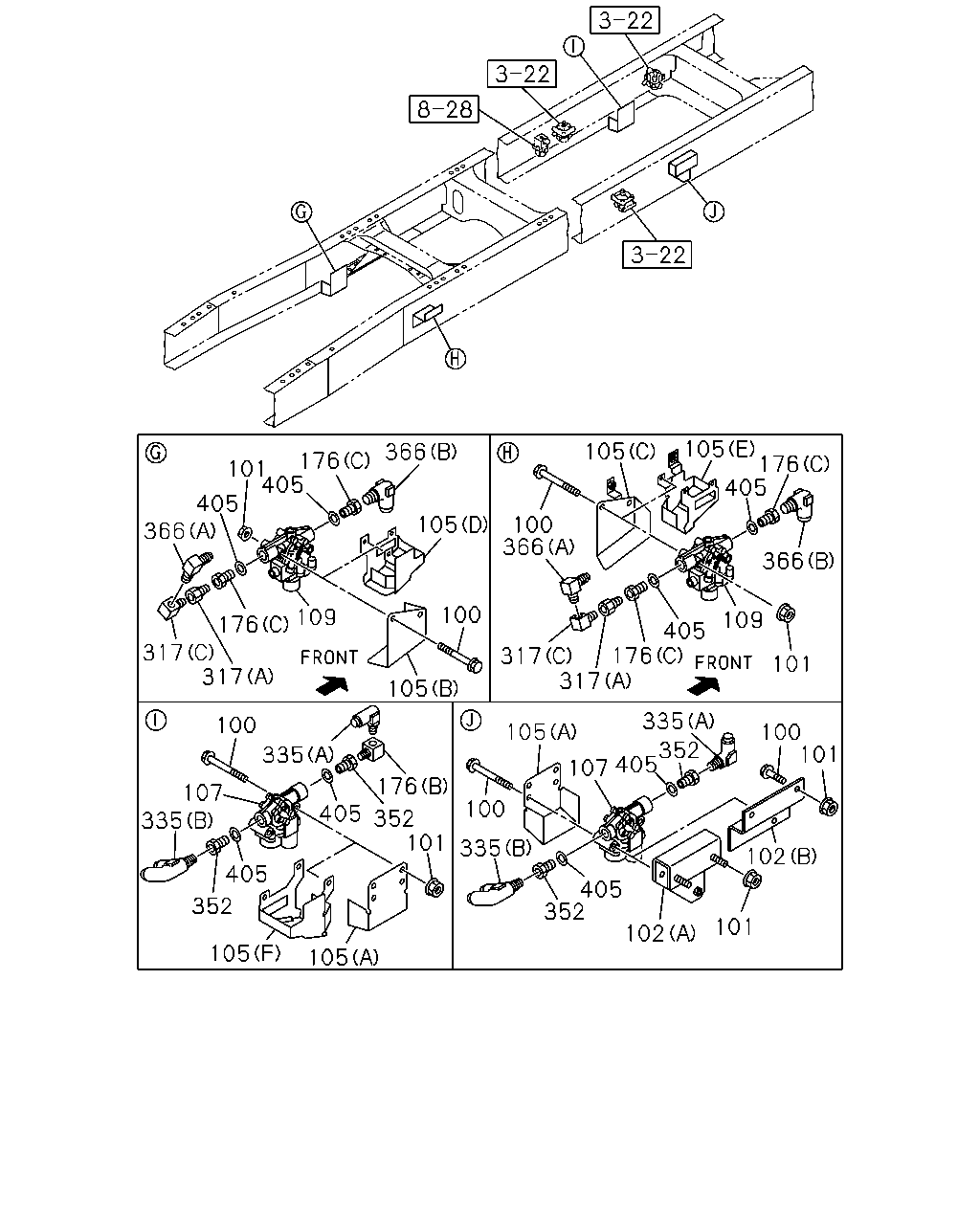

101 176 366 405 109 100 176 366 317 317 105 100 366 105 105 405 176 366 109 405 176 317 317 101 100 101 335 105 107 405 100 335 405 352 102 102 101 101 176 335 100 405 352 405 107 335 352 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR M8X85	1-09044-074-0	02	1	1505-	●	●
100	BOLT; MODULATOR WHEEL BASE 4500MM(45W) M8X35 FLANGE	0-28650-835-0	02	1	0812-	●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	0710-1504	●	●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	0710-1504	●	●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	02	1	1505-	●	●
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	0710-	●	●
101	NUT; MODULATOR WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	02	1	0812-	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
102	BRACKET; MODULATOR WHEEL BASE 4500MM(45W) (B)	1-47471-180-0	01	1	0812-1504	●
102	BRACKET; MODULATOR (B)	8-98300-018-0	01	1	1505-	●
102	BRACKET; MODULATOR (A)	8-98043-398-0	01	1	0710-0810	●	●
102	BRACKET; MODULATOR WHEEL BASE 5100MM(51W) (A)	8-98043-398-0	01	1	0811-1107	●
102	BRACKET; MODULATOR (A)	8-98043-398-0	01	1	0811-1107		●
102	BRACKET; MODULATOR (A)	8-98043-398-0	01	1	1108-1504	●	●
102	BRACKET; MODULATOR (A)	8-98300-022-0	01	1	1505-	●	●
105	COVER; MODULATOR (A)	8-98302-924-0	01	1	1505-	●	●
105	COVER; MODULATOR (F)	8-98300-150-0	01	1	1505-	●	●
105	COVER; MODULATOR (A)	1-47471-354-0	01	1	0710-1504	●	●
105	COVER; MODULATOR (A)	1-47471-354-0	01	1	0710-1504	●	●
105	COVER; MODULATOR (E)	8-98302-925-0	01	1	1505-	●
105	COVER; MODULATOR (B)	8-98081-578-0	01	1	0710-1504	●	●
105	COVER; MODULATOR (D)	8-98300-151-0	01	1	1505-	●	●
105	COVER; MODULATOR (C)	8-98081-826-0	01	1	0710-1504	●	●
105	COVER; MODULATOR (C)	8-98300-153-0	01	1	1505-	●	●
107	MODULATOR; RR	1-48240-115-0	01	1	0710-1504	●	●
107	MODULATOR; RR	1-48240-115-0	01	1	0710-1504	●	●
107	MODULATOR; RR	8-98215-454-0	01	1	1505-	●	●
107	MODULATOR; RR	8-98215-454-0	01	1	1505-	●	●
109	MODULATOR; FRT	1-48240-115-0	02	1	0710-1504	●	●
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-	●	●
176	ADAPTER (C) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-	●	●
176	ADAPTER (B) PT3/8 ELBOW	1-09660-696-0	01	1	0710-0811	●	●
176	ADAPTER (B) PT3/8 ELBOW	1-09660-696-0	01	1	0812-1107	●	●
176	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0812-1107	●
176	ADAPTER (B) PT3/8 ELBOW	1-09660-696-0	01	1	1108-	●	●
176	ADAPTER (A) PT3/8	1-48319-058-0	01	1	0710-0810	●	●
176	ADAPTER WHEEL BASE 5100MM(51W) (A) PT3/8	1-48319-058-0	01	1	0811-	●
176	ADAPTER (A) PT3/8	1-48319-058-0	01	1	0811-		●
317	CONNECTOR; MODULATOR (A) PT3/8	1-09664-210-0	02	1	0710-	●	●
317	CONNECTOR; MODULATOR (D) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	0710-	●	●
317	CONNECTOR; MODULATOR (C) PT3/8 ELBOW	1-09660-696-0	02	1	0710-	●	●
317	CONNECTOR; MODULATOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-	●	●
335	CONNECTOR; MODULATOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-	●	●
335	CONNECTOR; MODULATOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-	●	●
335	CONNECTOR; MODULATOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-	●	●
335	CONNECTOR; MODULATOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-	●	●
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0710-	●	●
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0710-	●	●
366	CONNECTOR; NYLON TUBE (A) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	0710-	●	●
366	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-	●	●
405	GASKET ID=22.5	9-09571-422-0	02	1	0710-	●	●
405	GASKET ID=22.5	9-09571-422-0	02	1	0710-	●	●
405	GASKET ID=22.5	9-09571-422-0	04	1	0710-	●	●

27 10 5 10 27 2 5 1 27 10 7 5 7 6 26 5 5 6 11 124 124 203 180 203 180 2 282 203 180 13 282 351 10 28 126 344 282 11 124 351 126 10 351 282 10

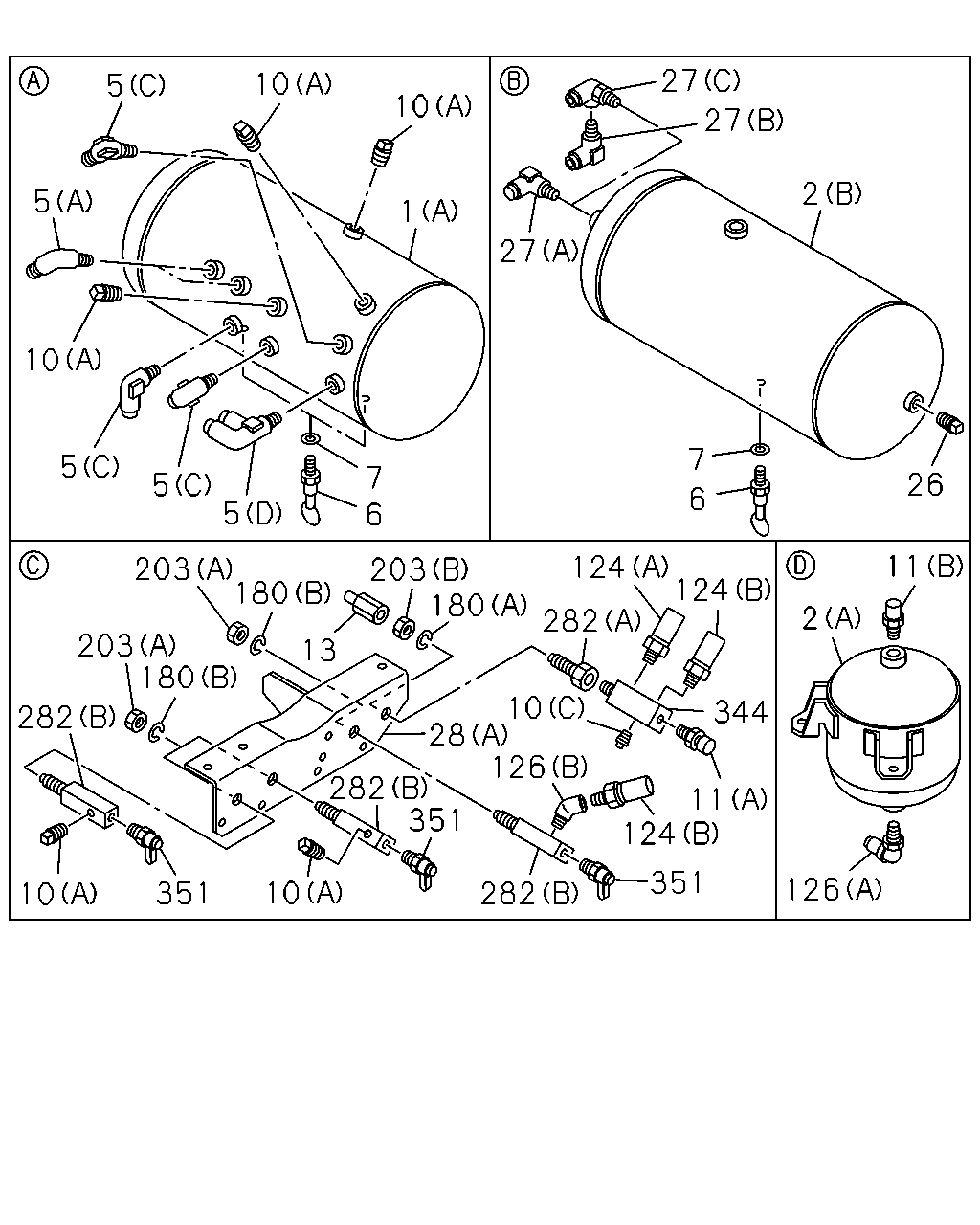

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (C)	1-48371-165-3	01	1	0710-	●	●
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	0710-	●	●
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	0710-	●	●
2	TANK; AIR (A)	1-48371-166-3	01	1	0710-	●	●
2	TANK; AIR (B)	1-48371-389-1	01	1	0710-0907	●	●
2	TANK; AIR (B)	1-48371-389-1	01	1	0710-0907	●	●
2	TANK; AIR (B)	1-48371-389-1	02	1	0908-	●	●
5	UNION; AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	0710-0810	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W) (E) PT3/8 ELBOW	1-09660-696-0	01	1	0811-1107	●
5	UNION; AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	0811-1107		●
5	UNION; AIR TANK (E) PT3/8 ELBOW	1-09660-696-0	01	1	1108-	●	●
5	UNION; AIR TANK (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-0810	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-0810	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0811-	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0811-	●	●
5	UNION; AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-0810	●	●
5	UNION; AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-0810	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0811-	●	●
5	UNION; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0811-	●	●
5	UNION; AIR TANK (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0710-	●	●
5	UNION; AIR TANK (A)	1-09661-550-0	02	1	0710-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	04	1	0908-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	01	1	0710-0810	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	03	1	0811-0907	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W)	1-48312-017-0	03	1	0908-	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	02	1	0710-0810	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	01	1	0811-0907	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W)	1-48312-017-0	01	1	0811-0907	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5100MM(51W)	1-48312-017-0	01	1	0908-	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	01	1	0908-		●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	04	1	0710-0810	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5100MM(51W)	1-48312-017-0	02	1	0811-	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	02	1	0811-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0908-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0810	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0811-0907	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) ID=14	1-09630-145-0	03	1	0908-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0710-0810	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0811-0907	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	0811-0907	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5100MM(51W) ID=14	1-09630-145-0	01	1	0908-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0908-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0710-0810	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5100MM(51W) ID=14	1-09630-145-0	02	1	0811-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0811-		●
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) (C) PT3/8	9-09204-517-0	02	1	0812-	●
10	PLUG; AIR TANK (B) M22	1-09661-502-0	01	1	0710-	●	●
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	0710-0810	●	●
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	0710-0810	●	●
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	0811-	●	●
10	PLUG; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (C) PT3/8	9-09204-517-0	01	1	0811-	●	●
10	PLUG; AIR TANK (D) PT3/4	9-09204-526-0	01	1	0710-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0710-0810	●	●
10	PLUG; AIR TANK WHEEL BASE 5100MM(51W) (A) PT1/4	9-99204-513-0	01	1	0811-1107	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	0811-1107		●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	0710-0811	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	0812-0907	●	●
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) (A) PT1/4	9-99204-513-0	02	1	0812-0907	●
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) (A) PT1/4	9-99204-513-0	02	1	0908-0908	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	0909-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	0710-0907	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	0908-0908	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	0909-	●	●
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	0710-	●	●
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	0710-	●	●
13	ADAPTER; NYLON TUBE DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0710-	●	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	01	1	0710-0907	●	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	01	1	0710-0907	●	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	0908-	●	●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-	●	●
27	UNION; ELBOW,AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
27	UNION; ELBOW,AIR TANK (C) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0710-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W) (C)	8-98134-353-0	02	1	0812-	●
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W) (D)	8-98135-510-0	01	1	0812-	●
28	BRACKET; AIR TANK (A)	1-47479-675-1	01	1	0710-	●	●
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	0710-	●	●
28	BRACKET; AIR TANK (D)	1-48317-985-1	01	1	0710-0810	●	●
28	BRACKET; AIR TANK WHEEL BASE 5100MM(51W),WHEEL BASE 6600MM(66W) (D)	1-48317-985-1	01	1	0811-1107	●	●
28	BRACKET; AIR TANK (D)	1-48317-985-1	01	1	1108-	●	●
28	BRACKET; AIR TANK (C)	8-98075-304-0	02	1	0710-0810	●	●
28	BRACKET; AIR TANK WHEEL BASE 5100MM(51W) (C)	8-98075-304-0	02	1	0811-1107	●
28	BRACKET; AIR TANK (C)	8-98075-304-0	02	1	0811-1107		●
28	BRACKET; AIR TANK (C)	8-98075-304-0	02	1	1108-	●	●
124	SWITCH; AIR PRESSURE (B)	1-48340-065-0	02	1	0710-	●	●
124	SWITCH; AIR PRESSURE (A)	1-48340-066-0	01	1	0710-	●	●
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0710-	●	●
126	CONNECTOR; ELBOW (B) R1/4 & RC1/4	1-09664-211-0	01	1	0710-	●	●
180	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0710-	●	●
180	WASHER; LK (B) ID=18.2	0-91510-518-0	03	1	0710-	●	●
203	NUT (B) M16	0-91110-516-0	01	1	0710-	●	●
203	NUT (A) M18	0-91110-518-0	03	1	0710-	●	●
282	UNION; 2 WAY (A)	1-09650-222-1	01	1	0710-	●	●
282	UNION; 2 WAY (B)	1-09661-593-0	03	1	0710-	●	●
344	CONNECTOR; 4WAY	1-09660-521-2	01	1	0710-	●	●
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
