3-10 — BRAKE PEDAL AND CONTROL (#14154) — 21 parça

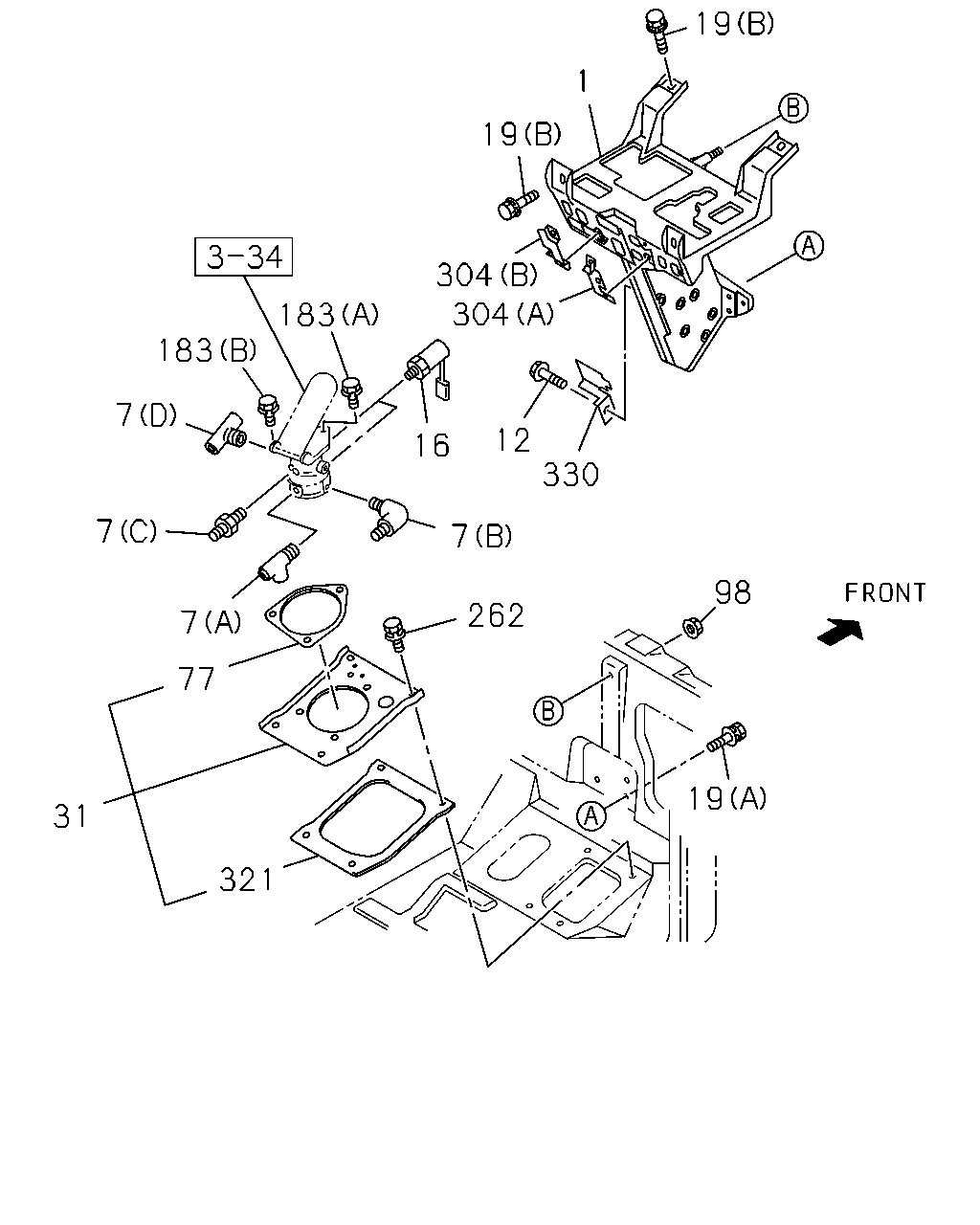

çizim 142094
19 1 19 304 304 183 183 7 12 330 16 7 7 98 262 7 77 19 31 321
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 1-73908-191-7 01 1 0710- ● ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ● ●
7 CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 0710- ● ●
7 CONNECTOR; BRK VALVE
(D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 01 1 0710- ● ●
12 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-1 02 1 0710- ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 0710- ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904 ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
31 PLATE; MTG,BRKT VLV 1-73996-329-1 01 1 0710- ● ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 0710- ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0710- ● ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 0710- ● ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 0710- ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904 ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
304 SUPPORT ASM; PEDAL BRKT
(A) 		1-73996-341-1 01 1 0710- ● ●
304 SUPPORT ASM; PEDAL BRKT
(B) 		1-73996-342-1 01 1 0710- ● ●
321 SEAL; VALVE 1-73996-143-0 01 1 0710- ● ●
330 BRACKET; CONNECTOR 8-97616-564-1 01 1 0710- ● ●
