◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#14150) — 18 parça

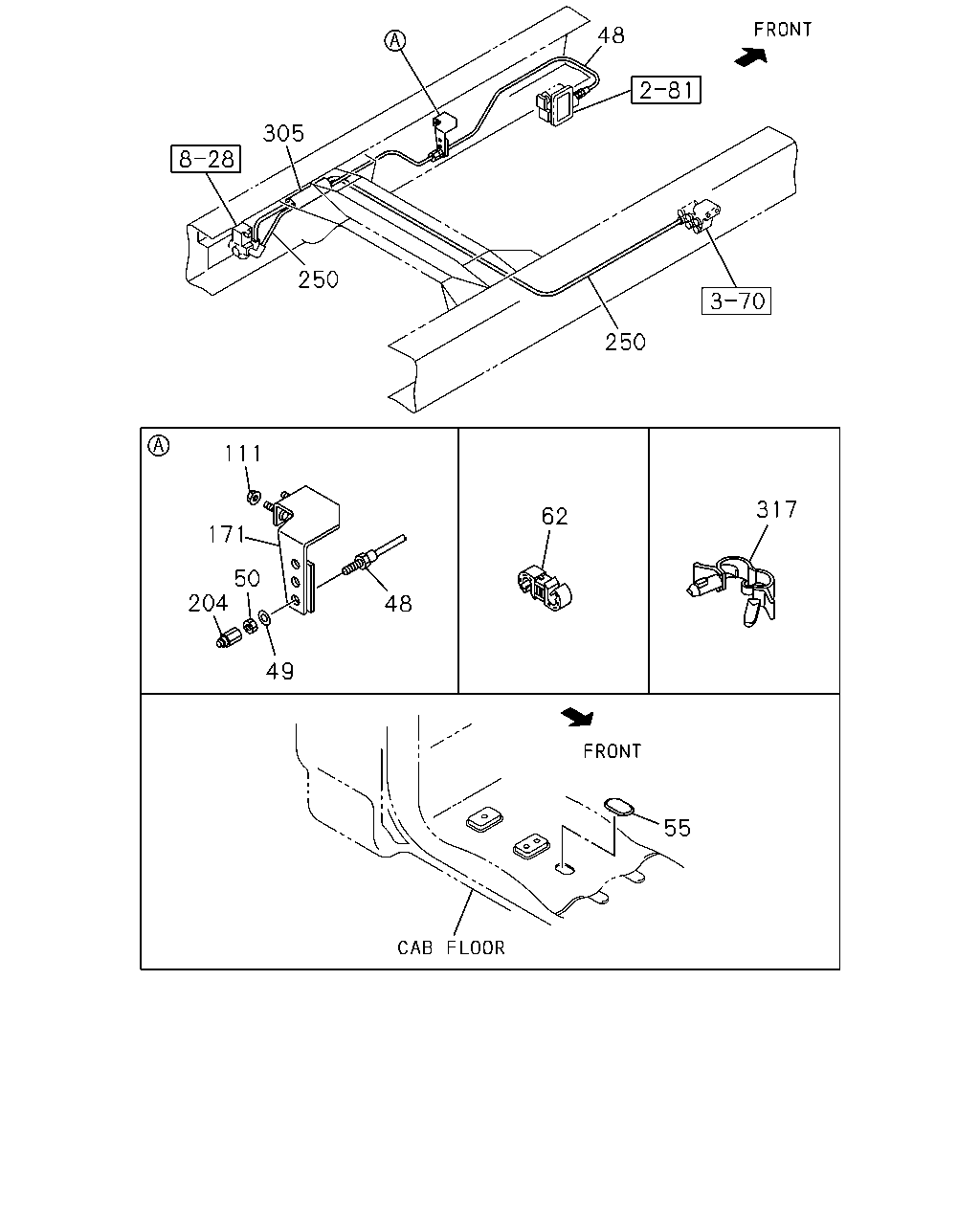

çizim 142069
48 305 250 250 111 317 62 171 50 204 48 49 55
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=360 		1-09363-823-0 01 1 0710- ● ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=12.2 		0-91510-512-0 01 1 0710- ● ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 		9-09840-280-0 01 1 0710- ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 0710- ● ●
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=10 & 10 		1-09709-277-1 01 1 0710- ● ●
111 NUT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 0710-1107 ● ●
111 NUT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> 		8-98084-093-0 01 1 0710-1107 ● ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> 		8-98084-093-0 01 1 1108- ● ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710- ● ●
250 TUBE; NYLON
WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0812- ●
250 TUBE; NYLON
WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0812- ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710-0810 ● ●
250 TUBE; NYLON
WHEEL BASE 5100MM(51W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0811-1107 ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0811-1107 ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1108- ● ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710- ● ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=5-12 L=18 		1-09709-287-0 01 1 0710- ● ●
