◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#14145) — 48 parça

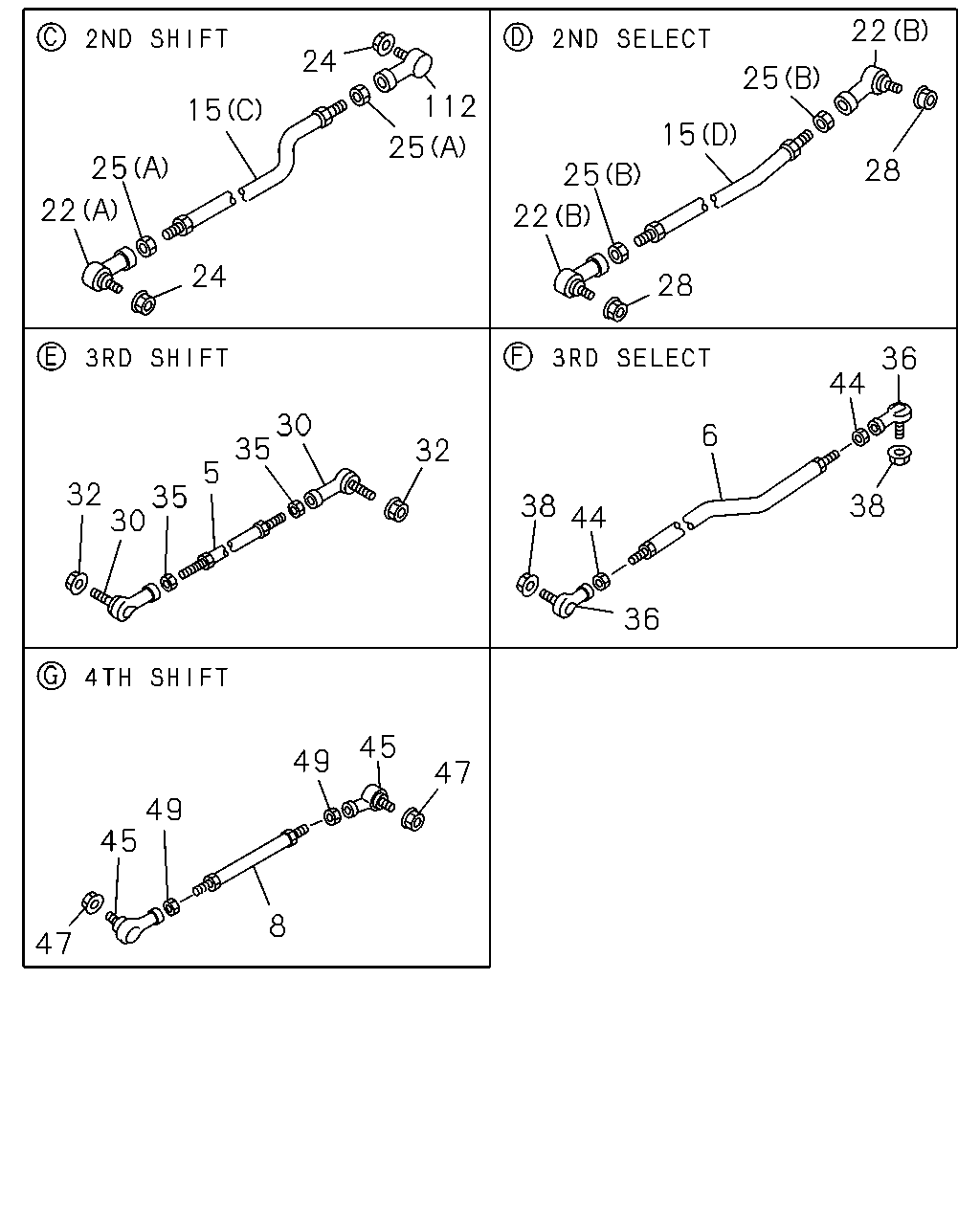

çizim 142065
22 24 25 112 15 15 25 25 28 25 22 22 24 28 36 44 30 35 6 32 5 30 38 38 44 36 45 49 47 49 45 8 47 32 35
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) L=1120 		1-33652-603-0 01 1 0710-
6 ROD; LINK,3RD SELECT
FULLER M/T<X9B> L=1638 		1-33652-997-1 01 1 0710-
8 ROD; LINK,4TH SHIFT
FULLER M/T<X9B> L=480 		1-33652-730-0 01 1 0710-
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=370 		1-33652-737-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=460 		1-33652-373-0 01 1 1012-
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88 		1-33652-740-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=475 		1-33662-018-3 01 1 0710-
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=460 		1-33662-019-4 01 1 0710-
22 JOINT; BALL,SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-09760-109-0 02 1 0710-
22 JOINT; BALL,SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-09760-125-0 01 1 0710-
24 NUT; 2ND LINK ROD,SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10 		0-91111-510-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12 		0-91111-512-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10 LH THREAD 		9-09840-167-0 02 1 0710-1011
28 NUT; 2ND LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		1-09440-062-1 02 1 0710-
30 JOINT; BALL,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-124-0 02 1 0710-
32 NUT; 3RD LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
35 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 		0-91111-510-0 02 1 0710-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> 		1-09760-124-0 02 1 0710-
38 NUT; 3RD LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
44 NUT; LK,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> M10 		0-91111-510-0 02 1 0710-
45 JOINT; BALL,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> 		1-09760-125-0 02 1 0710-
47 NUT; 4TH LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
49 NUT; LK,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> M12 		0-91111-512-0 02 1 0710-
112 JOINT; RUBBER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33670-413-1 02 1 0710-

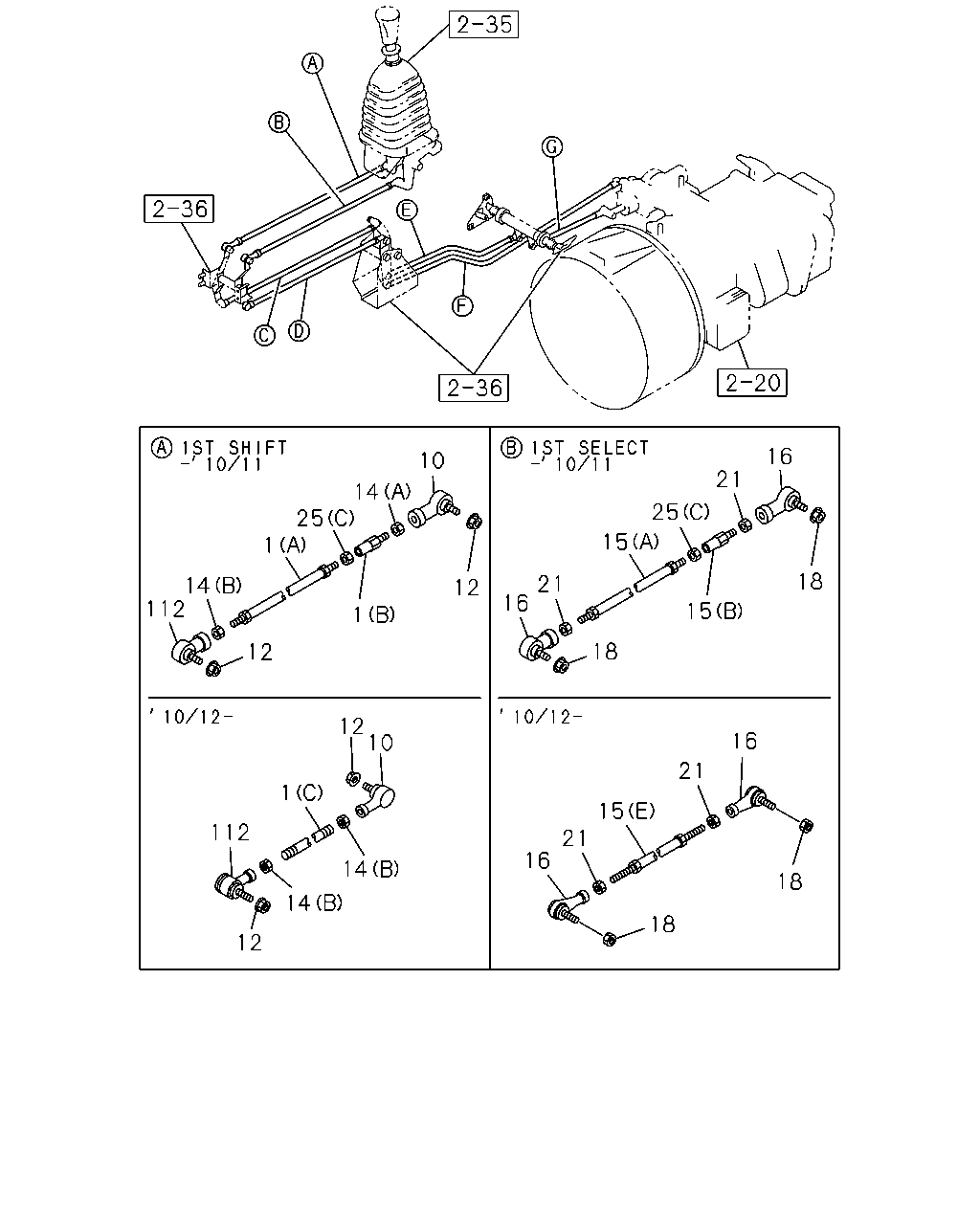

çizim 142098
16 10 21 14 25 25 15 1 18 21 16 14 112 12 15 1 18 12 12 10 16 21 1 15 112 21 16 14 18 14 18 12
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=430 		1-33652-739-0 01 1 0710-1011
1 ROD; LINK,1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=490 		0-84001-249-0 01 1 1012-
1 ROD; LINK,1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88 		1-33652-740-0 01 1 0710-1011
10 JOINT ASM; BALL,SELECT ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-124-0 01 1 0710-1011
10 JOINT ASM; BALL,SELECT ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-125-0 01 1 1012-
12 NUT; 1ST LINK ROD,SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
14 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 		0-91111-510-0 01 1 0710-1011
14 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12 		0-91111-512-0 01 1 0710-1011
14 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12 		0-91111-512-0 02 1 1012-
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=370 		1-33652-737-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=460 		1-33652-373-0 01 1 1012-
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88 		1-33652-740-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=475 		1-33662-018-3 01 1 0710-
15 ROD; LINK 1ST SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=460 		1-33662-019-4 01 1 0710-
16 JOINT ASM; BALL,CONT ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-109-0 02 1 0710-1011
16 JOINT ASM; BALL,CONT ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-108-0 02 1 1012-
18 NUT; 1ST LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		1-09440-062-1 02 1 0710-
21 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 		0-91111-510-0 02 1 0710-1011
21 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M8 		9-09111-408-0 02 1 1012-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10 		0-91111-510-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12 		0-91111-512-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10 LH THREAD 		9-09840-167-0 02 1 0710-1011
112 JOINT; RUBBER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33670-413-1 02 1 0710-
