2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#14144) — 128 parça

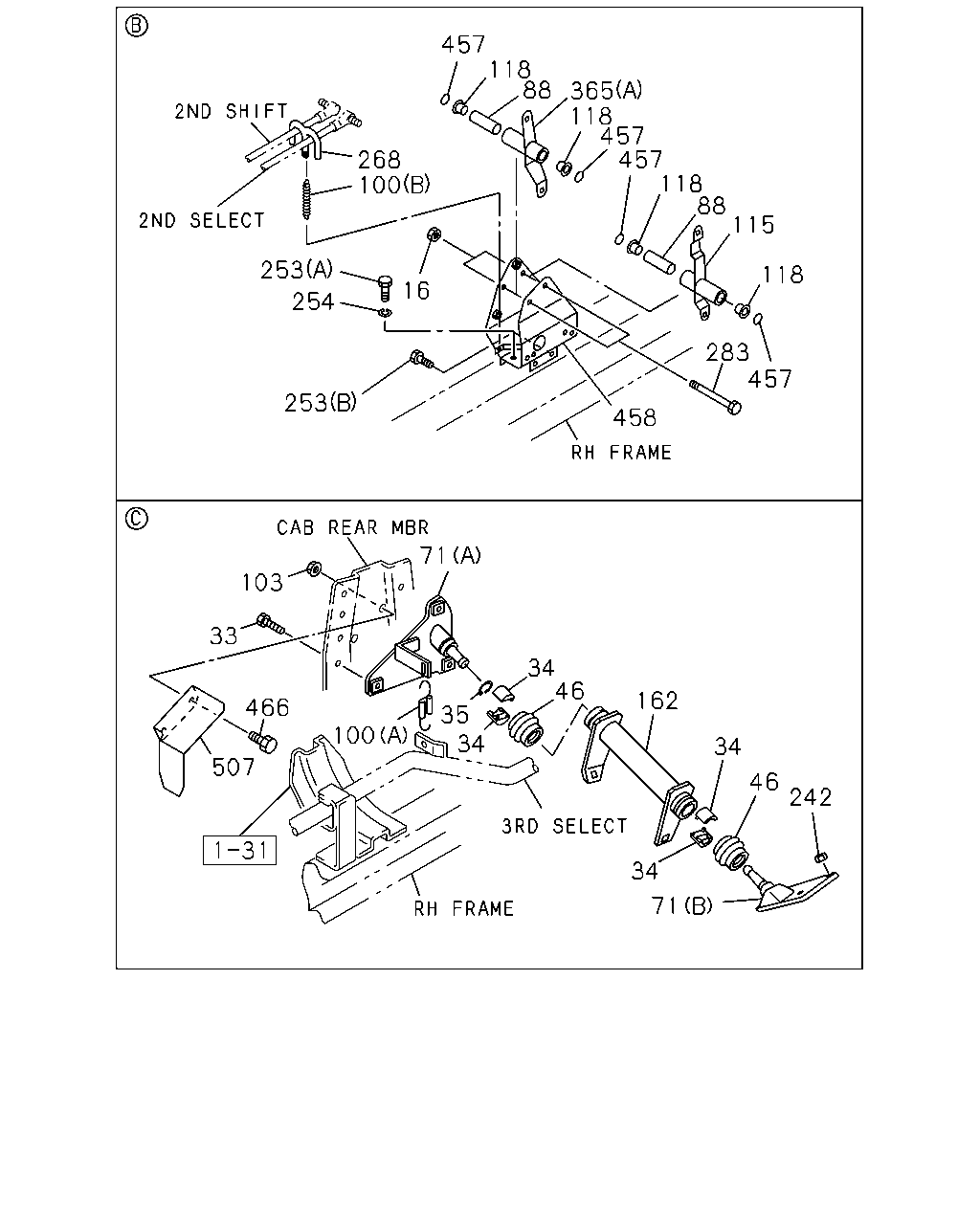

457 118 88 365 118 457 457 118 88 115 268 100 253 118 16 254 283 457 253 458 71 103 33 34 46 162 466 35 34 100 34 507 46 242 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
16	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	02	1	0710-	●
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28651-030-0	03	1	0710-1003	●
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X35 FLANGE	0-28651-035-0	03	1	1004-	●
34	SEAT; BALL,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-165-0	04	1	0710-	●
35	RING; SNAP,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) OD=34.4	9-09180-132-0	01	1	0710-	●
46	SEAL; DUST,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-248-0	02	1	0710-	●
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33657-481-0	01	1	0710-	●
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33657-706-0	01	1	0710-	●
88	COLLAR; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-191-1	02	1	0710-	●
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09583-319-0	01	1	0710-	●
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09583-351-0	01	1	0710-	●
103	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0710-	●
115	LEVER; RELAY,2ND SHIFT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-769-1	01	1	0710-	●
118	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-09330-119-0	04	1	0710-	●
162	LEVER; RELAY TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-625-1	01	1	0710-	●
242	NUT; FLANGE 3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M12 FLANGE	0-91180-212-0	03	1	0710-	●
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M14X45	0-20801-445-0	02	1	0710-	●
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X25 FLANGE	0-28651-025-0	02	1	0710-	●
254	WASHER; LK,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.2	0-91510-614-0	02	1	0710-	●
268	BRACKET; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-216-0	01	1	0710-	●
283	BOLT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X110	9-09801-316-1	02	1	0710-	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0710-	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0710-	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0710-	●
457	GASKET TRANSMISSION CONTROL LINK TYPE(B2A)	1-09623-594-0	04	1	0710-	●
458	BRACKET; 2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-664-1	01	1	0710-	●
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0712	●
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0801-	●
507	PROTECTOR; HEAT TRANSMISSION CONTROL LINK TYPE(B2A)	8-98096-654-1	01	1	0710-	●

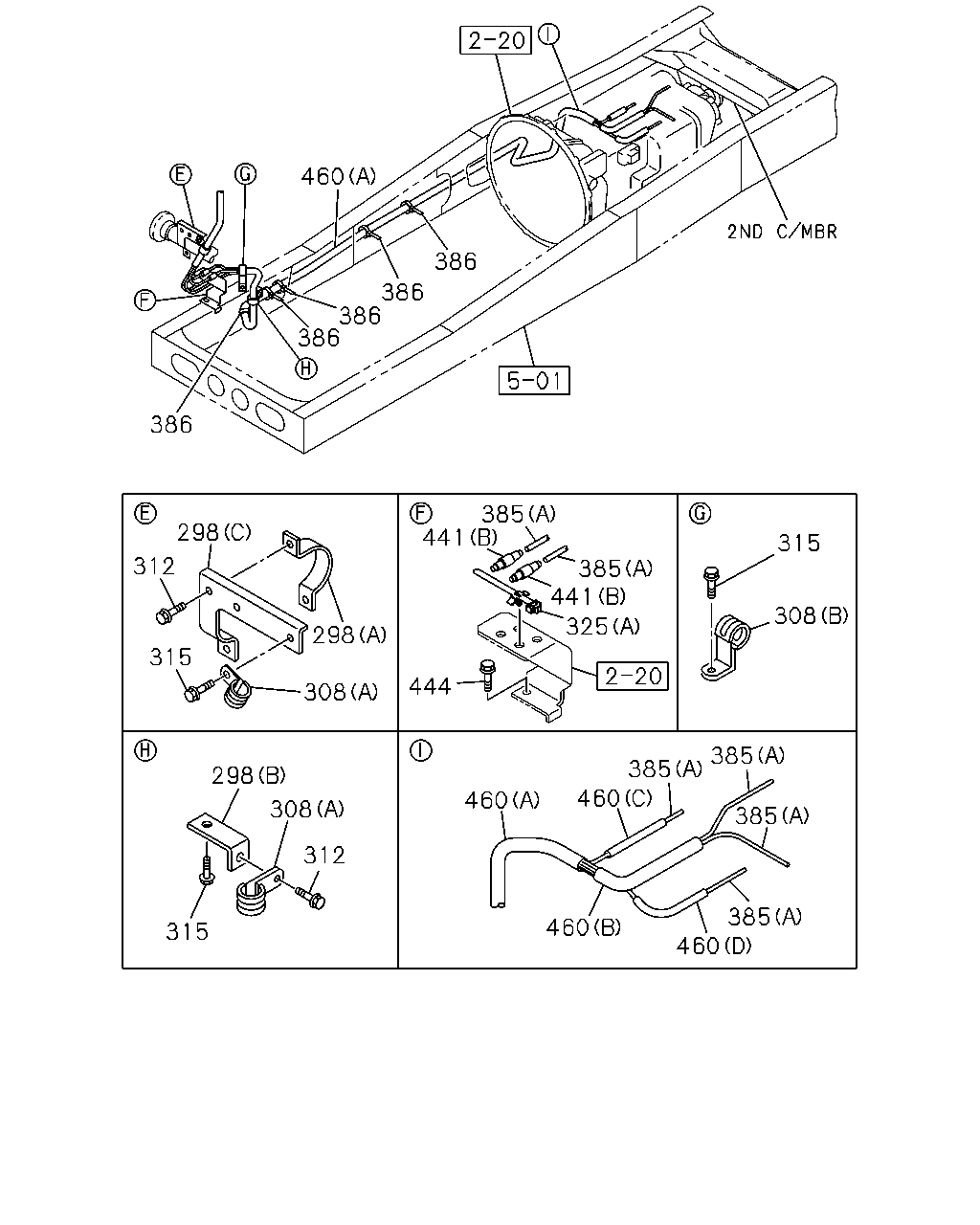

460 386 386 386 386 386 385 441 298 315 312 385 441 308 325 298 315 444 308 385 385 298 460 460 308 385 312 385 460 460 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47471-479-0	01	1	0710-	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47479-477-0	01	1	0710-	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98084-094-0	01	1	0710-	●
298	BRACKET MJX12P M/T SMOOTHER-G(Y4S) (D)	8-98085-703-1	01	1	0710-0803	●	●
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=16 L=20	0-95235-536-0	01	1	0710-	●
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=19 L=28	0-95235-856-0	01	1	0710-	●
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=18 L=25 H=50	1-09701-096-0	01	1	0710-	●
312	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0710-0803	●	●
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	0804-	●
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	0710-	●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (C) L=350	1-09707-183-0	01	1	0710-	●	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	04	1	0710-0801	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	0802-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1850 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1850 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1820 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1820 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) L=350	1-09707-183-0	05	1	0710-	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0710-	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-09660-975-0	04	1	0710-0804	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	04	1	0805-	●
444	BOLT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	03	1	0804-0810	●	●
444	BOLT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	03	1	0811-	●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28650-825-0	03	1	0811-		●
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) SERVICED BY L=6000	1-83129-337-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=1140 SERVICED BY L=2000	1-83129-338-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-	●

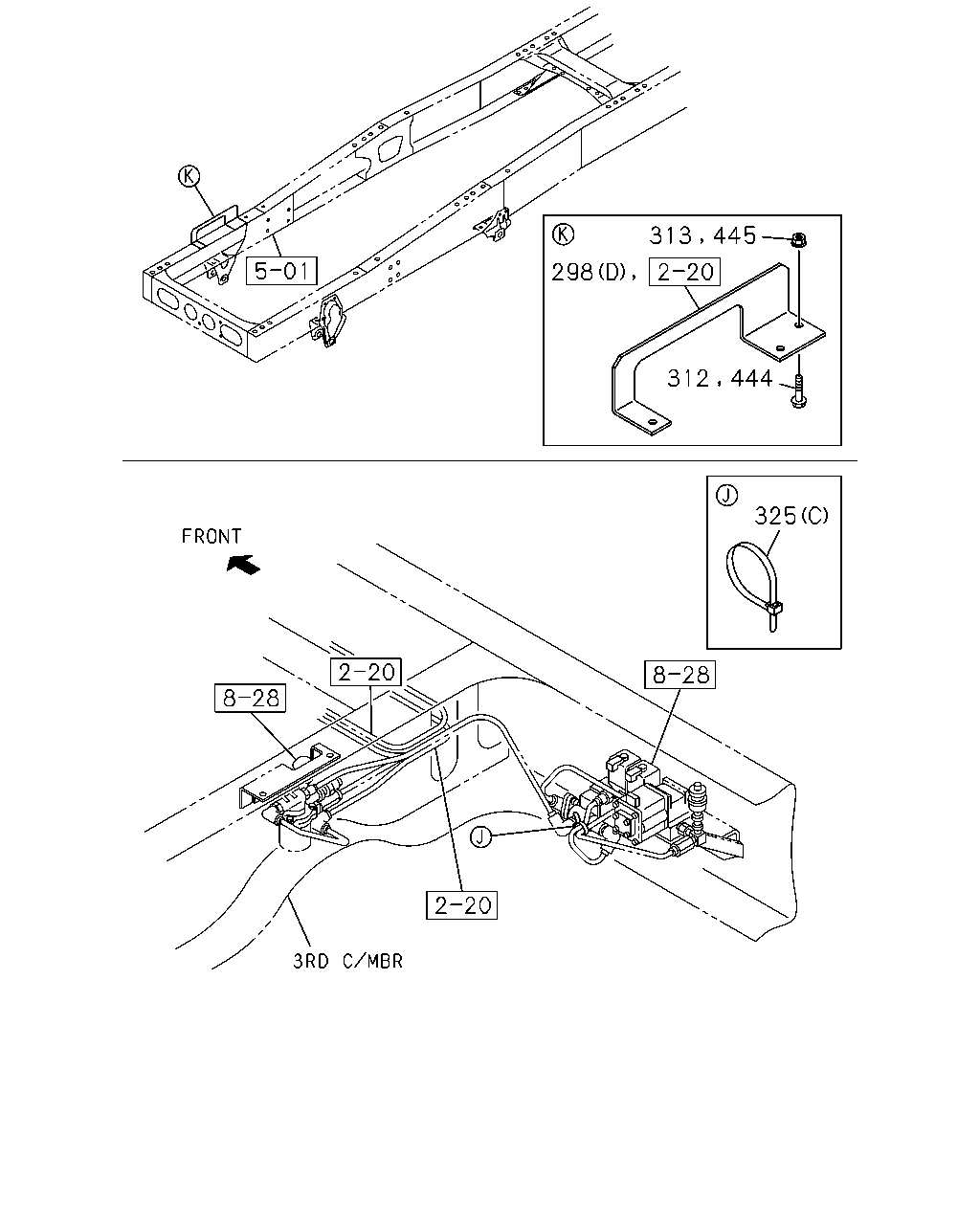

298 325 313 445 312 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47471-479-0	01	1	0710-	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47479-477-0	01	1	0710-	●
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98084-094-0	01	1	0710-	●
298	BRACKET MJX12P M/T SMOOTHER-G(Y4S) (D)	8-98085-703-1	01	1	0710-0803	●	●
312	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0710-0803	●	●
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	03	1	0804-	●
313	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
313	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0804-	●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (C) L=350	1-09707-183-0	01	1	0710-	●	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	04	1	0710-0801	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	0802-	●
444	BOLT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	03	1	0804-0810	●	●
444	BOLT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	03	1	0811-	●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28650-825-0	03	1	0811-		●
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●
445	NUT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	0804-0810	●	●
445	NUT; BRKT,NIPPLE MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	01	1	0811-	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91180-108-0	01	1	0811-		●

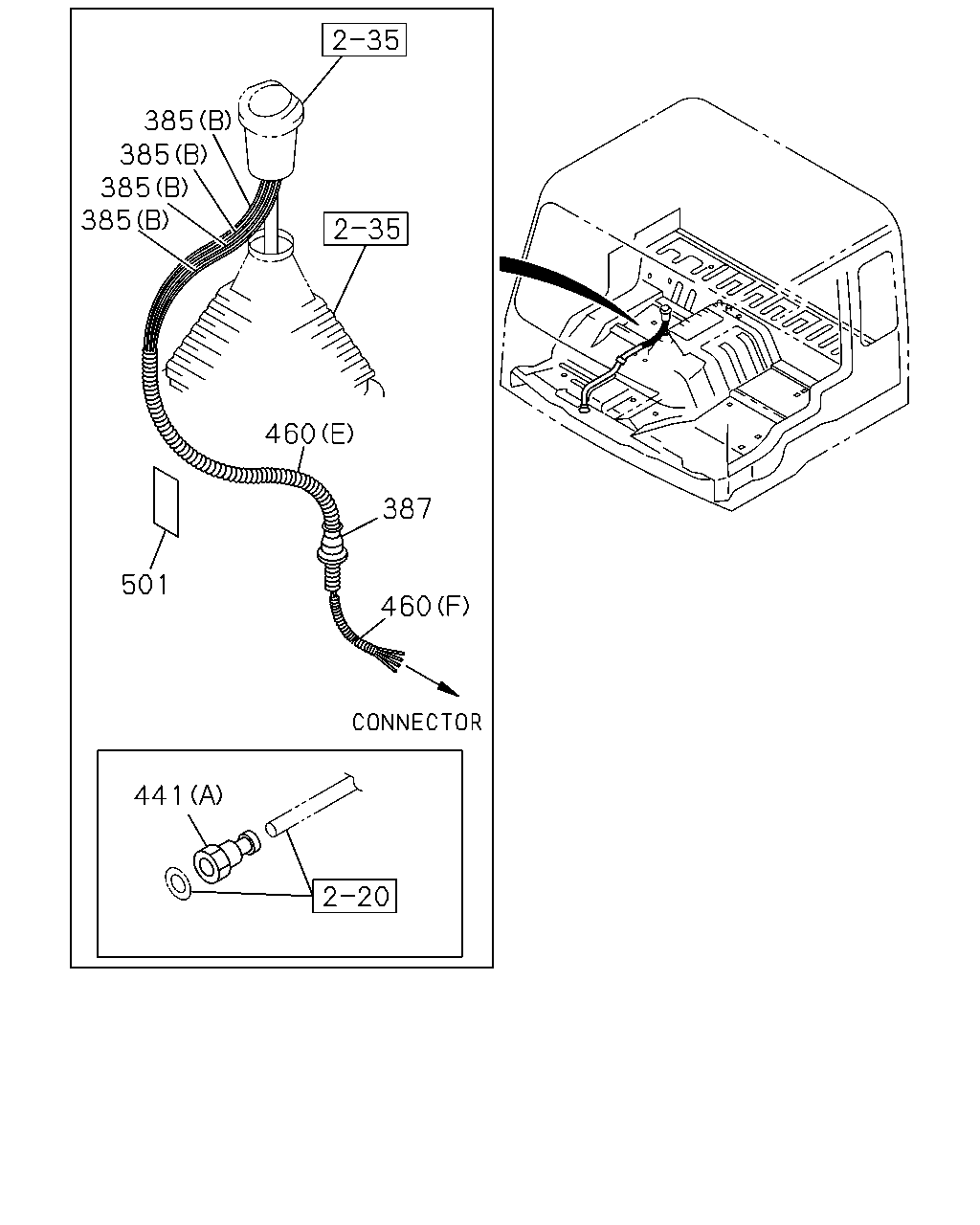

385 385 385 385 460 387 501 460 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1850 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=3170 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1850 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=3260 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1820 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3690 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=1820 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-	●
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=3275 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-	●
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0710-	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0710-	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-09660-975-0	04	1	0710-0804	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	04	1	0805-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) SERVICED BY L=6000	1-83129-337-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=1140 SERVICED BY L=2000	1-83129-338-0	01	1	0710-	●
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-	●
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-1	04	1	0710-	●

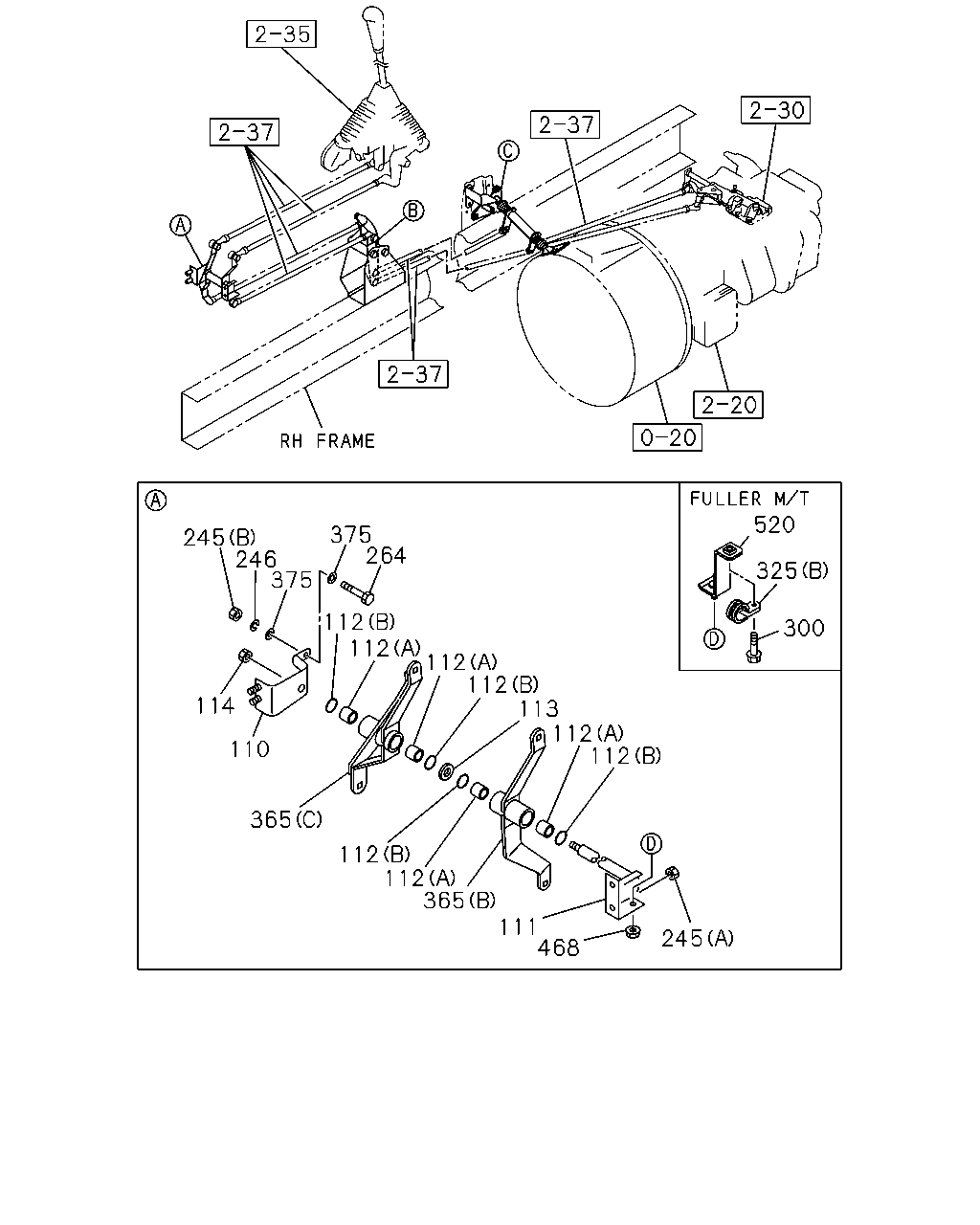

520 375 264 245 246 375 325 112 112 300 112 112 113 112 112 114 110 365 112 112 365 111 468 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	BRACKET; RELAY LEVER,1ST TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-839-1	01	1	0710-	●
111	SHAFT; RELAY LEVER,1ST TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-777-2	01	1	0710-	●
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09330-119-0	04	1	0710-	●
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09623-594-0	04	1	0710-	●
113	WASHER; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=17 OD=30	0-91610-516-0	01	1	0710-	●
114	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	01	1	0710-	●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-210-0	02	1	0710-1304	●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-110-0	02	1	1305-	●
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	1-09984-142-0	01	1	0710-	●
246	WASHER; LK,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10	1-09985-185-0	01	1	0710-	●
264	BOLT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X105	1-79198-008-1	01	1	0710-	●
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904	●
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
325	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (C) L=350	1-09707-183-0	01	1	0710-	●	●
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	04	1	0710-0801	●
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=170.3	1-09987-182-0	01	1	0802-	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0710-	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0710-	●
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0710-	●
375	WASHER; PL,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0710-	●
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0710-	●
520	BRACKET; NYLON TUBE FULLER M/T<X9B>	1-79996-628-0	01	1	0710-	●
