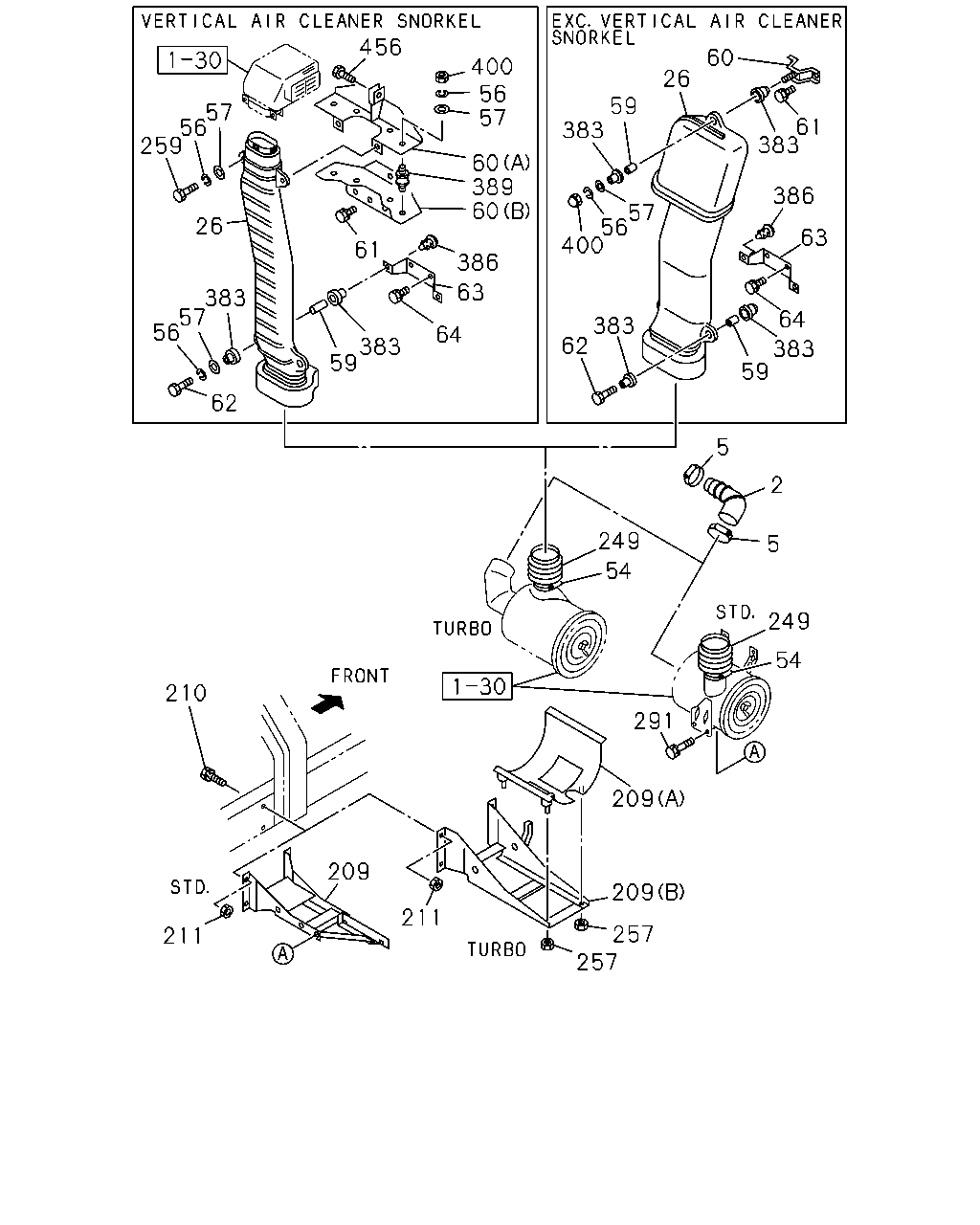

1-31 — AIR DUCT (#1414) — 47 parça

456 60 400 56 57 26 59 383 57 56 259 61 383 60 389 60 386 57 56 400 26 63 61 386 63 383 57 56 64 383 62 64 383 59 383 59 62 5 2 249 5 54 249 54 210 291 209 209 209 211 257 257 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-566-1	01	1	9203-	●
2	HOSE; ACL	1-14231-509-0	01	1	9203-		●
5	CLIP; AIR DUCT ID=77-95	1-09707-114-0	01	1	9203-	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9203-	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	9203-		●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-102-0	01	1	9203-	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-077-5	01	1	9203-9406	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-130-0	01	1	9407-	●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-103-0	01	1	9203-		●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-076-6	01	1	9203-9406		●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-131-0	01	1	9407-		●
54	CLIP; GASKET,AIR DUCT ID=137	1-09707-113-0	01	1	9203-	●
54	CLIP; GASKET,AIR DUCT	1-09707-121-0	01	1	9203-		●
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10	1-09985-180-0	08	1	9203-	●	●
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09500-046-0	01	1	9203-	●	●
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=18	1-09985-173-0	08	1	9203-	●	●
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9203-	●	●
59	TUBE; DIST,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9203-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9203-	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-600-0	01	1	9203-	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-601-0	01	1	9203-	●	●
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-554-1	01	1	9203-	●	●
61	BOLT; BRKT,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9203-	●	●
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9203-	●	●
62	BOLT; AIR INT DUCT M10X26	1-09030-044-1	02	1	9203-	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-306-0	01	1	9203-	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9203-	●	●
209	BRACKET; ACL	1-53497-320-1	01	1	9203-	●
209	BRACKET; ACL (A)	1-53497-206-2	01	1	9203-		●
209	BRACKET; ACL (B)	1-53497-391-0	01	1	9203-		●
210	BOLT; ACL BRKT M12X40 W/LK WASHER	0-50041-240-0	04	1	9203-9307	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28081-240-0	04	1	9308-9503	●	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	04	1	9504-	●	●
211	NUT; BRKT M12	9-99110-412-0	03	1	9203-	●
211	NUT; BRKT M12	9-99110-412-0	04	1	9203-		●
249	GASKET; RUBBER,BELLOWS	1-14230-073-4	02	1	9203-	●
249	GASKET; RUBBER,BELLOWS	1-14230-118-0	02	1	9203-		●
257	NUT; BRKT M10 FLANGE	5-09440-006-0	04	1	9306-		●
259	BOLT; AIR DUCT TO BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9203-	●	●
291	BOLT; ACL M8X25 FLANGE	0-28080-825-0	04	1	9203-	●
383	RUBBER; SUPPORT,AIR INT,LWR VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	04	1	9203-	●	●
383	RUBBER; SUPPORT,AIR INT,LWR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	06	1	9203-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	02	1	9203-	●	●
389	RUBBER; SUPPORT,AIR INT UPR VERTICAL AIR CLEANER SNORKEL<PP3>	1-14119-189-0	04	1	9203-	●	●
400	NUT; CAP,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-121-0	08	1	9203-	●	●
400	NUT; CAP,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-145-0	01	1	9203-	●	●
456	BOLT; AIR INL HOOD VERTICAL AIR CLEANER SNORKEL<PP3> M8X25	1-09980-511-0	01	1	9203-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
