9-31 — REAR BODY; FLOOR AND FENDER (#141335) — 83 parça

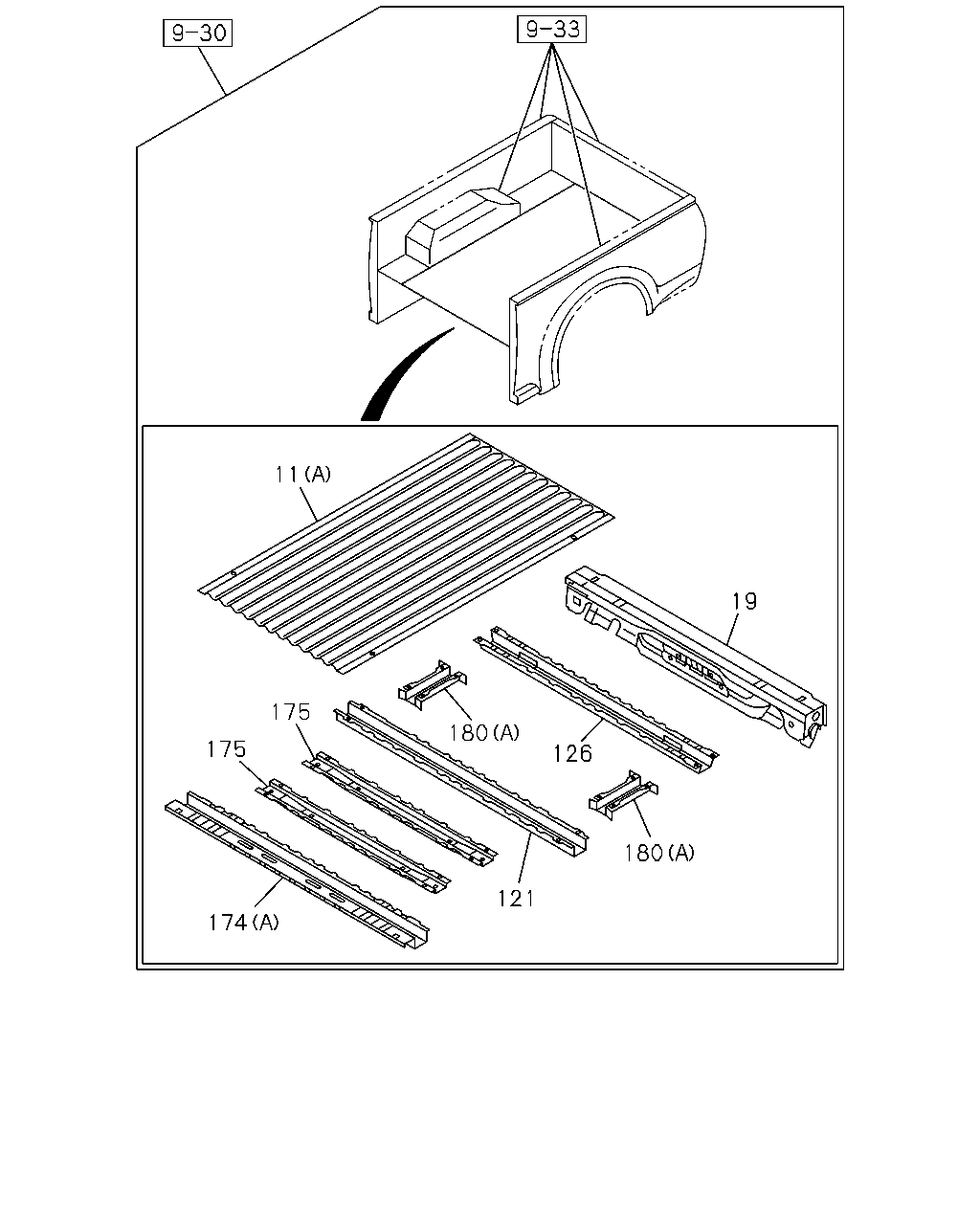

11 175 175 174 121 180 180 126 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-154-1	01	1	1406-	●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (C)	8-98104-150-1	01	1	1406-			●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-159-2	01	1	1406-					●	●
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98210-518-0	01	1	1406-	●	●	●	●	●	●
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98104-216-7	01	1	1406-	●	●	●	●	●	●
121	17.208 BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-194-2	01	1	1406-	●	●	●	●	●	●
126	17.505 BOLSTER; FRT END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-201-2	01	1	1406-	●	●	●	●	●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (A)	8-98140-852-4	01	1	1406-	●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (C)	8-98104-179-1	02	1	1406-			●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-258-3	01	1	1406-					●	●
175	17.447 SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	02	1	1406-	●	●	●	●
175	17.447 SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	01	1	1406-					●	●
180	17.447 REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-197-0	02	1	1406-	●	●	●	●	●	●
180	17.447 REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-185-0	02	1	1406-			●	●

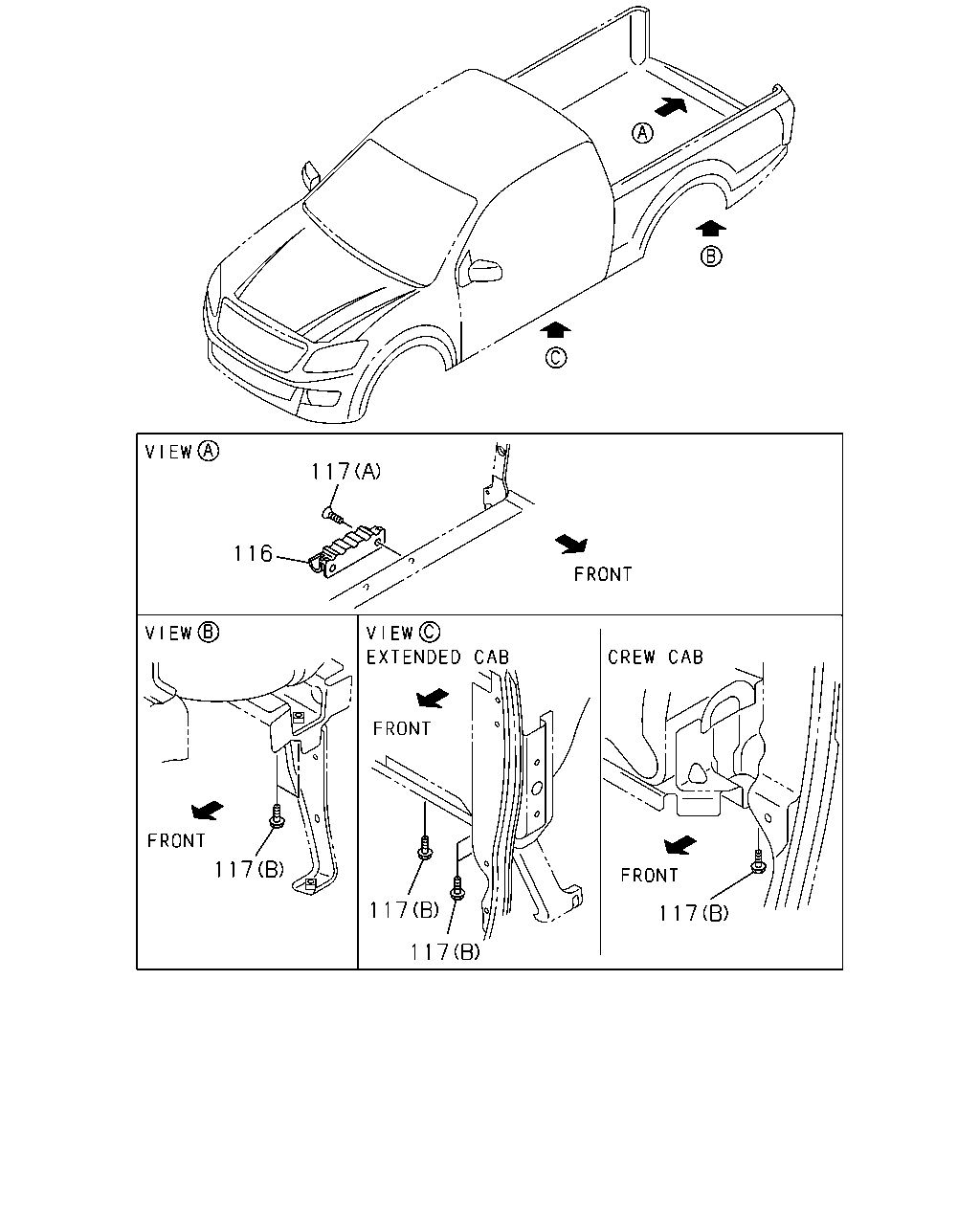

117 116 117 117 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98104-017-1	01	1	1406-			●	●
116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ>	8-98104-017-1	01	1	1406-					●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	10	1	1409-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	18	1	1406-1408	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	08	1	1409-1411	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	08	1	1412-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	06	1	1406-1411	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	06	1	1412-	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22	8-98050-437-0	02	1	1406-			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22	8-98050-437-0	02	1	1406-					●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	12	1	1406-1411			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	12	1	1412-			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	02	1	1406-1505					●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	02	1	1506-					●	●

117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	10	1	1409-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	18	1	1406-1408	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	08	1	1409-1411	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	08	1	1412-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	06	1	1406-1411	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	06	1	1412-	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22	8-98050-437-0	02	1	1406-			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22	8-98050-437-0	02	1	1406-					●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	12	1	1406-1411			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	12	1	1412-			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	02	1	1406-1505					●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	02	1	1506-					●	●

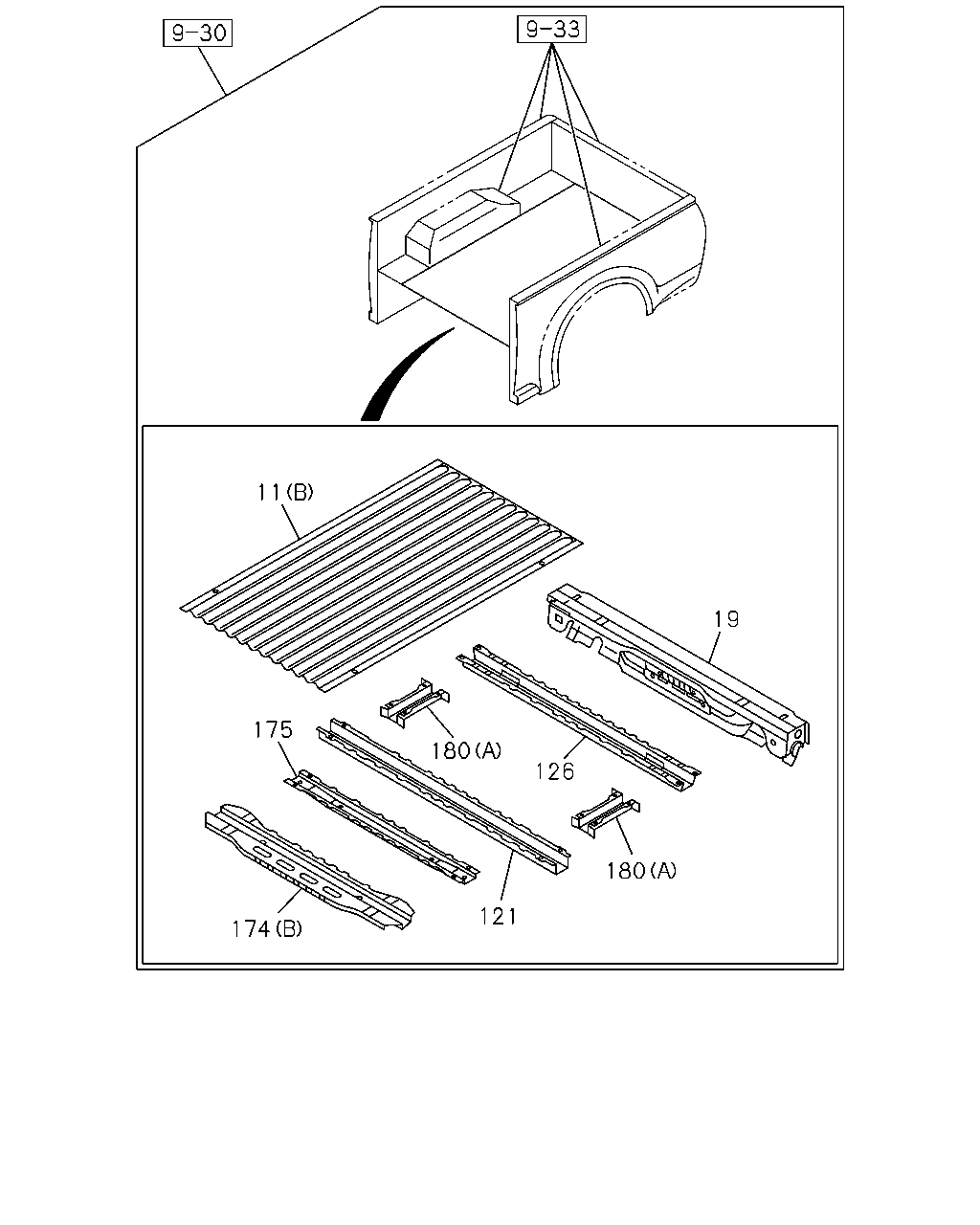

11 19 180 126 180 175 174 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-154-1	01	1	1406-	●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (C)	8-98104-150-1	01	1	1406-			●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-159-2	01	1	1406-					●	●
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98210-518-0	01	1	1406-	●	●	●	●	●	●
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98104-216-7	01	1	1406-	●	●	●	●	●	●
121	17.208 BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-194-2	01	1	1406-	●	●	●	●	●	●
126	17.505 BOLSTER; FRT END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-201-2	01	1	1406-	●	●	●	●	●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (A)	8-98140-852-4	01	1	1406-	●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (C)	8-98104-179-1	02	1	1406-			●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-258-3	01	1	1406-					●	●
175	17.447 SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	02	1	1406-	●	●	●	●
175	17.447 SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	01	1	1406-					●	●
180	17.447 REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-197-0	02	1	1406-	●	●	●	●	●	●
180	17.447 REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-185-0	02	1	1406-			●	●

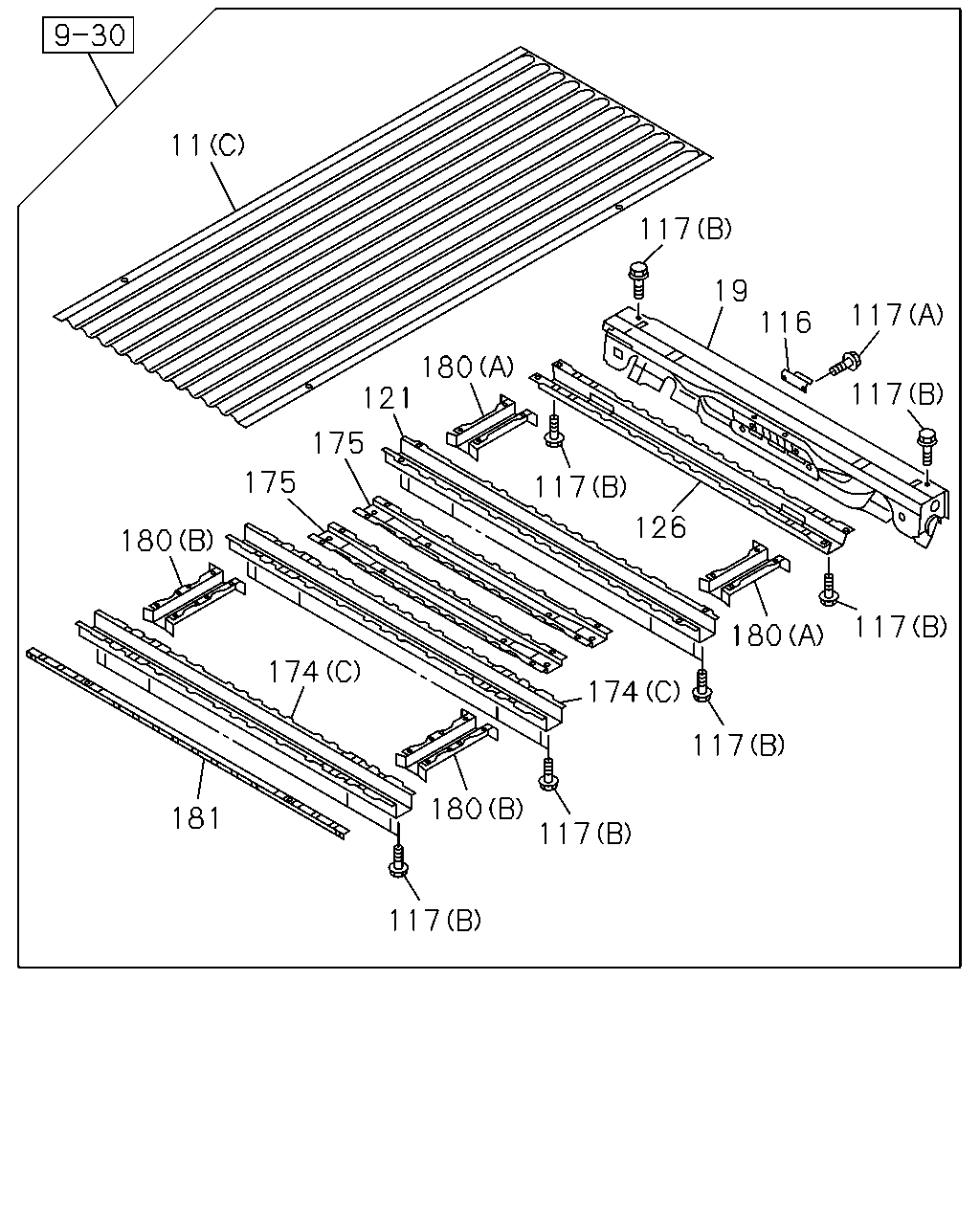

11 180 175 175 121 180 117 174 181 117 117 180 117 174 180 117 126 117 117 116 19 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-154-1	01	1	1406-	●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (C)	8-98104-150-1	01	1	1406-			●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-159-2	01	1	1406-					●	●
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98210-518-0	01	1	1406-	●	●	●	●	●	●
19	17.208 BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98104-216-7	01	1	1406-	●	●	●	●	●	●
116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98104-017-1	01	1	1406-			●	●
116	17.400 SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ>	8-98104-017-1	01	1	1406-					●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	10	1	1409-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	18	1	1406-1408	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	08	1	1409-1411	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	08	1	1412-	●	●	●	●	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	06	1	1406-1411	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	06	1	1412-	●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22	8-98050-437-0	02	1	1406-			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22	8-98050-437-0	02	1	1406-					●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	12	1	1406-1411			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20	8-98294-857-0	12	1	1412-			●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	02	1	1406-1505					●	●
117	17.400 BOLT; SILL REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	02	1	1506-					●	●
121	17.208 BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-194-2	01	1	1406-	●	●	●	●	●	●
126	17.505 BOLSTER; FRT END,RR BODY REAR BODY DBL WALL CTR PULL(E63)	8-98104-201-2	01	1	1406-	●	●	●	●	●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (A)	8-98140-852-4	01	1	1406-	●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (C)	8-98104-179-1	02	1	1406-			●	●
174	17.447 SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-258-3	01	1	1406-					●	●
175	17.447 SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	02	1	1406-	●	●	●	●
175	17.447 SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL(E63)	8-98104-191-2	01	1	1406-					●	●
180	17.447 REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (A)	8-98104-197-0	02	1	1406-	●	●	●	●	●	●
180	17.447 REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL(E63) (B)	8-98104-185-0	02	1	1406-			●	●
181	17.447 EXTENSION; PUBX,SILL REAR BODY DBL WALL CTR PULL(E63)	8-98104-171-1	01	1	1406-			●	●
