9-30 — REAR BODY ASM AND MOUNTING (#141334) — 22 parça

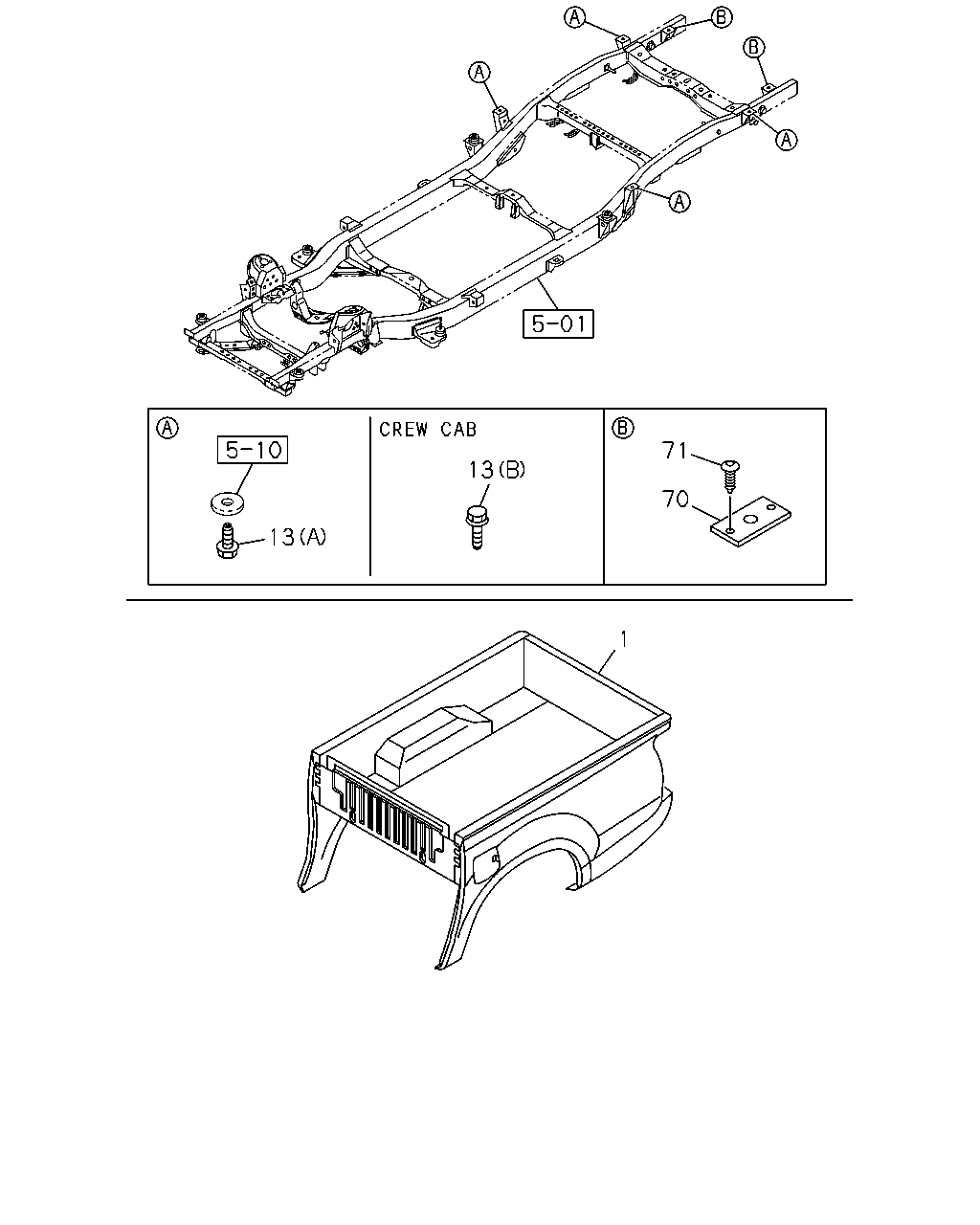

çizim 426759
13 13 71 70 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-786-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-785-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98193-784-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-783-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-790-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98193-794-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-794-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-792-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE S USPENSION(7YC) 		8-98193-791-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-788-0 01 1 1406- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-787-0 01 1 1406- ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 06 1 1406- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 08 1 1406- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 04 1 1406- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98176-522-0 02 1 1406- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 04 1 1406- ● ● ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 02 1 1406- ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 08 1 1406- ● ● ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 1406- ● ●
