8-90 — RADIO AND TV (#141332) — 71 parça

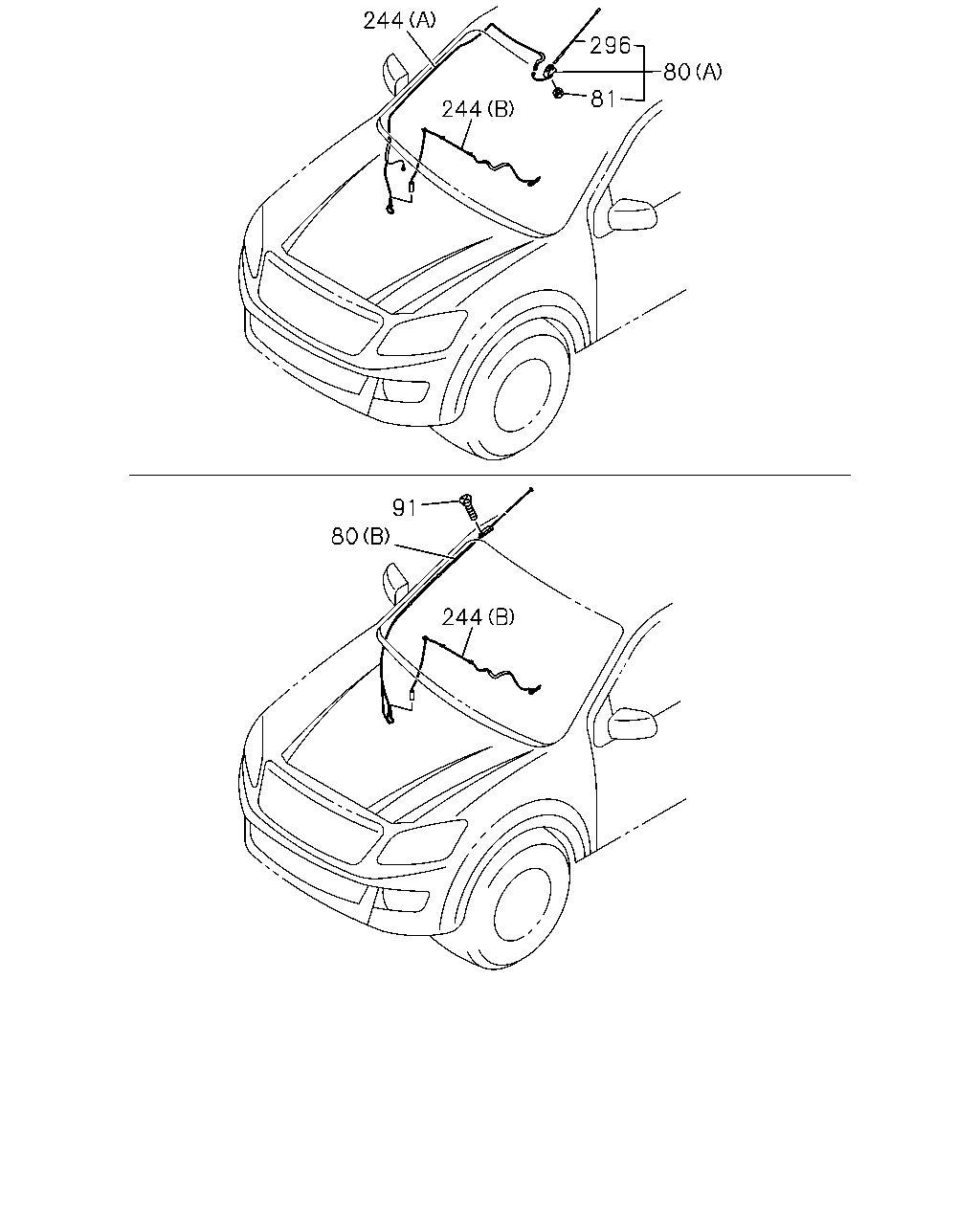

244 244 81 296 80 91 80 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	09.645 ANTENNA (A)	8-98053-048-0	01	1	1406-	●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> (A)	8-98053-048-0	01	1	1406-		●	●	●
80	09.645 ANTENNA (B)	8-98053-047-2	01	1	1406-					●	●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. ROOF RADIO ANTENNA<U71> (B)	8-98053-047-2	01	1	1406-		●	●	●
80	09.645 ANTENNA BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR A SH BEIGE MET(541),BODY COLOR VENETIANRED MICA(546) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) DARK GRAY	8-97423-673-2	01	1	1406-1507		●	●	●
80	09.645 ANTENNA BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR A SH BEIGE MET(541),BODY COLOR VENETIANRED MICA(546) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C)	8-97466-011-0	01	1	1508-		●	●	●
80	09.645 ANTENNA BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) SILVER	8-97423-670-2	01	1	1406-1505		●	●	●
80	09.645 ANTENNA BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C)	8-97466-010-0	01	1	1506-		●	●	●
81	09.647 NUT; ANTENNA POLE	8-98165-971-0	01	1	1406-	●
81	09.647 NUT; ANTENNA POLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71>	8-98165-971-0	01	1	1406-		●	●	●
91	09.663 BOLT; ANTENNA M5X16	8-97375-569-0	02	1	1406-					●	●
91	09.663 BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	1406-		●	●	●
244	09.647 CABLE; FEEDER (B)	8-98053-051-1	01	1	1406-	●				●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B)	8-98053-051-1	01	1	1406-		●	●	●
244	09.647 CABLE; FEEDER (A)	8-98063-228-0	01	1	1406-	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> (A)	8-98063-228-0	01	1	1406-		●	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C)	8-98192-896-2	01	1	1406-		●	●	●
296	09.665 ROD; ANTENNA	8-98165-969-0	01	1	1406-	●
296	09.665 ROD; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71>	8-98165-969-0	01	1	1406-		●	●	●

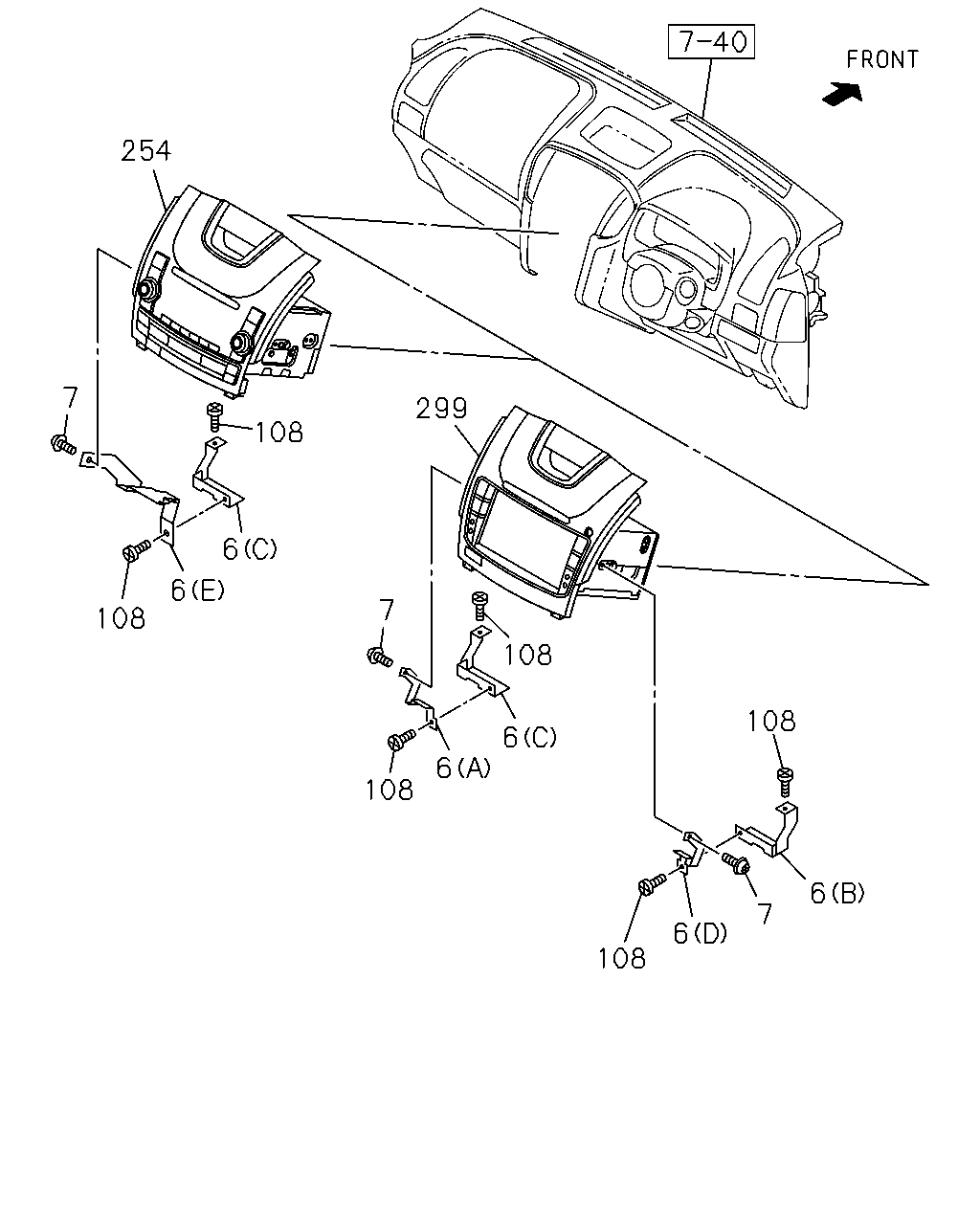

254 7 108 6 6 108 299 108 6 6 108 7 108 7 6 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	09.645 BRACKET; RADIO TO PANEL (E)	8-98227-139-1	01	1	1406-	●				●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (E)	8-98227-139-1	01	1	1406-		●	●	●
6	09.645 BRACKET; RADIO TO PANEL (C)	8-98106-390-3	01	1	1406-	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A)	8-98102-186-2	01	1	1406-		●	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B)	8-98102-187-3	01	1	1406-		●	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D)	8-98109-822-2	01	1	1406-		●	●	●
7	09.650 SCREW; RADIO 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1406-	●				●	●
7	09.650 SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1406-		●	●	●
7	09.650 SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1406-		●	●	●
108	09.645 SCREW; BRKT 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1406-	●				●	●
108	09.645 SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1406-		●	●	●
108	09.645 SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 08.083 M5X16 TAPPING	8-98167-449-0	04	1	1406-		●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98243-601-2	01	1	1406-	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98243-601-2	01	1	1406-		●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98241-356-2	01	1	1406-	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM	8-98241-356-2	01	1	1406-					●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98241-356-2	01	1	1406-		●	●	●
299	09.766 DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98217-274-2	01	1	1406-1407		●	●	●
299	09.766 DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98287-432-0	01	1	1408-1504		●	●	●
299	09.766 DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98309-241-0	01	1	1505-		●	●	●

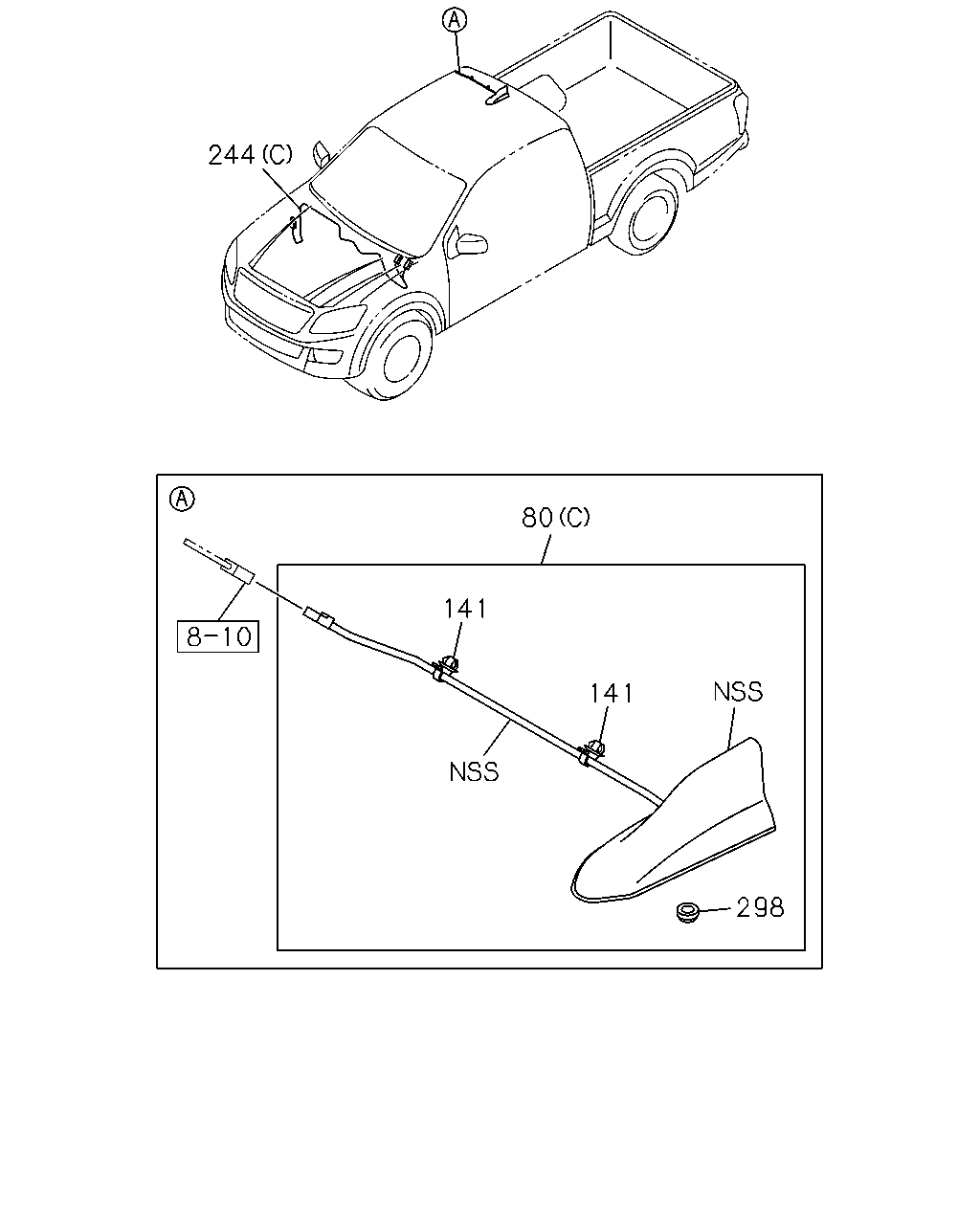

244 80 141 141 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	09.645 ANTENNA (A)	8-98053-048-0	01	1	1406-	●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> (A)	8-98053-048-0	01	1	1406-		●	●	●
80	09.645 ANTENNA (B)	8-98053-047-2	01	1	1406-					●	●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. ROOF RADIO ANTENNA<U71> (B)	8-98053-047-2	01	1	1406-		●	●	●
80	09.645 ANTENNA BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR A SH BEIGE MET(541),BODY COLOR VENETIANRED MICA(546) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) DARK GRAY	8-97423-673-2	01	1	1406-1507		●	●	●
80	09.645 ANTENNA BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR A SH BEIGE MET(541),BODY COLOR VENETIANRED MICA(546) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C)	8-97466-011-0	01	1	1508-		●	●	●
80	09.645 ANTENNA BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) SILVER	8-97423-670-2	01	1	1406-1505		●	●	●
80	09.645 ANTENNA BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C)	8-97466-010-0	01	1	1506-		●	●	●
141	03.162 CLIP; ANTENNA CABLE AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98219-154-0	02	1	1406-		●	●	●
244	09.647 CABLE; FEEDER (B)	8-98053-051-1	01	1	1406-	●				●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B)	8-98053-051-1	01	1	1406-		●	●	●
244	09.647 CABLE; FEEDER (A)	8-98063-228-0	01	1	1406-	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> (A)	8-98063-228-0	01	1	1406-		●	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C)	8-98192-896-2	01	1	1406-		●	●	●
298	09.647 NUT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98219-125-0	01	1	1406-		●	●	●

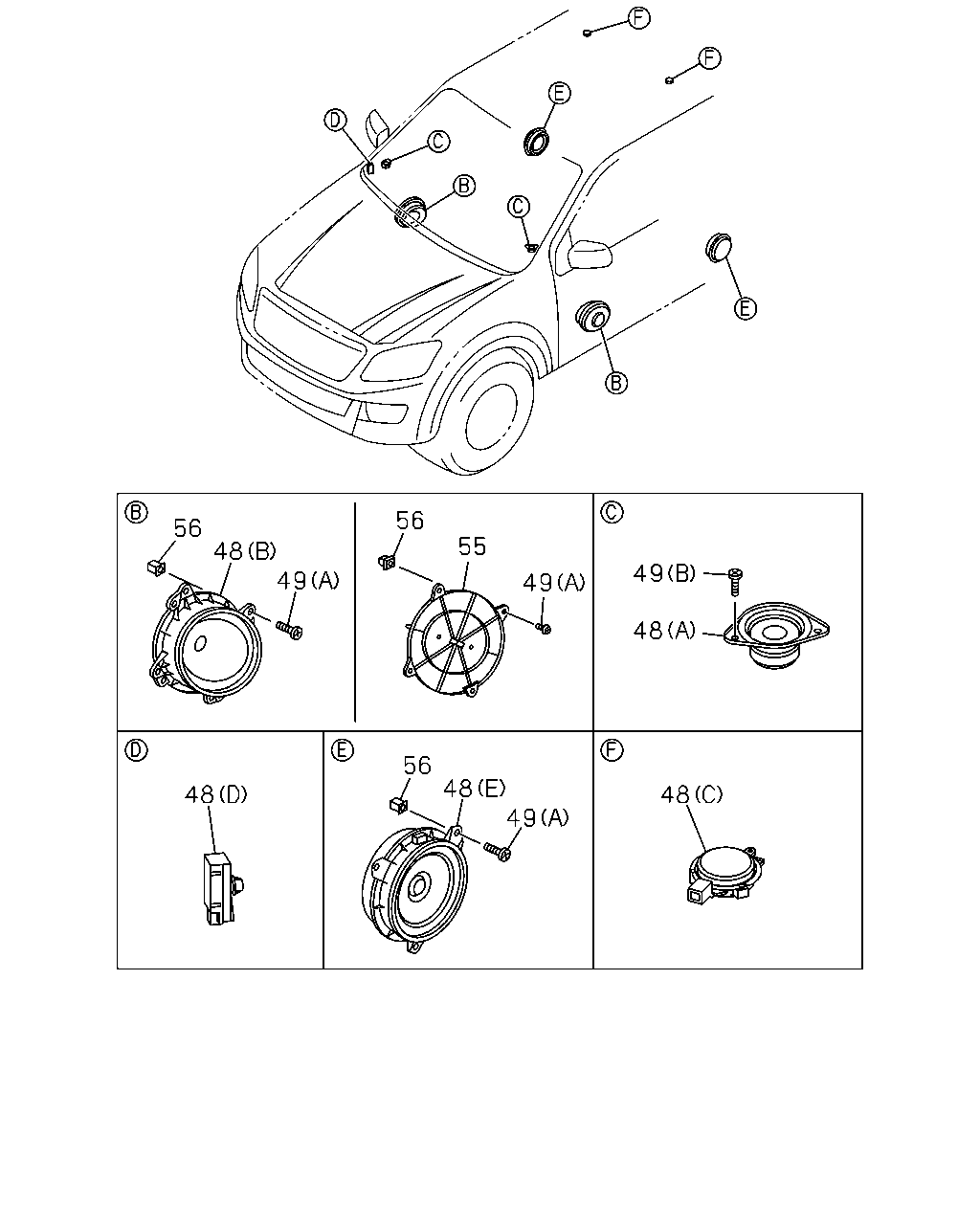

56 48 49 56 55 49 49 48 48 49 48 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (A)	8-98052-940-0	02	1	1406-	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> (C)	8-98052-942-0	02	1	1406-	●	●	●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> (D)	8-98064-704-0	01	1	1406-	●	●	●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> ,2-SPEAKER SYSTEM BASE<U95> (B)	8-98052-937-0	02	1	1406-	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (E)	8-98052-941-0	02	1	1406-		●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> 08.083 (B) M5X16 TAPPING	8-98167-449-0	04	1	1406-	●	●	●	●	●	●
49	09.655 SCREW; SPEAKER 16.345 (A) M5X14 TAPPING	8-98184-363-0	08	1	1406-	●	●	●	●	●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 16.345 (A) M5X14 TAPPING	8-98184-363-0	06	1	1406-		●		●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM <U87>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1406-	●	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO	8-98163-895-0	08	1	1406-	●	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>	8-98163-895-0	06	1	1406-		●		●

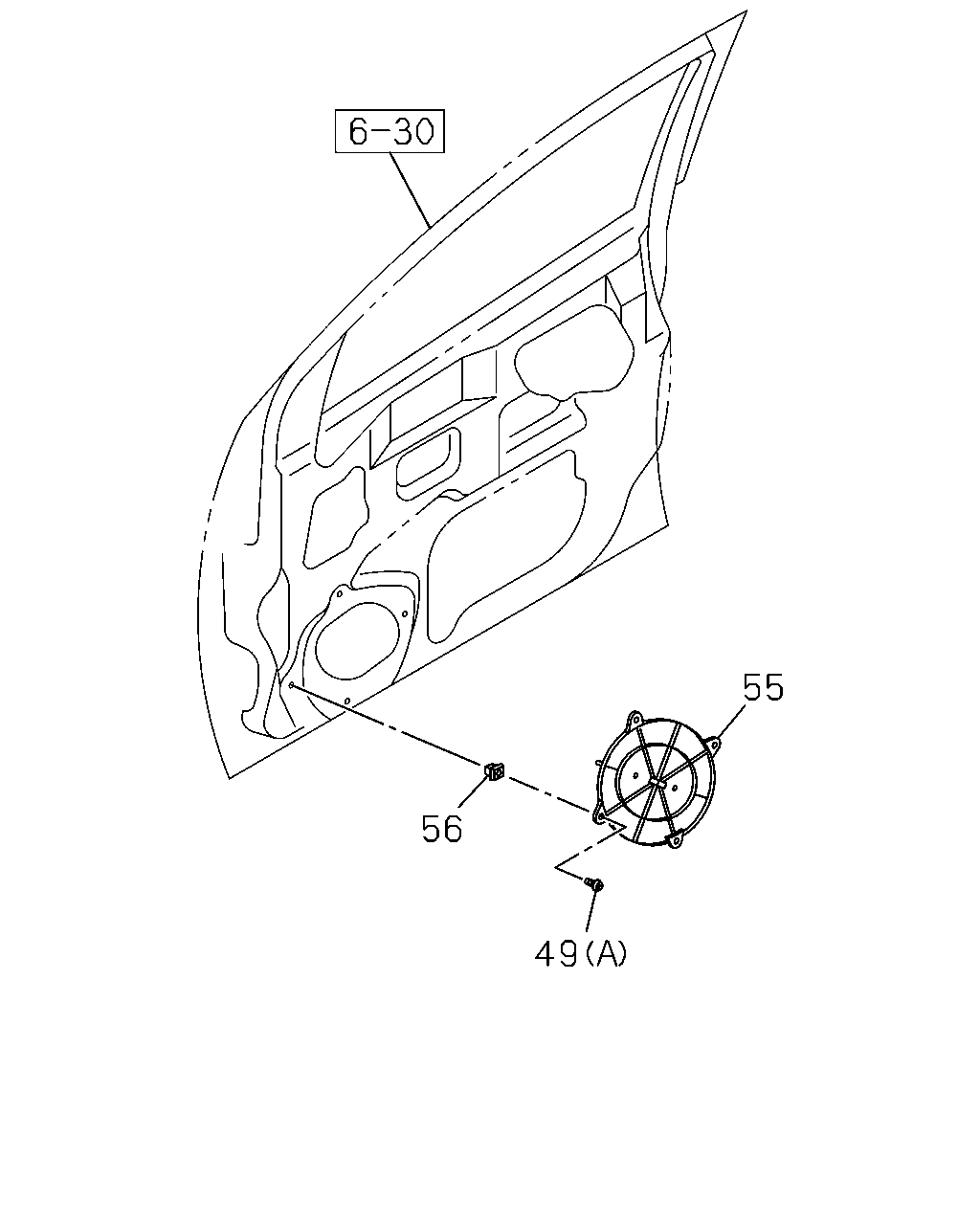

56 55 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> 08.083 (B) M5X16 TAPPING	8-98167-449-0	04	1	1406-	●	●	●	●	●	●
49	09.655 SCREW; SPEAKER 16.345 (A) M5X14 TAPPING	8-98184-363-0	08	1	1406-	●	●	●	●	●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 16.345 (A) M5X14 TAPPING	8-98184-363-0	06	1	1406-		●		●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM <U87>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1406-	●	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO	8-98163-895-0	08	1	1406-	●	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>	8-98163-895-0	06	1	1406-		●		●
